Bosch Series 6 PPQ7A6I40 Gas Hob

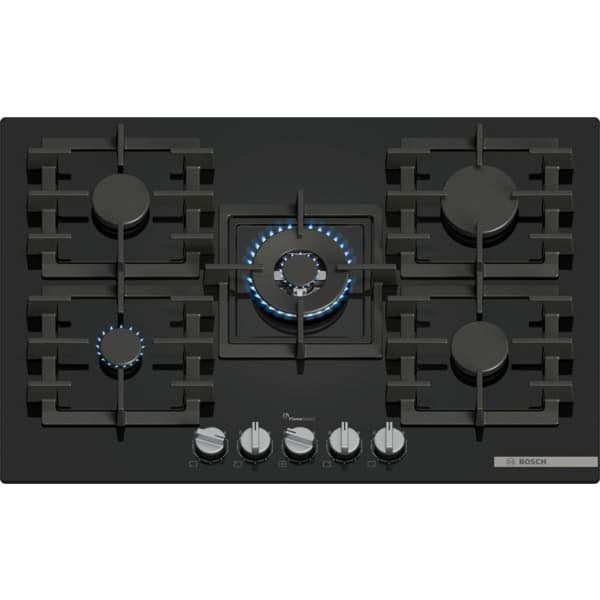

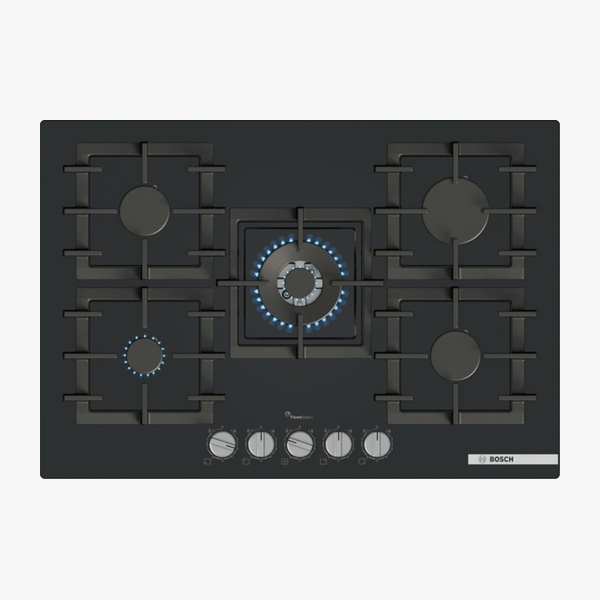

The Series 6 PPQ7A6I40 is a 75 cm built–in gas hob with integrated controls, designed with a black tempered glass surface and cast iron pan supports. It offers precise flame control with FlameSelect across five gas burners, including a powerful wok burner. Detachable metallic control dials and dishwasher–suitable pan supports support easy cleaning, while options for standard or semi–flush installation provide flexibility in modern kitchen layouts.

SKU:PPQ7A6I40

EAN:4242005437832

Category::Hobs

Quantity:

Key Features

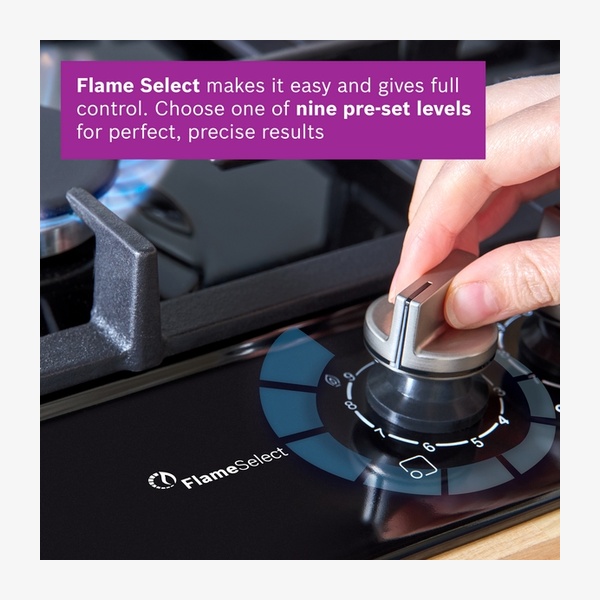

FlameSelect precise control – precisely control and adjust the flame in nine defined levels.

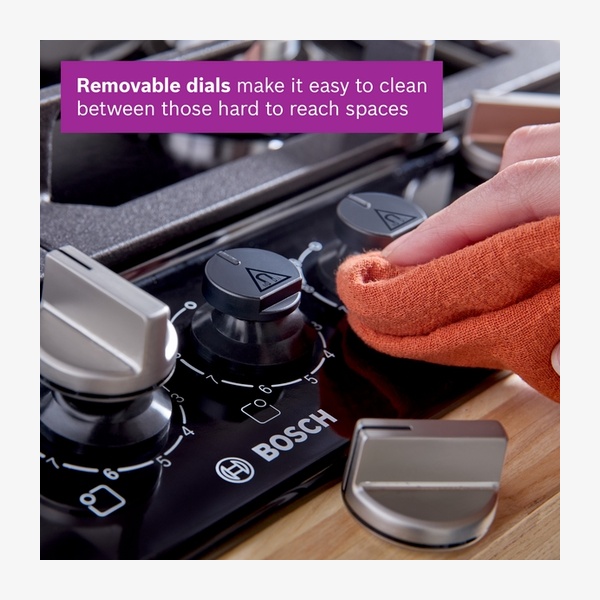

Easy cleaning design – removable control dials and dishwasher–suitable cast iron pan supports for easy cleaning.

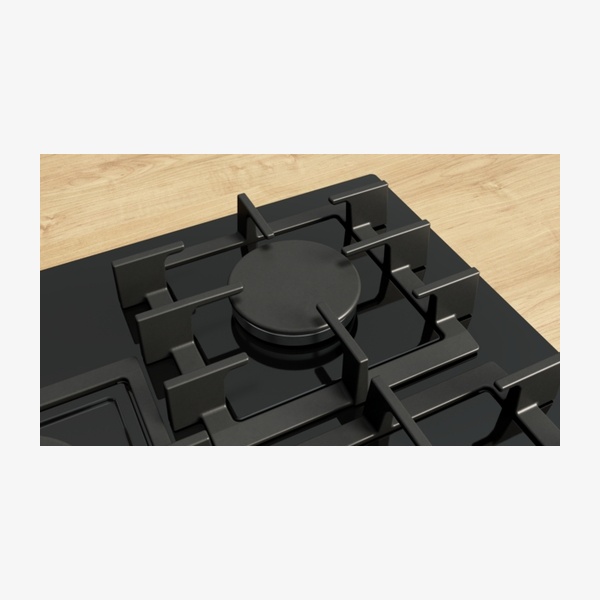

Semi–continuous pan supports – smaller supports for easier cleaning while providing a seamless cooking surface and high stability.

Wok burner performance – centre front wok burner up to 4 KW (depending on gas type) for quick boiling or precise simmering.

Five gas burners – economy, standard, high–speed and wok burners to suit different cooking needs.

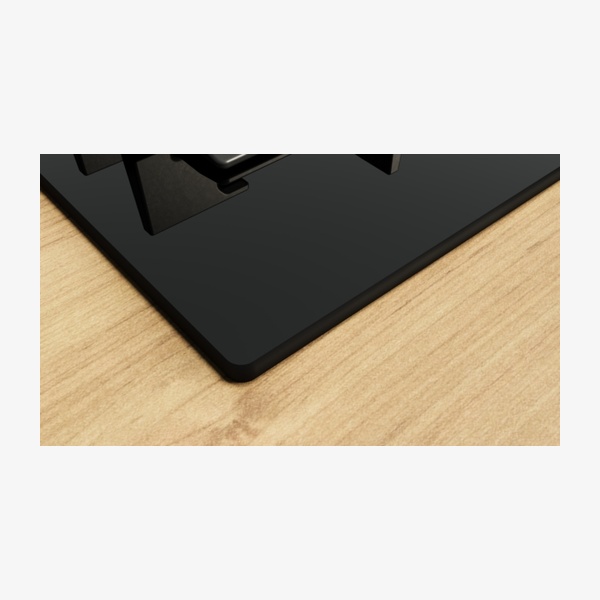

Tempered glass surface – black tempered glass with frameless design for flush or slightly raised installation.

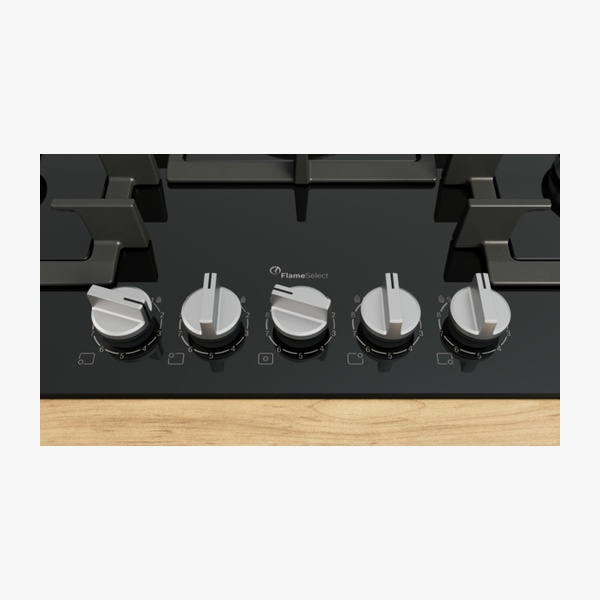

Front integrated controls – design co–ordinated, full metal control dials located at the front for easy access and effortless turning.

Push–and–turn ignition – ignition via control dials by simply pushing and turning to ignite the flame.

Flame failure safety device – helps prevent unwanted gas flow when the flame goes out.

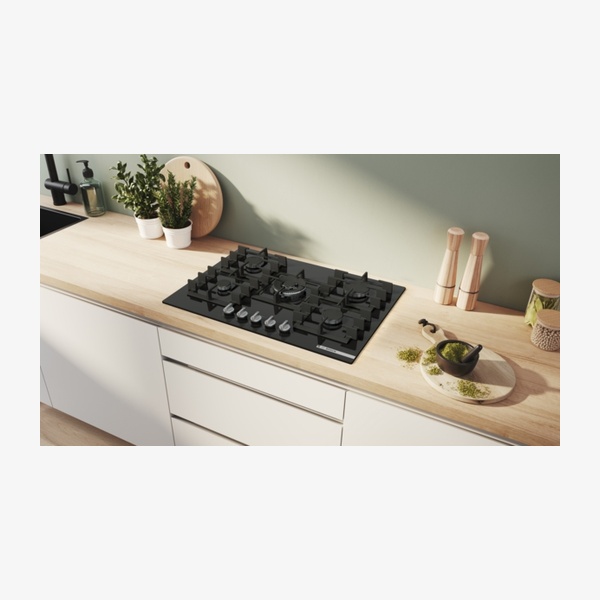

Built–in installation – suitable for standard and semi–flush built–in installation with specified niche dimensions.

Cast iron pan supports with rubber feet – little weight and compact form with continuous surface for high stability.

Pre–set for natural gas – pre–set for natural gas with nozzle set for LPG jets included.

Optional accessories available – simmer plate, wok ring, small pot support, wireless food thermometer and cookware sets (4– and 6–piece).

Technical Spec

Appliance typegas hob w integrated controls

Built–in / Free–standingBuilt–in

Heating typeGas

Number of cooking zones5

Dimensions (HxWxD)45x752x520 mm

Dimensions of the product (HxWxD)54 x 752 x 520 mm

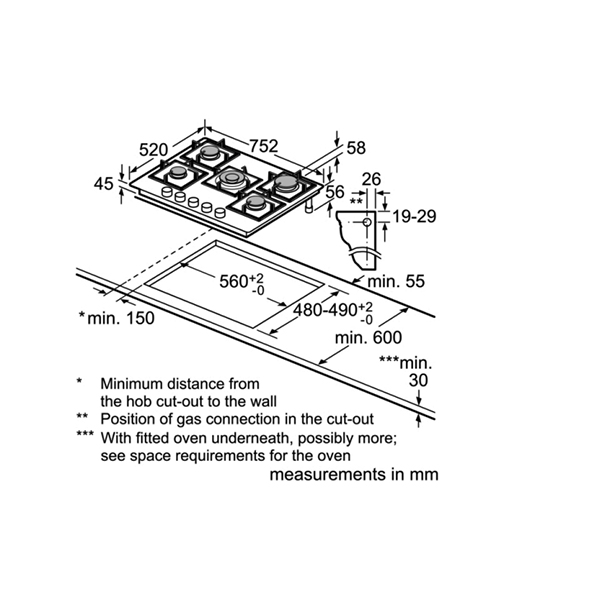

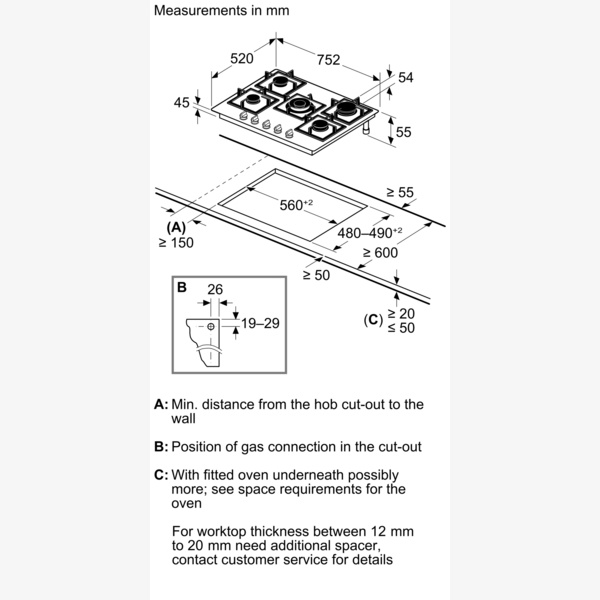

Required niche size (HxWxD)45 x 560 x (480–490) mm / 45 x 560–560 x 480–490 mm

Width of the appliance752 mm

Dimensions of packed product (HxWxD)150x800x600 mm

Net weight19.0 kg

Gross weight21.5 kg

Residual heat indicatorWithout

Location of control panelFront

Basic surface materialTempered glass

Colour of surfaceBlack

Colour of frameBlack

Length of electrical supply cord100 cm / 1 m

Gas connection rating11500 W / 11.5 KW

Fuse protection3 A

Voltage220–240 V

Frequency50; 60 Hz

EAN code4242005437832

Min. worktop thickness20 mm

Min. worktop thickness (flush)30 mm if installed flush

Downloads

Download product documentation, manuals, and specification sheets.

PPQ7A6I40 Spec

PDF

Frequently Asked Questions

How many burners does the PPQ7A6I40 gas hob have?

The hob has 5 gas burners: an economy burner, two standard burners, a high–speed burner and a centre front wok burner.

What is the size of the hob and required cut–out?

The hob measures 54 x 752 x 520 mm (HxWxD). The required niche size for installation is 45 x 560 x (480–490) mm, with a minimum worktop thickness of 20 mm, or 30 mm if installed flush.

Is this hob suitable for LPG as well as natural gas?

Yes. The hob is pre–set for natural gas and can be used with various natural gas and liquid gas types. A nozzle set for LPG jets for 28–30/37 mbar bottled gas is included, and nozzles for other gas types can be ordered via customer service.

How is the flame controlled on this hob?

FlameSelect technology allows you to precisely control and adjust the flame in nine defined levels using the front control dials. Ignition is via the control dials by pushing and turning.

Can the pan supports and controls be cleaned in a dishwasher?

The cast iron pan supports are dishwasher suitable. The control dials are removable for easy cleaning between the knobs; dishwasher suitability for the dials is not stated in source.

What safety feature does the hob have for gas flow?

The hob includes a flame failure safety device that helps prevent unwanted gas flow when the flame goes out.
