Bosch Serie 6 PPQ7A6B90 Gas Hob

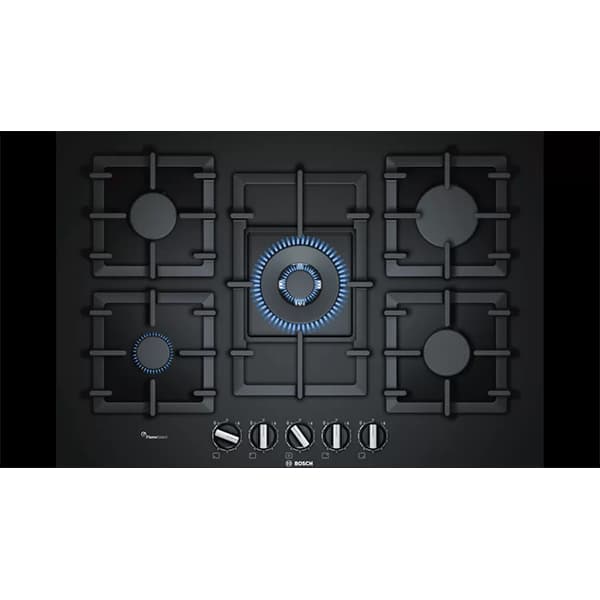

The Series 6 PPQ7A6B90 is a 75 cm built-in gas hob with a black tempered-glass surface and frameless design for flush or slightly raised installation. It features five gas burners, including a wok burner, and FlameSelect for nine precisely defined power levels. Front-mounted sword knobs offer strong grip and effortless turning, while cast iron pan supports with rubber feet provide a stable cooking surface. A flame failure safety device helps prevent unwanted gas flow if the flame goes out.

SKU:PPQ7A6B90

EAN:4242002914985

Category::Hobs

Quantity:

Key Features

Tempered-glass surface, Black for a sleek look and easy integration with modern kitchens.

Frameless design allows installation either flush or slightly raised on the worktop.

FlameSelect enables precise flame control with nine defined power levels.

Five gas burners including economy, standard, high-speed and wok burners (up to 4 kW depending on gas type).

Cast iron pan supports with rubber feet provide sturdy support for cookware.

Front control panel with design co-ordinated sword knobs for effortless turning and easy access.

Flame failure safety device helps prevent unwanted gas flow when the flame goes out.

Pre-set for natural gas with LPG nozzle set included for connection to 28–30/37 mbar bottled gas.

75 cm appliance width with overall dimensions of 45×752×520 mm.

Optional accessories include simmer cap, simmer plate, small pot support and wok ring.

Technical Spec

Product nameSeries 6, Gas hob, 75 cm, Tempered glass, Black – PPQ7A6B90

Appliance typegas hob w integrated controls

Built-in / Free-standingBuilt-in

Heating typeGas

Number of cooking zones5

Type of control setting devicessword knobs

Location of control panelFront

Basic surface materialTempered glass

Colour of surfaceBlack

Colour of frameBlack

Dimensions (HxWxD)45×752×520 mm

Dimensions of the product (HxWxD)58×752×520 mm

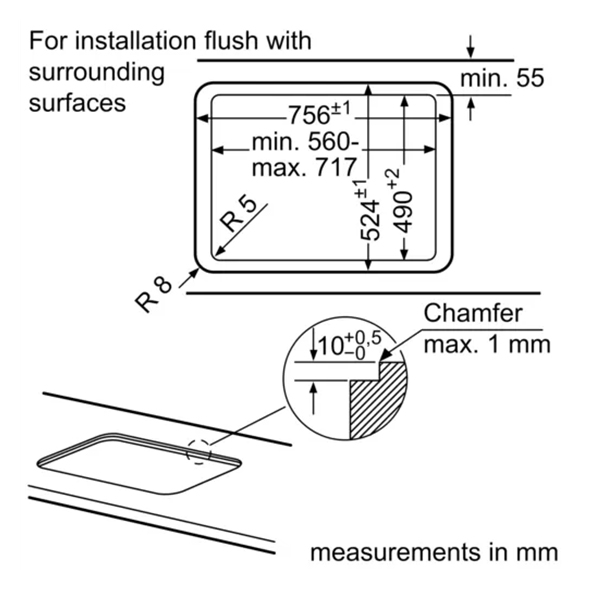

Required niche size (HxWxD)45×560–562×480–492 mm / 45×560×(480–492) mm

Width of the appliance752 mm

Dimensions of packed product (HxWxD)145×793×597 mm

Net weight19.0 kg

Gross weight20.5 kg

Residual heat indicatorWithout

Length of electrical supply cord100 cm / Power cord: 1 m

Gas connection rating / Connected loadGas connection rating: 11500 W / Connected load: 11.5 KW

Voltage220–240 V

Frequency60; 50 Hz

Fuse protection3 A

EAN code4242002914985

Min. worktop thickness30 mm

Downloads

Download product documentation, manuals, and specification sheets.

PPQ7A6B90 Spec

PDF

Frequently Asked Questions

How many burners does the PPQ7A6B90 gas hob have?

The hob has 5 gas burners: an economy burner, two standard burners, a high-speed burner and a wok burner.

What is FlameSelect on this gas hob?

FlameSelect allows you to precisely control and adjust the flame in nine defined power levels for more accurate cooking.

Is this hob suitable for installation flush with the worktop?

Yes. The frameless design lets you install the hob either flush or slightly raised on the worktop.

Does the hob include a safety device for gas flow?

Yes. It has a flame failure safety device which helps prevent unwanted gas flow when the flame goes out.

Which gas types can this hob operate with?

It can be used with various natural gas and liquid gas types including Nat gas L/LL G25/20 mbar, NG H/E 20 mbar, E+ 20/25 mbar, Natural gas H 25 mbar, Natural gas L 25 mbar, Liquid gas G30,31 28–30/37 mbar, Liquid gas G30 37 mbar and Liquid gas 50 mbar.

Are accessories like a wok ring available?

Yes. Optional accessories include a simmer cap (HEZ211310), simmer plate (HEZ298105), small pot support (HEZ298114) and wok ring (HEZ298127).
