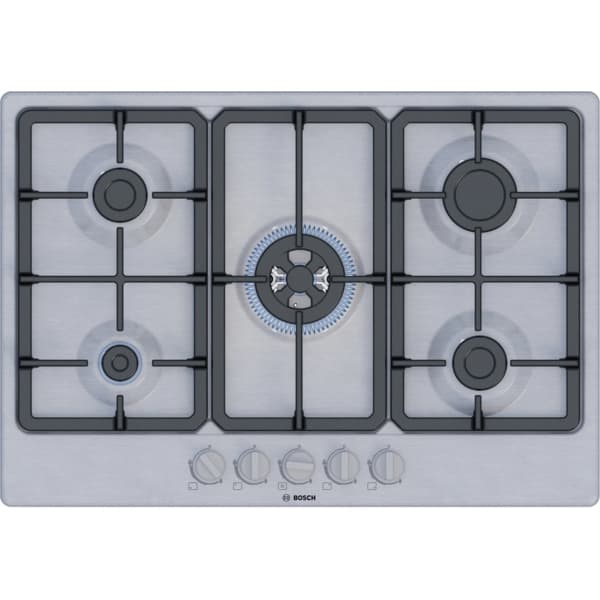

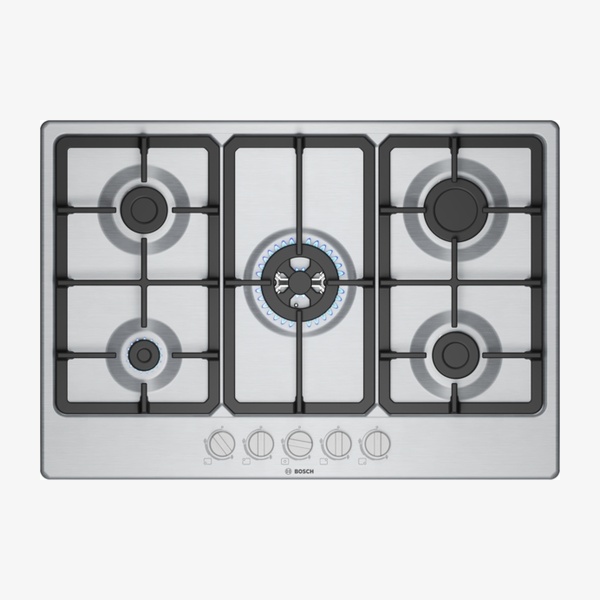

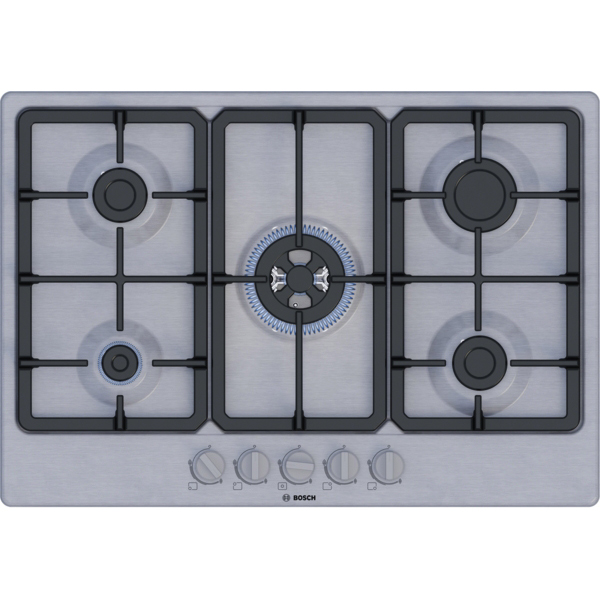

Bosch Series 4 PGQ7B5K90 Gas Hob

This 75 cm Series 4 stainless steel gas hob offers five burners with integrated front controls for precise cooking. It features cast iron pan supports that are suitable for the dishwasher, ergonomic sword dials with ignition via the control dials, and a safety gas cut–off with flame failure safety device. Designed as a built–in appliance, it is pre–set for natural gas and comes with an LPG nozzle set for flexible installation.

SKU:PGQ7B5K90
EAN:4242005473670
Category::Hobs
2 Year Warranty

Key Features

Dishwasher–suitable pan supports : Easy, scrub–free cleaning of cast iron pan supports.
Ergonomic sword dials : Raised centre for precise adjustments and strong grip for effortless turning.
Ignition via control dials : Just push and turn the dials to ignite the flame.

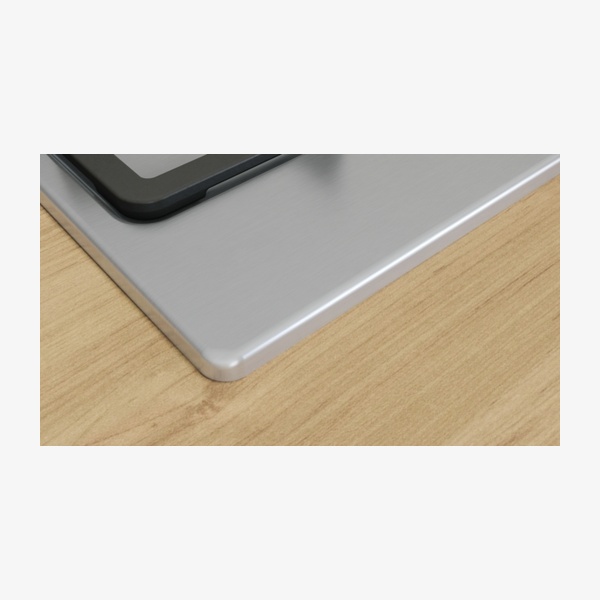

Stainless steel design : Seamless, one–piece stainless steel surface makes cleaning simple.

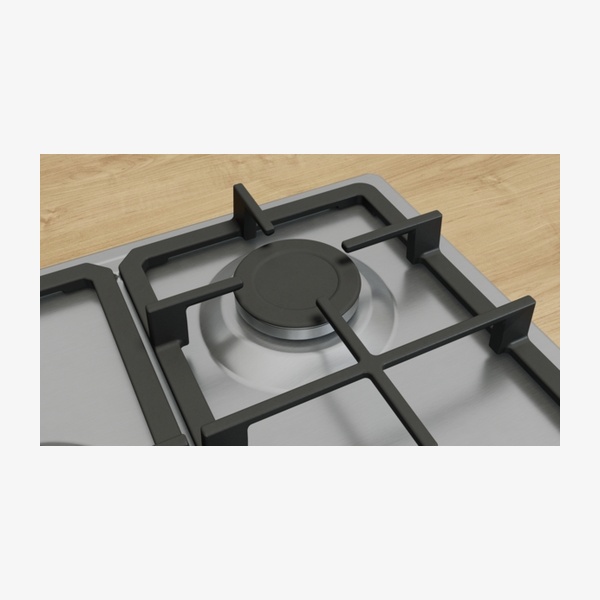

Continuous cast iron pan support : Provides safety and stability for cookware.
Safety gas cut–off : Instantly cuts off gas supply if the flame goes out.
Flame failure safety device : Prevents unwanted gas flow when the flame goes out.
Five gas burners : Includes economy, standard, high–speed and wok burners up to 3.3 kW (depending on gas type).
Front control panel : Design co–ordinated control dials positioned at the front for easy access.
Built–in gas hob with integrated controls : 75 cm wide appliance designed for installation into a worktop.
Pre–set for natural gas : Nozzle set for LPG jets included, with options for various gas types.
Optional accessories available : Simmer plate, wok ring, small pot support, wireless food thermometer and cookware sets.

Technical Spec

Appliance typegas hob w integrated controls
Built–in / Free–standingBuilt–in
Heating typeGas
Number of cooking zones5
Type of control setting devicessword knobs

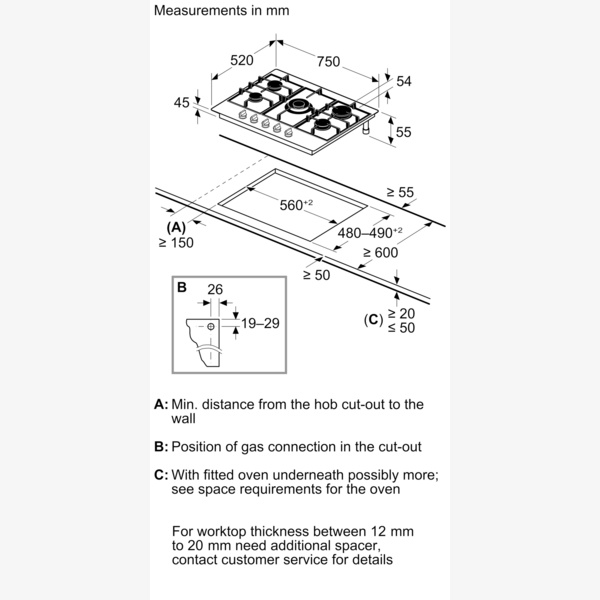

Required niche size (HxWxD)45 x 560–560 x 480–490 mm
Width of the appliance750 mm
Dimensions (HxWxD)45 x 750 x 520 mm
Packed product dimensions (HxWxD)145 x 793 x 597 mm
Net weight9.0 kg
Gross weight10.9 kg
Residual heat indicatorWithout
Location of control panelFront
Basic surface materialStainless steel
Colour of surfaceStainless steel
Length of electrical supply cord100 cm
EAN code4242005473670
Gas connection rating10800 W
Fuse protection3 A
Voltage220–240 V
Frequency50; 60 Hz
Dimensions of the product (HxWxD)54.2 x 750 x 520 mm
Min. worktop thickness20 mm
Power cord length1 m
Connected load10.8 kW

Downloads

Download product documentation, manuals, and specification sheets.

PGQ7B5K90 Spec

PDF

Frequently Asked Questions

How many burners does the PGQ7B5K90 gas hob have?

The hob has 5 gas burners: an economy burner, two standard burners, a high–speed burner and a wok burner (all outputs depending on gas type).

Are the pan supports suitable for the dishwasher?

Yes, the cast iron pan supports are described as dishwasher suitable for easy, scrub–free cleaning.

What safety features does this gas hob include?

It has a safety gas cut–off that instantly cuts the gas supply if the flame goes out and a flame failure safety device that prevents unwanted gas flow when the flame goes out.

Is the hob pre–set for a specific gas type?

The hob is pre–set for natural gas. A nozzle set for LPG jets is included for connection to 28–30/37 mbar bottled gas.

What optional accessories are available?

Optional accessories listed are: HEZ298105 simmer plate, HEZ298107 wok ring, HEZ298114 small pot support, HEZ32WA00 wireless food thermometer, HEZ9SE040 4 pieces set and HEZ9SE060 6 pieces set.
