Bosch Series 6 PCS7A5I90 Gas Hob

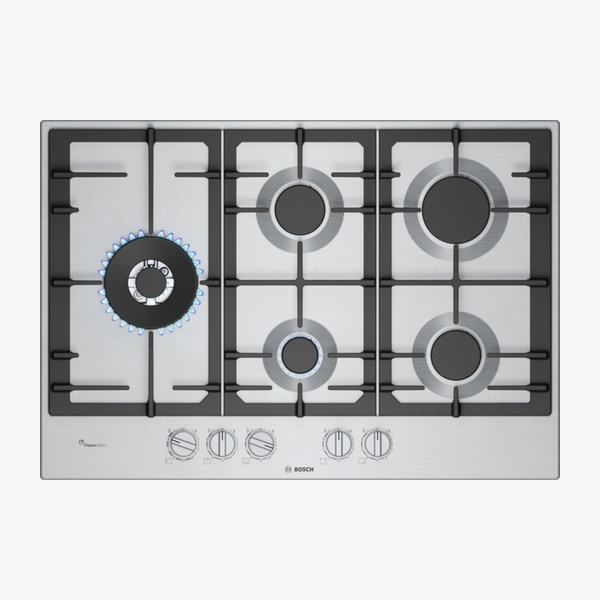

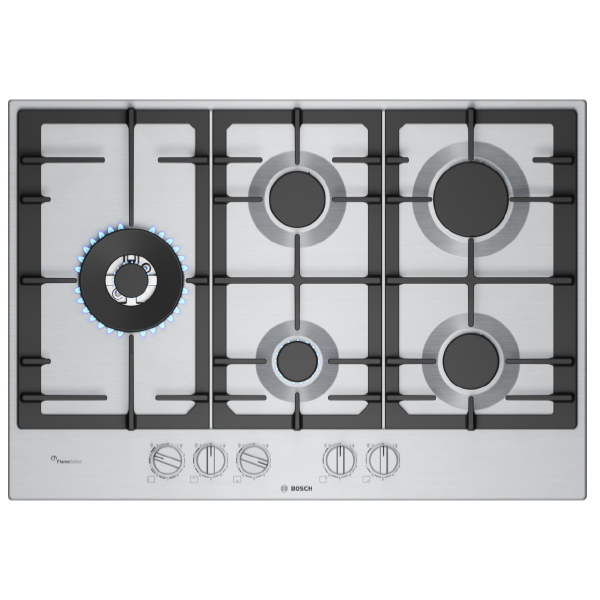

The Series 6 PCS7A5I90 is a 75 cm built–in stainless steel gas hob with five burners and integrated front controls. It offers precise flame control with FlameSelect and a dual control wok burner for an extra wide power range. Removable metallic dials and dishwasher–suitable cast iron pan supports support easy cleaning, while the flame failure safety device helps prevent unwanted gas flow when the flame goes out.

SKU:PCS7A5I90

EAN:4242005496129

Category::Hobs

Quantity:

Key Features

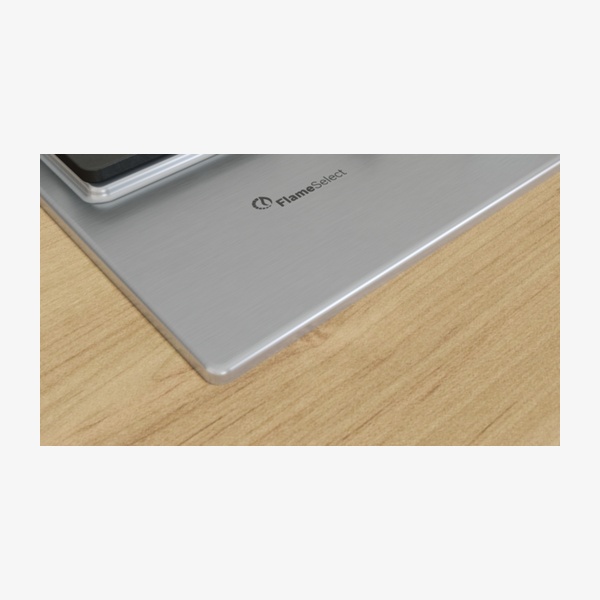

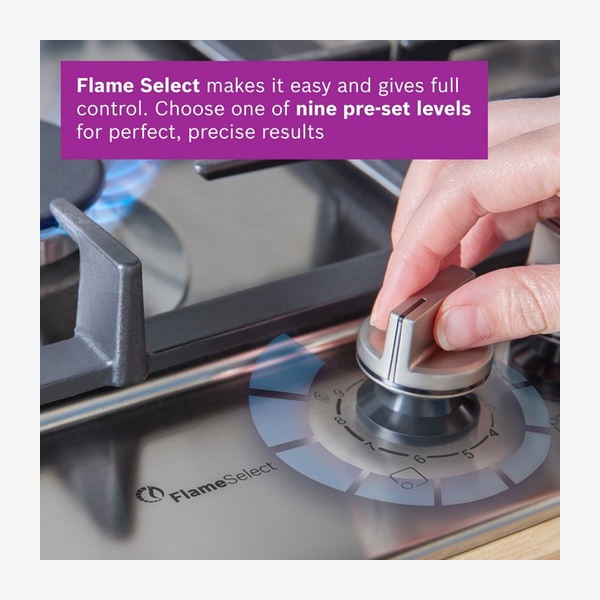

FlameSelect precise control – control and adjust the flame in nine defined levels.

Dual control wok burner – extra wide power range with two separately controlled flame rings.

Five gas burners – including wok, economy, standard and high–speed burners up to 5 KW (depending on gas type).

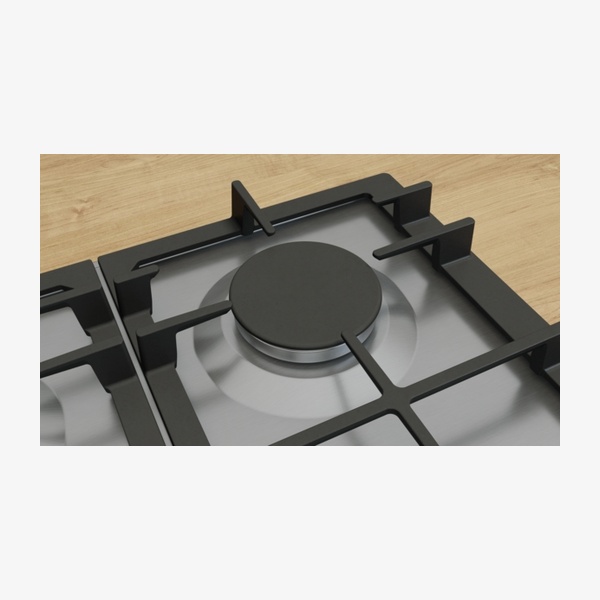

Dishwasher–suitable pan supports – cast iron pan supports designed for easy, scrub–free cleaning.

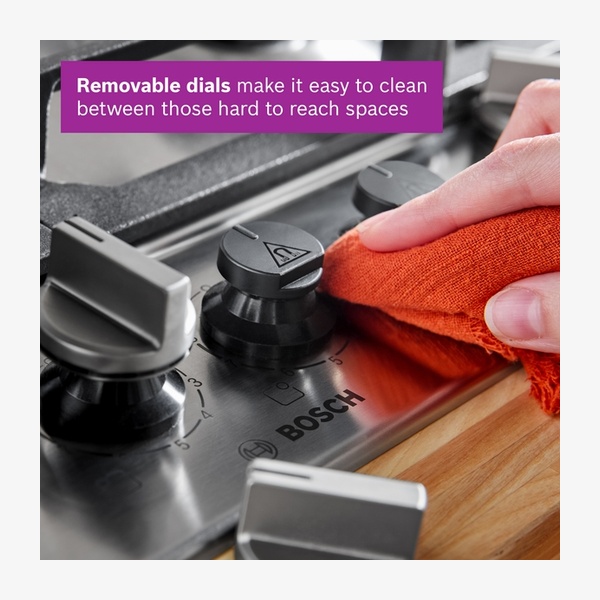

Removable full metal dials – detachable control dials for effortless cleaning between knobs.

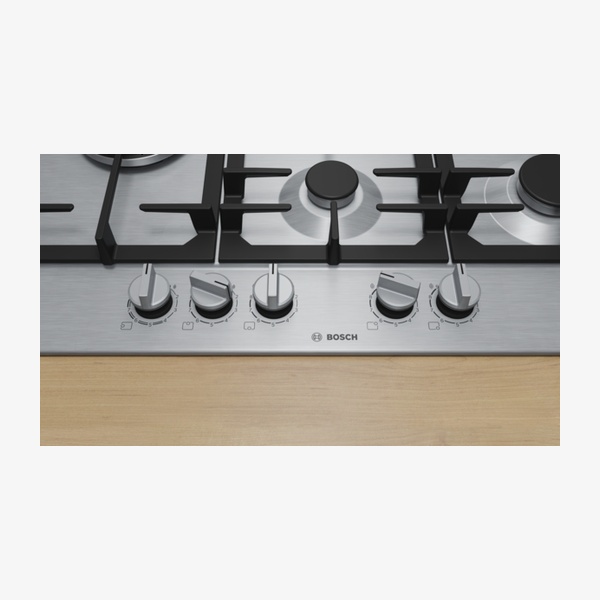

Front control panel – design co–ordinated dials at the front with strong grip for easy access.

Integrated ignition via dials – just push and turn the dials to ignite the flame.

Flame failure safety device – helps prevent unwanted gas flow when the flame goes out.

Durable stainless steel surface – stainless steel finish with cast iron pan supports.

Pre–set for natural gas – suitable for various natural gas and liquid gas types with LPG nozzle set included.

Optional accessories available – simmer plate, wok ring, small pot support, wireless food thermometer and cookware sets.

Technical Spec

Product seriesSeries 6

ModelPCS7A5I90

Appliance typeGas hob w integrated controls

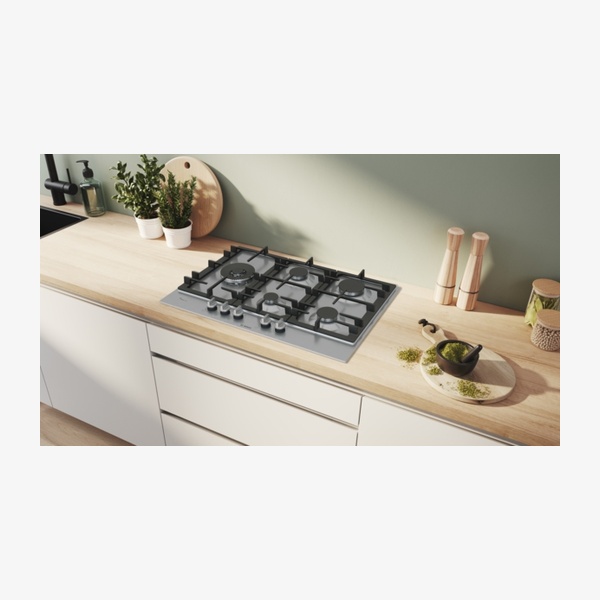

Installation typeBuilt–in

Heating typeGas

Number of cooking zones5

Hob width750 mm

Dimensions (HxWxD)45 x 750 x 520 mm

Dimensions of the product (HxWxD)51.5 x 750 x 520 mm

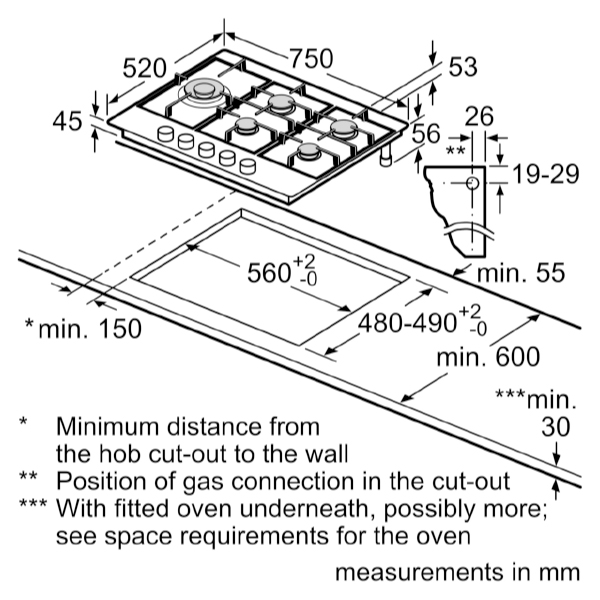

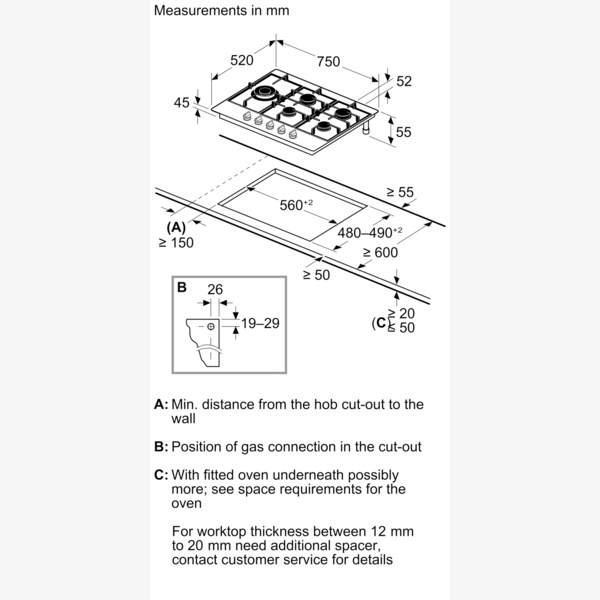

Required niche size (HxWxD)45 x 560 x 480–490 mm

Min. worktop thickness20 mm

Basic surface materialStainless steel

Colour of surfaceStainless steel

Pan supportsCast iron pan supports

Control panel locationFront

Residual heat indicatorWithout

Net weight13.9 kg

Gross weight15.8 kg

Length of electrical supply cord100 cm / 1 m

Gas connection rating12500 W

Connected load12.5 KW

Fuse protection3 A

Voltage220–240 V

Frequency50; 60 Hz

EAN code4242005496129

Packed product dimensions (HxWxD)150 x 790 x 600 mm

Design and Usage Details

The hob features a stainless steel surface with cast iron pan supports and full metal control dials. Front–mounted, design co–ordinated dials offer a strong grip for effortless turning, while integrated ignition allows you to ignite the flame by simply pushing and turning the dial.

Burners and Power

5 gas burners overall.
1 dual control wok burner with separately controlled two flame rings.
Left: wok burner up to 5 KW (depending on gas type).
Centre front: economy burner up to 1 KW (depending on gas type).
Centre rear: standard burner up to 1.75 KW (depending on gas type).
Right rear: high–speed burner up to 3 KW (depending on gas type).
Right front: standard burner up to 1.75 KW (depending on gas type).

Cleaning

Removable control dials for easy cleaning between knobs.
Dishwasher–suitable cast iron pan supports for easy, scrub–free cleaning.

Safety

A flame failure safety device helps prevent unwanted gas flow when the flame goes out.

Gas Types and Installation

Usable for: Nat gas L/LL G25/20mbar (DE).
NG H/E 20mbar, E+ 20/25mbar.
Natural gas H 25 mbar (HU).
Natural gas L 25 mbar (NL).
Liquid gas G30,31 28–30/37mbar.
Liquid gas G30 37 mbar (PL).
Liquid gas 50 mbar.
Pre–set for natural gas.
Nozzle set for LPG jets included – connection to 28–30/37 mbar bottled gas.
Nozzles for all other gas types can be ordered via customer service.
For nozzle change, contact customer service.

Optional Accessories

HEZ298105 Simmer plate
HEZ298107 Wok ring
HEZ298114 Small pot support
HEZ32WA00 Wireless food thermometer
HEZ9SE040 4 pieces Set
HEZ9SE060 6 pieces Set

Downloads

Download product documentation, manuals, and specification sheets.

PCS7A5I90 Spec

PDF

Frequently Asked Questions

How many burners does the PCS7A5I90 gas hob have?

The hob has 5 gas burners, including a dual control wok burner, an economy burner, standard burners and a high–speed burner.

What are the installation dimensions for this 75 cm gas hob?

The required niche size for installation is 45 x 560 x 480–490 mm, with a minimum worktop thickness of 20 mm. The product dimensions are 51.5 x 750 x 520 mm.

Is the hob suitable for LPG bottled gas?

Yes. A nozzle set for LPG jets is included for connection to 28–30/37 mbar bottled gas. Nozzles for other gas types can be ordered via customer service.

How is the hob ignited?

Ignition is via the control dials. You just push and turn the dials to ignite the flame.

Are the pan supports dishwasher safe?

Yes, the cast iron pan supports are dishwasher suitable for easy cleaning.

What safety feature does this gas hob include?

The hob is equipped with a flame failure safety device, which prevents unwanted gas flow when the flame goes out.
