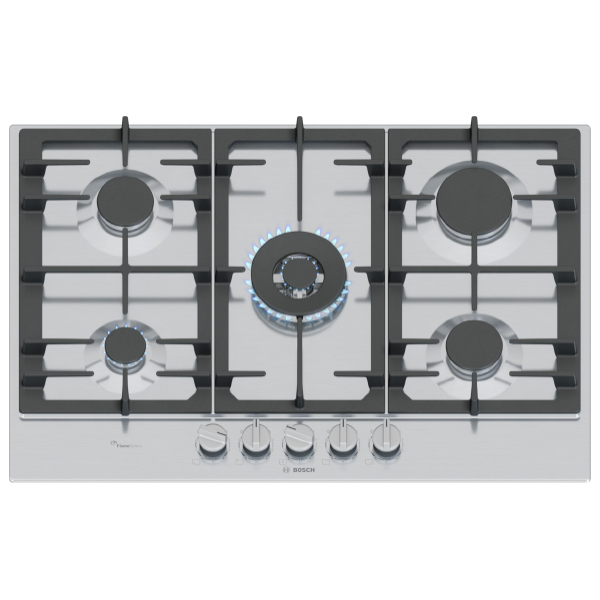

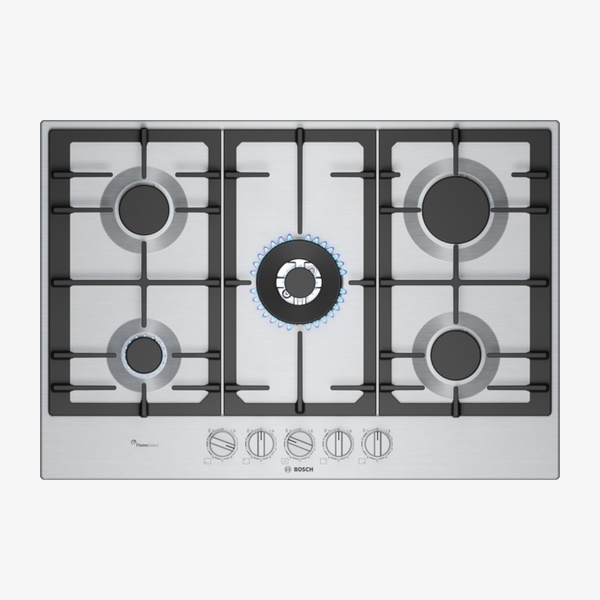

Bosch Series 6 PCQ7A5I90 Gas Hob

The Series 6 75 cm stainless steel gas hob PCQ7A5I90 is a built-in hob designed for precise flame control and easy cleaning. With five gas burners including a powerful wok burner, it suits a wide range of cooking needs. FlameSelect offers nine defined flame levels, while removable full-metal dials and dishwasher-suitable cast-iron pan supports simplify cleaning. Front-mounted, design co-ordinated control dials provide convenient access and strong grip for effortless operation.

SKU:PCQ7A5I90

EAN:4242005437849

Category::Hobs

Quantity:

Key Features

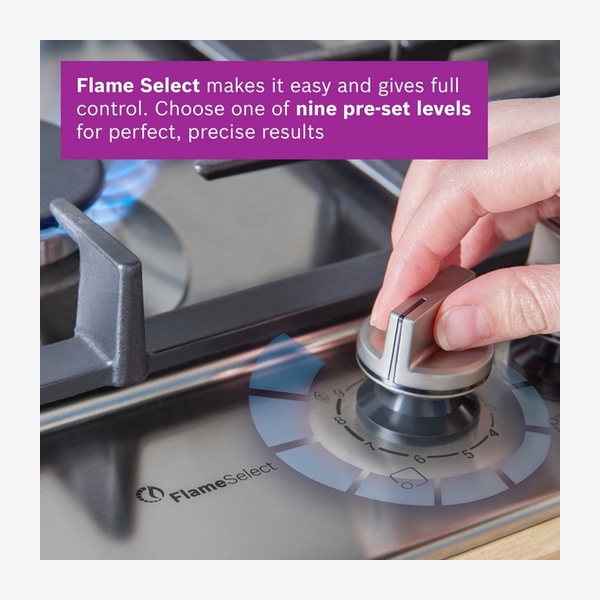

FlameSelect precise control – control and adjust the flame in nine defined levels.

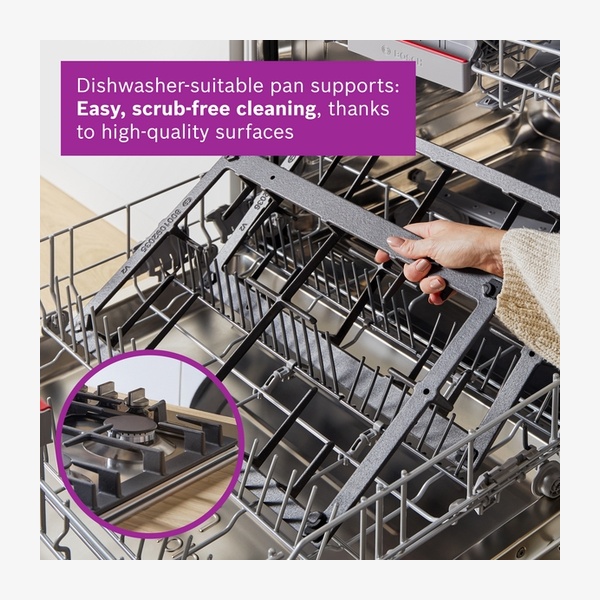

Dishwasher-suitable pan supports – cast-iron pan supports can be cleaned in a dishwasher for easy, scrub-free maintenance.

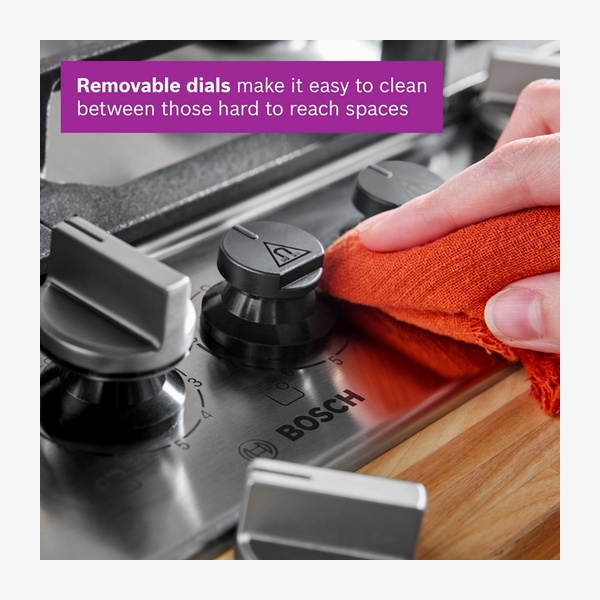

Removable full-metal control dials – detachable metallic knobs make cleaning around and between dials effortless.

Continuous cast-iron pan support – provides safety and stability for cookware across the hob surface.

Five gas burners – includes economy, standard, high-speed and wok burners up to 4 kW (depending on gas type).

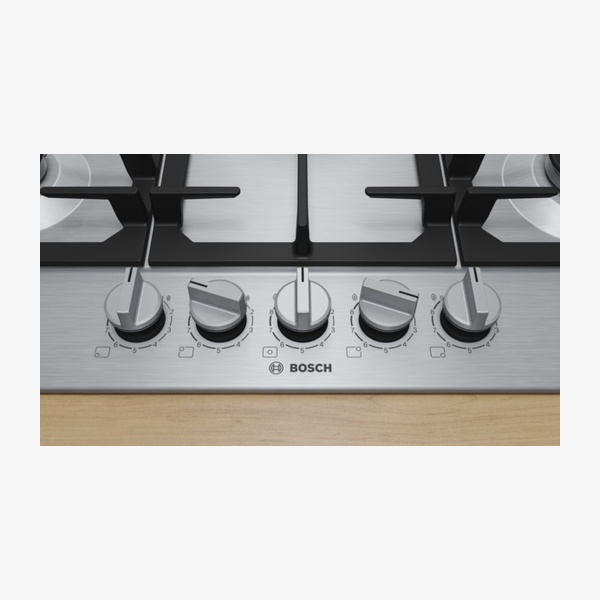

Front control panel – design co-ordinated dials located at the front with strong grip for effortless turning.

Integrated ignition via control dials – push and turn the dials to ignite the flame.

Flame failure safety device – prevents unwanted gas flow when the flame goes out.

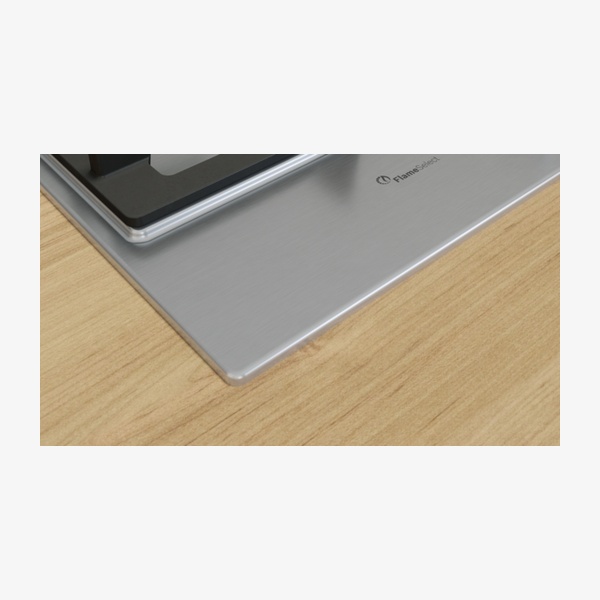

Stainless steel surface – basic surface material and colour are stainless steel for a co-ordinated look.

Pre-set for natural gas – nozzle set for LPG jets included, with compatibility for various natural gas and liquid gas types.

Optional accessories available – simmer plate, wok ring, small pot support, wireless food thermometer and cookware sets (4 piece and 6 piece).

Technical Spec

SeriesSeries 6

ModelPCQ7A5I90

Appliance typegas hob w integrated controls

Installation typeBuilt-in

Heating typeGas

Number of cooking zones5

Width of appliance750 mm

Product dimensions (HxWxD)51.5 x 750 x 520 mm

Alternative dimensions stated45 x 750 x 520 mm

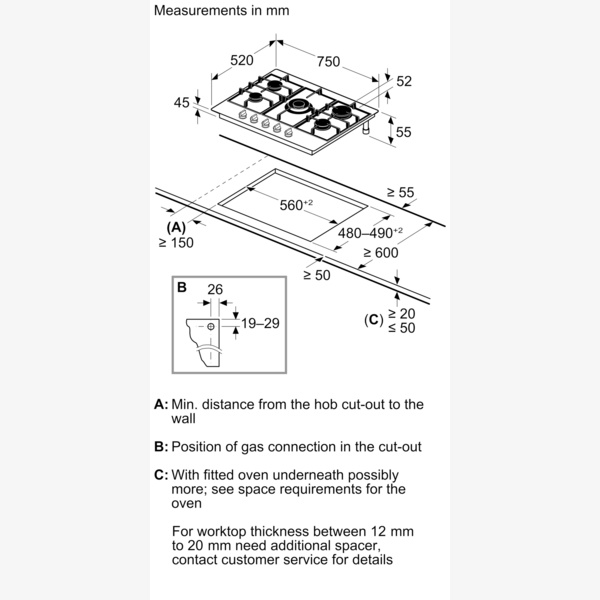

Required niche size (HxWxD)45 x 560-560 x 480-490 mm; 45 x 560 x (480 - 490) mm

Min. worktop thickness20 mm

Packed product dimensions (HxWxD)150 x 800 x 600 mm

Net weight14.2 kg

Gross weight16.1 kg

Basic surface materialStainless steel

Colour of surfaceStainless steel

Pan supportsCast iron; continuous cast-iron pan support; dishwasher suitable

Control dialsDesign co-ordinated, full metal, front, removable

IgnitionIgnition via control dials – push and turn

Residual heat indicatorWithout

Gas connection rating / Connected load11,500 W / 11.5 KW

Voltage220-240 V

Frequency50; 60 Hz

Fuse protection3 A

Power cord length100 cm / 1 m

Burners and power – left frontEconomy burner up to 1 kW (depending on gas type)

Burners and power – left rearStandard burner up to 1.75 KW (depending on gas type)

Burners and power – centre frontWok burner up to 4 KW (depending on gas type)

Burners and power – right rearHigh-speed burner up to 3 KW (depending on gas type)

Burners and power – right frontStandard burner up to 1.75 KW (depending on gas type)

Gas compatibility – Natural gasNat gas L/LL G25/20mbar (DE); NG H/E 20mbar, E+ 20/25mbar; Natural gas H 25 mbar (HU); Natural gas L 25 mbar (NL); Pre-set for natural gas

Gas compatibility – Liquid gasLiquid gas G30,31 28-30/37mbar; Liquid gas G30 37 mbar (PL); Liquid gas 50 mbar; nozzle set for LPG jets included

EAN code4242005437849

Downloads

Download product documentation, manuals, and specification sheets.

PCQ7A5I90 Spec

PDF

Frequently Asked Questions

How many burners does the hob have and what are their power levels?

The hob has five gas burners: a left front economy burner up to 1 kW, a left rear standard burner up to 1.75 KW, a centre front wok burner up to 4 KW, a right rear high-speed burner up to 3 KW and a right front standard burner up to 1.75 KW (all depending on gas type).

Is the hob suitable for installation with different gas types?

Yes. It is usable with natural gas types including Nat gas L/LL G25/20mbar (DE), NG H/E 20mbar, E+ 20/25mbar, Natural gas H 25 mbar (HU) and Natural gas L 25 mbar (NL). It also works with liquid gas G30,31 28-30/37mbar, liquid gas G30 37 mbar (PL) and liquid gas 50 mbar. It is pre-set for natural gas and includes a nozzle set for LPG jets.

How is the flame ignited on this gas hob?

Ignition is via the control dials. You just push and turn the dials to ignite the flame.

What features help with cleaning the hob?

The hob has removable control dials for easy cleaning between knobs and dishwasher suitable cast-iron pan supports, supporting easy, scrub-free cleaning.

What safety feature does the hob include for gas flow?

A flame failure safety device prevents unwanted gas flow when the flame goes out.

What is the required niche size and minimum worktop thickness?

The required niche size for installation is 45 x 560 x (480 - 490) mm, and the minimum worktop thickness is 20 mm.
