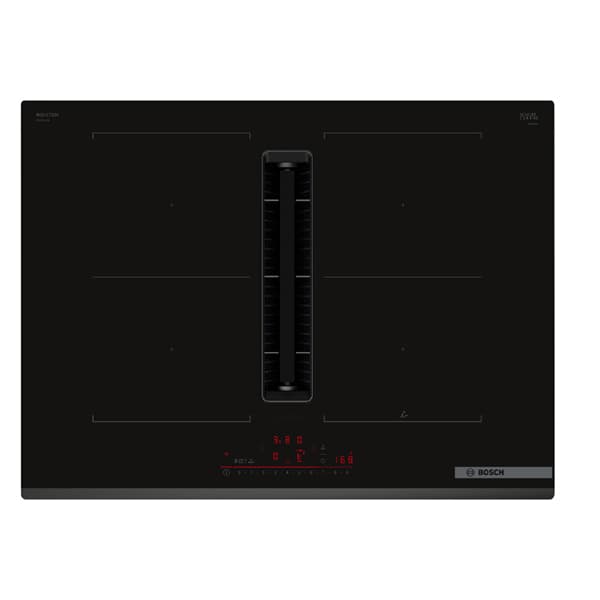

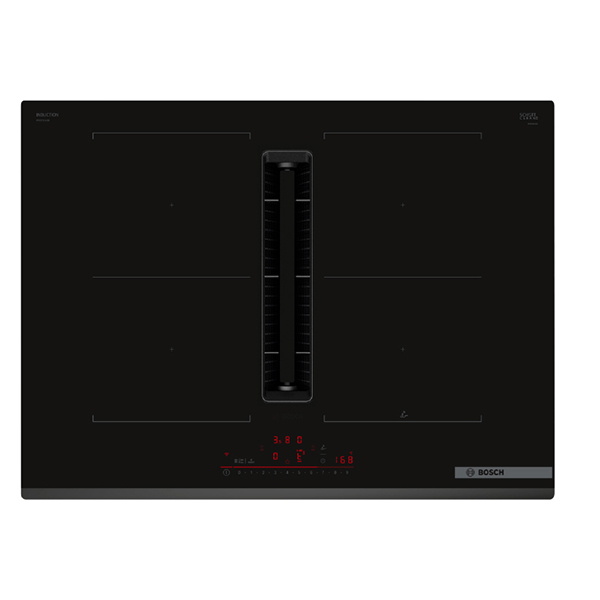

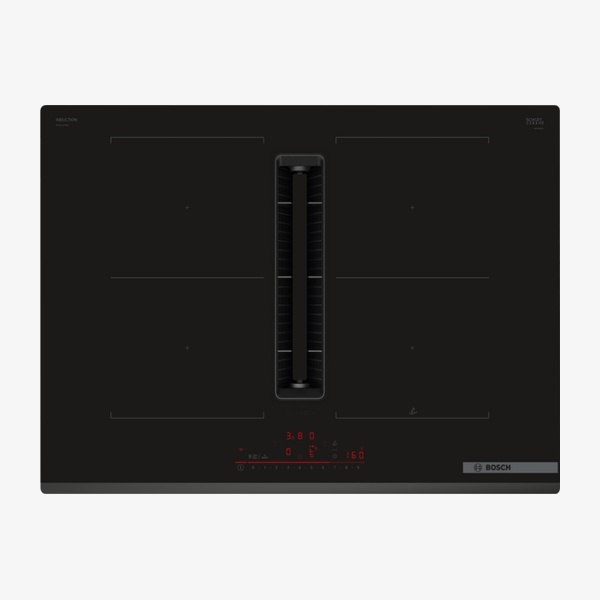

Bosch Series 6 PVQ731H26E Venting Hob

The Series 6 PVQ731H26E is a 70 cm built-in induction hob with a fully integrated high-performance downdraft ventilation system, providing space for 4 pots or pans. It offers 2 Combi zones, PerfectFry Plus with 11 frying levels, and variable 17-stage power settings. Home Connect enables additional functions such as Favourite Button and Dish assistant. The integrated ventilation module delivers powerful extraction in both ducted and recirculated configurations.

SKU:PVQ731H26E

EAN:4242005433599

Category::Hobs

Quantity:

Key Features

Integrated ventilation module – extracts steam and cooking odours at the source with a fully integrated downdraft extractor.

70 cm width – provides space for 4 pots or pans with 4 induction cooking zones.

2 Combi zones – combine two classic cooking zones into one large zone for bigger cookware.

DirectSelect / Multitouch+ – directly select cooking zones, power levels and functions via an imprinted touch bar.

PerfectFry Plus – 11 frying levels to help prevent overcooking and scorching with automatic temperature regulation.

AutoOn function – ventilation automatically switches on and draws steam away when the hob heats up.

PowerBoost for all zones – boil water faster with 50 % more energy than at the highest standard level.

Pan Boost – heats pans faster than the highest standard level while protecting the pan coating (via Favourite Button/Home Connect app).

Home Connect enabled – check if the hob is switched off and access recipes and additional functions via the Home Connect app.

Favourite Button – configurable access to favourite functions when connected to a Home Connect account.

Keep warm function – keep dishes warm at a preset low power level via HC app/MyButton.

Variable 17-stage power settings – 9 main levels and 8 intermediate levels for precise heat control on each zone.

QuickStart and ReStart functions – automatic zone detection when cookware is placed and restoration of settings after unintentional switch-off.

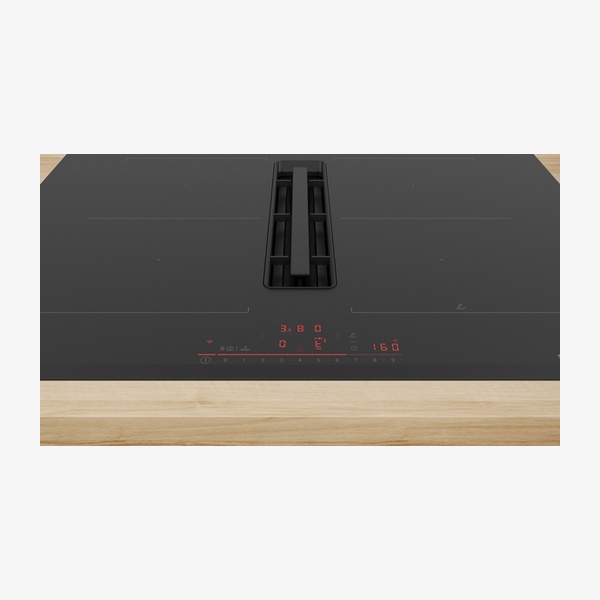

Front facette design – black ceramic glass hob with a front facette appearance.

High-performance, low-noise blower – BLDC technology with optimised psycho-acoustics and high extraction rates at low noise levels.

Grease filtration efficiency 94 % – large-scale 12-layer stainless-steel grease filters with a black top layer, fully dishwasher safe.

Integrated liquid management – 200 ml upper liquid collector plus 700 ml liquid safety collector, giving 900 ml total capacity.

Energy Efficiency Class B – fluid dynamic efficiency class A and grease filtration efficiency class B (Regulation (EU) No 65/2014).

Clean Air Plus odour filters – high-performance odour reduction with anti-pollen functionality and a lifetime of 360 hours of cooking.

Safety functions – 2 stage residual heat indicator, control panel lock, main on/off switch and automatic safety shut-off.

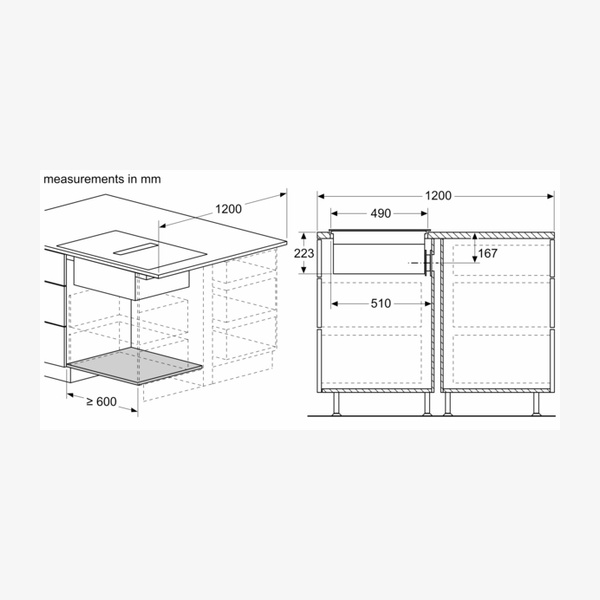

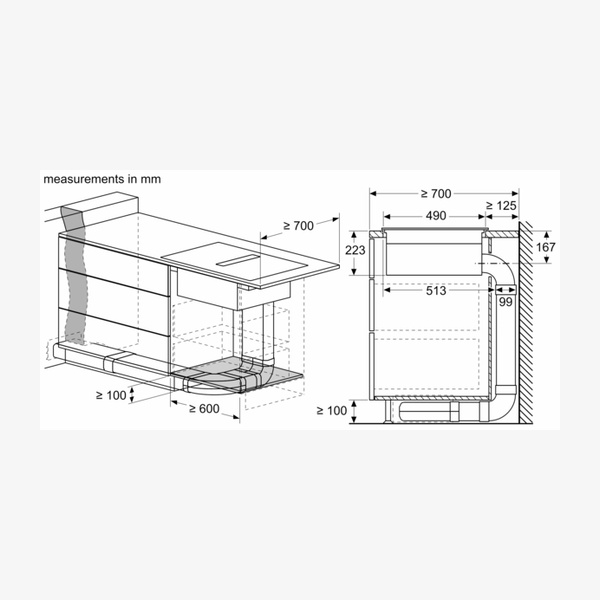

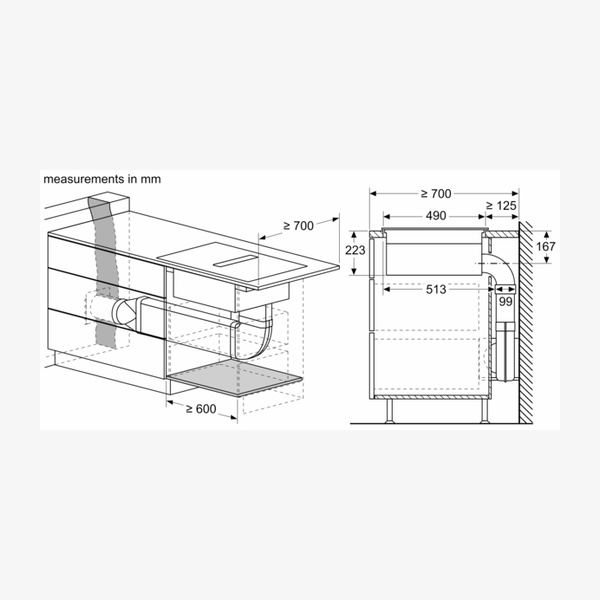

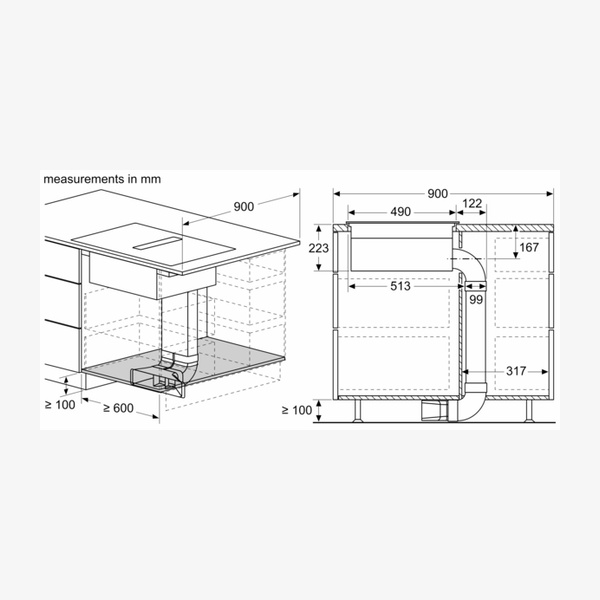

Flexible installation options – suitable for ducted or recirculated extraction in island or wall-oriented configurations.

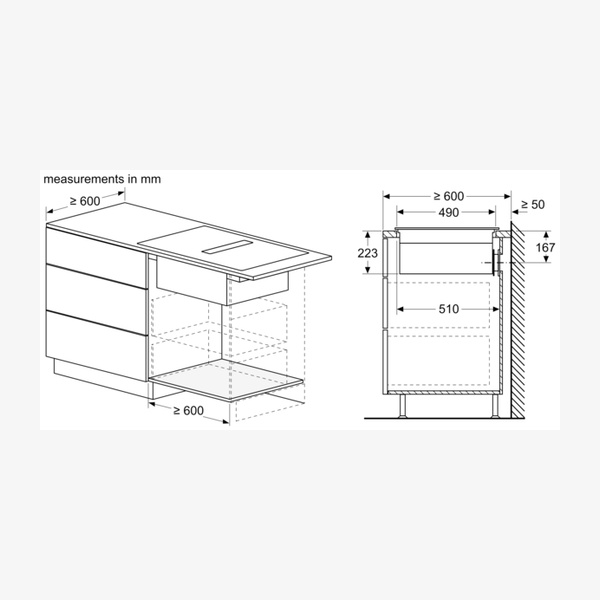

Suitable for 60 cm base cabinet – designed for installation into a 60 cm base unit with minimum worktop thickness of 16 mm.

Included accessories – Slider for unducted recirculation and Clean Air Plus odour filter are supplied.

Optional accessories – compatible with a wide range of pans, pots, recirculation and ducting kits, and a wireless food thermometer.

Technical Spec

Product nameSeries 6, Induction hob with integrated ventilation system, 70 cm, surface mount without frame

Model numberPVQ731H26E

Appliance typeCooking zone ceramic

Built-in / Free-standingBuilt-in

Heating typeElectric hob (induction cooktop with integrated downdraft extractor)

Number of cooking zones4

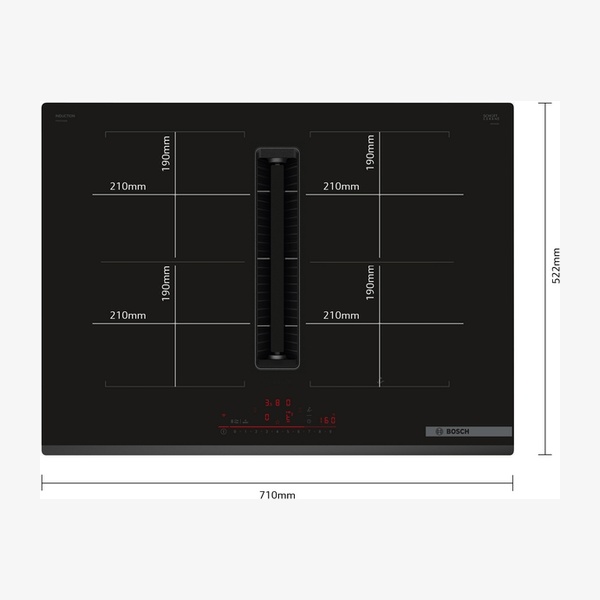

Cooking zones – front left190 mm, 210 mm, 2.5 kW (max. power 3.7 kW)

Cooking zones – rear left190 mm, 210 mm, 2.5 kW (max. power 3.7 kW)

Cooking zones – rear right190 mm, 210 mm, 2.5 kW (max power 3.7 kW)

Cooking zones – front right190 mm, 210 mm, 2.5 kW (max. power 3.7 kW)

Power of 2nd heating element3600.0 W

Heating with boosterAll

Width of the appliance710 mm

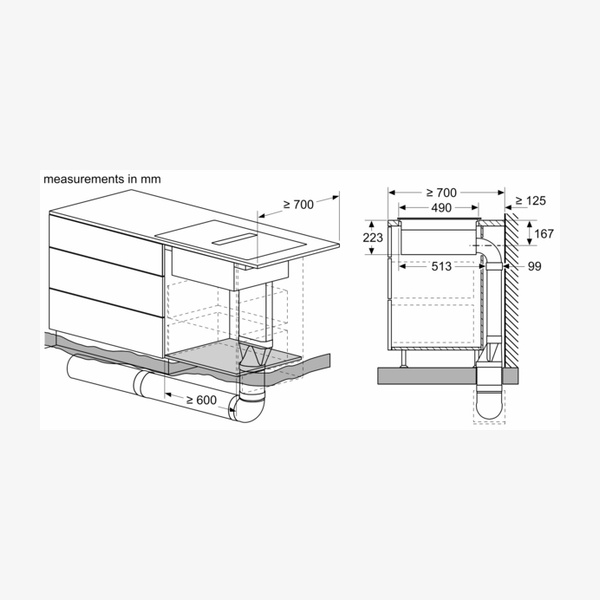

Dimensions (H x W x D)223 x 710 x 522 mm

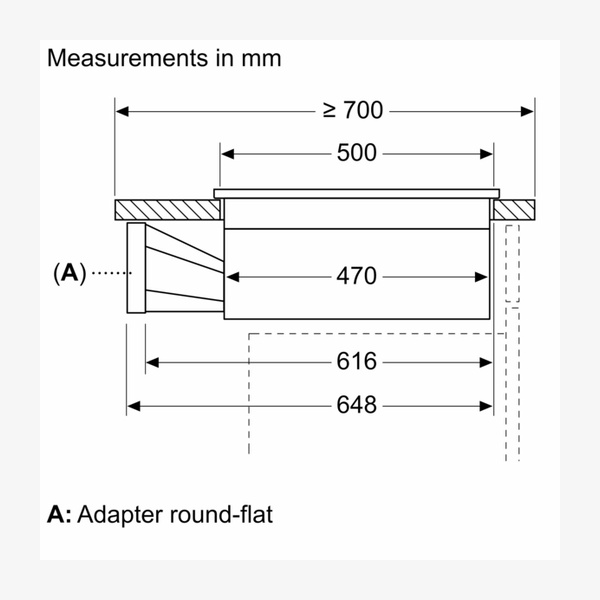

Required niche size (H x W x D)223 x 560–560 x 490–490 mm

Min. worktop thickness16 mm

Dimensions of packed product (H x W x D)430 x 950 x 660 mm

Net weight25.1 kg

Gross weight29.8 kg

Overall appliance weight (planning note)26 kg

Basic surface materialCeramic glass

Colour of surfaceBlack

Location of control panelFront

Residual heat indicatorSeparate; 2 stage residual heat indicator for each zone

Number of speed settings (ventilation)9-stage + 2 intensive

Max. air extraction (ducted)500 m³/h (max. normal setting)

Boost position air extraction (ducted)622 m³/h (Boost/Intensive)

Max. air recirculation487 m³/h (max. normal setting)

Boost position output recirculating595.0 m³/h (Boost/Intensive)

Noise level (general)69 dB(A) re 1 pW

Noise – ducted extractionMin. normal setting 42 dB re 1 pW, max. normal setting 69 dB re 1 pW, Boost 74 dB re 1 pW

Noise – recirculated extractionMin. normal setting 41 dB re 1 pW, max. normal setting 68 dB re 1 pW, Boost 72 dB re 1 pW

Odour filter (appliance data field)No

Odour filter in recirculation configuration2 x 2 battery of directly integrated, high-performance cleanAir odour filters

Grease filter efficiency94 % (according to EN 61591)

Clean filter remindersYes

Energy Efficiency Class (ventilation)B (range A+++ to D)

Fluid Dynamic EfficiencyA

Grease filtration efficiency classB

Voltage220–240/380–415 V

Frequency50–60 Hz

Connected load7.4 kW

Power management options16 A, 13 A or 10 A connection (limit maximum power depending on fuse protection)

Length electrical supply cord110 cm; power cord 1.1 m, cable included

Sealed burnersNo

Energy label noise (min & max normal)42 dB & 69 dB

Suitable base cabinet width60 cm base cabinet

Max. immersion depth below worktop223 mm

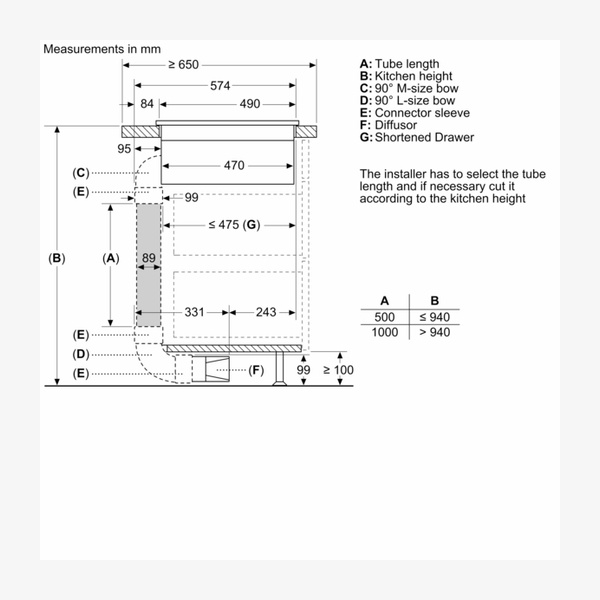

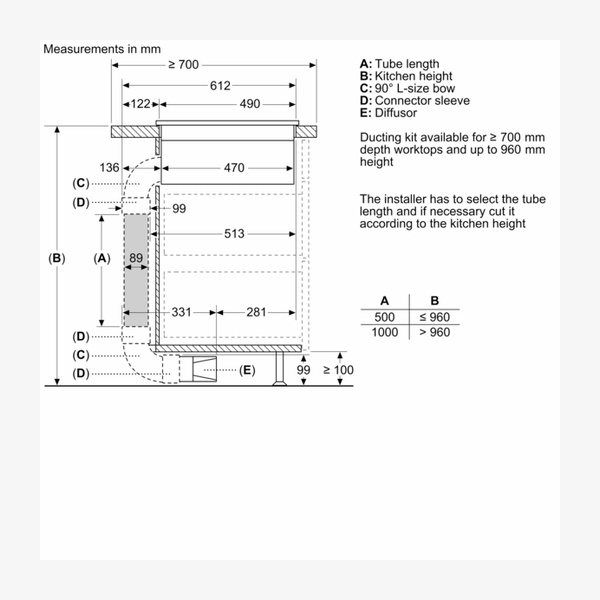

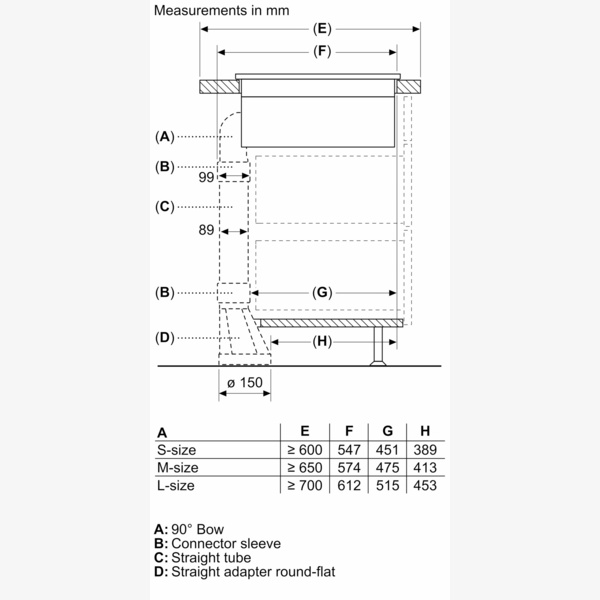

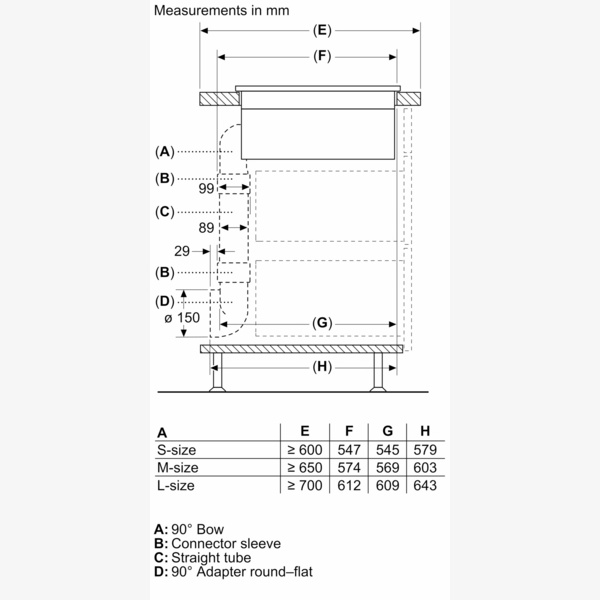

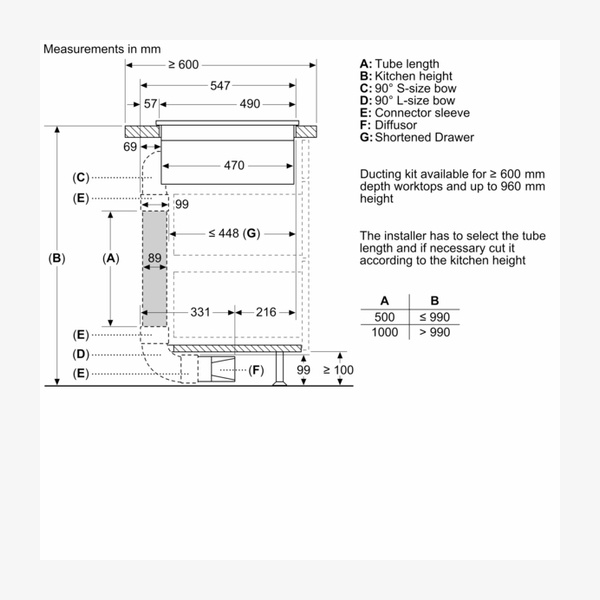

Maximum ducting length (planning)Up to 8 m with three 90° bows (pressuredrop resistant blower)

ComplianceNeedle Flame Test (IEC 60695-11-5) and V2 flammability class (UL94)

Included accessories1 x Slider for unducted recirculation, 1 x Clean Air Plus odor filter

Optional accessoriesHEZ32WA00 Wireless food thermometer; HEZ390090 Wok Set (3 items); HEZ9CF240 Fry pan, coated 24 cm Ø; HEZ9CF280 Fry pan, coated 28 cm Ø; HEZ9ES100 Espresso maker 4 cups; HEZ9FE280 Iron pan Ø 18 / 28 cm; HEZ9SE030 Set of 2 pots and 1 pan; HEZ9SE040 4 pieces Set; HEZ9SE060 6 pieces Set; HEZ9VDKE1 Exhaust kit; HEZ9VDKR0 Recirculation kit 2 L-bow (70 cm); HEZ9VDKR1 Recirculation kit S and L-bow (60 cm); HEZ9VDKR2 Recirculation kit 1 x L-bow; HEZ9VDSB1 90° flat duct bend horizontal; HEZ9VDSB2 90° flat duct L vertical; HEZ9VDSB3 90° flat duct M vertical; HEZ9VDSB4 90° flat duct S vertical; HEZ9VDSI0 Adapter round-flat; HEZ9VDSI1 90° Adapter round-flat; HEZ9VDSM1 Straight tube 500 mm; HEZ9VDSM2 Straight tube 1000 mm; HEZ9VDSS1 Connector sleeve (female); HEZ9VDSS2 Flex sleeve (female); HEZ9VEDU0 Acoustics Filter; HEZ9VRCR1 Clean Air Plus odor filter (replacement); HEZ9VRPD1 Plinth Diffusor; replenishment cleanAir filter set HEZ9VRCR0

Downloads

Download product documentation, manuals, and specification sheets.

PVQ731H26E Spec

PDF

Frequently Asked Questions

How many cooking zones does the PVQ731H26E have and what sizes are they?

The hob has 4 induction cooking zones. Each zone can operate at 190 mm or 210 mm with a power of 2.5 kW and a maximum power of 3.7 kW per zone.

Is this hob suitable for recirculation as well as ducted extraction?

Yes. The integrated ventilation system is suitable for ducted or recirculated extraction with unducted, partly and fully ducted recirculation or ducted extraction options. Installation accessories for unducted recirculation are included, and additional accessory kits are available for other configurations.

What safety features are provided on this induction hob?

Safety features include a 2 stage residual heat indicator for each cooking zone, a control panel lock to prevent unintended activation, a main on/off switch to switch off all zones at once, and an automatic safety shut-off that stops heating after a preset time if the hob is not used.

Can this hob be installed in a 60 cm base cabinet?

Yes. The hob is suitable for installation into a 60 cm base cabinet, with a minimum worktop thickness of 16 mm and a maximum immersion depth of 223 mm below the worktop surface.

What accessories are included and which optional accessories are available?

The hob comes with a Slider for unducted recirculation and a Clean Air Plus odour filter. Optional accessories include a wireless food thermometer, various pans and pot sets, exhaust and recirculation kits, ducting components, acoustic filters, and replacement Clean Air Plus odour filters.

What are the key performance figures for the integrated extractor?

In ducted extraction, extraction performance is 154 m³/h (min. normal), 500 m³/h (max. normal) and 622 m³/h (Boost). In recirculation, it is 117 m³/h (min. normal), 487 m³/h (max. normal) and 595 m³/h (Boost). Grease filtration efficiency is 94 %, and Energy Efficiency Class is B.
