Bosch Series 6 DLN77AC60B Canopy Hood

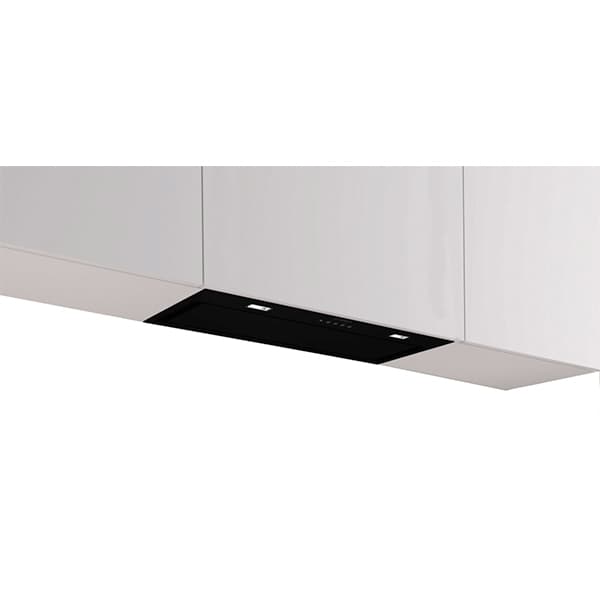

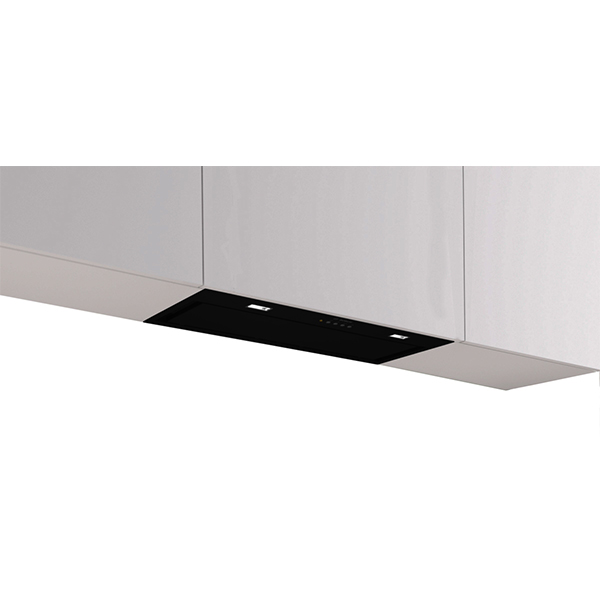

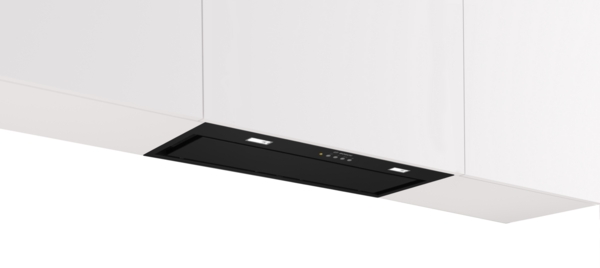

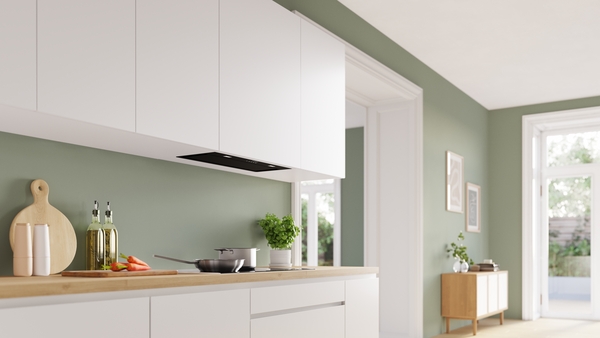

The Series 6 DLN77AC60B is a 70 cm black canopy cooker hood designed for built-in installation under an overhead unit or cabinet, making discreet and effective use of valuable space. Suitable for ducted or recirculating operation, it offers a high extraction rate with three power levels plus an intensive setting, energy–saving LED illumination and soft touch electronic controls. Dishwasher–safe metal grease filters and easy–clean surfaces support convenient maintenance.

SKU:DLN77AC60B

EAN:4242005475643

Category::Cooker Hoods

Quantity:

Key Features

Canopy hood design – fits neatly under an overhead unit or cabinet for discreet use of valuable space.

High extraction rate – maximum air extraction up to 595 m³/h and boost position air extraction up to 730 m³/h.

LED Illumination – 2 × 1 W LEDs with 4000 K colour temperature and 400 lux light intensity provide clear, bright lighting over the hob.

Seamless integration – flush–fitted installation for almost invisible appearance in upper wall cupboards.

Intensive setting – powerful mode to tackle intense steam during cooking, with automatic reset to normal setting after 6 minutes.

Soft touch electronic controls – soft touch button control with electronic display and 3 power levels plus intensive setting.

Efficient performance in exhaust mode – extraction rates from 270 m³/h to 730 m³/h with noise levels from 45 to 68 dB(A) re 1 pW.

Recirculation capability – suitable for recirculating operation when used with optional recirculation kits.

Dishwasher–safe metal grease filters – removable metal grease filters for easy cleaning in the dishwasher.

Energy Efficiency Class A – average energy consumption of 55.5 kWh/year (at a range of energy efficiency classes from A+++ to D).*

Blower and lighting efficiency – blower efficiency class A* and lighting efficiency class A*.

Washable aluminium grease filters – grease filter material is washable aluminium for durable use.

Capacitor motor – designed to support the hood’s extraction performance.

Environmentally friendly packaging – sustainability feature noted for the product.

Long Life odour filter option – available regenerative Long Life filter with 10 years lifetime (optional accessory).

Suitable for UK mains – nominal voltage 220–240 V, 252 W power rating and GB plug.

Back–pressure flap included – supports correct ducting configuration.

Optional accessories – various standard, Long Life and Clean Air Plus odour filters and recirculation kits available.

Technical Spec

Product seriesSeries 6

Product typeCanopy cooker hood – Built–in/Built–under

Model designationDLN77AC60B

ColourBlack

Installation typologyBuilt-in; installation in cabinet; flush-fitted in wall cupboards

Operation typeSuitable for ducted or recirculating operation

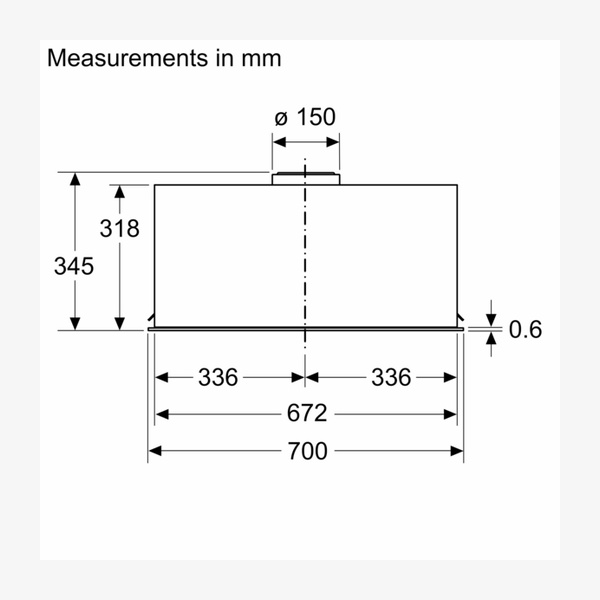

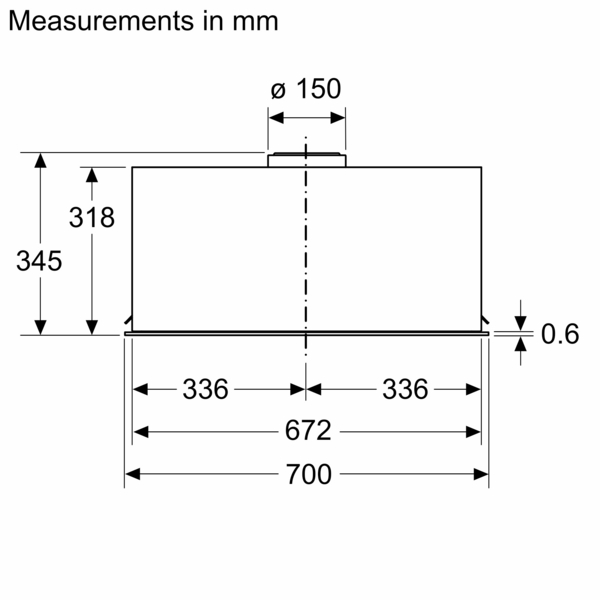

Dimensions (H × W × D)345 × 700 × 282 mm

Recirculating dimensions (H × W × D)345–345 × 700 × 282 mm

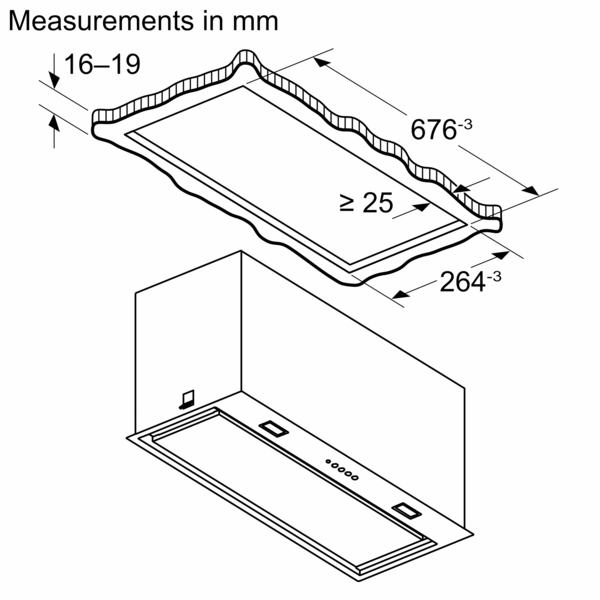

Built-in dimensions (H × W × D)345 × 676 × 264 mm

Required niche size (H × W × D)345 mm × 676.0 mm × 264 mm

Height of appliance345 mm

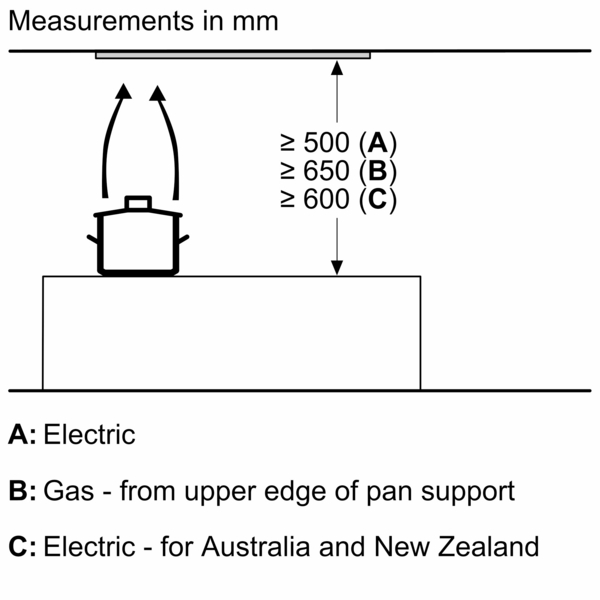

Minimum distance above electric hob500 mm

Minimum distance above gas hob650 mm

Net weight9.1 kg

Type of controlSoft touch button control with electronic display

Speed settings3 stages + intensive setting; automatic reset from intensive to normal after 6 min

Max. air extraction595 m³/h

Boost position air extraction730 m³/h

Max. air recirculation580 m³/h

Boost position output recirculating705 m³/h

Maximum air flow595 m³/h

Noise level63 dB(A) re 1 pW (maximum, exhaust mode speed 3)

Exhaust performance (EN 61591 / EN/IEC 60704-2-13)Speed 1: 270 m³/h; 45 dB(A) re 1 pW Speed 2: 400 m³/h; 53 dB(A) re 1 pW Speed 3: 595 m³/h; 63 dB(A) re 1 pW Intensive 1: 730 m³/h; 68 dB(A) re 1 pW

Recirculation performance with standard kitSpeed 1: 250 m³/h; 65 dB(A) re 1 pW Speed 2: 350 m³/h; 71 dB(A) re 1 pW Speed 3: 400 m³/h; 74 dB(A) re 1 pW Intensive Speed 1: 430 m³/h; 75 dB(A) re 1 pW

Recirculation performance with Clean Air Plus kitSpeed 1: 260 m³/h; 53 dB(A) re 1 pW Speed 2: 385 m³/h; 71 dB(A) re 1 pW Speed 3: 580 m³/h; 70 dB(A) re 1 pW Intensive Speed 1: 705 m³/h; 73 dB(A) re 1 pW

Energy Efficiency Class*A (at a range of energy efficiency classes from A+++ to D)

Average energy consumption*55.5 kWh/year*

Blower efficiency class*A*

Lighting efficiency class*A*

Grease filtering efficiency class*D*

Number of lights2 × 1 W LED

Light colour temperature4000 K

Light intensity400 lux

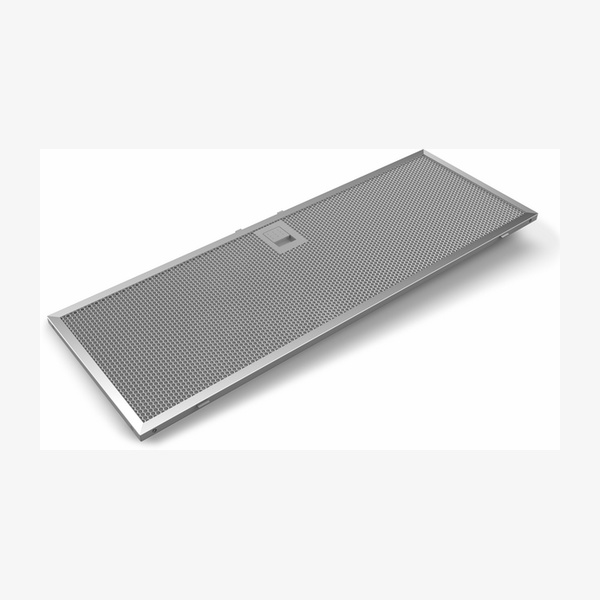

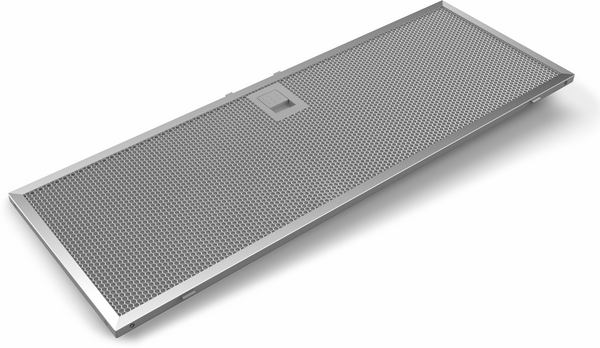

Grease filters2 metal grease filter(s); removable; dishwasher-safe; washable aluminium material

Grease filter materialWashable aluminium

Motor typeCapacitor motor

Diameter of air outlet150 mm (120 mm enclosed)

Back-pressure flapYes

Length of electrical supply cord150 cm (electrical cable length 1.5 m)

Connection rating252 W (power rating 252 W)

Fuse protection3 A

Voltage220–240 V nominal voltage

Frequency50; 60 Hz

Plug typeGB plug

EAN code4242005475643

Optional accessories – standard odour filterDHZ5316 Standard odour filter (replacement)

Optional accessories – standard recirculation kitDHZ5605 Standard recirculation kit

Optional accessories – Long Life odour filterDWZ0IT0P0 Long Life odour filter (replacement)

Optional accessories – Long Life recirculation kit externalDWZ1IT1D1 Long Life recirculation kit external

Optional accessories – Clean Air Plus odour filterDWZ1IX1B6 Clean Air Plus odour filter (replacement)

Optional accessories – Clean Air Plus recirculation kit externalDWZ1IX1C6 Clean Air Plus recirculation kit external

Downloads

Download product documentation, manuals, and specification sheets.

DLN77AC60B Spec

PDF

Frequently Asked Questions

Can this cooker hood be used in recirculation mode?

Yes. The hood is suitable for ducted or recirculating operation. For recirculated extraction, various recirculation kits are available as optional accessories, including a standard recirculation kit and a Clean Air Plus recirculation kit for chimneyless installation.

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 500 mm, and the minimum distance above a gas hob is 650 mm.

How many speed settings does the hood have?

The hood has three power levels plus an intensive setting. The intensive setting automatically resets to a normal setting after 6 minutes.

Are the grease filters washable?

Yes. The hood is equipped with two removable metal grease filters that are dishwasher–safe. The grease filter material is washable aluminium.

What is the maximum extraction rate?

The maximum air extraction is stated as 595 m³/h, with a boost position air extraction of 730 m³/h.

What is the energy efficiency rating?

The hood has an Energy Efficiency Class of A at a range of energy efficiency classes from A+++ to D, with an average energy consumption of 55.5 kWh/year*.
