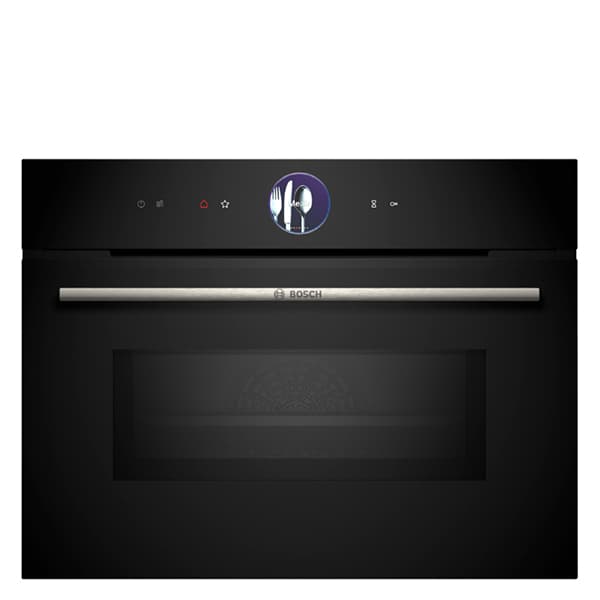

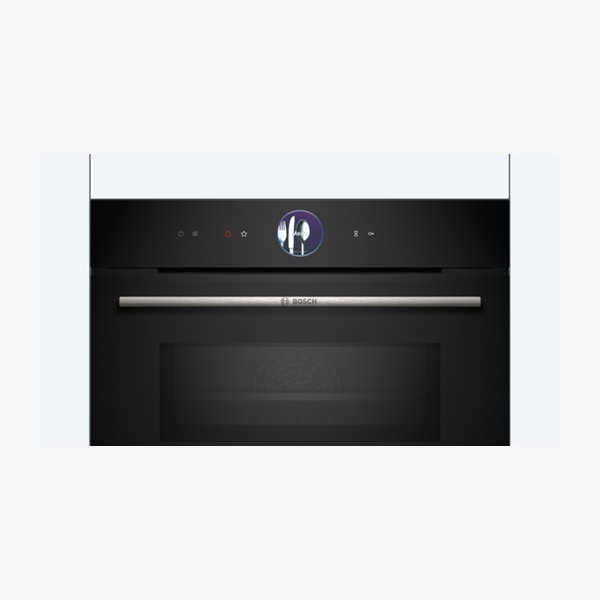

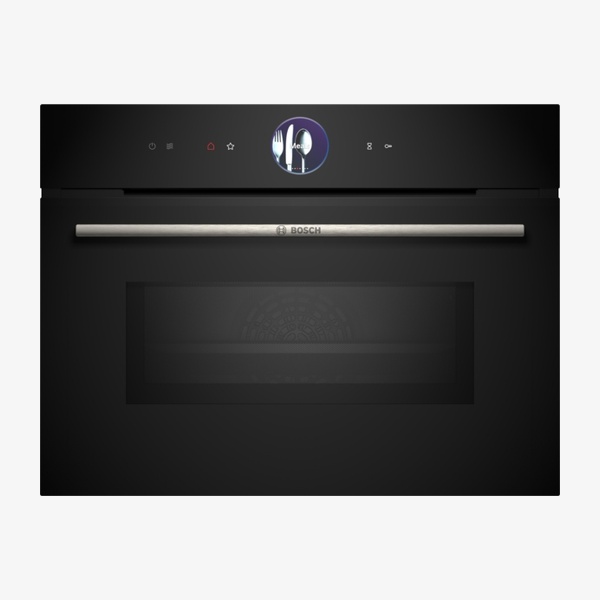

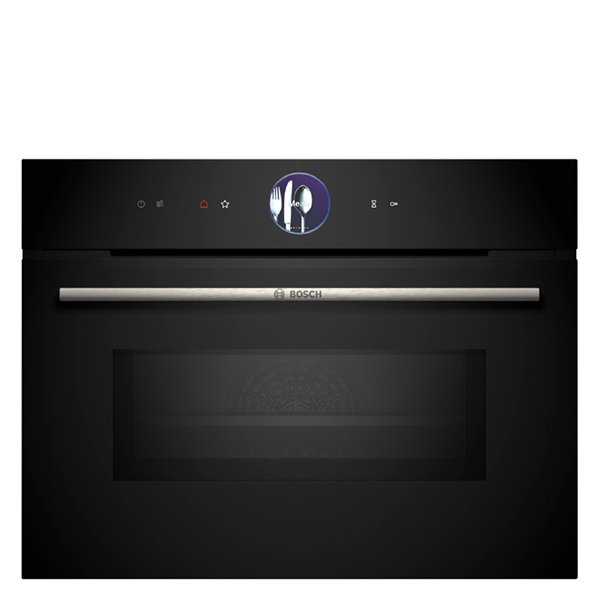

Bosch Series 8 CMG7761B1B Microwave Combi

The Series 8 CMG7761B1B is a built–in compact oven with microwave function in black, combining 20 heating methods with a 45 litre cavity. It features a Digital Control Ring with TFT Touch Display Plus for intuitive operation, 4D Hotair and Hotair Gentle for versatile baking and roasting, and a maximum microwave power of 900 W with inverter technology. Pyrolytic self–cleaning, hydrolyse programme and Home Connect readiness support convenient everyday use.

SKU:CMG7761B1B

EAN:4242005326044

Category::Microwave Ovens

Quantity:

Key Features

Built–in compact oven with microwave – Series 8 model CMG7761B1B, 60 x 45 cm, black.

20 heating methods including conventional top and bottom heat, full width variable grill, half width grill, bottom heat, low temperature cooking, defrost, plate warming, keep warm, Conventional heat gentle, Microwave, 4D Hot air, Conventional heat, Hot air grilling.

Digital Control Ring with TFT Touch Display Plus for simple, intuitive oven control and enlarged touchscreen.

4D Hotair for even heat distribution and Hotair Gentle to save energy while baking and roasting.

Microwave power up to 900 W with 5 settings (90 W, 180 W, 360 W, 600 W, boost) and intelligent inverter technology.

Intelligent microwave inverter technology regulates maximum output power to 600 W in longer operation for gentler cooking.

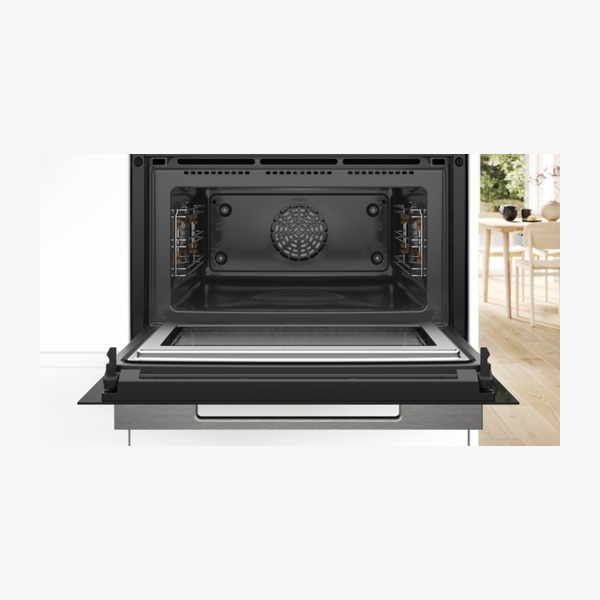

45 litre cavity volume with 3 shelf positions and level independent telescopic rails.

Touch controls with steel trim and enamel anthracite cavity inner surface.

Pyrolytic self–cleaning and hydrolyse programme to support cleaning of the cavity.

Oven Assistant with Voice Control and BoschAssist to help set the right programme.

Fast pre–heating function with electronic clock timer and temperature display (proposal and actual).

Drop down door with SoftClose and SoftOpen for controlled door movement.

LED light with light on/off when the oven door is opened or closed, plus integral cooling fan.

Home Connect ready for control via the app.

CoolTouch door with quadruple glazed, heat reflective glass and maximum window temperature of 30° C.

Safety features include electronic door lock, control panel lock, automatic safety switch off, residual heat indicator, start button and door contact switch.

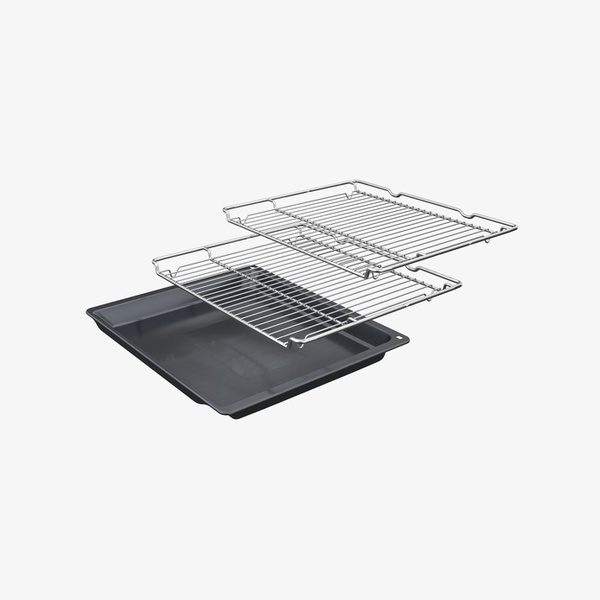

Included accessories – 2 x combination grid and 1 x universal pan.

Wide range of optional accessories including universal pans, pizza pan, Air Fry & Grill tray, baking trays, multipurpose pan, glass pans, cover strips, baking and roasting grids and pizza stone (model codes stated in technical section).

Technical Spec

Series / TypeSeries 8 built–in compact oven with microwave function

ModelCMG7761B1B

ColourBlack

Type of microwave ovenMW–Combi

Control typeElectronic with Digital Control Ring and touch controls with steel trim

Heating methodsCompact oven with microwave with 20 heating methods including: conventional top and bottom heat, full width variable grill, half width grill, bottom heat, low temperature cooking, defrost, plate warming, keep warm, Conventional heat gentle, Microwave, 4D Hot air, Conventional heat, Full width grill, Half width grill, Hot air grilling

Cavity volume45 litre capacity

Shelf positions3 shelf positions with level independent telescopic rails

Temperature range30 °C – 275 °C

Max. microwave power level900 W

Microwave power settings5 settings: 90 W, 180 W, 360 W, 600 W, boost

Inverter technologyIntelligent microwave inverter technology; maximum output power regulated to 600 W when used in longer operation

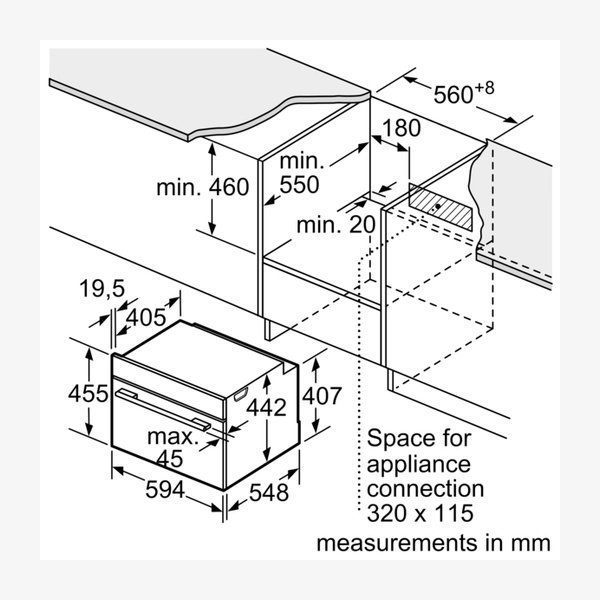

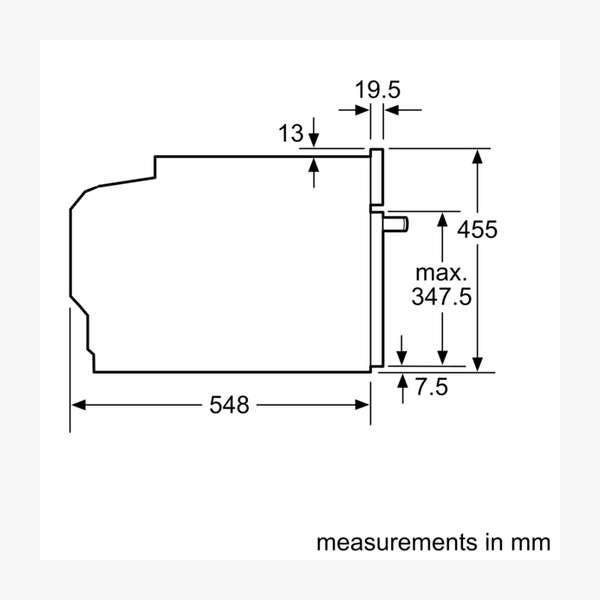

Appliance dimensions (H x W x D)455 mm x 594 mm x 548 mm

Cavity dimensions (H x W x D)237 x 480 x 392 mm

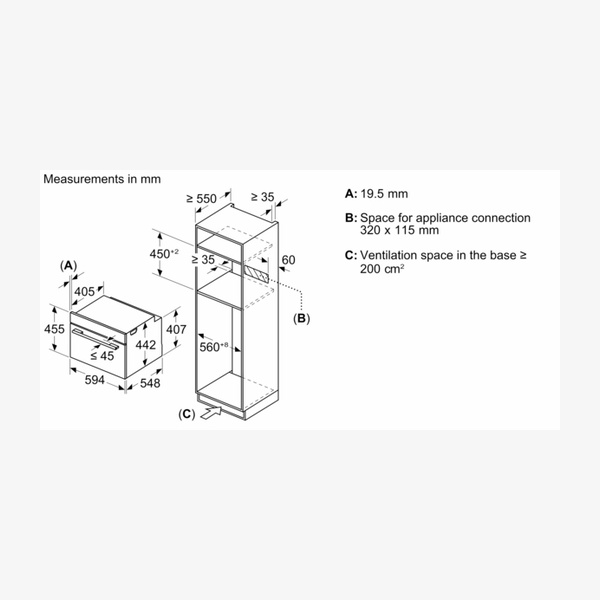

Niche dimensions (H x W x D)450 mm – 455 mm x 560 mm – 568 mm x 550 mm

Cavity inner surfaceEnamel anthracite

Net weight35.7 kg

Gross weight38.9 kg

Electrical connection rating3.6 kW / 3600 W

Nominal voltage220 – 240 V

Frequency50; 60 Hz

Fuse protection16 A

Plug typeNo plug (electrical connection by electrician)

Power cord length150 cm

Maximum window temperature30° C

DoorQuadruple glazed door with heat reflective glass CoolTouch door, drop down, SoftClose, SoftOpen

EAN code4242005326044

Included accessories2 x combination grid, 1 x universal pan

Optional accessoriesHEZ532010 Universal pan, non–stick ceramic coated; HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ634000 Baking and roasting grid; HEZ636000 Glass pan; HEZ660050 Cover Strip; HEZ660060 Strip; HEZ664000 Baking and roasting grid, steam; HEZ915003 Glass roasting dish, 5,4 L; HEZ327000 Pizza stone; HEZ530000 Half tray; HEZ531010 Baking tray, non–stick ceramic coated

Downloads

Download product documentation, manuals, and specification sheets.

CMG7761B1B Spec

PDF

Frequently Asked Questions

What is the capacity of the CMG7761B1B compact oven?

The cavity volume is 45 litres, with 3 shelf positions and level independent telescopic rails.

What microwave power levels are available?

The appliance has a maximum microwave power of 900 W with 5 power settings: 90 W, 180 W, 360 W, 600 W and boost. Intelligent inverter technology regulates maximum output power to 600 W in longer operation.

Does this oven have self–cleaning functions?

Yes. It includes a pyrolytic self–cleaning function and a hydrolyse programme, with an enamel anthracite cavity surface.

Is the CMG7761B1B compatible with Home Connect?

The appliance is Home Connect ready and can be controlled via the app.

What accessories are supplied and which are optional?

Included accessories are 2 x combination grid and 1 x universal pan. Optional accessories include various universal pans, pizza pan, Air Fry & Grill tray, baking trays, multipurpose pan, baking and roasting grids, glass pans, cover strips, glass roasting dish, pizza stone and half tray with model references such as HEZ532010, HEZ617000, HEZ629070 and others.

What are the installation niche dimensions?

The niche dimensions are 450 mm – 455 mm in height, 560 mm – 568 mm in width and 550 mm in depth.
