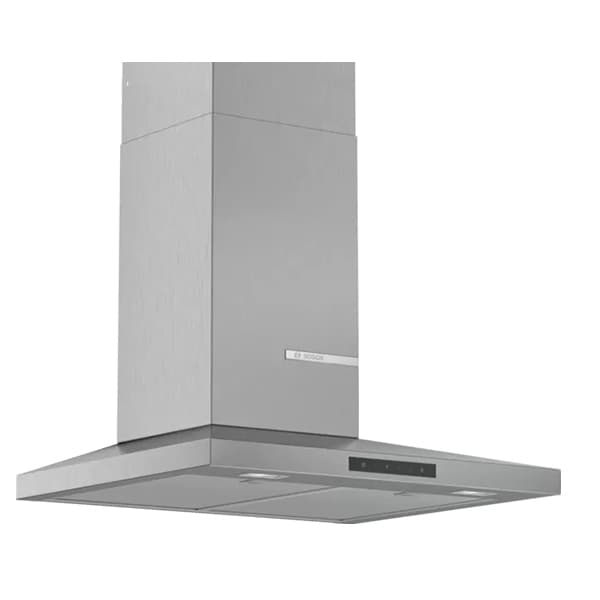

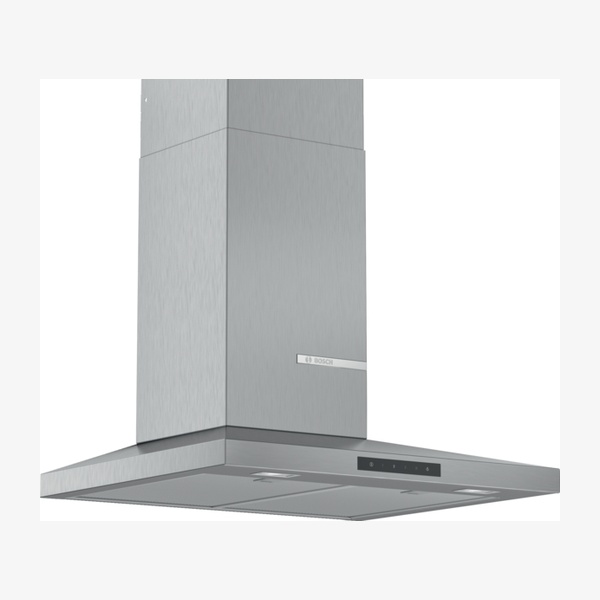

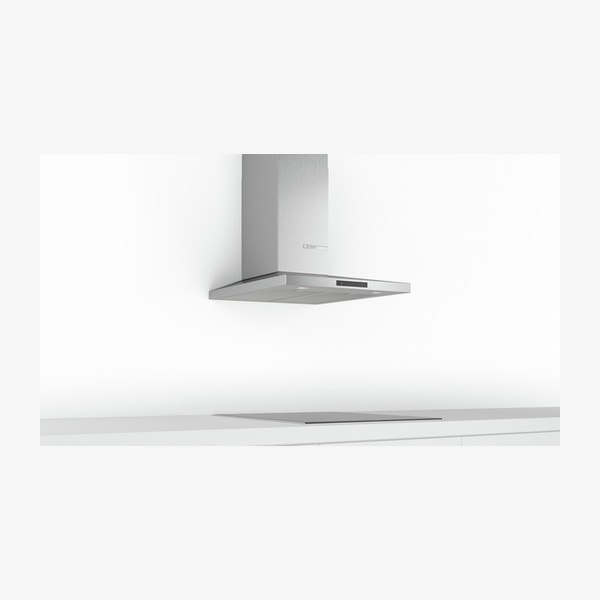

Bosch Serie 4 DWQ66DM50B Chimney Hood

The DWQ66DM50B is a Series 4, 60 cm wall-mounted stainless steel chimney extractor hood with a slim pyramid design for matching kitchen style. It offers quiet extraction with powerful performance, high extraction rates and TouchControl with electronic display. Energy-saving LED illumination provides bright, clear lighting over the hob, while washable aluminium grease filters support a cleaner, healthier kitchen environment with reduced grease and unwanted odours.

SKU:DWQ66DM50B

EAN:4242005051212

Category::Cooker Hoods

Quantity:

Key Features

Series 4 slim pyramid design – wall-mounted stainless steel chimney extractor hood for performance and matching design in your kitchen.

Quiet extraction with powerful performance – designed for a cleaner and healthier kitchen, free from excessive grease and unwanted odours.

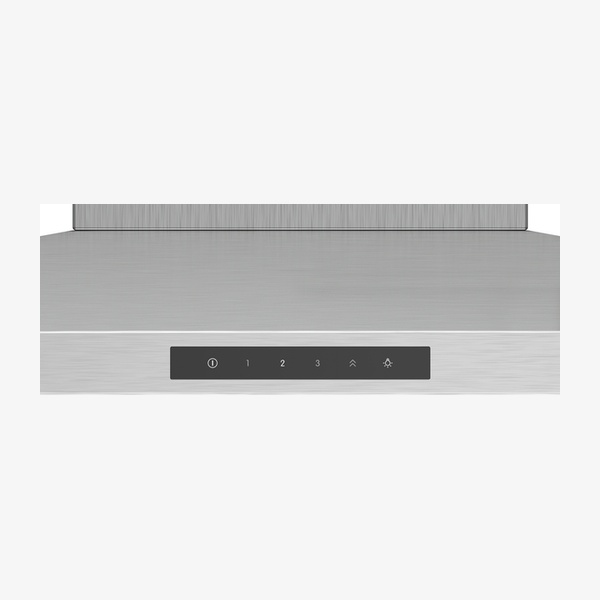

TouchSelect / TouchControl operation – quickly select hood settings via touch, with electronic control and electronic display.

3 power levels plus intensive setting – flexible extraction with automatic intensive revert after 6 mins.

High extraction rate – max. extraction rate 644 m³/h for continuously clean air in the kitchen.

Energy Efficiency Class A – rated A on a scale from A+++ to D, with average energy consumption of 41.7 kWh/year*.

LED illumination – 2 × 1.5 W LED lights with 3500 K colour temperature provide bright, clear hob lighting.

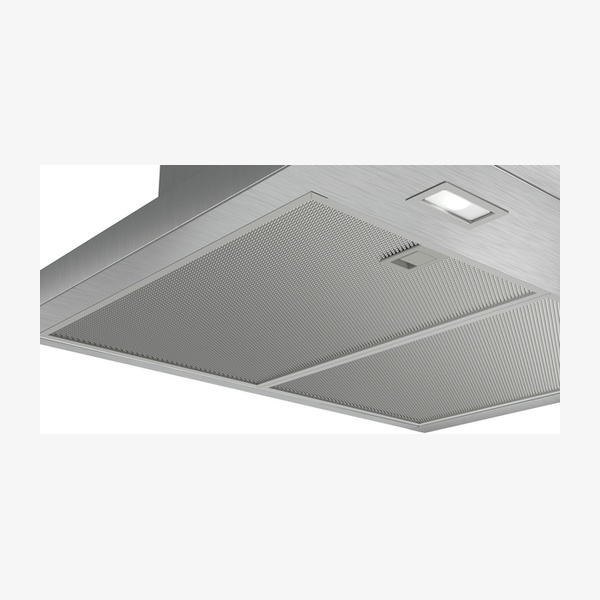

Washable aluminium grease filters – 2 removable metal grease filter cassettes for easier maintenance.

Suitable for ducted or recirculating operation – supports exhaust air or recirculated extraction with appropriate accessory kits.

Efficient performance classes – Blower Efficiency Class A*, Lighting Efficiency Class A* and Grease Filtering Efficiency Class B*.

LED light intensity – 242 lux for clear visibility of the cooking area.

Noise level in normal use – 62 dB(A) re 1 pW in max. normal operation, 70 dB(A) re 1 pW in intensive mode.

Technical Spec

Product nameSeries 4, Wall-mounted cooker hood, 60 cm, Stainless steel

ModelDWQ66DM50B

TypologyWall-mounted, chimney extractor hood

Colour chimneyStainless steel

Installation typologyWall-mounted

Energy Efficiency ClassA (at a range of energy efficiency classes from A+++ to D)

Average energy consumption*41.7 kWh/year

Blower Efficiency Class*A

Lighting Efficiency Class*A

Grease Filtering Efficiency Class*B

Type of controlElectronic, TouchControl / TouchSelect with electronic display

Number of speed settings3-stages + intensive setting

Automatic intensive revert6 mins

Max. air extraction (EN 61591 ø 15 cm)Max. normal use: 410 m³/h; Intensive: 644 m³/h

Maximum Air flow411 m³/h

Boost position air extraction644 m³/h

Max. air extraction411 m³/h

Max. air recirculation337 m³/h

Boost position output recirculating441 m³/h

Noise level exhaust air (EN 60704-3 / EN 60704-2-13)Max. normal use: 62 dB(A) re 1 pW; Intensive: 70 dB(A) re 1 pW

Noise level (general)62 dB(A) re 1 pW

Number of lights2 x 1.5 W LED light

Light colour temperature3500 K

Light intensity242 lux

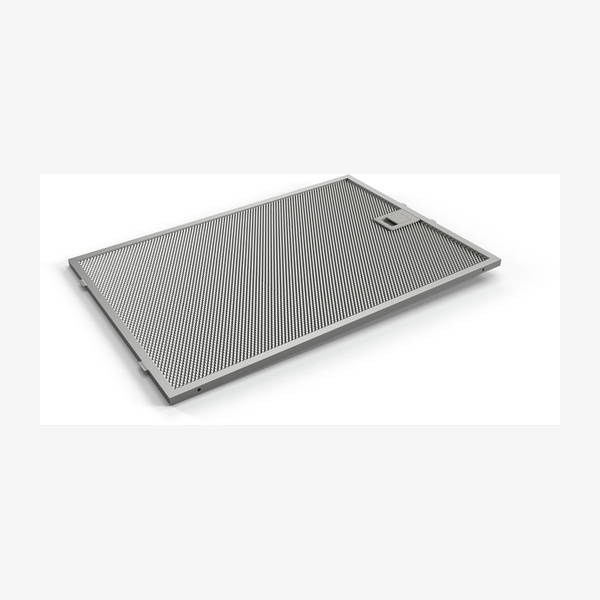

Grease filter materialWashable aluminium; 2 removable metal grease filter cassettes

Suitable operation modesSuitable for ducted or recirculating operation

Recirculation requirementRecirculating kit or CleanAir recirculating kit (accessory) needed for recirculated extraction

Height of chimney582–912 / 582–1022 mm

Height of appliance94 mm

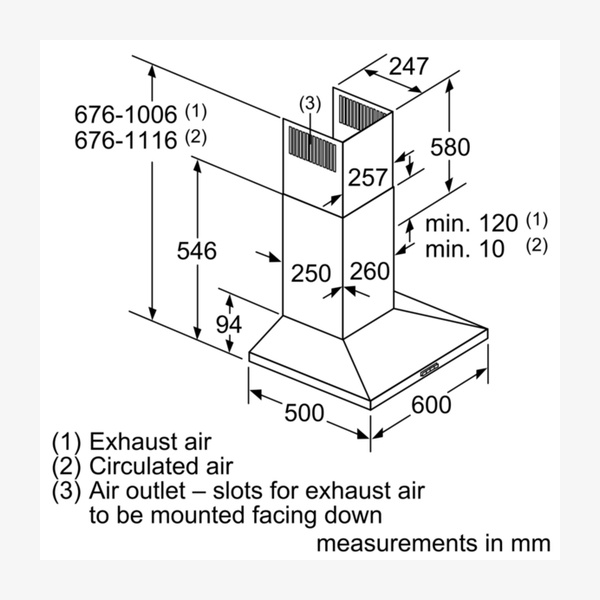

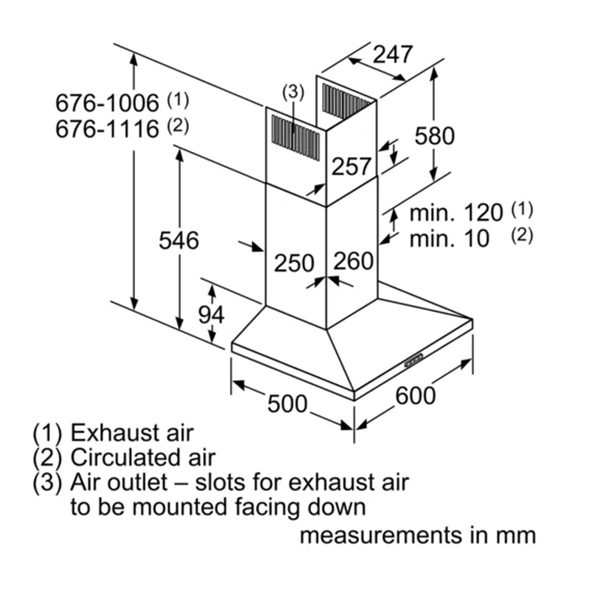

Dimensions exhaust air (H × W × D)676–1006 × 600 × 500 mm

Dimensions recirculating (H × W × D)676–1116 × 600 × 500 mm

Dimensions recirculating with CleanAir module744 × 600 × 500 mm – mounting with outer chimney; 874–1204 × 600 × 500 mm – mounting with telescopic chimney

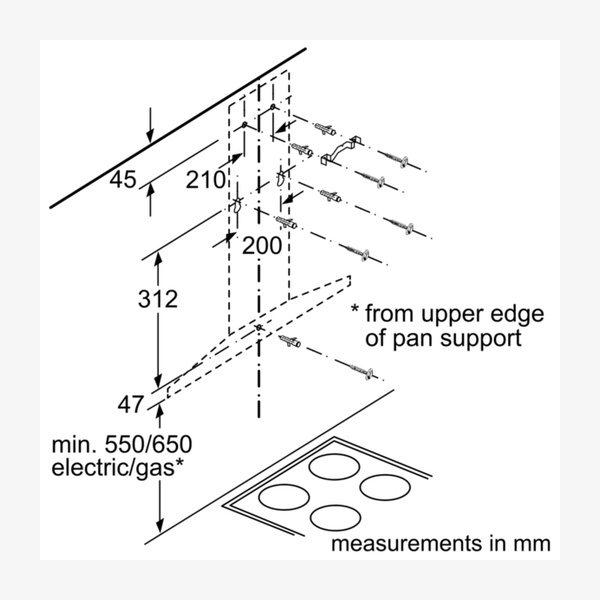

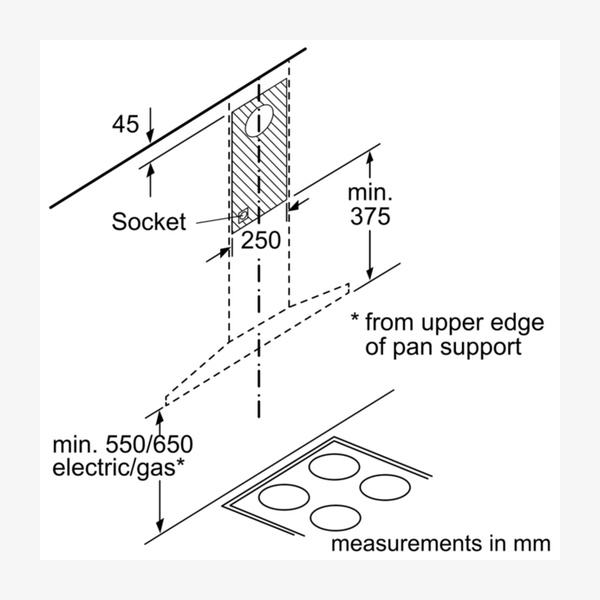

Minimum distance above electric hob550 mm

Minimum distance above gas hob650 mm

Net weight11.1 kg

Diameter of air outlet120 / 150 mm (Diameter pipe ø 150 mm; ø 120 mm enclosed)

Length of electrical supply cord130 cm / 1.3 m electrical cable length

Connection rating220 W (Power rating: 220 W)

Fuse protection10 A

Voltage220–240 V

Frequency50; 60 Hz

Plug typeGB plug

EAN code4242005051212

Downloads

Download product documentation, manuals, and specification sheets.

DWQ66DM50B Spec

PDF

Frequently Asked Questions

What is the maximum extraction rate of the DWQ66DM50B?

The hood has a maximum extraction rate of 644 m³/h. According to EN 61591 with a 15 cm duct, the extraction rate is 410 m³/h in max. normal use and 644 m³/h in intensive mode.

Can this cooker hood be used in recirculating mode?

Yes. The hood is suitable for ducted or recirculating operation. For recirculated extraction, a recirculating kit or CleanAir recirculating kit (accessory) is needed.

How noisy is the DWQ66DM50B during operation?

The noise level in max. normal use is 62 dB(A) re 1 pW. In intensive mode, the noise level is 70 dB(A) re 1 pW according to EN 60704-3 and EN 60704-2-13 for exhaust air.

What type of lighting does this cooker hood use?

The hood uses 2 × 1.5 W LED lights with a colour temperature of 3500 K and a light intensity of 242 lux to provide bright and clear lighting for the hob area.

How do I clean the grease filters?

The appliance is equipped with two removable metal grease filter cassettes made from washable aluminium. These can be removed from the hood and washed to keep the filters clean and maintain effective grease filtering.

What is the minimum installation height above the hob?

The minimum distance above an electric hob is 550 mm and the minimum distance above a gas hob is 650 mm.
