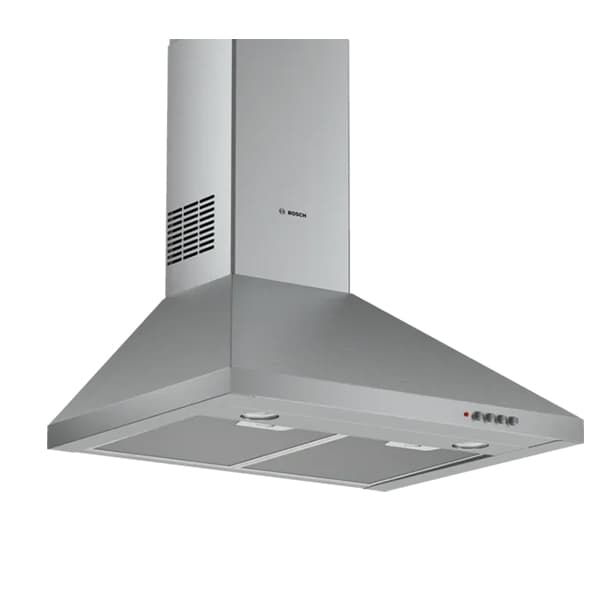

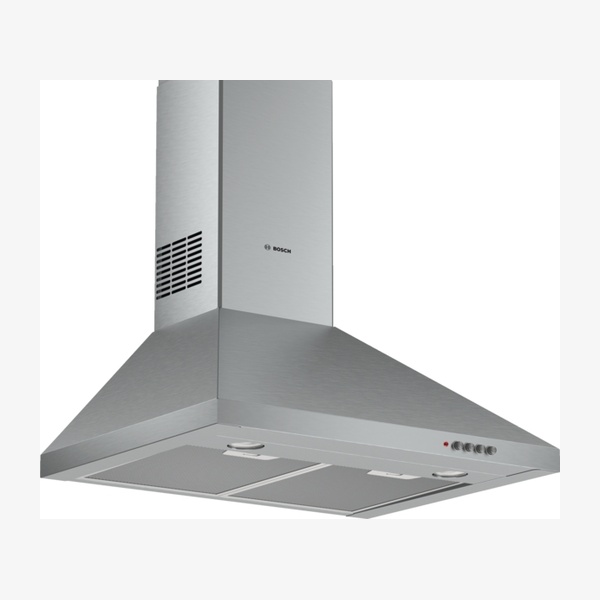

Bosch Serie 2 DWP64CC50M Chimney Hood

The Series 2 DWP64CC50M is a 60 cm wall–mounted stainless steel chimney cooker hood designed to add style and sophistication to the kitchen while offering quiet, powerful extraction. Suitable for ducted or recirculating operation, it features three power levels, LED lighting and dishwasher–safe aluminium grease filters. With a maximum extraction rate of 380 m³/h and mechanical push–button control, it helps keep kitchen air continuously clean during everyday cooking.

SKU:DWP64CC50M

EAN:4242002985299

Category::Cooker Hoods

Quantity:

Key Features

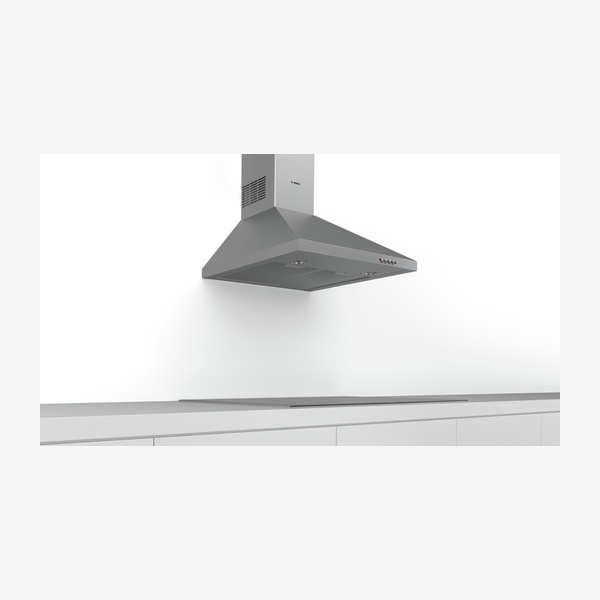

Wall–mounted chimney hood design adds style and sophistication to the kitchen and gives complete freedom in kitchen planning.

Quiet extraction with powerful performance and a high extraction rate for continuously clean air in the kitchen.

Maximum extraction rate 380 m³/h in exhaust air mode according to EN 61591.

3 power levels allow you to adjust the extraction intensity according to your cooking needs.

Energy Efficiency Class D (at a range of energy efficiency classes from A+++ to D) with average energy consumption of 72.8 kWh/year*.

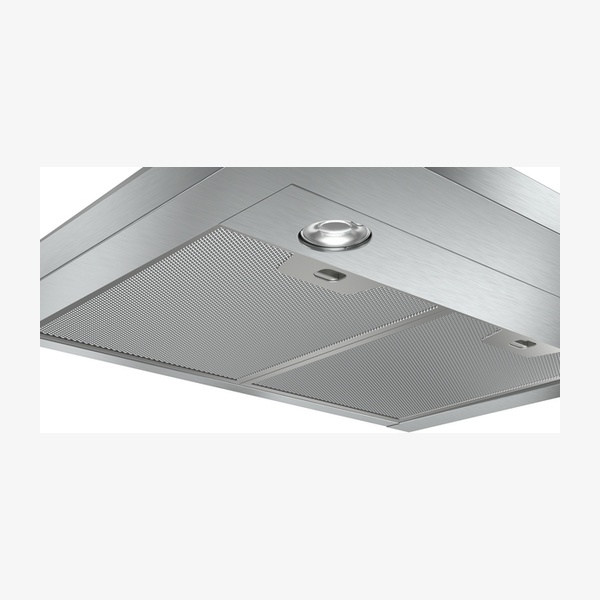

Dishwasher–safe aluminium mesh grease filters with 2 removable metal grease filter cassettes for easy cleaning.

LED lighting (2 × 5 W) with 4000 K colour temperature and 1000 lux light intensity.

Suitable for ducted or recirculating operation ; recirculated extraction requires a charcoal filter accessory.

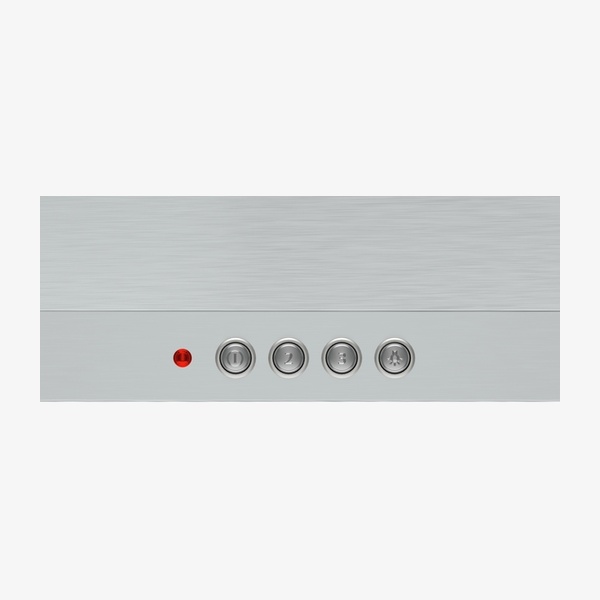

Mechanical push–button control with 3 speed settings.

Noise level 64 dB(A) re 1 pW at maximum normal use in exhaust air mode according to EN 60704–3 and EN 60704–2–13.

Recirculation mode performance with maximum normal use extraction rate of 235 m³/h and noise level up to 70 dB(A) re 1 pW.

Standard 150 mm air outlet with Ø 150 mm pipe enclosed for straightforward installation.

Lighting Efficiency Class A* and Grease Filtering Efficiency Class C*.

Blower Efficiency Class E* for the fan performance.

Optional accessories available, including standard odour filter and recirculation kits.

Technical Spec

Product seriesSeries 2

Product typeWall–mounted chimney cooker hood

Model designationDWP64CC50M

Width60 cm (598 mm)

Colour chimneyStainless steel

Typology / installationWall–mounted; chimney extractor hood; installation: wall

Energy Efficiency ClassD (range A+++ to D)

Average energy consumption*72.8 kWh/year*

Max. air extraction (exhaust)380 m³/h (according to EN 61591)

Max. air recirculation235 m³/h (max. normal use in recirculation mode)

Maximum air flow380 m³/h

Number of speed settings3

Type of controlMechanical; push button control

Noise level (exhaust)64 dB(A) re 1 pW at max. normal use (according to EN 60704–3 and EN 60704–2–13)

Noise level (recirculation)Max. normal use: 70 dB(A) re 1 pW (56 dB(A) re 20 µPa sound pressure)

Number of lights2 × LED 5 W

Colour temperature4000 K

Light intensity1000 lux

Grease filter materialWashable aluminium; 2 removable metal grease filter cassettes

Blower Efficiency Class*E*

Lighting Efficiency Class*A*

Grease Filtering Efficiency Class*C*

Connection rating135 W (power rating 135 W)

Voltage220–240 V

Frequency50 Hz

Plug typeGB plug

Electrical cable length1.2 m (120 cm)

Height of chimney410–765 / 410–765 mm

Height of appliance250 mm

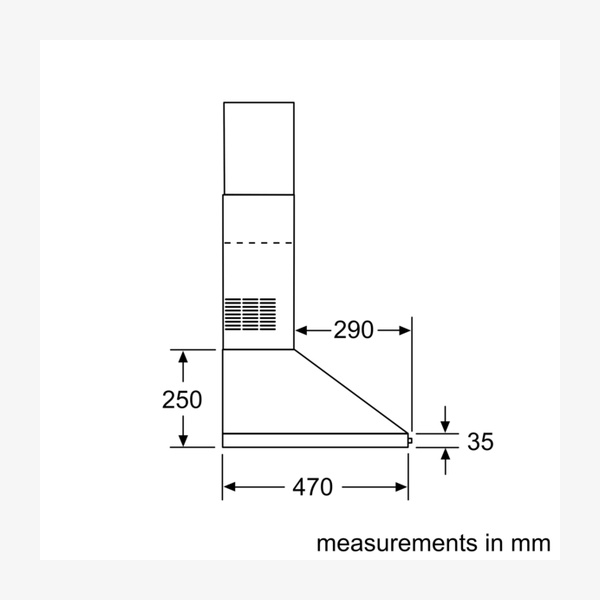

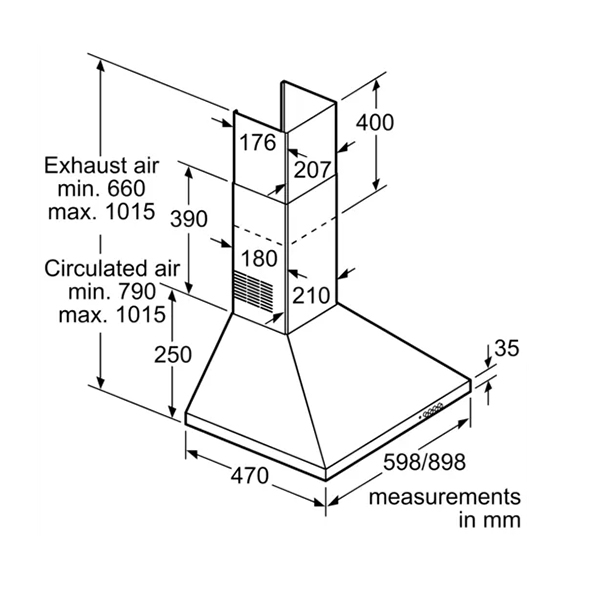

Dimensions exhaust air (H × W × D)790–1015 × 598 × 470 mm

Dimensions recirculating (H × W × D)790–1015 × 598 × 470 mm

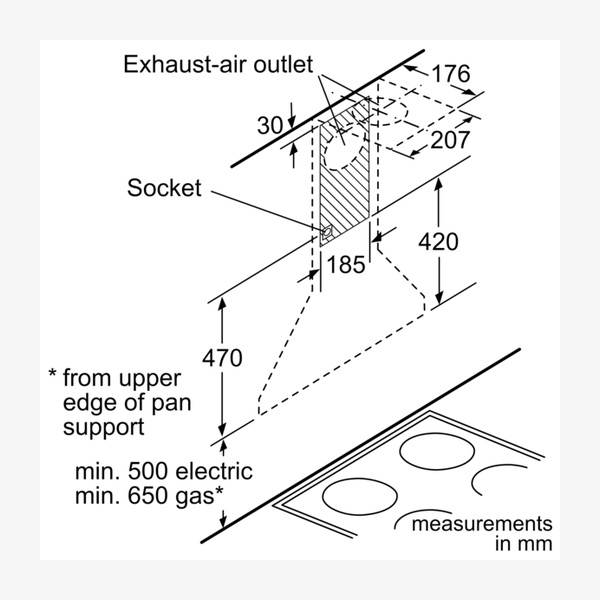

Minimum distance above electric hob650 mm

Minimum distance above gas hob650 mm

Diameter of air outlet150 mm (Ø 150 mm enclosed)

Net weight9.2 kg

EAN code4242002985299

Operation modeSuitable for ducted or recirculating operation

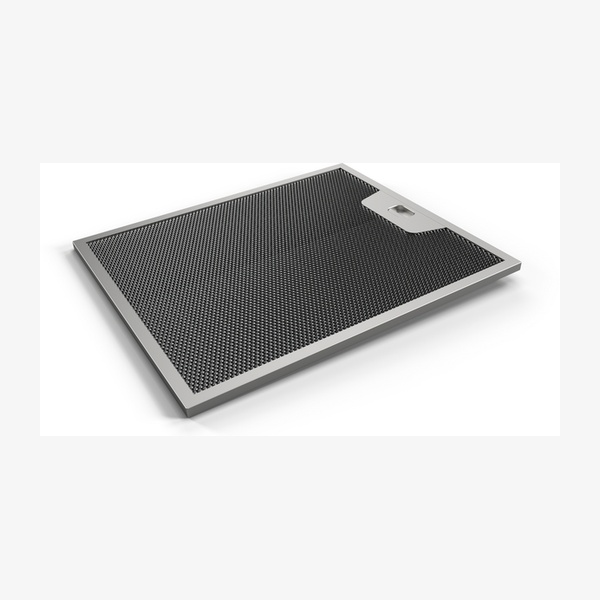

Charcoal filter for recirculationCharcoal filter (accessory) needed for recirculated extraction

Energy regulation reference*In accordance with EU–Regulation No 65/2014*

Downloads

Download product documentation, manuals, and specification sheets.

DWP64CC50M Spec

PDF

Frequently Asked Questions

What is the maximum extraction rate of this cooker hood?

The maximum extraction rate in exhaust air mode is 380 m³/h according to EN 61591. In recirculation mode, the maximum extraction rate in normal use is 235 m³/h.

How many speed settings does the hood have?

The hood provides three power levels. You can adjust the extraction intensity according to your cooking needs using the mechanical push–button controls.

Can this cooker hood be used in recirculation mode?

Yes. The appliance is suitable for both ducted and recirculating operation. For recirculated extraction, a charcoal filter accessory is needed.

Are the grease filters washable?

Yes. The hood is equipped with dishwasher–safe aluminium mesh filters. It has two removable metal grease filter cassettes made from washable aluminium.

What is the minimum installation height above the hob?

The minimum distance above an electric hob is 650 mm, and the minimum distance above a gas hob is also 650 mm.

What optional accessories are available?

Optional accessories listed include the DWA0KP6A standard odour filter, the DWZ6HP1U2 standard recirculation kit and a recirculating kit DWA0KP6A.
