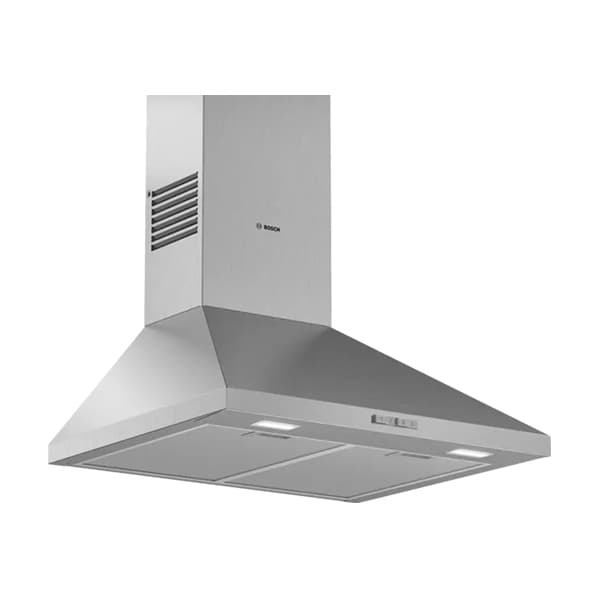

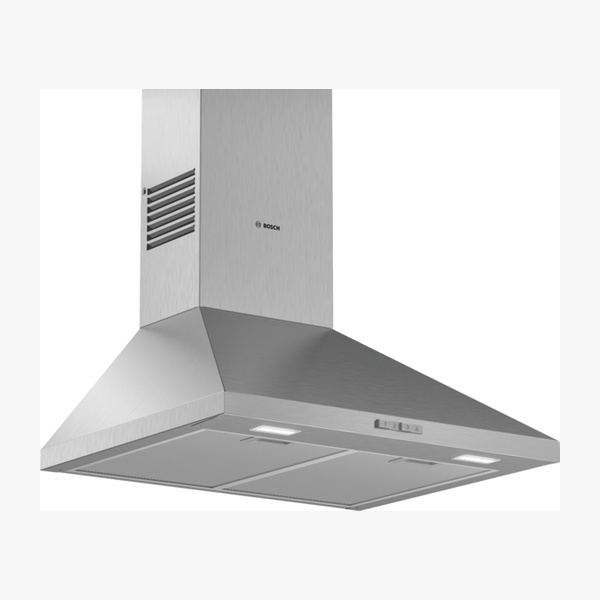

Bosch Serie 2 DWP64BC50B Chimney Hood

The Series 2 DWP64BC50B is a 60 cm stainless steel, wall-mounted pyramid cooker hood designed for ducted or recirculating operation. It offers a maximum extraction rate of 365 m³/h and mechanical push button control with 3 power levels. Energy-saving LED illumination provides bright, clear lighting for the hob, while dishwasher safe, washable aluminium grease filters help maintain performance. This chimney extractor hood combines practical features with simple, reliable operation.

SKU:DWP64BC50B

EAN:4242005031467

Category::Cooker Hoods

Quantity:

Key Features

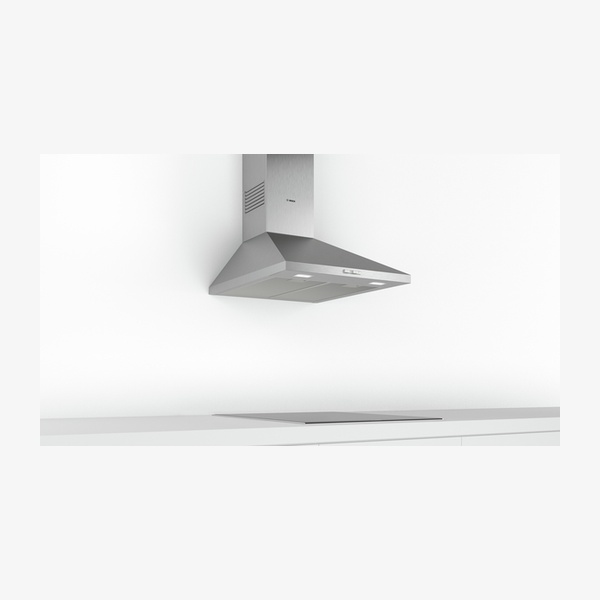

60 cm stainless steel wall-mounted pyramid hood designed as a chimney extractor hood for installation on the wall.

LED Illumination with 2 × 1.5 W lights providing energy-saving, bright and clear lighting for the hob area.

High extraction rate with maximum extraction rate exhaust air of 365 m³/h for continuously clean air in the kitchen.

3 power levels operated via push button mechanical control to adjust extraction intensity according to cooking needs.

Suitable for ducted or recirculating operation , with a recirculating kit required for recirculated extraction.

Dishwasher safe metal grease filters with 2 removable metal grease filter cassettes and washable aluminium grease filter material.

Energy Efficiency Class D on a scale from A+++ to D, with an average energy consumption of 53.1 kWh/year*.

Noise level 66 dB(A) re 1 pW at maximum normal use exhaust air, with up to 67 dB(A) re 1 pW in recirculation mode.

Lighting Efficiency Class A* and Grease Filtering Efficiency Class C* for balanced performance.

Blower Efficiency Class E* supporting reliable extraction performance.

Flexible ducting connection with diameter pipe Ø 150 mm (Ø 120 mm enclosed).

Bright hob illumination providing a light intensity of 104 lux and colour temperature of 3500 K.

Optional accessories available including chimney extensions, recirculation kit, odour filter and brushed steel back panels.

Technical Spec

Product seriesSeries 2

Model nameDWP64BC50B

Typology / installationWall-mounted chimney extractor hood; Installation: wall; Installation typology: Wall-mounted

Width60 cm

Colour chimneyStainless steel

Energy Efficiency ClassD (at a range of energy efficiency classes from A+++ to D)

Average energy consumption53.1 kWh/year*

Max. air extraction (exhaust)365 m³/h (according to EN 61591)

Max. air recirculation211 m³/h (Max. normal use in recirculation mode)

Maximum air flow365 m³/h

Noise level (exhaust)66 dB(A) re 1 pW at max. normal use exhaust air (according to EN 60704-3 and EN 60704-2-13)

Noise level (recirculation)Max. normal use: 67 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)

Control typeMechanical; Push button control; Number of speed settings: 3

Lighting2 × 1.5 W LED light; Colour Temperature: 3500 K; Light Intensity: 104 lux; Lighting Efficiency Class: A*

Number of lights2

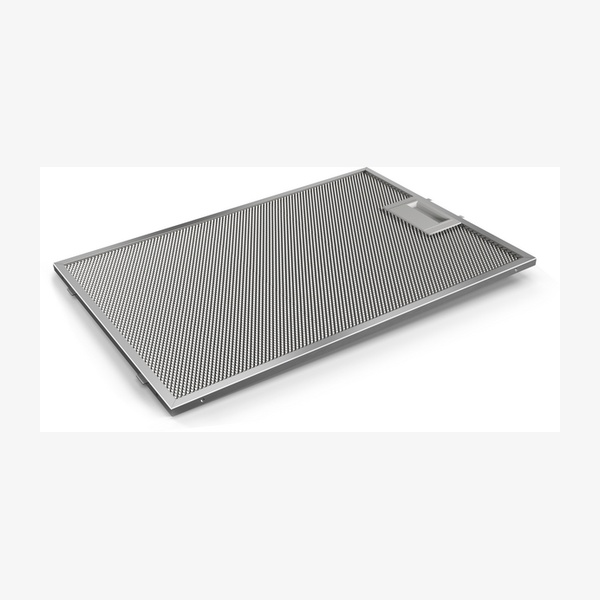

Grease filter2 removable metal grease filter cassettes; Grease filter material: Washable aluminium; Grease Filtering Efficiency Class: C*

Blower Efficiency ClassE*

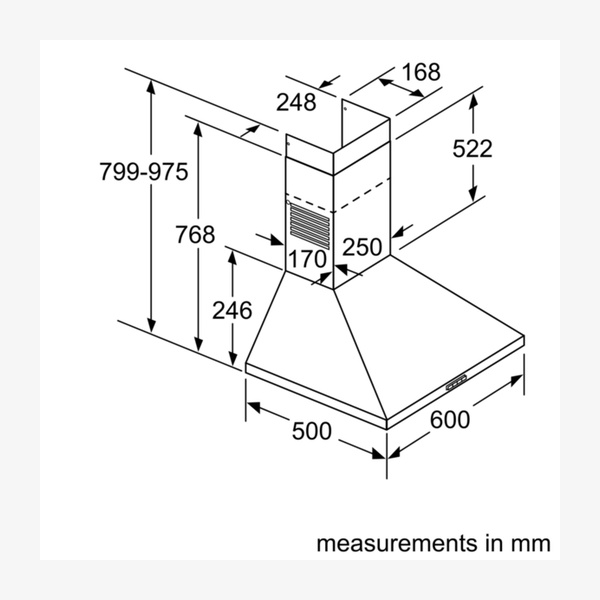

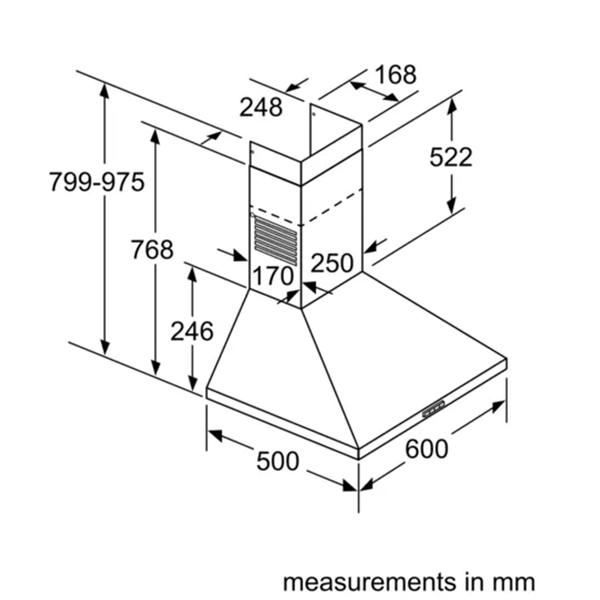

Dimensions (exhaust air, H×W×D)799-975 × 600 × 500 mm

Dimensions (recirculating, H×W×D)799-975 × 600 × 500 mm

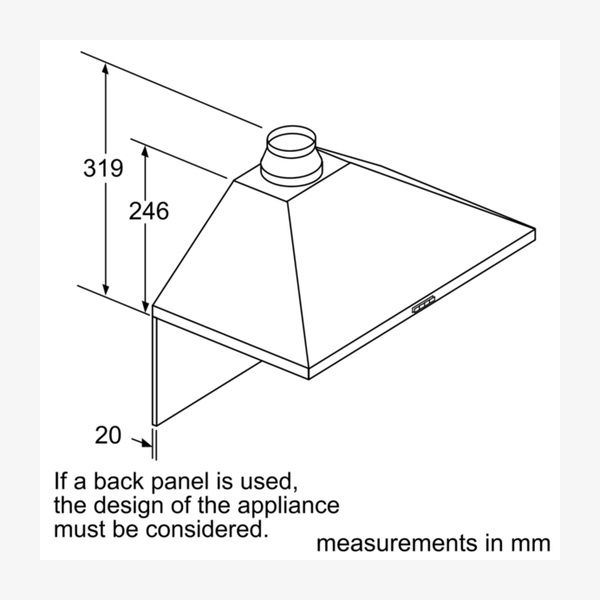

Height of the appliance246 mm

Height of the chimney553-730/573-730 mm

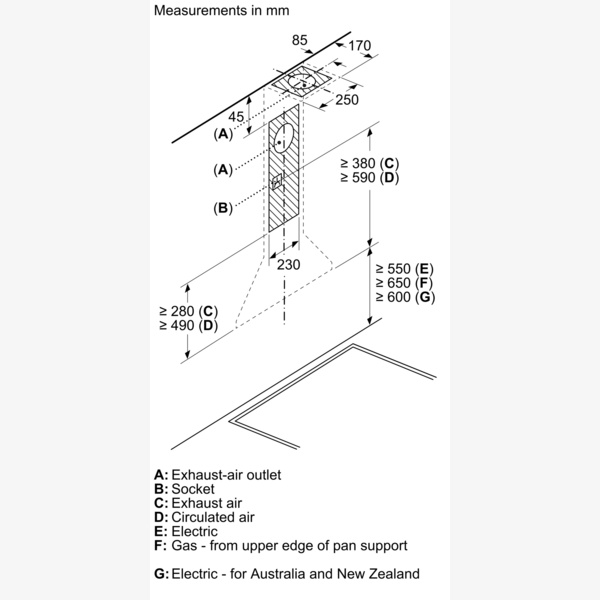

Minimum distance above electric hob550 mm

Minimum distance above gas hob650 mm

Net weight7.7 kg

Diameter of air outlet / pipe120 / 150 mm; Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

Length of electrical supply cord130 cm; Electrical cable length 1.3 m

Connection rating100 W (Power rating: 100 W)

Fuse protection10 A

Voltage220-240 V

Frequency50; 60 Hz

Plug typeGB plug

EAN code4242005031467

Downloads

Download product documentation, manuals, and specification sheets.

DWP64BC50B Spec

PDF

Frequently Asked Questions

What is the maximum extraction rate of the DWP64BC50B?

The maximum extraction rate for exhaust air is 365 m³/h according to EN 61591. In recirculation mode, the extraction rate at maximum normal use is 211 m³/h.

Can this cooker hood be used in recirculating mode?

Yes, the hood is suitable for ducted or recirculating operation. For recirculated extraction, a recirculating kit (accessory) is needed, and a recirculating kit DHZ1224 is listed as an optional accessory.

What type of lighting does the hood use?

It uses 2 × 1.5 W LED lights with a colour temperature of 3500 K and a light intensity of 104 lux. The lighting has an Efficiency Class of A*.

Are the grease filters washable?

Yes, the hood is equipped with 2 removable metal grease filter cassettes. The grease filter material is washable aluminium, and the filters are described as dishwasher safe metal grease filters.

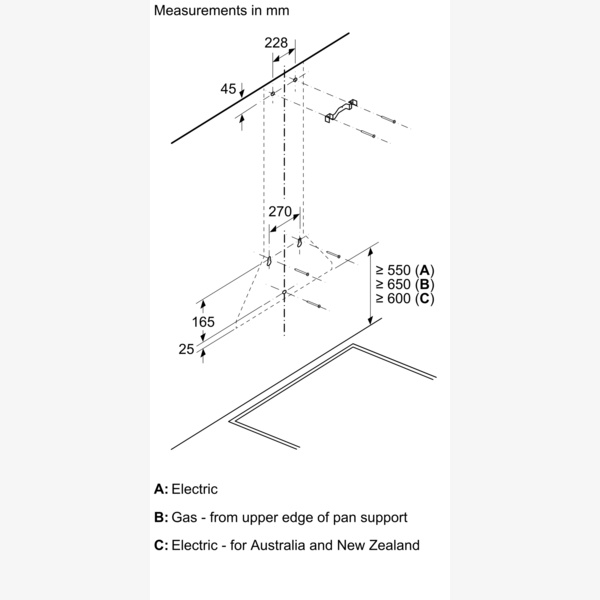

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 550 mm, and the minimum distance above a gas hob is 650 mm.

What is the noise level during operation?

The noise level at maximum normal use exhaust air is 66 dB(A) re 1 pW. In recirculation mode, the maximum normal use noise level is 67 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure).
