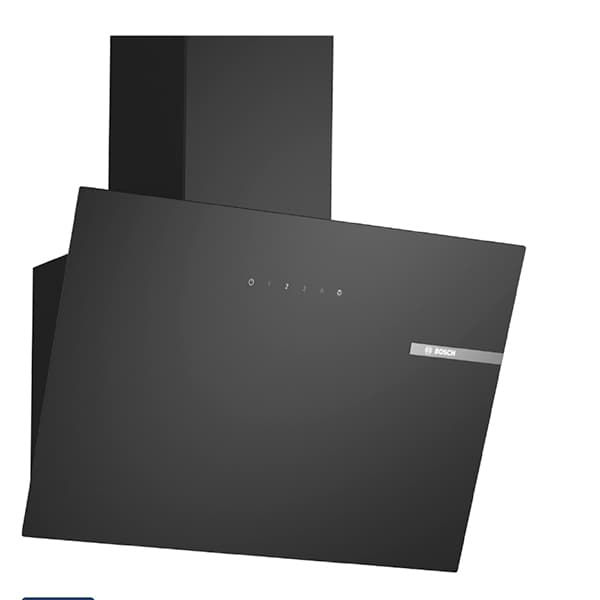

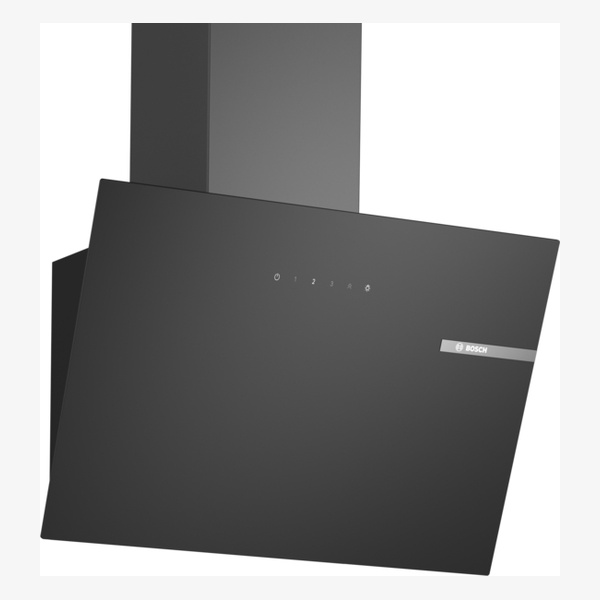

Bosch Series 2 DWK65DK60B Chimney Hood

The DWK65DK60B is a 60 cm Series 2 wall-mounted inclined glass cooker hood in black glass, suitable for ducted or recirculating operation. It is designed for an odour and noise free kitchen with an especially silent, low noise motor and a high extraction rate. Touch Select Basic electronic controls, LED lighting and easy-to-clean surfaces with dishwasher-safe metal grease filters provide convenient and effective everyday ventilation.

SKU:DWK65DK60B

EAN:4242005395934

Category::Cooker Hoods

Quantity:

Key Features

Especially silent operation – maximum hood performance with minimum noise for an odour and noise free kitchen.

High extraction rate – up to 430 m³/h in normal exhaust mode and 550 m³/h with intensive setting for continuously clean air.

Intensive Setting – powerful mode to beat intense steam during cooking, with automatic reset to normal after 5 minutes.

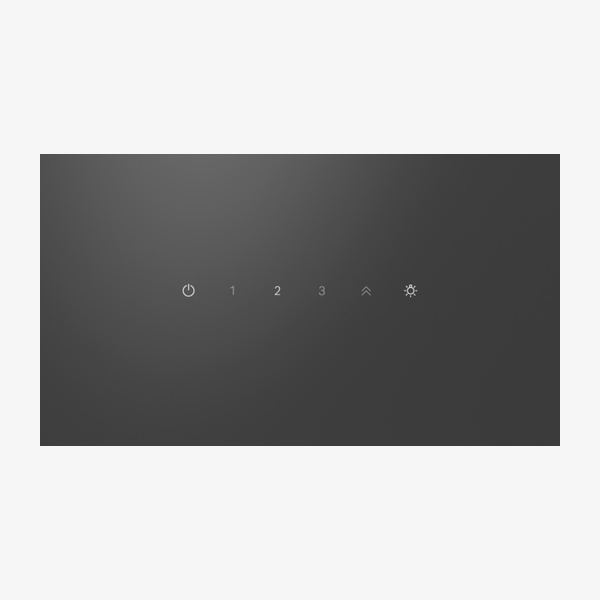

Touch Select Basic Control – electronic TouchControl with backlighted, sleek and user-friendly interface.

Inclined glass design – wall-mounted black glass inclined hood suitable for ducted or recirculating operation.

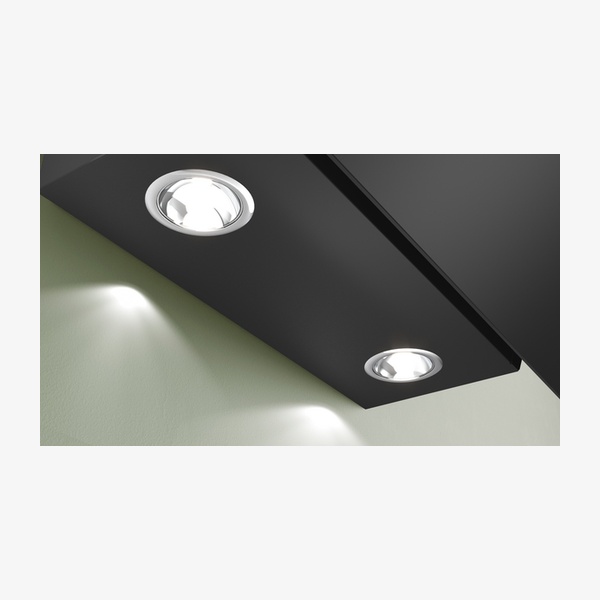

Efficient LED lighting – 2 LED lights with 4000 K colour temperature and 127 lux light intensity.

Easy-to-clean interior – smooth surfaces and materials designed for quick cleaning and easy filter replacement.

Dishwasher-safe metal grease filters – removable metal grease filter(s) for convenient cleaning.

Saturation indicator – indicator for metal and charcoal filter saturation to assist maintenance.

Three power levels plus intensive – 3-stages + intensive setting to match different cooking demands.

Energy Efficiency Class A – average energy consumption of 43.8 kWh/year* at a range from A+++ to D.

Optional recirculation – compatible with standard recirculation kit and standard odour filter accessories.

Technical Spec

Product name / modelDWK65DK60B

SeriesSeries 2

TypologyWall-mounted

DesignInclined glass common design, black glass

Colour chimneyBlack

Installation typologyWall-mounted, suitable for ducted or recirculating operation

Width60 cm (590 mm)

Height of the appliance325 mm

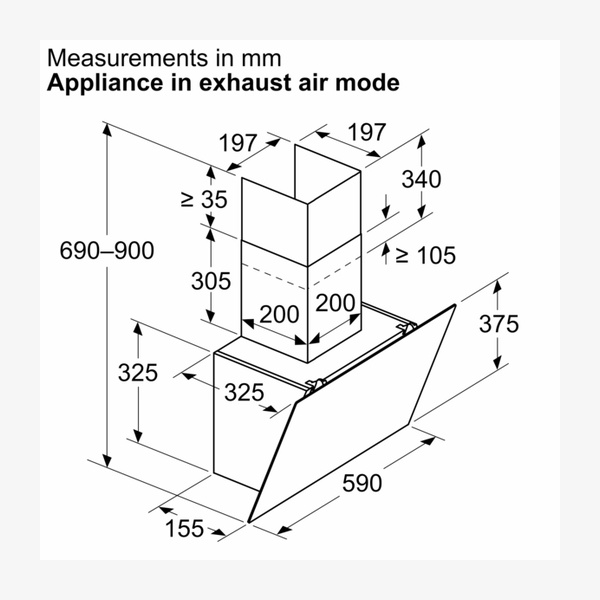

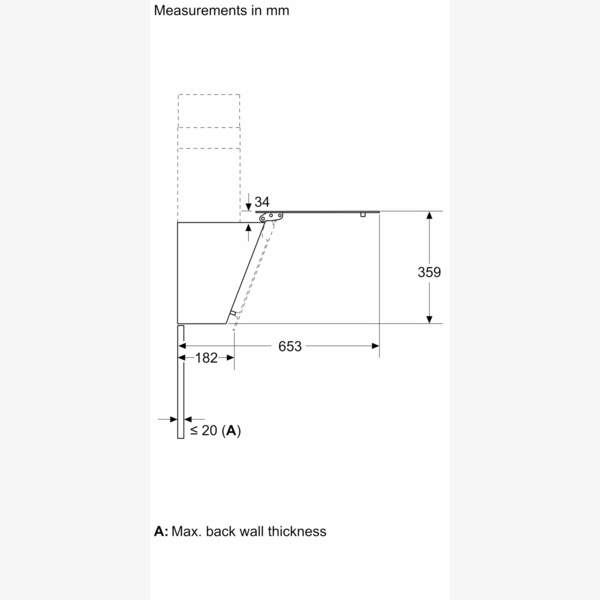

Dimensions exhaust air (H x W x D)690–900 x 590 x 325 mm

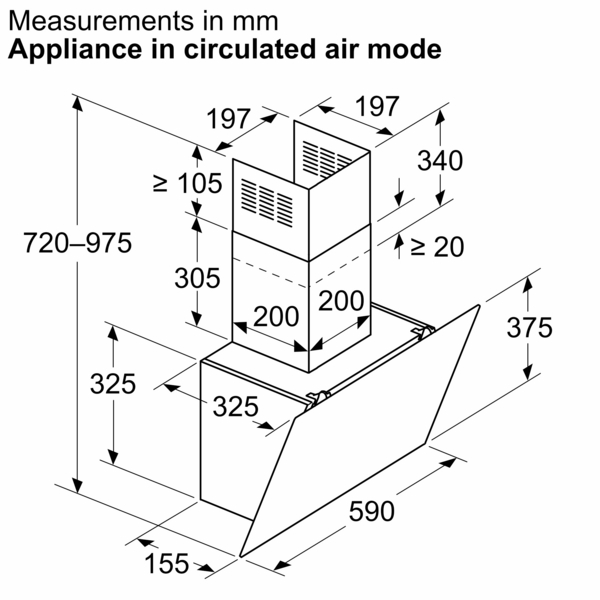

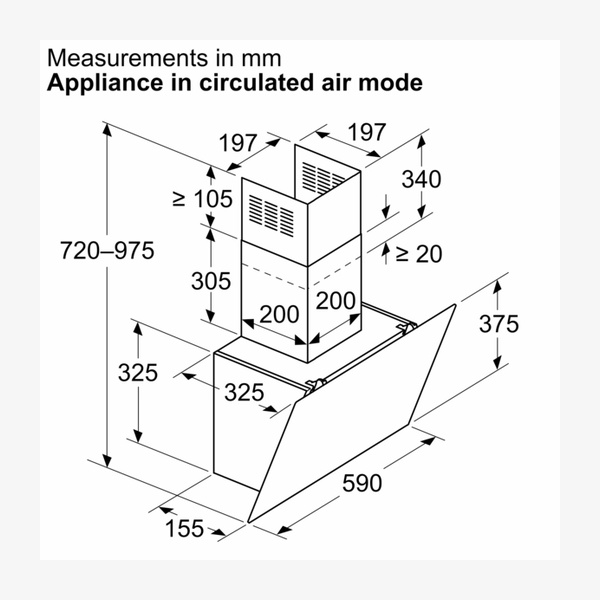

Dimensions recirculating (H x W x D)720–975 x 590 x 325 mm

Net weight10.6 kg

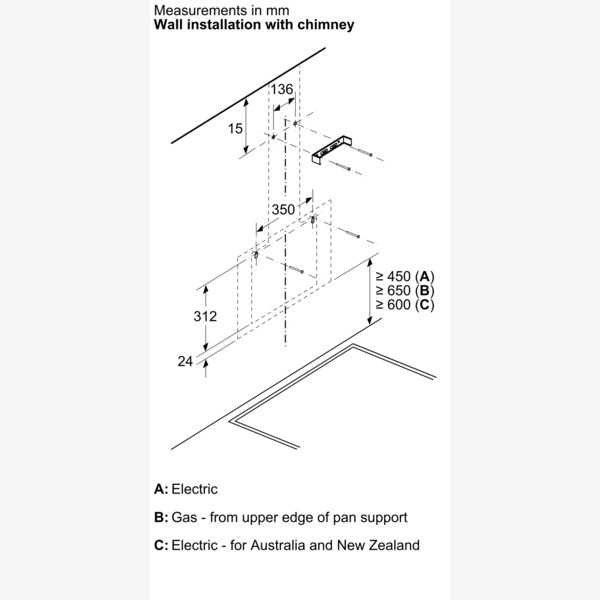

Minimum distance above electric hob450 mm

Minimum distance above gas hob650 mm

Type of controlElectronic TouchControl, backlighted (Touch Select Basic)

Number of speed settings3-stages + intensive setting

Motor typeCapacitor motor

Max. air extraction (normal)430 m³/h

Boost position air extraction550 m³/h

Max. air recirculation445 m³/h

Boost position output recirculating550.0 m³/h

Maximum air flow430 m³/h

Noise level (max.)60 dB(A) re 1pW

Noise levels exhaust mode*Speed 1: 46 dB(A) re1pW; Speed 2: 53 dB(A) re1pW; Speed 3: 60 dB(A) re1pW; Intensive 1: 65 dB(A) re1pW

Noise levels recirculation mode*Speed 1: 51 dB(A) re1pW; Speed 2: 61 dB(A) re1pW; Speed 3: 69 dB(A) re1pW; Intensive Speed 1: 72 dB(A) re1pW

Number of lights2 x LED

Colour temperature4000 K

Light intensity127 lux

Grease filter materialWashable aluminium; 1 metal grease filter(s)

Diameter of air outlet / pipe150 mm (Ø 150 mm enclosed)

Back-pressure flapYes

Length electrical supply cord150 cm (electrical cable length 1.5 m)

Plug typeGB plug

Connection rating / Power rating223 W

Fuse protection4 A

Voltage220–240 V, nominal voltage 220–240 V

Frequency50 Hz

EAN code4242005395934

Energy Efficiency Class*A (at a range of energy efficiency classes from A+++ to D)

Average energy consumption*43.8 kWh/year*

Blower Efficiency Class*A*

Lighting Efficiency Class*A*

Grease Filtering Efficiency Class*E*

Optional accessoriesDWZ1GK1A2 Standard odor filter (replacement); DWZ1GK1U2 Standard recirculation kit

Downloads

Download product documentation, manuals, and specification sheets.

DWK65DK60B Spec

PDF

Frequently Asked Questions

Can this cooker hood be used in both ducted and recirculating modes?

Yes. The hood is suitable for ducted or recirculating operation. For recirculated extraction, a recirculating kit (available as an accessory) is needed.

What optional accessories are available for this model?

The optional accessories listed are DWZ1GK1A2 Standard odor filter (replacement) and DWZ1GK1U2 Standard recirculation kit.

How many speed settings does the hood offer?

The hood provides 3 power levels plus an intensive setting (3-stages + intensive setting).

Is the metal grease filter dishwasher-safe?

Yes. The removable metal grease filters are dishwasher-safe and made from washable aluminium.

What is the energy efficiency rating of this cooker hood?

The hood has an Energy Efficiency Class A, with an average energy consumption of 43.8 kWh/year* at a range of energy efficiency classes from A+++ to D.
