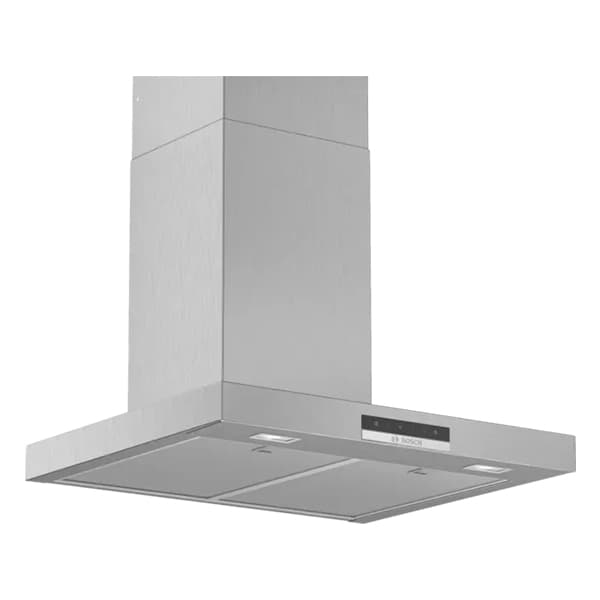

Bosch Serie 4 DWB66DM50B Chimney Hood

The Series 4 DWB66DM50B is a 60 cm wall-mounted stainless steel cooker hood designed for chimney extraction or recirculating operation. It combines an especially silent performance with a high extraction rate to help keep kitchen air cleaner and free from excessive grease and unwanted odours. With TouchControl and LED illumination providing bright, clear lighting for the hob area, it suits users seeking efficient air extraction and modern, box-style design.

SKU:DWB66DM50B

EAN:4242005051045

Category::Cooker Hoods

Quantity:

Key Features

Especially silent operation – designed for maximum hood performance with minimum noise.

High extraction rate – up to 605 m³/h for continuously clean air in the kitchen.

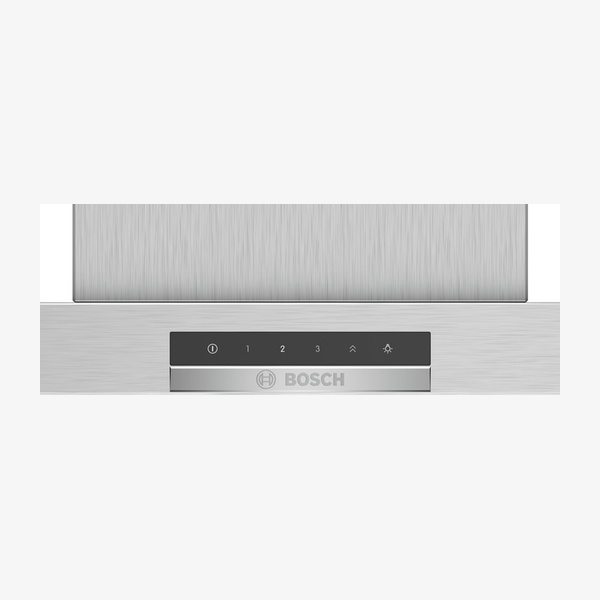

TouchSelect / TouchControl control – quickly select hood settings via touch with an electronic display.

3 power levels & intensive setting – flexible performance including automatic intensive revert after 6 minutes.

LED Illumination – 2 × 1.5 W LEDs with 3500 K colour temperature provide bright, clear lighting for the hob area.

Box design chimney extractor hood – wall-mounted design matching modern kitchen styling.

Suitable for ducted or recirculating operation – can be used with exhaust air or with recirculation kits (available as accessories).

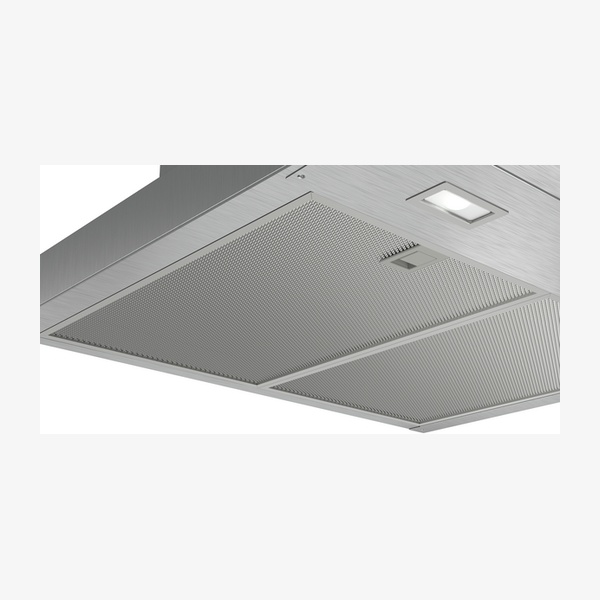

Metal grease filter cassettes – 2 removable washable aluminium grease filters help reduce excessive grease.

Energy Efficiency Class B – within a scale from A+++ to D, with average energy consumption of 48.1 kWh/year*.

Efficient blower and lighting – Blower Efficiency Class A*, Lighting Efficiency Class A*, Grease Filtering Efficiency Class B*.

Clean Air recirculation options – compatible with Clean Air Standard and Clean Air Plus recirculation and odour filter kits.

LED light intensity – 242 lux for clear illumination of the cooking area.

Technical Spec

ModelDWB66DM50B

Product seriesSeries 4

Typology / installationWall-mounted chimney extractor hood; installation: wall

Width60 cm

ColourStainless steel (colour chimney: stainless steel)

Energy Efficiency ClassB (range A+++ to D)

Average energy consumption*48.1 kWh/year

Blower Efficiency Class*A

Lighting Efficiency Class*A

Grease Filtering Efficiency Class*B

Type of controlElectronic TouchControl with electronic display

Power levels3-stages + intensive setting; automatic intensive revert (6 mins)

Max. air extraction (normal use)368 m³/h (according to EN 61591 ø 15 cm)

Boost position air extraction605 m³/h (Intensive)

Maximum air flow368 m³/h

Max. air recirculation (normal use)**337 m³/h (with Clean Air Plus recirculation kit)

Boost position output recirculating**441 m³/h (Intensive with Clean Air Plus recirculation kit)

Noise level exhaust air (max. normal use)60 dB(A) re 1 pW (according to EN 60704-3 and EN 60704-2-13)

Noise level exhaust air (Intensive)69 dB(A) re 1 pW

Noise max. normal level (summary)60 dB*

Noise level recirculation (max. normal use)**70 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

Noise level recirculation (Intensive)**74 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

Number of lights2 × 1.5 W LED lights

Light colour temperature3500 K

Light intensity242 lux

Grease filter materialWashable aluminium; 2 removable metal grease filter cassettes

Suitable operation modesDucted or recirculating operation (recirculating kit or CleanAir recirculating kit needed for recirculation)

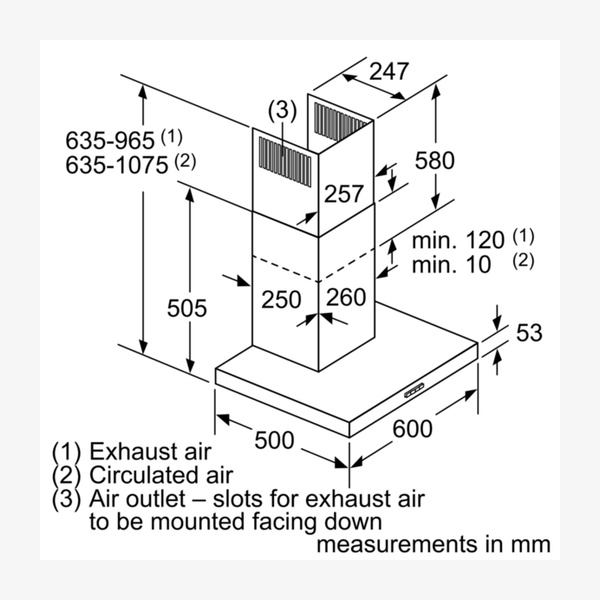

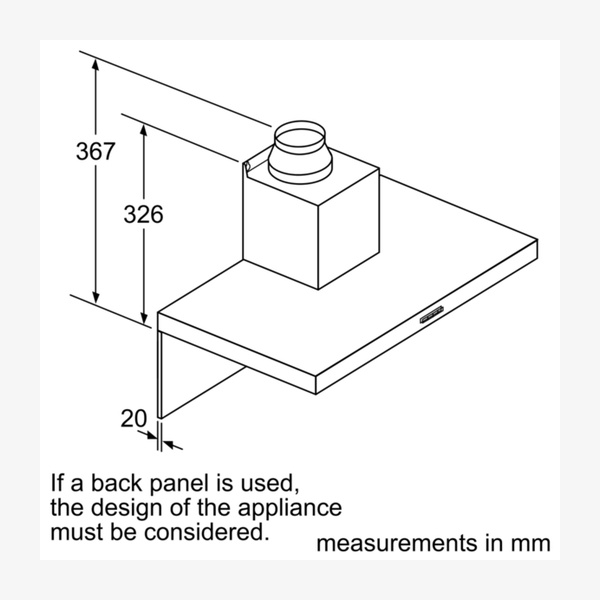

Dimensions exhaust air (H×W×D)635–965 × 600 × 500 mm

Dimensions recirculating (H×W×D)635–1075 × 600 × 500 mm

Dimensions recirculating with CleanAir module (outer chimney)703 × 600 × 500 mm

Dimensions recirculating with CleanAir module (telescopic chimney)833–1163 × 600 × 500 mm

Height of the chimney583–912 / 583–1022 mm

Height of the appliance53 mm

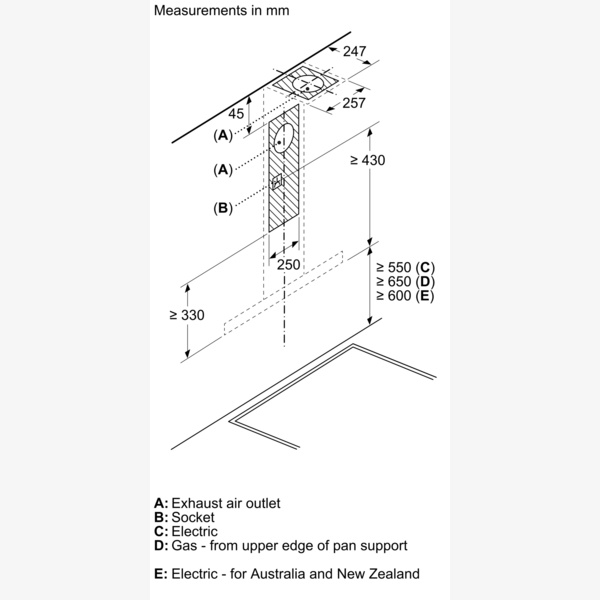

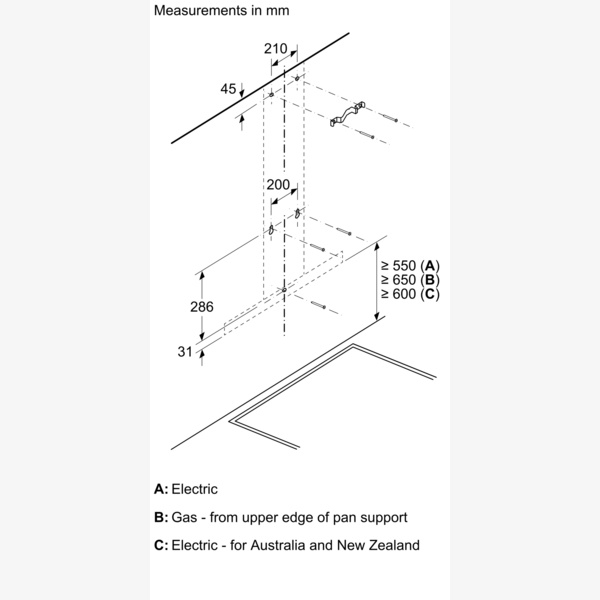

Minimum distance above electric hob550 mm

Minimum distance above gas hob650 mm

Diameter of air outlet150 mm (120 mm enclosed)

Length electrical supply cord130 cm (electrical cable length 1.3 m)

Net weight11.9 kg

Connection rating / power rating220 W

Fuse protection10 A

Voltage220–240 V

Frequency50; 60 Hz

Plug typeGB plug

EAN code4242005051045

Downloads

Download product documentation, manuals, and specification sheets.

DWB66DM50B Spec

PDF

Frequently Asked Questions

Can this cooker hood be used in recirculating mode?

Yes. The appliance is suitable for ducted or recirculating operation. For recirculated extraction, a recirculating kit or CleanAir recirculating kit is needed. With the Clean Air Plus recirculation kit, it achieves a maximum extraction rate of 337 m³/h in normal use and 441 m³/h in intensive mode.

What is the maximum extraction rate of the DWB66DM50B?

The maximum extraction rate is 368 m³/h in normal use and 605 m³/h in intensive mode (according to EN 61591 with a 15 cm duct). With recirculation using the Clean Air Plus kit, the maximum extraction rate is 337 m³/h in normal use and 441 m³/h in intensive mode.

How noisy is this cooker hood during operation?

In exhaust air mode, the noise level at maximum normal use is 60 dB(A) re 1 pW and 69 dB(A) re 1 pW in intensive mode. With the Clean Air Plus recirculation kit, noise levels in recirculation mode are 70 dB(A) re 1 pW at maximum normal use and 74 dB(A) re 1 pW in intensive mode. The hood is described as especially silent, offering maximum hood performance with minimum noise.

What type of lighting does the hood use?

The hood uses two 1.5 W LED lights. The LED illumination provides energy-saving, bright and clear lighting for the hob area, with a colour temperature of 3500 K and a light intensity of 242 lux.

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 550 mm, and the minimum distance above a gas hob is 650 mm.

How are grease and odours filtered?

Grease is filtered through two removable metal grease filter cassettes made from washable aluminium. For odour filtration, optional accessories such as Clean Air Standard and Clean Air Plus odour filters, as well as Long Life odour filters and recirculation kits, are available.
