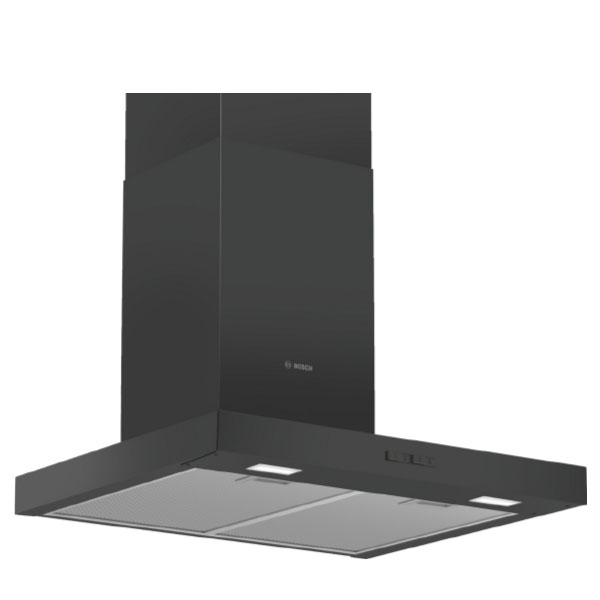

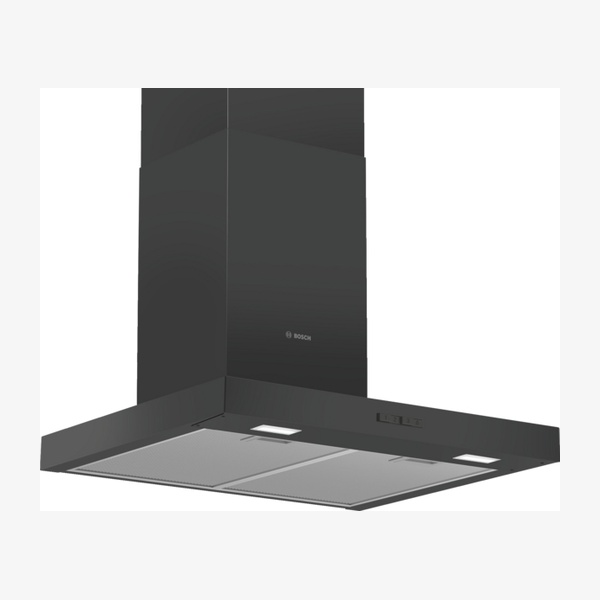

Bosch Series 2 DWB66BC60B Chimney Hood

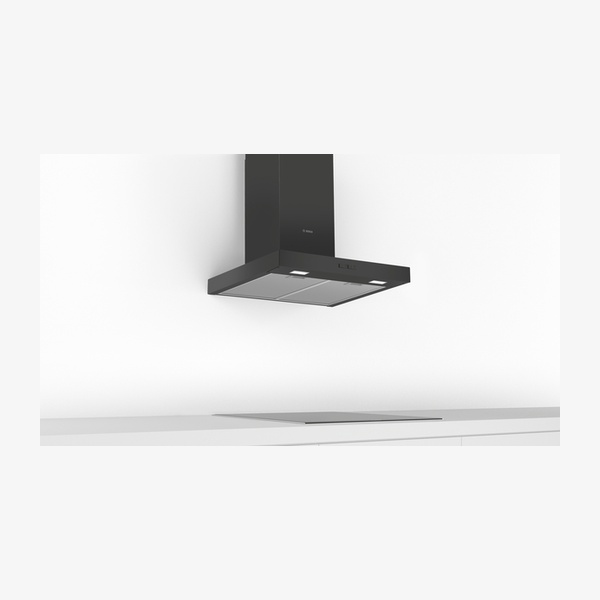

The Series 2 DWB66BC60B is a 60 cm black wall‑mounted chimney cooker hood designed to add style and sophistication to the kitchen while giving you freedom in kitchen planning. It offers a high extraction rate for continuously clean air, with three power levels operated via mechanical push buttons. Energy‑saving LED lighting provides bright and clear illumination of the hob area, while washable aluminium grease filters help keep the kitchen free from excessive grease and unwanted odours.

SKU:DWB66BC60B

EAN:4242005451135

Category::Cooker Hoods

Quantity:

Key Features

Wall‑mounted chimney hood design – adds style and sophistication to the kitchen and supports flexible kitchen planning.

60 cm wide box design – suitable for installation above standard‑width hobs.

High extraction rate – delivers up to 621 m³/h maximum air extraction for continuously clean air in the kitchen.

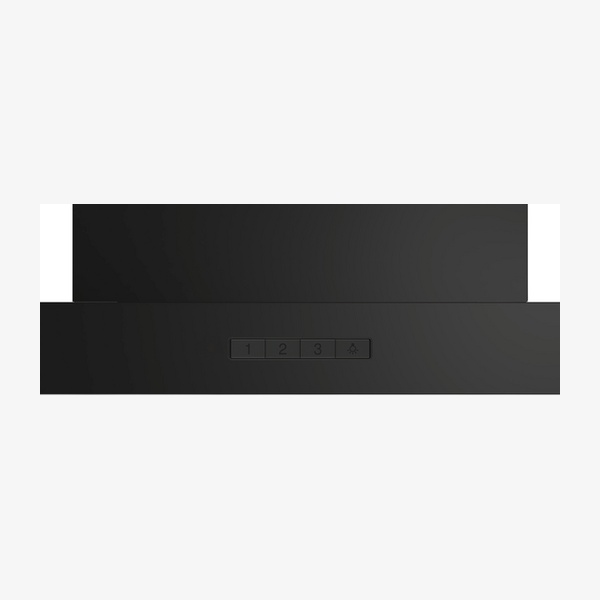

3 power levels – adjust the extraction intensity according to cooking needs via mechanical push button control.

LED illumination – 2 x 1.5 W energy‑saving LED lights provide bright and clear lighting for the hob area.

Suitable for ducted or recirculating operation – install with exhaust air ducting or with an optional recirculation kit.

Clean Air Plus recirculation option – with the optional kit, achieves up to 422 m³/h extraction in recirculation mode.

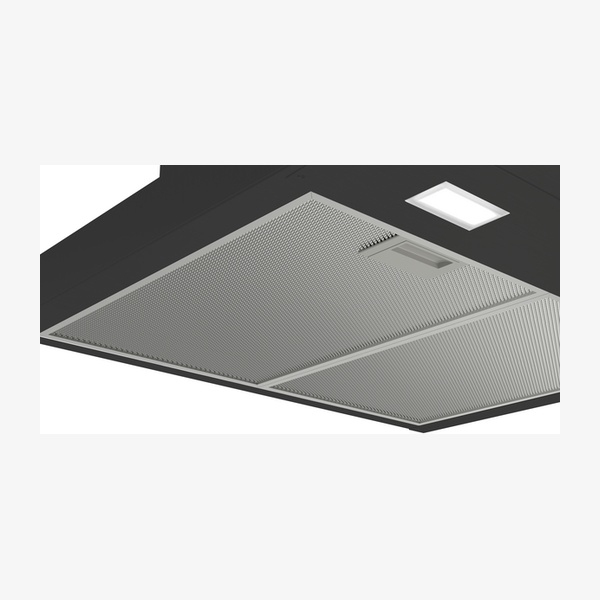

Washable aluminium grease filters – 2 removable metal grease filter cassettes help maintain a cleaner kitchen, free from excessive grease.

Energy Efficiency Class B – with average energy consumption of 46.5 kWh/year*.

Efficient performance – Blower Efficiency Class A*, Lighting Efficiency Class A* and Grease Filtering Efficiency Class B*.

Twin channel high performance fan motor – supports strong extraction performance.

Black chimney and appliance finish – colour chimney and body in black for a coordinated appearance.

Technical Spec

Product seriesSeries 2

Product typeWall‑mounted chimney extractor hood, box design

Model codeDWB66BC60B

Width60 cm

ColourBlack (colour chimney: Black)

Installation typologyWall‑mounted

Operation modesSuitable for ducted or recirculating operation

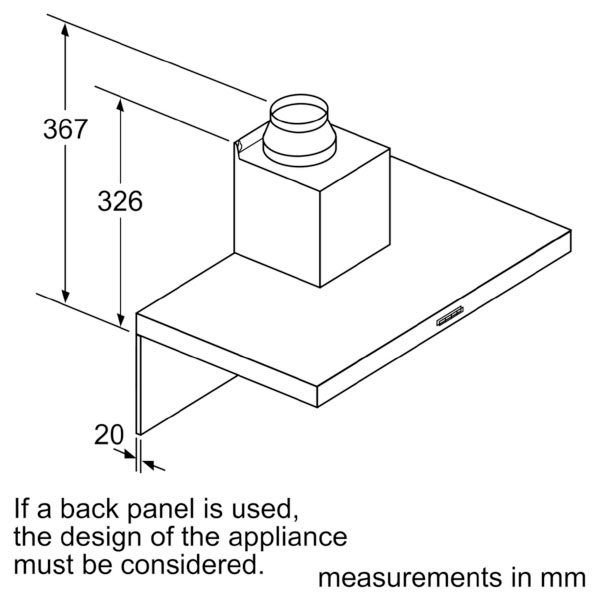

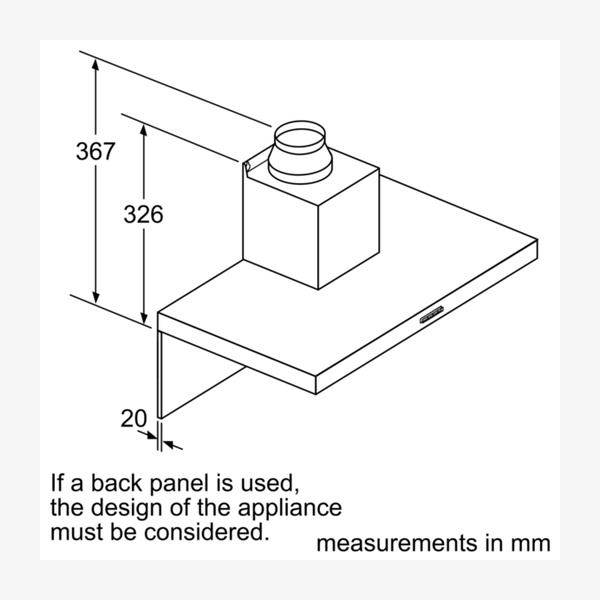

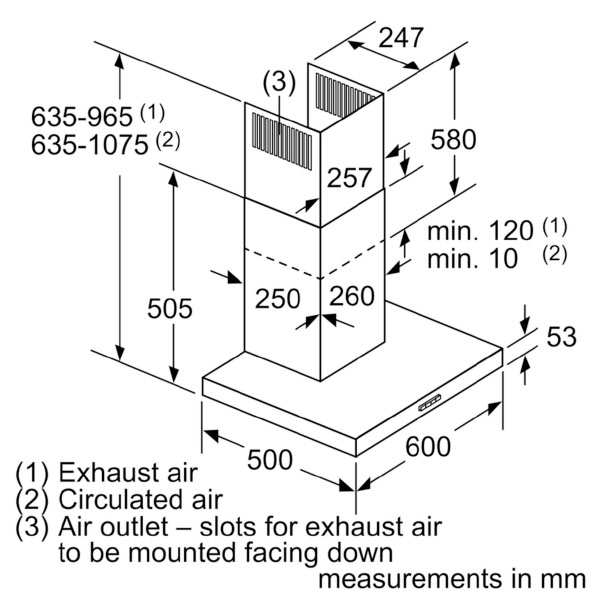

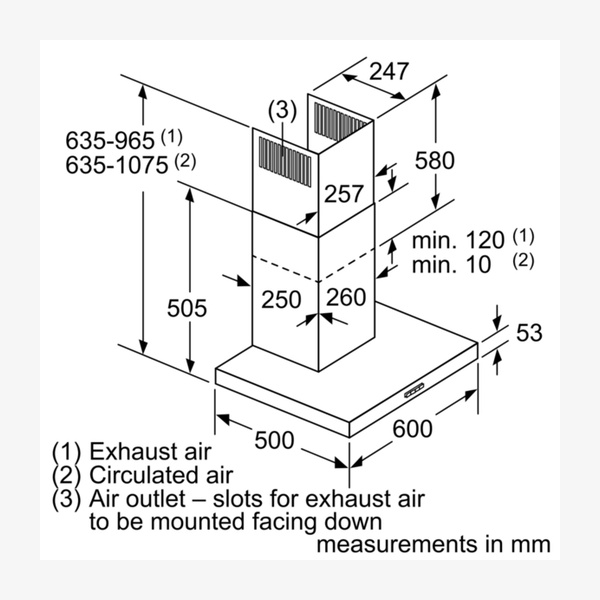

Dimensions exhaust air (H x W x D)635–965 x 600 x 500 mm

Dimensions recirculating (H x W x D)635–1075 x 600 x 500 mm

Height of chimney583–912 / 583–1022 mm

Height of appliance53 mm

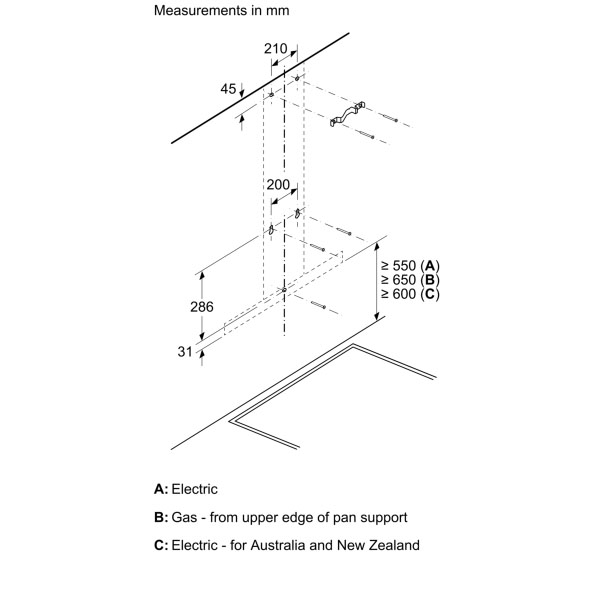

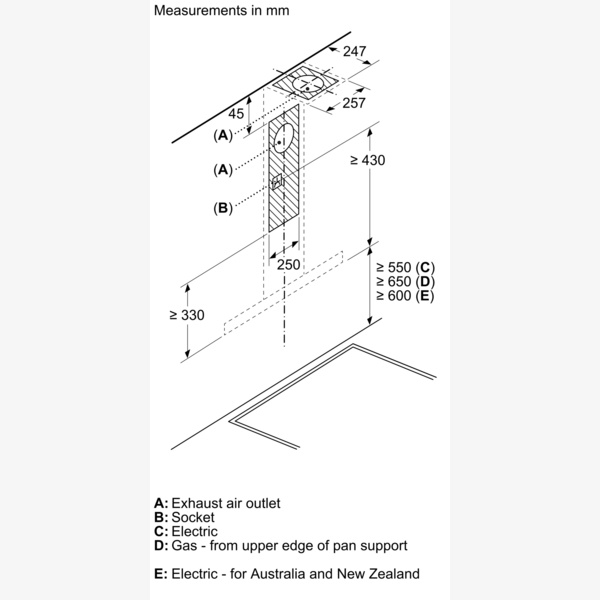

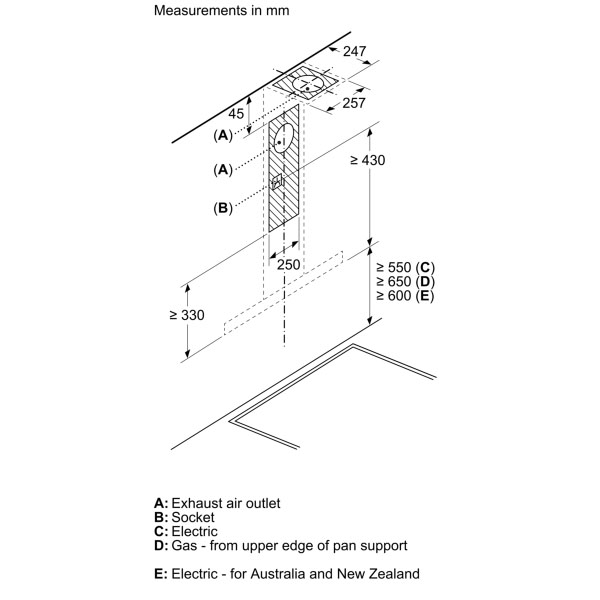

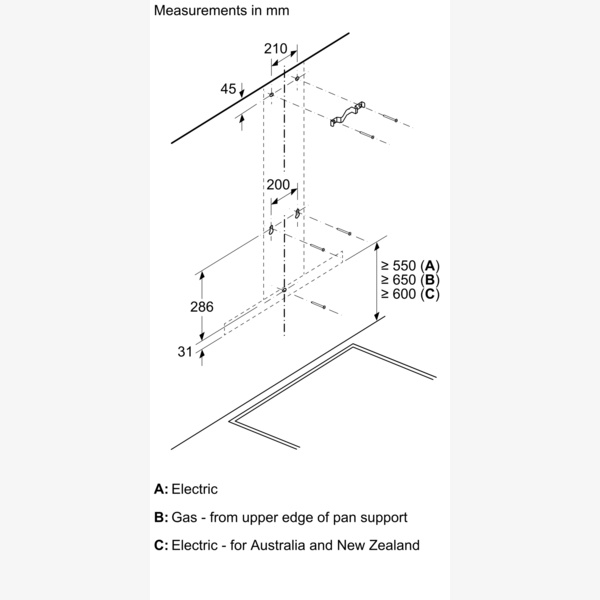

Minimum distance above electric hob550 mm

Minimum distance above gas hob650 mm

Net weight12.0 kg

Control typeMechanical push button control

Number of speed settings3

Max. air extraction (exhaust air)621 m³/h (according to EN 61591)

Maximum air flow621 m³/h

Max. air recirculation (Clean Air Plus kit)422 m³/h (max. normal use)

Noise level exhaust air69 dB(A) re 1 pW (max. normal use, according to EN 60704-3 and EN 60704-2-13)

Noise level recirculation (Clean Air Plus kit)74 dB(A) re 1 pW (max. normal use)

Blower Efficiency ClassA*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassB*

Energy Efficiency ClassB (range A+++ to D)

Average energy consumption46.5 kWh/year*

Number of lights2 x 1.5 W LED light

Colour temperature3500 K

Grease filter materialWashable aluminium; 2 removable metal grease filter cassettes

Diameter of air outletØ 150 mm (Ø 120 mm enclosed) / 120 / 150 mm stated

Length of electrical supply cord130 cm (electrical cable length 1.3 m)

Connection rating / Power rating220 W

Fuse protection10 A

Voltage220–240 V

Frequency50; 60 Hz

Plug typeGB plug

EAN code4242005451135

Downloads

Download product documentation, manuals, and specification sheets.

DWB66BC60B Spec

PDF

Frequently Asked Questions

Can this cooker hood be used in both ducted and recirculating modes?

Yes. The hood is suitable for ducted or recirculating operation. For recirculated extraction, a recirculating kit or CleanAir recirculating kit (listed as accessories) is needed.

What is the maximum extraction rate of the DWB66BC60B?

The maximum extraction rate in exhaust air mode is 621 m³/h according to EN 61591. With the Clean Air Plus recirculation kit, the maximum extraction rate in recirculation mode is 422 m³/h in normal use.

How many speed settings does this cooker hood have?

The hood has 3 power levels, controlled via mechanical push buttons, allowing you to adjust the extraction intensity according to your cooking needs.

What type of filters are used and are they washable?

It uses 2 removable metal grease filter cassettes made from washable aluminium. Various optional odour and recirculation filters are also available as accessories.

What kind of lighting does the hood provide?

The hood features 2 x 1.5 W LED lights with a colour temperature of 3500 K, providing energy‑saving, bright and clear lighting for the hob area.
