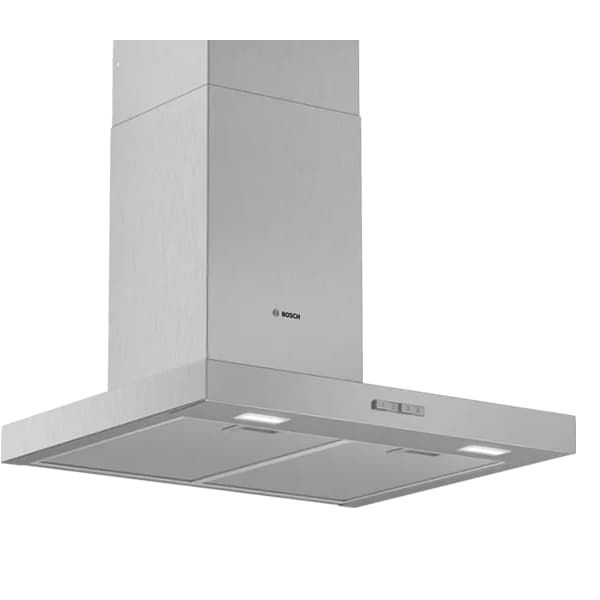

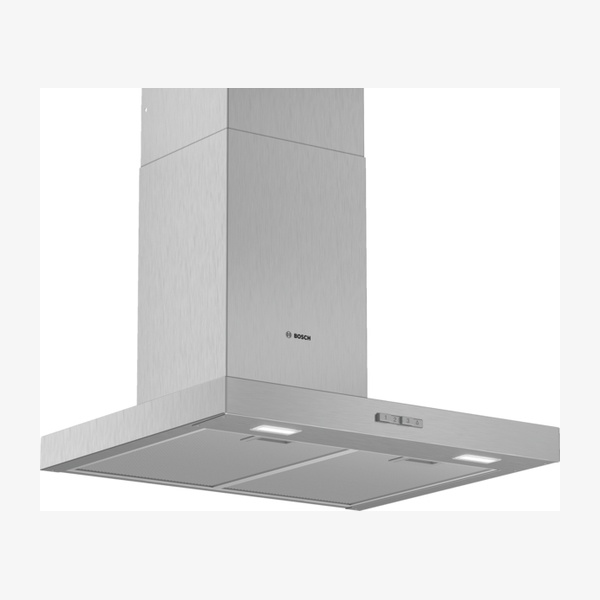

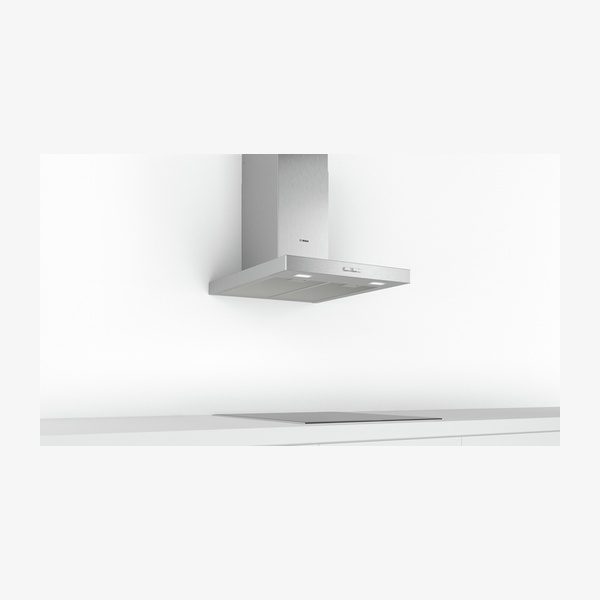

Bosch Serie 2 DWB64BC50B Chimney Hood

The Series 2 DWB64BC50B is a 60 cm wall–mounted chimney extractor hood in stainless steel with a box design for performance and matching kitchen style. It offers quiet extraction with a maximum extraction rate of 365 m³/h and three power levels. Energy–saving LED illumination provides bright, clear lighting for the hob, while dishwasher safe metal grease filters support easy cleaning. It is suitable for both ducted and recirculating operation using optional accessories.

SKU:DWB64BC50B

EAN:4242005051007

Category::Cooker Hoods

Quantity:

Key Features

Box design chimney hood for performance and matching kitchen design in one hood.

Quiet extraction with powerful performance and a maximum extraction rate of 365 m³/h.

Energy–saving LED illumination provides bright and clear lighting for the hob area (2 x 1.5 W, 3500 K, 99 lux).

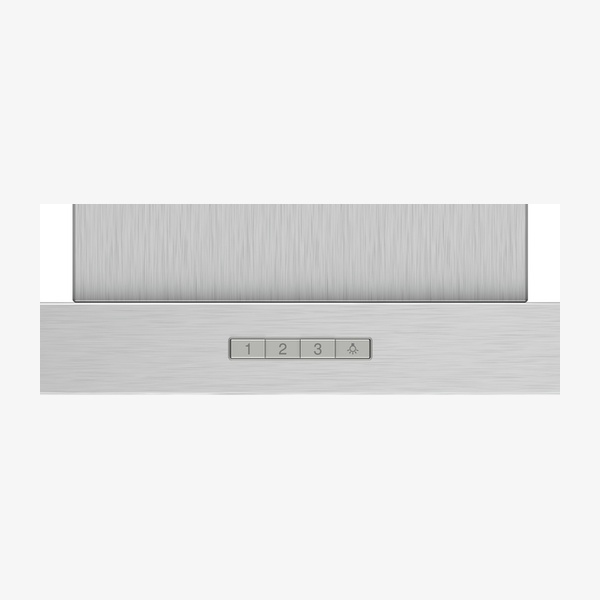

Three power levels with mechanical push button control for simple operation.

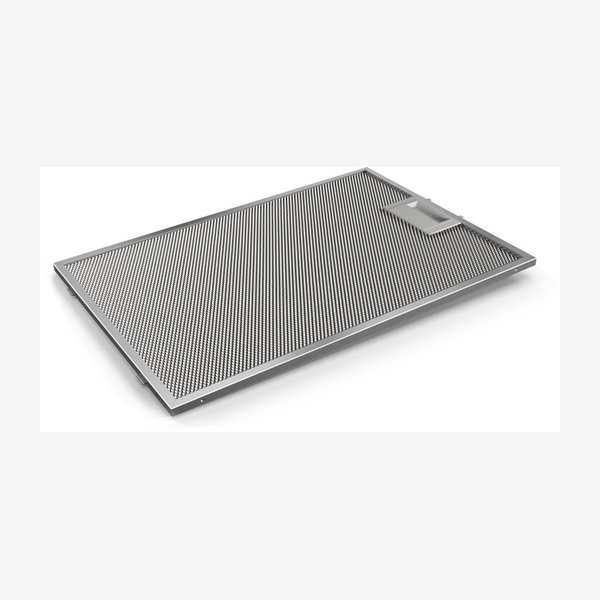

Dishwasher safe metal grease filters with 2 removable aluminium mesh filter cassettes.

Suitable for ducted or recirculating operation with optional recirculation and Clean Air kits.

Stainless steel finish with wall–mounted chimney design for installation above the hob.

Energy Efficiency Class D (range A+++ to D) with average energy consumption of 53.1 kWh/year*.

Noise level of 63 dB(A) re 1 pW at maximum normal use in exhaust air mode.

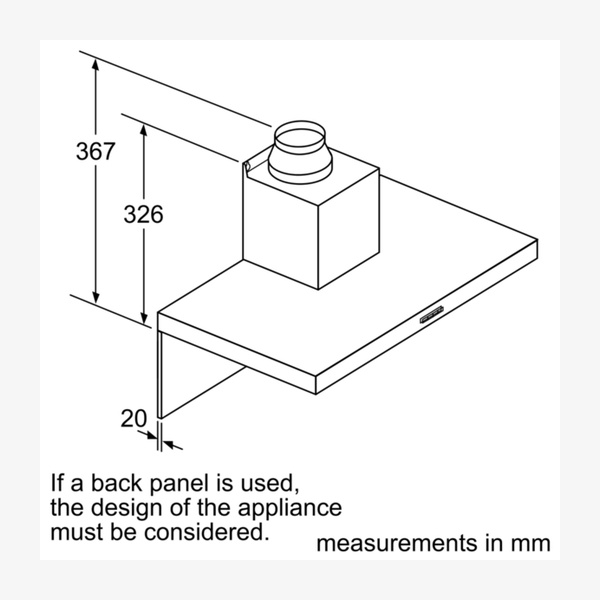

Optional accessories include chimney extensions, brushed steel back panels, recirculation kits and odour filters.

Technical Spec

Product seriesSeries 2

Model nameDWB64BC50B

Product typeWall–mounted chimney extractor hood

Width60 cm

Colour chimneyStainless steel

Installation typologyWall–mounted

TypologyWall–mounted

Energy Efficiency ClassD (range A+++ to D)

Average energy consumption53.1 kWh/year*

Blower Efficiency ClassE*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassC*

Max. extraction rate (exhaust air)365 m³/h (according to EN 61591)

Maximum air flow365 m³/h

Max. air recirculation240 m³/h (with Clean Air Plus recirculation kit, max normal use)

Noise level (exhaust air)63 dB(A) re 1 pW at max normal use (according to EN 60704–3 and EN 60704–2–13)

Noise level (recirculation)65 dB(A) re 1 pW at max normal use with Clean Air Plus recirculation kit

Number of speed settings3 power levels

Control typeMechanical push button control

Lighting2 x 1.5 W LED light, colour temperature 3500 K, light intensity 99 lux

Number of lights2

Grease filter materialWashable aluminium (2 removable metal grease filter cassettes)

Suitable for operationDucted or recirculating operation

Height of chimney583–912 / 583–1022 mm

Height of appliance53 mm

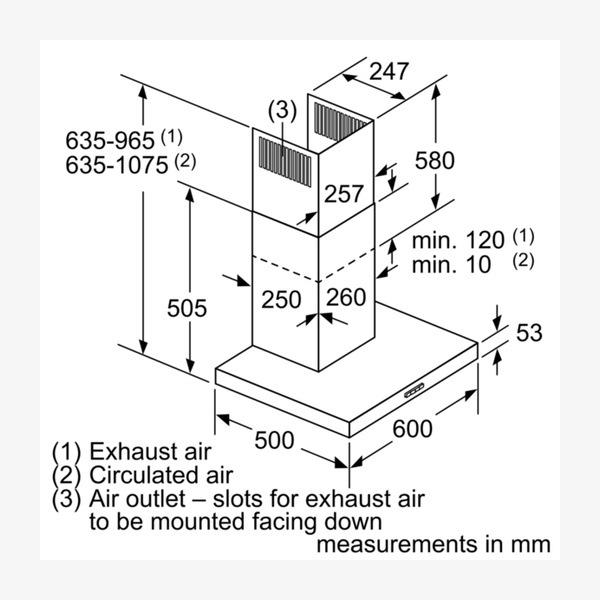

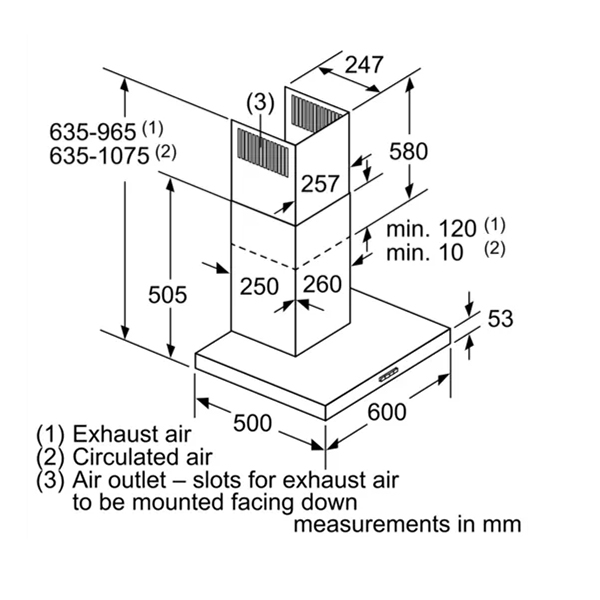

Dimensions (exhaust air, HxWxD)635–965 x 600 x 500 mm

Dimensions (recirculating, HxWxD)635–1075 x 600 x 500 mm

Dimensions recirculating with CleanAir module (HxWxD)703 x 600 x 500 mm (mounting with outer chimney); 833–1163 x 600 x 500 mm (mounting with telescopic chimney)

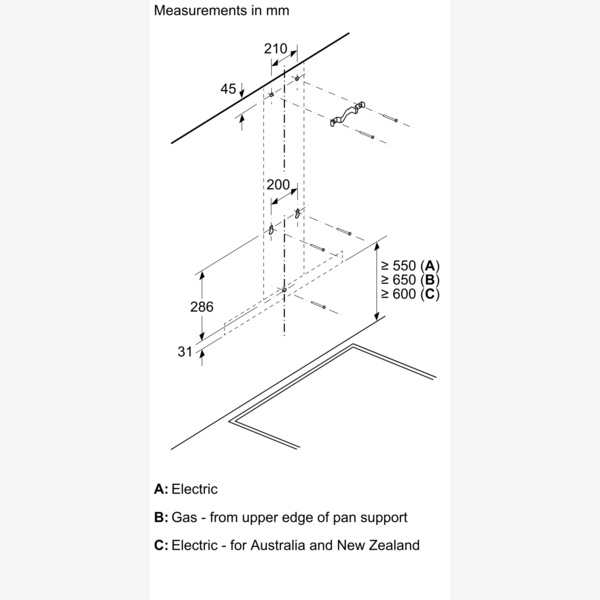

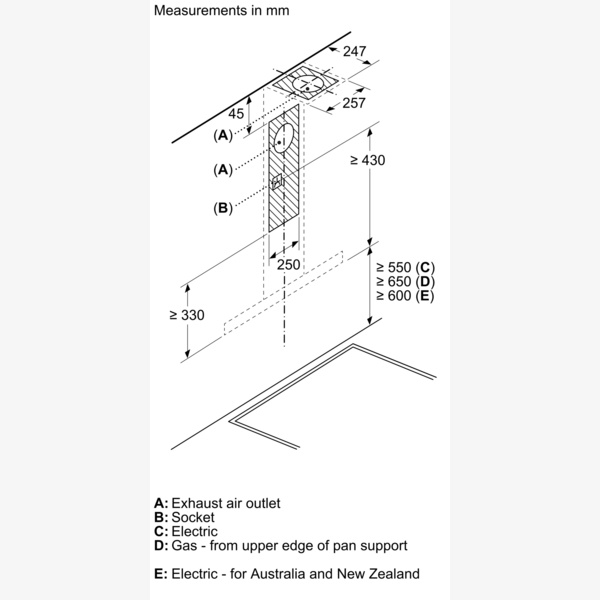

Minimum distance above electric hob550 mm

Minimum distance above gas hob650 mm

Diameter of air outlet150 mm (120 mm enclosed)

Net weight10.4 kg

Length of electrical supply cord130 cm / 1.3 m (electrical cable length 1.3 m)

Connection rating100 W (Power rating: 100 W)

Fuse protection10 A

Voltage220–240 V

Frequency50; 60 Hz

Plug typeGB plug

EAN code4242005051007

Downloads

Download product documentation, manuals, and specification sheets.

DWB64BC50B Spec

PDF

Frequently Asked Questions

Is this cooker hood suitable for both ducted and recirculating operation?

Yes. The hood is suitable for ducted or recirculating operation. For recirculated extraction, a recirculating kit or CleanAir recirculating kit is needed as an accessory.

What is the maximum extraction rate?

The maximum extraction rate in exhaust air mode is 365 m³/h according to EN 61591. With the Clean Air Plus recirculation kit, the extraction rate in recirculation mode at maximum normal use is 240 m³/h.

How noisy is the hood during operation?

The noise level in exhaust air mode at maximum normal use is 63 dB(A) re 1 pW according to EN 60704–3 and EN 60704–2–13. In recirculation mode with the Clean Air Plus recirculation kit, the noise level at maximum normal use is 65 dB(A) re 1 pW.

Are the grease filters removable and washable?

Yes. The cooker hood includes 2 removable metal grease filter cassettes made from washable aluminium. The metal grease filter and aluminium mesh filters are described as dishwasher safe.

What is the minimum installation height above the hob?

The minimum distance above an electric hob is 550 mm, and the minimum distance above a gas hob is 650 mm.

What type of lighting does the hood use?

The hood uses 2 x 1.5 W LED lights with a colour temperature of 3500 K and a light intensity of 99 lux, providing bright and clear illumination of the hob area.
