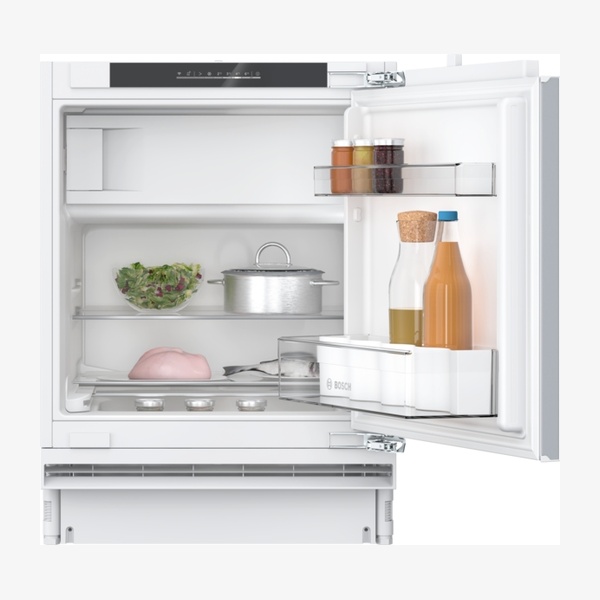

Bosch Series 4 KUL22VFD0G Fridge inc Ice Box

The Bosch Series 4 KUL22VFD0G is a built-under refrigerator with a 4-star freezer section, designed for cooling and freezing where space is limited. Offering a total volume of 110 l, it features Super Cooling, Safety Glass Shelves and a bright interior LED light. With LED electronic control, automatic fridge defrost and easy-clean interior, it provides worry-free everyday use in a compact built-in installation.

SKU:KUL22VFD0G

EAN:

Category::Fridges

Quantity:

Key Features

Built-under design – compact Series 4 fridge with freezer section, 82 x 60 cm, suitable for built-under installation.

4-star freezer section – integrated freezer with ice box and EU19 fast freezer facility.

Super Cool / SuperCooling function – cools new food faster and quickly chills food and beverages at the touch of a button, with automatic deactivation.

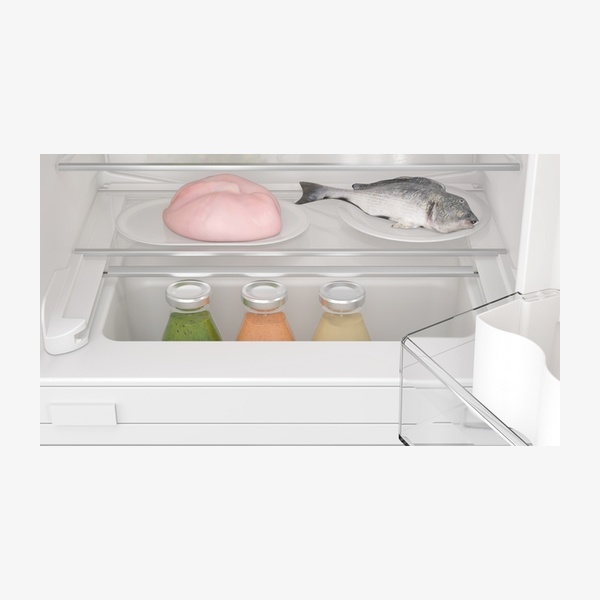

Safety Glass Shelves – stable, shatterproof shelves for safe food storage.

Door alarm – helps ensure worry-free cooling and freezing.

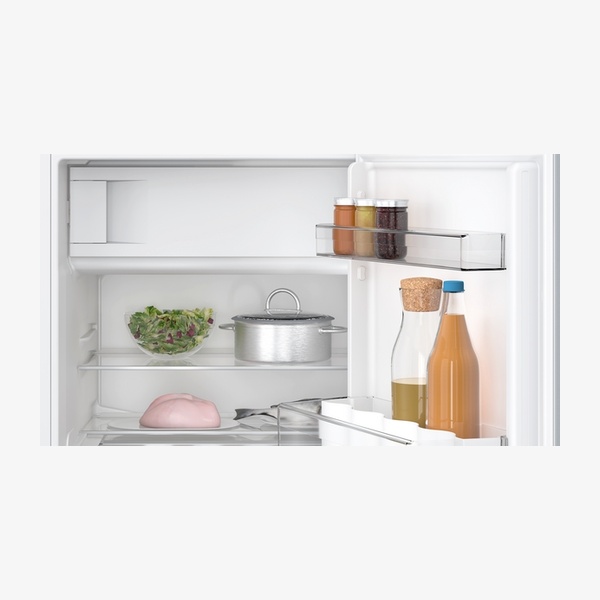

Bright interior LED fridge light – clear visibility inside the fridge compartment.

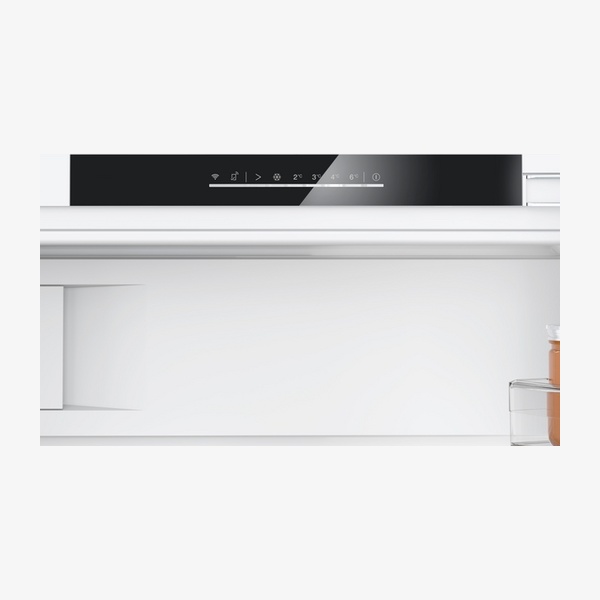

LED electronic control – optical and acoustical control interface for easy operation.

Home Connect – iService Remote plus Remote Monitoring and Control with Wi-Fi connectivity.

Easy clean interior – interior design that supports straightforward cleaning.

Automatic defrost fridge – fridge compartment defrosts automatically.

Ventilation through plinth – supports integrated built-under installation.

Reversible right-hinged door – right hinged as standard, with reversible door hinge.

Dedicated storage accessories – supplied with 3 x egg tray and 1 x ice cube tray; compatible accessories include KFZ10AX0 door panel with decor frame and KSZGGM00 butter box.

Energy efficiency class D – average annual energy consumption of 119 kWh/annum.

Quiet operation – airborne acoustical noise emissions of 35 dB(A) re 1pW, noise emission class B.

Fresh mode / food freshness system – designed to support food freshness.

Technical Spec

BrandBosch

Product name / Commercial codeKUL22VFD0G

Product categoryRefrigerator

SeriesSeries 4

Installation typologyBuilt-under

Built-in / Free-standingBuilt-in

Door panel optionsNot possible

Energy efficiency classD (EU19_EEK_D: D)

Annual energy consumption119 kWh/annum (119 kWh/a)

Total volume110 l

Net fridge volume93 l

Sum of volume of chill compartments93 l

Net freezer volume17 l

Sum of volume of frozen compartments17 l

Climate classSN-T

Noise level35 dB (35 dB(A) re 1pW)

Noise emission classB (EU19_Noise emission class_D: B)

Frost free systemNo

Fridge defrostAutomatic defrost fridge

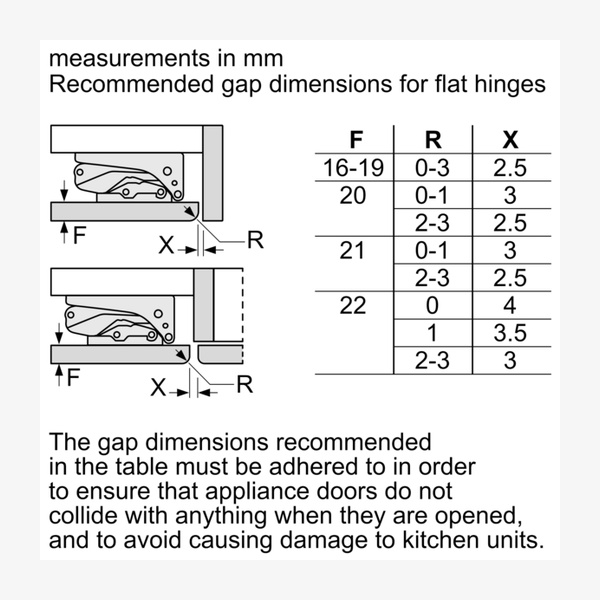

Door hingeRight reversible (Right hinged door, door reversible)

Reversible door hingeYes

Height (appliance)820 mm (82 cm)

Width (appliance)598 mm (59.8 cm)

Depth (appliance)548 mm (54.8 cm)

Required niche size (HxWxD)820 x 600 x 550 mm (Niche Dimensions: 82 cm H x 60 cm W x 55 cm D)

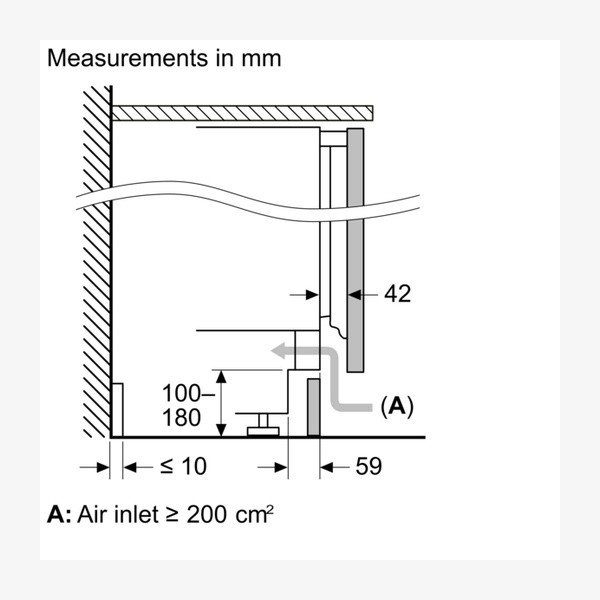

VentilationVentilation through plinth

Net weight30.4 kg

Voltage220–240 V (220 - 240 V)

Frequency50 Hz

Fuse protection10 A

Length of electrical supply cord230.0 cm (Length of power cord:230 cm)

Number of compressors1

Number of independent cooling systems1

Interior ventilatorNo

Number of adjustable shelves in fridge2

Door bins2 door bins

Bottle storageShelves for bottles: No; bottle holder in x-deep door tray

Freezing capacity (24 h)3 kg

Temperature rise time9 H (EU19_Temperature rise time_D: 9 H)

Fast freezer facilityEU19_Fast freezer facility_D

LightingBright interior LED fridge light

Control typeLED electronic control; optical and accoustical

Home ConnectiService Remote; Remote Monitoring and Control with Wi-Fi connectivity

Fresh mode / Food freshness systemFresh mode; Food freshness system

Included accessories3 x egg tray, 1 x ice cube tray

Optional accessoriesKFZ10AX0 door panel with decor frame; KSZGGM00 butter box

EAN code4242005389636

Door alarmDoor Alarm for worry-free cooling and freezing

Ice boxYes

Additional note on consumptionBased on the results of the standard 24-hour test. Actual consumption depends on usage/position of the appliance.

Downloads

Download product documentation, manuals, and specification sheets.

KUL22VFD0G Spec

PDF

Frequently Asked Questions

What is the total capacity of the Bosch KUL22VFD0G?

The total volume is 110 l, with 93 l net volume in the fridge compartment and 17 l net volume in the freezer section.

Is this fridge suitable for built-under installation?

Yes. It is a built-under, built-in refrigerator designed for a niche measuring 82 cm high, 60 cm wide and 55 cm deep, with ventilation through the plinth.

Does the appliance have a frost-free freezer?

No. The frost free system is stated as “No”. However, the fridge section has automatic defrost.

What energy efficiency and noise level does it have?

The energy efficiency class is D with annual energy consumption of 119 kWh/annum. Airborne acoustical noise emissions are 35 dB(A) re 1pW, with noise emission class B.

Is the door reversible?

Yes. The door is right hinged as supplied, and the door hinge is reversible.

What accessories are included with this fridge freezer?

The included accessories are 3 x egg tray and 1 x ice cube tray. Optional accessories listed are the KFZ10AX0 door panel with decor frame and the KSZGGM00 butter box.
