Bosch Serie 2 DUL63CC50B Conventional Hood

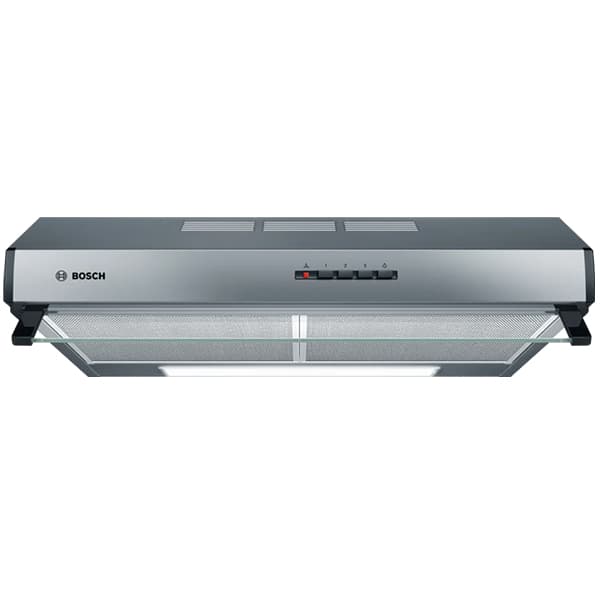

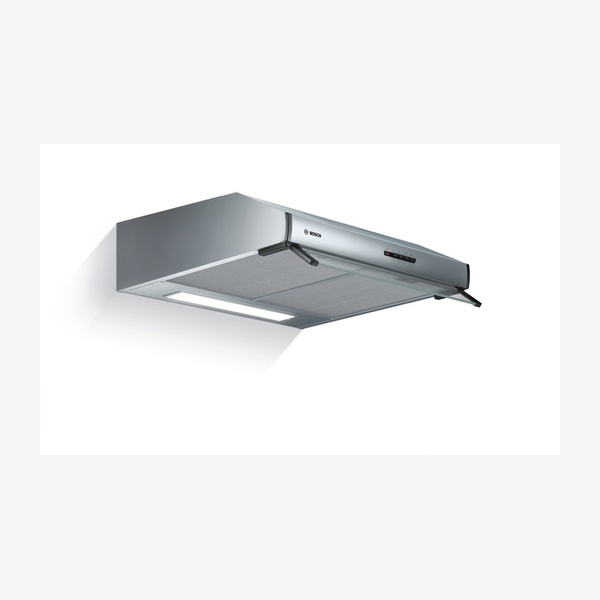

The Series 4 DUL63CC50B is a 60 cm built–under conventional cooker hood in stainless steel, designed to be mounted under cabinets or on the wall while keeping storage space. Suitable for ducted or recirculating operation, it offers a maximum extraction rate of 350 m³/h with three power levels, bright LED illumination with 3000 K colour temperature and dishwasher–safe washable aluminium grease filters for convenient cleaning.

SKU:DUL63CC50B

EAN:4242002968513

Category::Cooker Hoods

Quantity:

Key Features

Built–under conventional design – mounted under cabinets and always visible, allowing you to keep your storage space.

LED Illumination – energy–saving lighting provides bright and clear lighting for the hob area.

High extraction rate – maximum air extraction of 350 m³/h for continuously clean air in the kitchen.

3 power levels – push button control lets you adjust the extraction intensity according to your cooking needs.

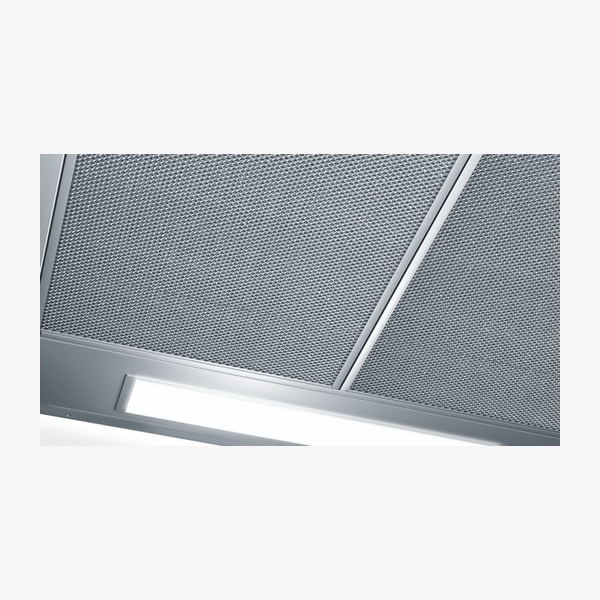

Dishwasher–safe aluminium grease filters – washable aluminium mesh filters with 2 removable metal grease filter cassettes.

Suitable for ducted or recirculating operation – can be used with an optional recirculating kit and charcoal filter.

Two LED lights – 2 × 4 W LED lights with 45 lux light intensity and 3000 K colour temperature.

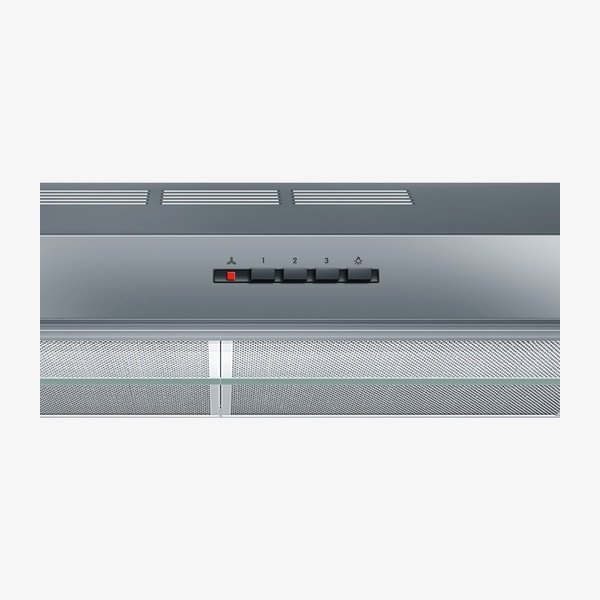

Mechanical push button controls – simple mechanical control for extractor speeds and light.

Energy Efficiency Class D – at a range of energy efficiency classes from A+++ to D, with average energy consumption of 93.3 kWh/year*.

Noise level up to 72 dB(A) – noise level at maximum normal setting according to EN 60704–3 and EN 60704–2–13.

Flexible installation options – installation as wall or under hang–up cupboard with adjustable glass visor.

Optional accessories – standard odour filter DHZ2701 and recirculating kit DHZ2701 for recirculated extraction.

Technical Spec

Product nameSeries 4, Built–under cooker hood, 60 cm, Stainless steel, DUL63CC50B

TypologyBuilt–in/Built–under

Installation typologyBuilt–under; installation: Wall or under hang–up cupboard

Width60 cm

Height of the appliance150 mm

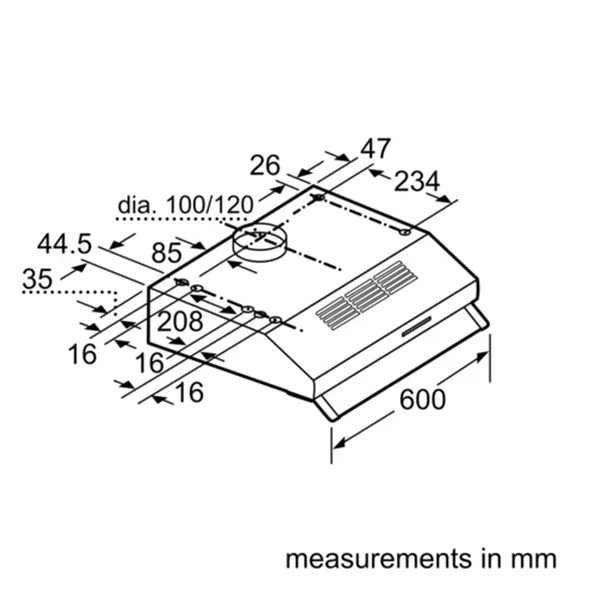

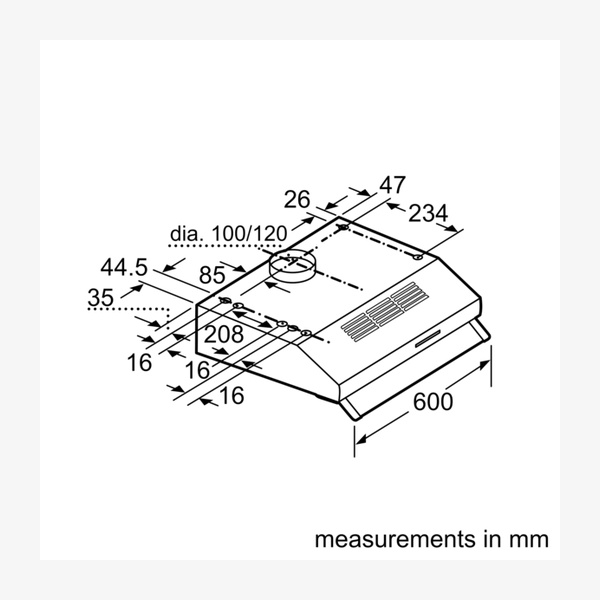

Dimensions exhaust air (H×W×D)150–150 × 600 × 482 mm

Dimensions recirculating (H×W×D)150–150 × 600 × 482 mm

Length electrical supply cord145 cm / 1.45 m

Minimum distance above an electric hob650 mm

Minimum distance above a gas hob650 mm

Net weight6.2 kg

Type of controlMechanical; push button control for extractor speeds and light

Number of speed settings / power levels3

Max. air extraction350 m³/h

Max. air recirculation110 m³/h

Maximum air flow350 m³/h

Number of lights2 × 4 W LED light

Colour temperature3000 K

Light intensity45 lux

Noise level72 dB(A) re 1pW; noise max. normal level 72 dB*

Diameter of air outlet / pipe120 / 100 mm; diameter pipe Ø 120 mm (Ø 100 mm enclosed)

Grease filter materialWashable aluminium; 2 removable metal grease filter cassettes

Energy Efficiency ClassD (at a range of energy efficiency classes from A+++ to D)

Blower Efficiency ClassE*

Lighting Efficiency ClassE*

Grease Filtering Efficiency ClassC*

Average energy consumption93.3 kWh/year*

Connection rating / Power rating146 W

Voltage220–240 V

Frequency50 Hz

Plug typeGB plug

EAN code4242002968513

Optional accessoriesDHZ2701 Standard odour filter; Recirculating kit DHZ2701

Downloads

Download product documentation, manuals, and specification sheets.

DUL63CC50B Spec

PDF

Frequently Asked Questions

Is the DUL63CC50B suitable for both ducted and recirculating extraction?

Yes. The hood is suitable for ducted or recirculating operation. For recirculated extraction, a charcoal filter and recirculating kit DHZ2701 are needed.

What is the maximum extraction rate and noise level?

The maximum extraction rate is 350 m³/h. The noise level at the maximum normal setting is 72 dB(A) re 1pW, measured according to EN 60704–3 and EN 60704–2–13.

How many speed settings does this cooker hood have?

The hood has three power levels, controlled mechanically via push buttons, allowing you to adjust the extraction intensity according to your cooking needs.

Are the grease filters washable?

Yes. The grease filter material is washable aluminium, with 2 removable metal grease filter cassettes that are described as dishwasher safe.

What are the required clearances above the hob?

The minimum distance above both an electric hob and a gas hob is 650 mm.

What optional accessories are available?

Optional accessories listed are the DHZ2701 standard odour filter and the DHZ2701 recirculating kit, which is needed for recirculated extraction.
