Bosch Serie 2 DEM66AC00B Integrated Hood

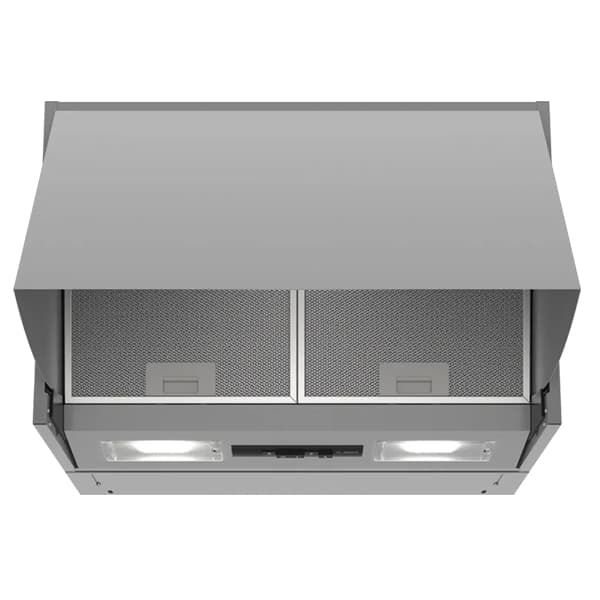

The Series 2 DEM66AC00B is a 60 cm integrated cooker hood in silver that pulls out when in use and closes neatly to conceal when not in operation. Designed for wall-mounted installation between cupboards, it offers up to 625 m³/h maximum air flow, three power levels and energy-saving LED illumination. Suitable for ducted or recirculating operation with optional accessories, it provides an efficient solution for keeping kitchen air cleaner during everyday cooking.

SKU:DEM66AC00B

EAN:4242005041121

Category::Cooker Hoods

Quantity:

Key Features

Integrated pull-out design – Cooker hood pulls out when in use and closes neatly to conceal when not in operation.

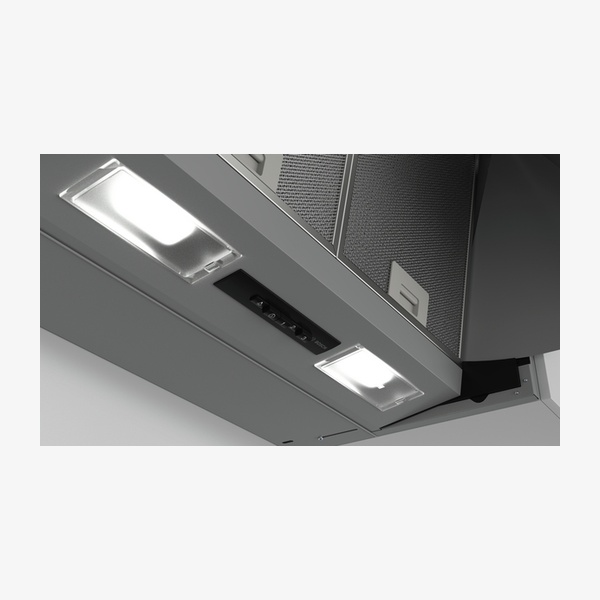

LED Illumination – Energy-saving 2 x 3 W LED lighting provides bright and clear lighting for the hob area.

High extraction rate – Maximum air extraction and maximum air flow of 625 m³/h for continuously cleaner air in the kitchen.

3 power levels – Adjust the extraction intensity with three mechanical speed settings to suit different cooking needs.

Dishwasher-safe metal grease filters – Two removable washable aluminium metal grease filter cassettes for easier cleaning.

Ducted or recirculating operation – Suitable for ducted or un-ducted (recirculating) installation; charcoal filter and recirculating kit available as accessories.

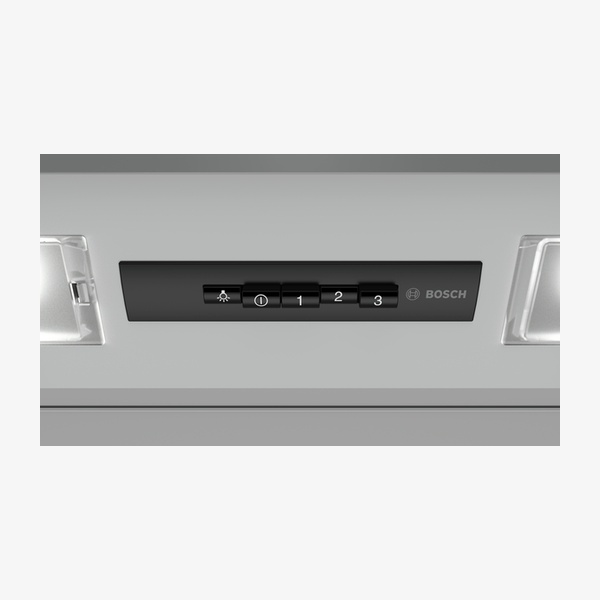

Mechanical push button control – Push button control for extractor speeds and light for straightforward operation.

Energy Efficiency Class B – Rated B on a scale from A+++ to D, with an average energy consumption of 68.4 kWh/year*.

Efficient lighting performance – Lighting Efficiency Class A* with light intensity of 188 lux and colour temperature of 2700 K.

Grease and blower efficiency – Blower Efficiency Class B* and Grease Filtering Efficiency Class C*.

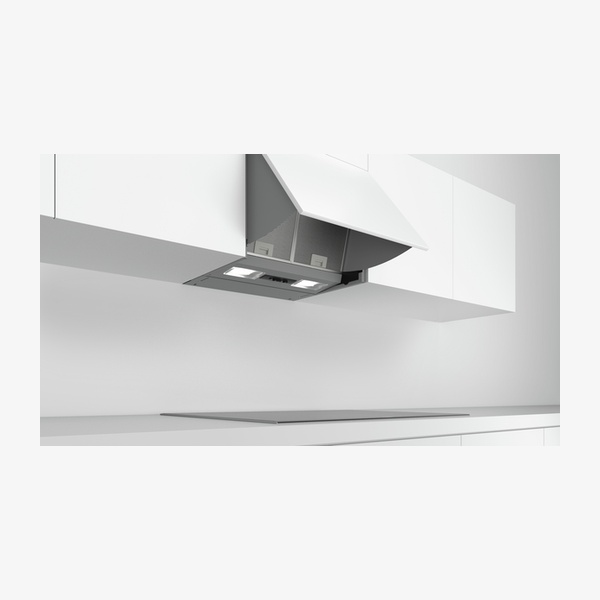

Compact wall-mounted build – Built-in/built-under integrated hood designed for installation between cupboards.

Noise level – Noise max. normal level 70 dB(A) re 1 pW at maximum speed in normal use.

Optional accessories – Standard odour filter DWZ0IM0A0 (replacement) and recirculating kit DWZ0IM0A0.

LED hob lighting colour – Warm 2700 K light temperature for the cooking area.

Technical Spec

Product nameSeries 2, Integrated cooker hood, 60 cm, Silver

Model referenceDEM66AC00B

TypologyBuilt-in/Built-under; Integrated hood

Installation typologyWall-mounted; Installation between cupboards

Energy Efficiency ClassB (range A+++ to D)

Average Energy Consumption68.4 kWh/year*

Max. air extraction625 m³/h (according to EN 61591)

Max. air recirculation416 m³/h

Maximum air flow625 m³/h

Number of speed settings / power levels3

Noise level70 dB(A) re 1 pW at max. normal use (EN 60704-3 / EN 60704-2-13)

Type of controlMechanical; push button control for extractor speeds and light

Number of lights2 x 3 W LED

Light intensity188 lux

Colour temperature2700 K

Blower Efficiency ClassB*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassC*

Grease filter materialWashable aluminium; 2 removable metal grease filter cassettes

Suitable for ducted or recirculatingSuitable for ducted or recirculating operation

Charcoal filter requirementFor recirculated extraction charcoal filter (accessory) needed

Diameter of air outlet / pipe150 / 120 mm; diameter pipe Ø 150 mm (Ø 120 mm enclosed)

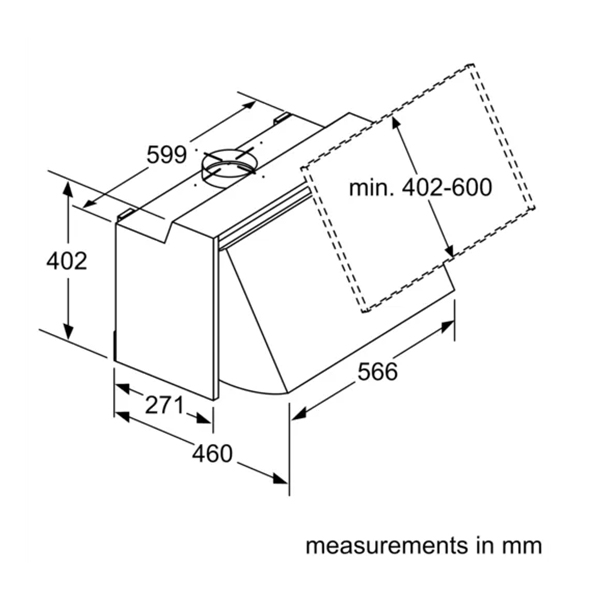

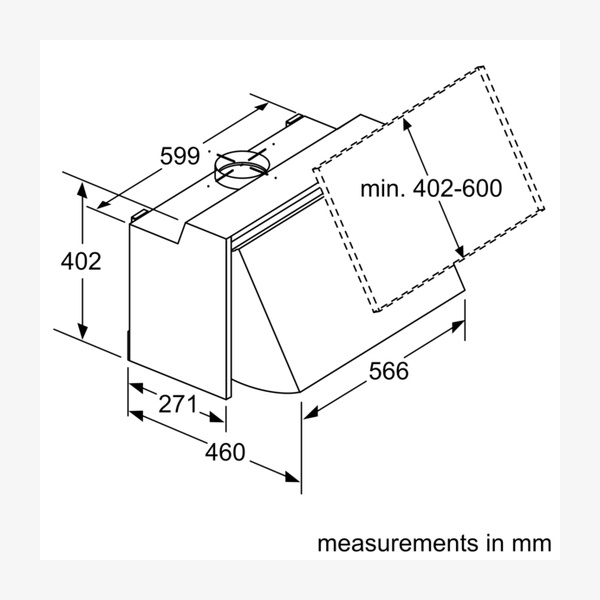

Dimensions exhaust air (H×W×D)402–402 × 599 × 271 mm

Dimensions recirculating (H×W×D)402–402 × 599 × 271 mm

Height of the appliance402 mm

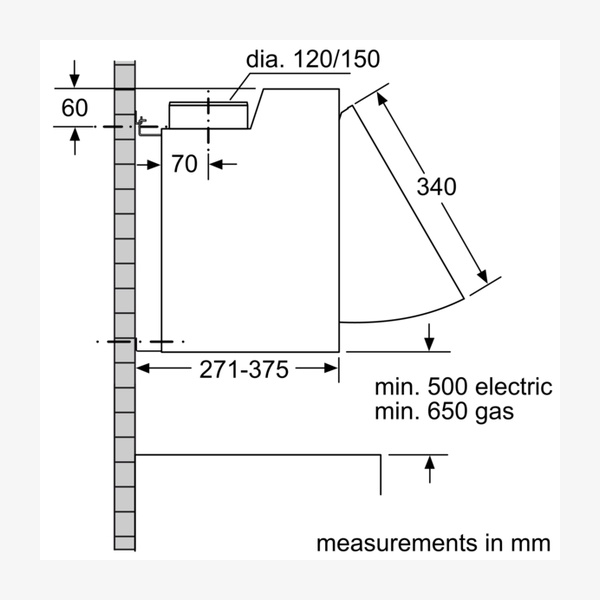

Minimum distance above an electric hob500 mm

Minimum distance above a gas hob650 mm

Net weight10.8 kg

Length of electrical supply cord150 cm / 1.5 m

Connection rating256 W (Power rating: 256 W)

Voltage220–240 V

Frequency50; 60 Hz

Fuse protection10 A

Plug typeGB plug

Single or multiple motorSingle motor

EAN code4242005041121

Optional accessoriesDWZ0IM0A0 Standard odour filter (replacement); Recirculating kit DWZ0IM0A0

Downloads

Download product documentation, manuals, and specification sheets.

DEM66AC00B Spec

PDF

Frequently Asked Questions

Is the DEM66AC00B cooker hood suitable for both ducted and recirculating use?

Yes. The cooker hood is suitable for ducted or recirculating operation. For recirculated extraction, a charcoal filter is needed as an accessory, and a recirculating kit DWZ0IM0A0 is available.

What is the maximum extraction rate of this 60 cm integrated cooker hood?

The maximum air extraction is 625 m³/h according to EN 61591. The maximum air recirculation rate is 416 m³/h, and the maximum air flow is also 625 m³/h.

How loud is the hood during normal use?

The noise level at maximum speed in normal use is 70 dB(A) re 1 pW, measured according to EN 60704-3 and EN 60704-2-13.

Are the grease filters washable and dishwasher safe?

Yes. The hood includes two removable metal grease filter cassettes made from washable aluminium, and the metal grease filter is described as dishwasher safe.

What type of lighting does the hood use over the hob?

The hood uses 2 x 3 W LED lights. The lighting provides bright and clear illumination of the hob area, with a light intensity of 188 lux and a colour temperature of 2700 K.

What are the minimum installation distances from the hob?

The minimum distance above an electric hob is 500 mm, and the minimum distance above a gas hob is 650 mm.
