Bosch Series 6 PPP6A6I40 Gas Hob

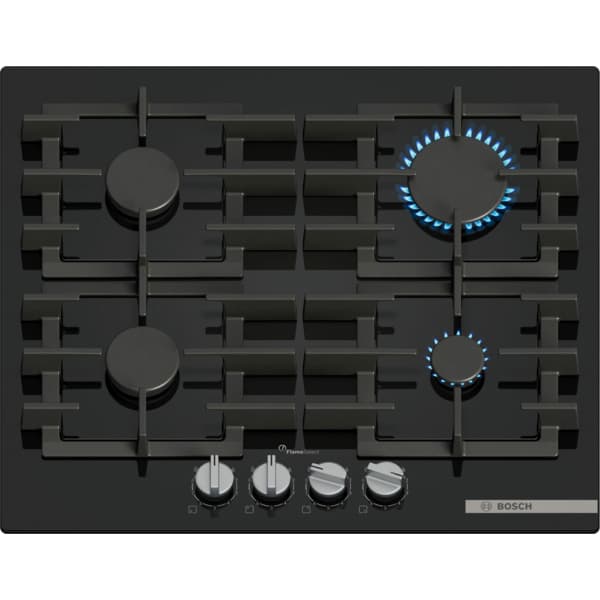

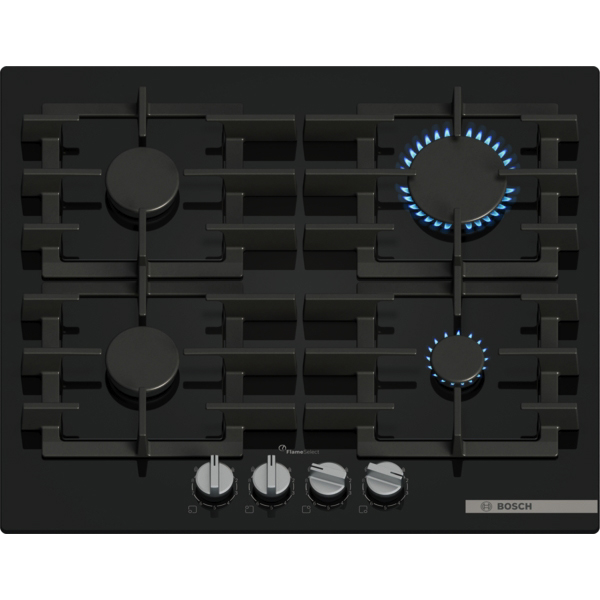

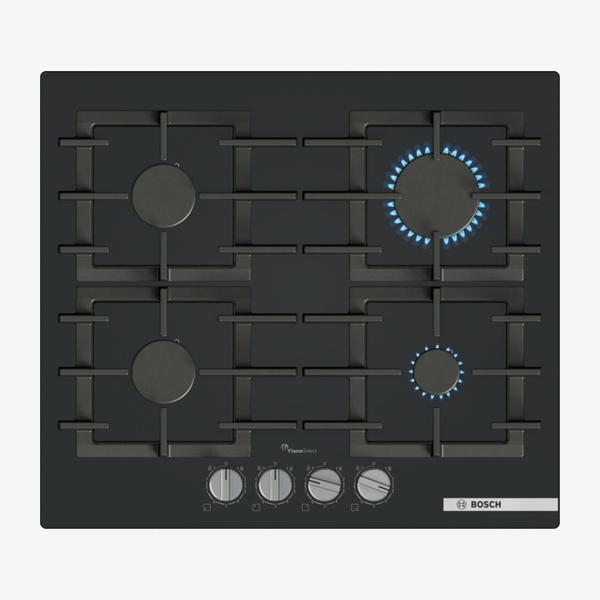

The Series 6 PPP6A6I40 is a 60 cm built–in gas hob with a black tempered glass surface and integrated front controls. It offers four burners, including a high–speed and an economy burner, with FlameSelect technology for precise control across nine flame levels. Cast iron pan supports with rubber feet provide stability and are suitable for the dishwasher, while removable metallic dials make everyday cleaning straightforward and convenient.

SKU:PPP6A6I40

EAN:4242005496310

Category::Hobs

Quantity:

Key Features

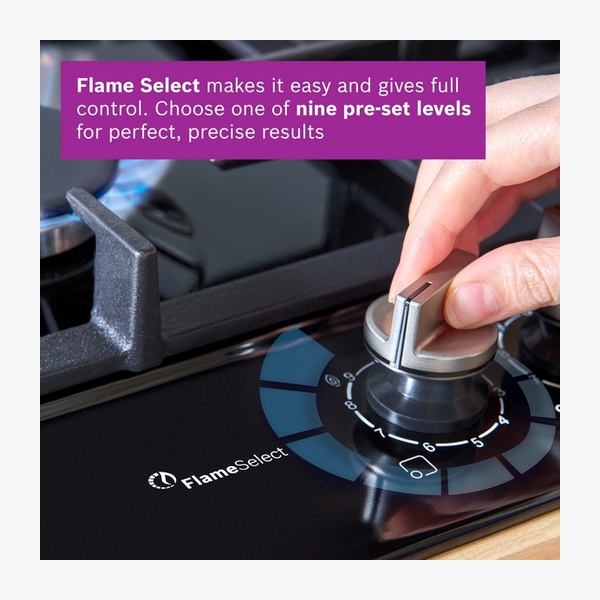

FlameSelect precision – precisely control and adjust the flame in nine defined levels.

Tempered glass surface – black tempered glass for strength and aesthetic.

Dishwasher–suitable pan supports – cast iron pan supports can be cleaned in the dishwasher for easy, scrub–free maintenance.

Removable control dials – detachable metallic dials make cleaning between knobs effortless.

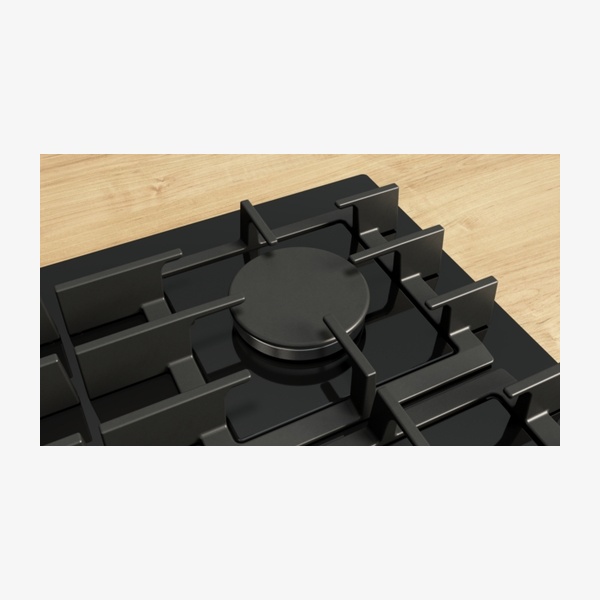

Cast iron supports with rubber feet – little weight and compact form, yet high stability due to a continuous surface.

Four gas burners – includes a high–speed burner up to 3 kW, two standard burners up to 1.75 kW and an economy burner up to 1 kW (depending on gas type).

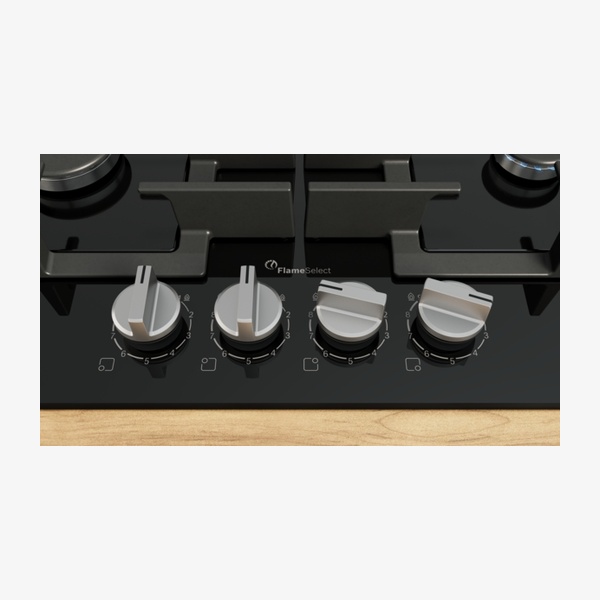

Front control panel – design co–ordinated dials located at the front for easy access and strong grip.

Ignition via control dials – simply push and turn the dials to ignite the flame.

Flame failure safety device – helps prevent unwanted gas flow when the flame goes out.

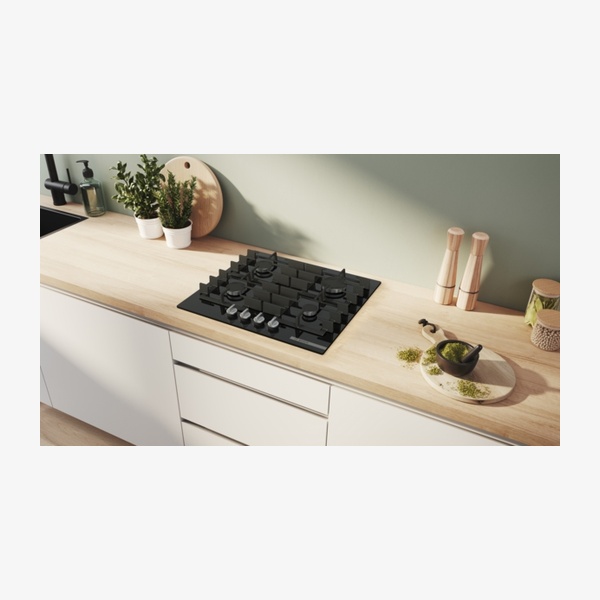

Frameless installation options – can be installed either flush or slightly raised on the worktop.

Pre–set for natural gas – supplied pre–set for natural gas with nozzle set for LPG jets included.

Compatible accessories – optional simmer plate, small pot support, wireless food thermometer and cookware sets are available.

Technical Spec

Appliance typeGas hob w integrated controls

Built–in / Free–standingBuilt–in

Heating typeGas

Number of cooking zones4

Left front burnerStandard burner up to 1.75 kW (depending on gas type)

Left rear burnerStandard burner up to 1.75 kW (depending on gas type)

Right rear burnerHigh–speed burner up to 3 kW (depending on gas type)

Right front burnerEconomy burner up to 1 kW (depending on gas type)

Required niche size (H x W x D)45 x 560–560 x 480–490 mm

Dimensions (H x W x D)45 x 590 x 520 mm

Dimensions of packed product (H x W x D)150 x 650 x 580 mm

Width of the appliance590 mm

Net weight16.7 kg

Gross weight17.9 kg

Residual heat indicatorWithout

Location of control panelFront

Basic surface materialTempered glass

Colour of surfaceBlack

Colour of frameBlack

Length of electrical supply cord100 cm

Power cord1 m

Gas connection rating7500 W

Connected load7.5 kW

Fuse protection3 A

Voltage220–240 V

Frequency50; 60 Hz

EAN code4242005496310

Min. worktop thickness20 mm

Min. worktop thickness (flush install)30 mm

Design, Usage and Installation Details

Design

Tempered glass surface in black.

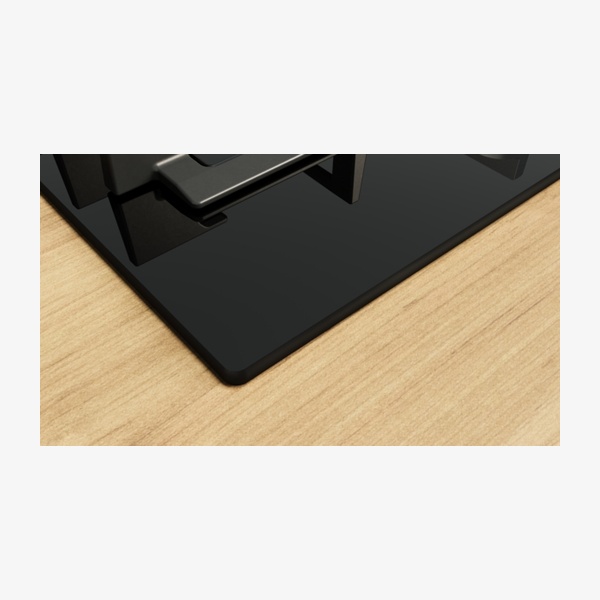

Frameless design, allowing installation either flush or slightly raised on the worktop.
Cast iron pan supports with rubber feet.
Design co–ordinated front control dials.

Usage convenience

FlameSelect for precise control and adjustment of the flame in nine defined levels.
Front–mounted dials with strong grip for effortless turning.
Ignition via control dials: just push and turn to ignite the flame.

Cleaning

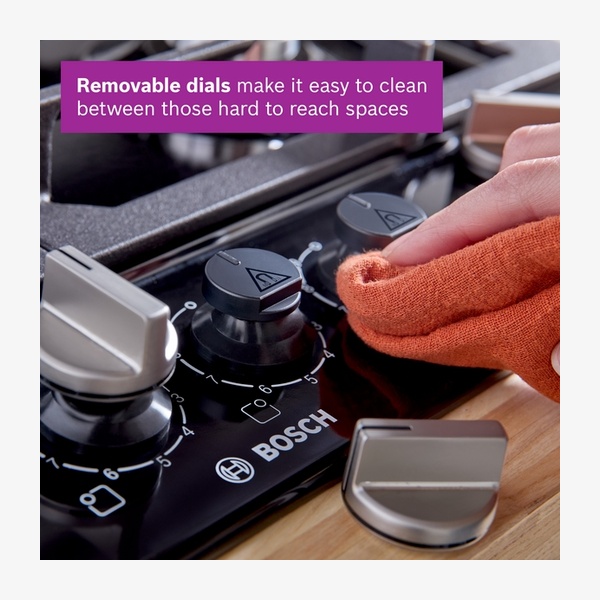

Removable control dials for easy cleaning between knobs.

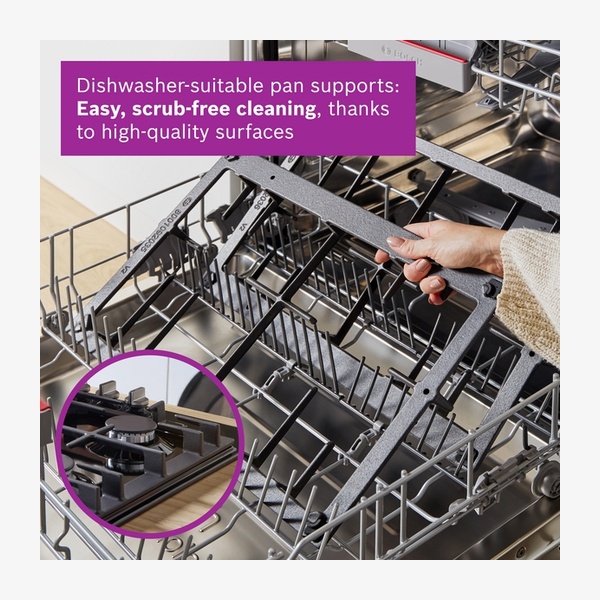

Dishwasher suitable pan supports for easy cleaning.
Cast iron pan supports with rubber feet combine light weight and compact form with a continuous, stable surface.

Safety

Flame failure safety device helps prevent unwanted gas flow when the flame goes out.

Gas types and installation

Usable for: Nat gas L/LL G25/20 mbar (DE).
Usable for NG H/E 20 mbar, E+ 20/25 mbar.
Usable for natural gas H 25 mbar (HU).
Usable for natural gas L 25 mbar (NL).
Usable for liquid gas G30,31 28–30/37 mbar.
Usable for liquid gas G30 37 mbar (PL).
Usable for liquid gas 50 mbar.
Pre–set for natural gas.
Nozzle set for LPG jets included; connection to 28–30/37 mbar bottled gas.
Nozzles for all other gas types can be ordered via the customer service; nozzle change should be carried out by customer service.

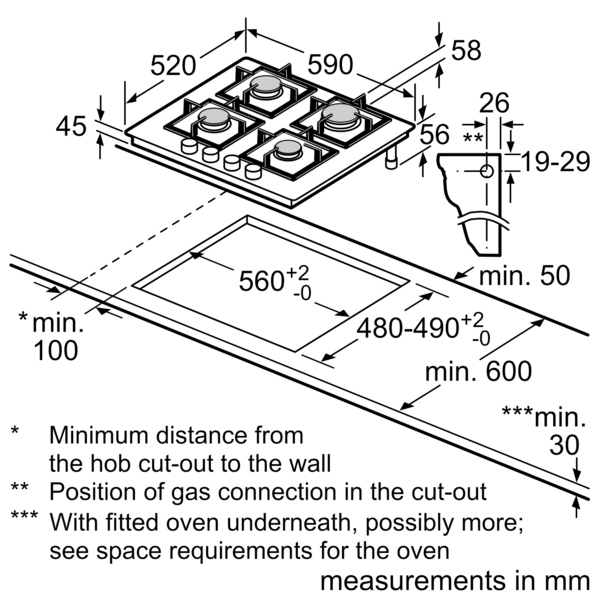

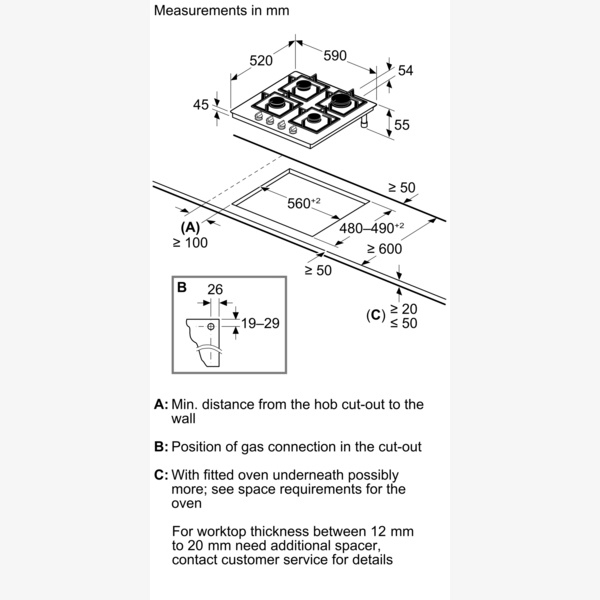

Dimensions of the product (H x W x D): 54 x 590 x 520 mm.
Required niche size (H x W x D): 45 x 560 x 480–490 mm.
Minimum worktop thickness: 20 mm.
If installed flush, minimum worktop thickness is 30 mm.

Optional accessories

HEZ298105 Simmer plate
HEZ298114 Small pot support
HEZ32WA00 Wireless food thermometer
HEZ9SE040 4 pieces Set
HEZ9SE060 6 pieces Set

Downloads

Download product documentation, manuals, and specification sheets.

PPP6A6I40 Spec

PDF

Frequently Asked Questions

How many burners does the PPP6A6I40 gas hob have?

The hob has four gas burners: two standard burners up to 1.75 kW, one high–speed burner up to 3 kW and one economy burner up to 1 kW (depending on gas type).

What is FlameSelect and how does it help cooking?

FlameSelect allows you to precisely control and adjust the gas flame in nine defined levels, giving more accurate and repeatable heat settings for cooking.

Are the pan supports and control dials easy to clean?

Yes. The cast iron pan supports are suitable for the dishwasher, and the control dials are removable, making it easier to clean between the knobs and keep the hob tidy.

Does the hob include any safety features?

The hob is equipped with a flame failure safety device, which helps prevent unwanted gas flow when the flame goes out.

Can this hob be used with both natural gas and LPG?

The hob is pre–set for natural gas and is usable with a range of natural gas and liquid gas types. A nozzle set for LPG jets is included for connection to 28–30/37 mbar bottled gas, and nozzles for other gas types can be ordered via customer service.

What are the required installation dimensions for this hob?

The product dimensions are 54 x 590 x 520 mm (H x W x D), and the required niche size is 45 x 560 x 480–490 mm, with a minimum worktop thickness of 20 mm or 30 mm for flush installation.
