Bosch Series 4 PNP6B6K40 Gas Hob

The Series 4 PNP6B6K40 is a 60 cm built-in gas hob with a black tempered glass surface and front-mounted integrated controls. It offers four gas burners, ergonomic sword dials with ignition via the control dials, and cast iron pan supports with rubber feet. Dishwasher-suitable pan supports and semi-continuous supports help make cleaning easier, while the flame failure safety device provides additional safety by preventing unwanted gas flow if the flame goes out.

SKU:PNP6B6K40

EAN:4242005437856

Category::Hobs

Quantity:

Key Features

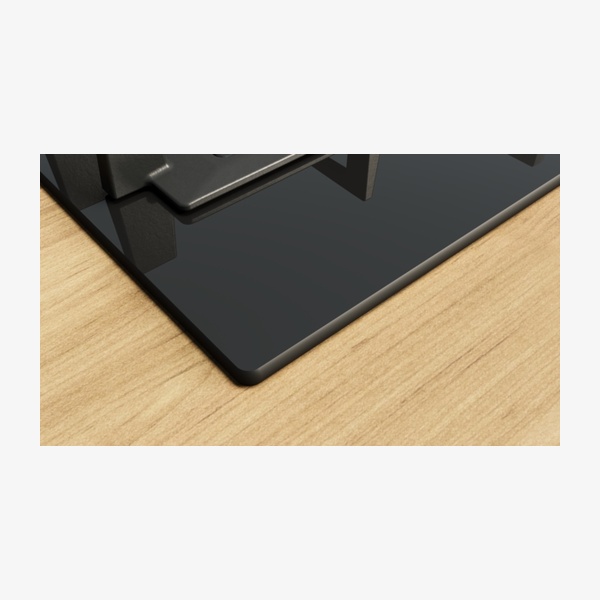

Tempered glass surface, black – basic surface material is tempered glass in a black finish for strength and aesthetic.

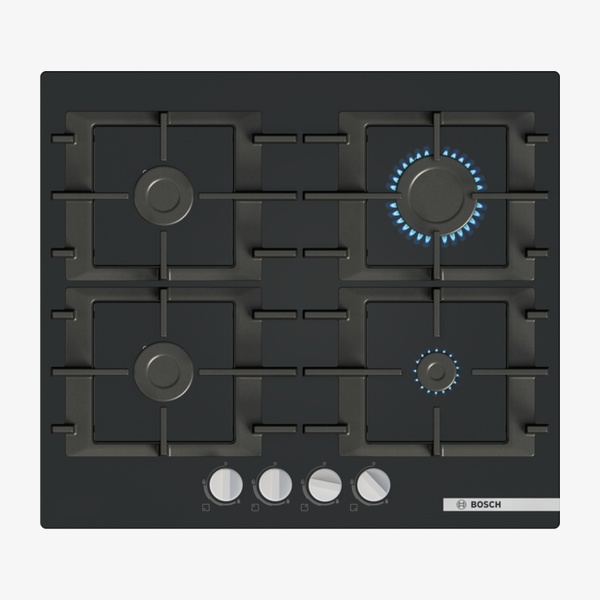

Four gas burners – left front and left rear standard burners up to 1.75 kW, right rear high-speed burner up to 3 kW, right front economy burner up to 1 kW (depending on gas type).

Ergonomic sword dials – raised centre for precise adjustments and strong grip for effortless turning.

Ignition via control dials – just push and turn the dials to ignite the flame.

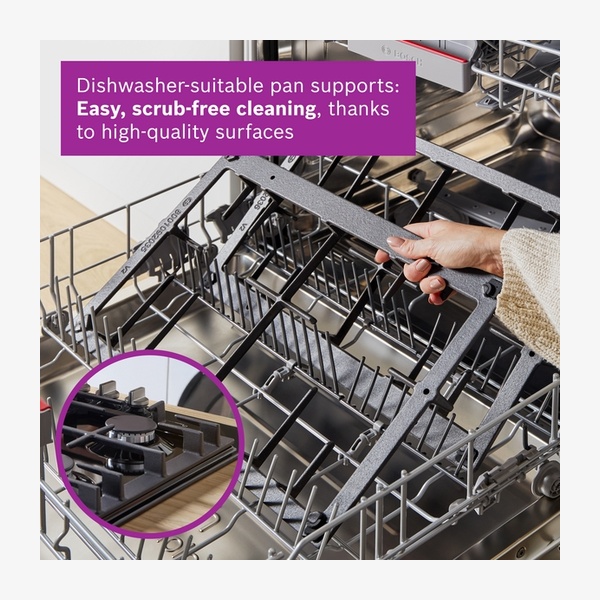

Dishwasher-suitable pan supports – cast iron pan supports are suitable for cleaning in the dishwasher for easy, scrub-free cleaning.

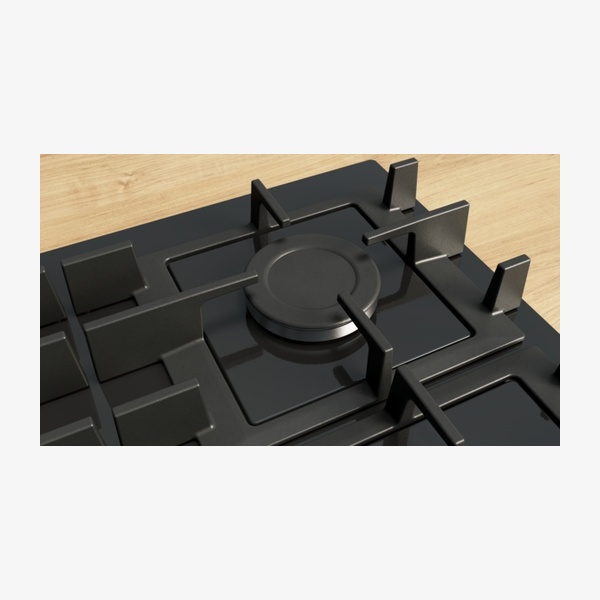

Cast iron pan supports with rubber feet – little weight and compact form, yet high stability due to continuous surface.

Semi-continuous pan supports – smaller for easy cleaning, while providing a seamless cooking surface.

Flame failure safety device – prevents unwanted gas flow when the flame goes out.

Front control panel location – design co-ordinated control dials positioned at the front for easy access.

Pre-set for natural gas – usable with several natural gas and liquid gas types, with LPG nozzle set included.

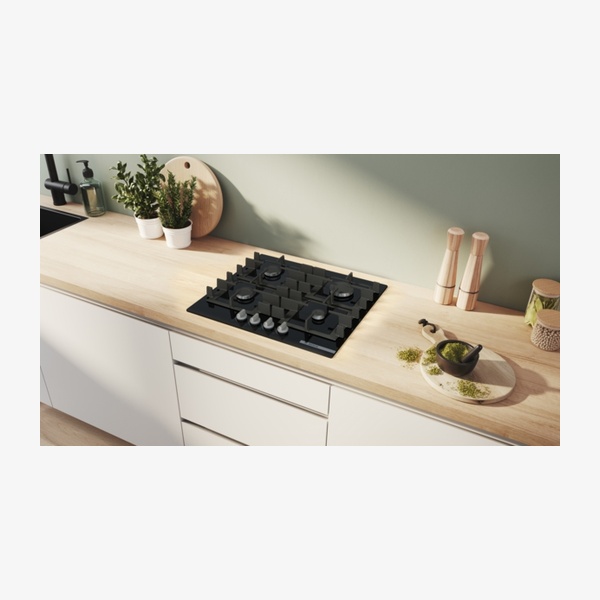

Frameless design – can be installed either flush or slightly raised on the worktop.

Optional accessories available – simmer plate, small pot support, wireless food thermometer and cookware sets (4-piece and 6-piece).

Technical Spec

Product nameSeries 4, Gas hob, 60 cm, Tempered glass, Black – PNP6B6K40

Appliance typeGas hob w integrated controls

Installation typeBuilt-in

Heating typeGas

Number of cooking zones4

Burner configurationLeft front: standard burner up to 1.75 kW (depending on gas type); Left rear: standard burner up to 1.75 kW (depending on gas type); Right rear: high-speed burner up to 3 kW (depending on gas type); Right front: economy burner up to 1 kW (depending on gas type)

Control setting devicesSword knobs / ergonomic sword dials

IgnitionIgnition via control dials (push and turn)

Basic surface materialTempered glass

Colour of surfaceBlack

Colour of frameBlack

Pan supportsCast iron pan supports with rubber feet; semi-continuous; dishwasher suitable

Dimensions (HxWxD)45 x 590 x 520 mm / Dimensions of the product: 57.4 x 590 x 520 mm

Width of the appliance590 mm

Packed product dimensions (HxWxD)150 x 660 x 580 mm

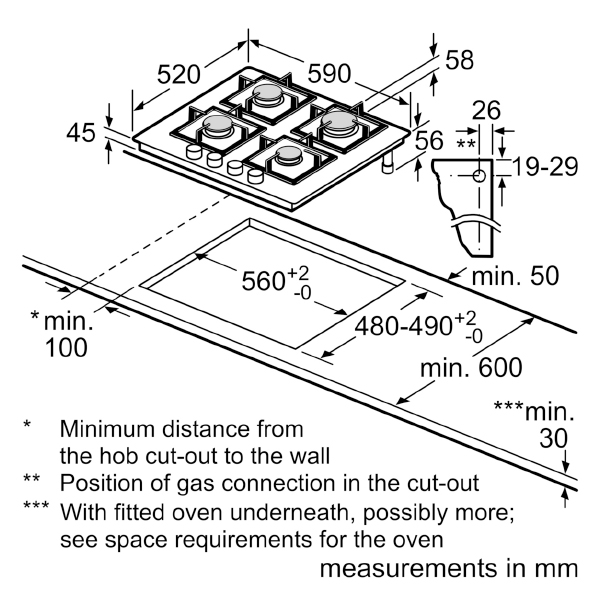

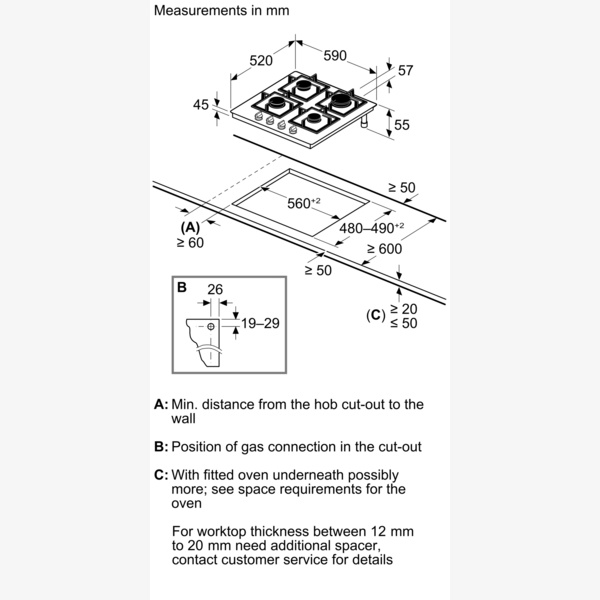

Required niche size (HxWxD)45 x 560-560 x 480-490 mm / Required niche size for installation: 45 x 560 x (480 - 490) mm

Minimum worktop thickness20 mm (30 mm minimum if installed flush)

Location of control panelFront

Residual heat indicatorWithout

Net weight15.9 kg

Gross weight17.1 kg

Length electrical supply cord100 cm / Power cord: 1 m

Gas connection rating7500 W / Connected load: 7.5 kW

Voltage220-240 V

Frequency50; 60 Hz

Fuse protection3 A

EAN code4242005437856

Design detailsFrameless design; install the hob either flush or slightly raised on the worktop

Downloads

Download product documentation, manuals, and specification sheets.

PNP6B6K40 Spec

PDF

Frequently Asked Questions

How many burners does the hob have and what are their power levels?

The hob has four gas burners: a left front standard burner up to 1.75 kW, a left rear standard burner up to 1.75 kW, a right rear high-speed burner up to 3 kW and a right front economy burner up to 1 kW, depending on gas type.

Is this gas hob suitable for installation with different gas types?

Yes, it is usable with various natural gas types (including Nat gas L/LL G25/20 mbar, NG H/E 20 mbar, E+ 20/25 mbar, Natural gas H 25 mbar, Natural gas L 25 mbar) and liquid gas types (G30,31 28-30/37 mbar, G30 37 mbar, liquid gas 50 mbar). It is pre-set for natural gas and includes a nozzle set for LPG jets.

Can the pan supports be cleaned in the dishwasher?

Yes, the cast iron pan supports are described as dishwasher suitable, allowing easy, scrub-free cleaning.

What safety features does the hob provide?

The hob has a flame failure safety device that prevents unwanted gas flow when the flame goes out, and a safety gas cut-off which instantly cuts off the gas supply if the flame goes out.

What are the required niche dimensions for installation?

The required niche size for installation is 45 x 560 x (480 – 490) mm. The minimum worktop thickness is 20 mm, or 30 mm if the hob is installed flush with the worktop.

Does the hob have a residual heat indicator?

No, the hob is specified as being without a residual heat indicator.
