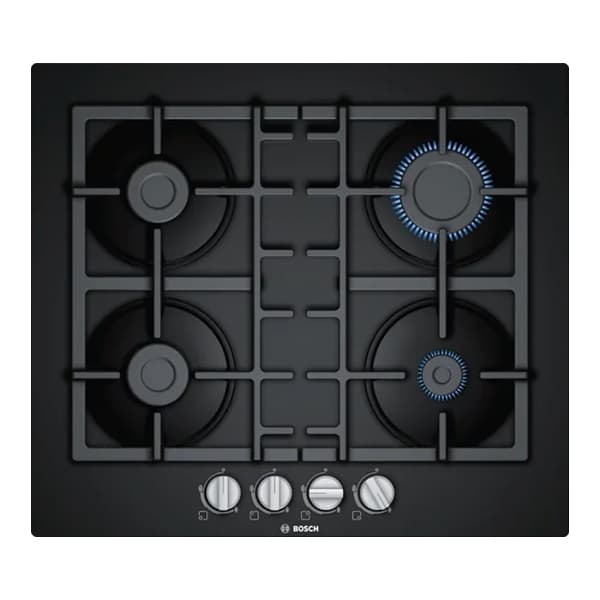

Bosch Serie 4 PNP6B6B90 Gas Hob

This Series 4 60 cm gas hob in black tempered glass is a built–in appliance with front–mounted, design co–ordinated sword knobs for convenient control of four gas burners. The frameless tempered glass surface can be installed flush or slightly raised on the worktop, while cast iron pan supports with rubber feet provide stable support. A flame failure safety device helps prevent unwanted gas flow when the flame goes out, and the hob is pre–set for natural gas with an LPG nozzle set included.

SKU:PNP6B6B90

EAN:4242005134311

Category::Hobs

Quantity:

Key Features

Front–mounted controls – desired cooking zones can be conveniently operated from the front.

Tempered glass surface in black – basic surface material is tempered glass with a black frameless design.

Frameless installation options – install the hob either flush or slightly raised on the worktop.

Cast iron pan supports with rubber feet – provide stable support for pots and pans.

Design co–ordinated control dials – easily accessed in front with strong grip for effortless turning.

Ignition via control dials – just push and turn the dials to ignite the flame.

Four gas burners – two standard burners up to 1.75 kW, one high–speed burner up to 3 kW and one economy burner up to 1 kW (depending on gas type).

Flame failure safety device – helps prevent unwanted gas flow when the flame goes out.

Pre–set for natural gas – usable with a range of natural gas and liquid gas types, with nozzle set for LPG jets included.

Built–in 60 cm width – product width 590 mm with required niche size 560–562 mm.

Optional accessories – HEZ298105 simmer plate and HEZ298114 small pot support (accessories listed; further details not stated in source).

Technical Spec

ModelPNP6B6B90

SeriesSeries 4

Appliance typegas hob w integrated controls

Installation typeBuilt–in

Heating typeGas

Number of cooking zones4

Control setting devicessword knobs

Location of control panelFront

Basic surface materialTempered glass

Colour of surfaceBlack

Colour of frameBlack

Hob dimensions (H x W x D)45 x 590 x 520 mm

Dimensions of the product (H x W x D)56 x 590 x 520 mm

Required niche size (H x W x D)45 x 560–562 x 480–492 mm

Min. worktop thickness30 mm

Width of the appliance590 mm

Packed product dimensions (H x W x D)141 x 651 x 578 mm

Net weight13.1 kg

Gross weight14.0 kg

Residual heat indicatorWithout

Length of electrical supply cord100 cm / Power cord: 1 m

Gas connection rating7500 W

Connected load7.5 kW

Voltage220–240 V

Frequency50; 60 Hz

Fuse protection3 A

EAN code4242005134311

Optional accessoriesHEZ298105 Simmer plate; HEZ298114 Small pot support

Downloads

Download product documentation, manuals, and specification sheets.

PNP6B6B90 Spec

PDF

Frequently Asked Questions

How many burners does the hob have and what are their power levels?

The hob has four gas burners: a left front standard burner up to 1.75 kW, a left rear standard burner up to 1.75 kW, a right rear high–speed burner up to 3 kW and a right front economy burner up to 1 kW, depending on gas type.

What are the installation dimensions for this 60 cm gas hob?

The product dimensions are 56 x 590 x 520 mm (H x W x D). The required niche size for installation is 45 x 560–562 x 480–492 mm with a minimum worktop thickness of 30 mm.

Which gas types can this hob be used with?

It is usable for Nat gas L/LL G25/20 mbar (DE), NG H/E 20 mbar, E+ 20/25 mbar, Natural gas H 25 mbar (HU), Natural gas L 25 mbar (NL), Liquid gas G30,31 28–30/37 mbar, Liquid gas G30 37 mbar (PL) and Liquid gas 50 mbar. It is pre–set for natural gas.

Is a safety device included to stop gas flow if the flame goes out?

Yes. The hob includes a flame failure safety device which prevents unwanted gas flow when the flame goes out.

How is the flame ignited on this hob?

Ignition is via the control dials: you just push and turn the dials to ignite the flame.

Are there any optional accessories available?

Yes. Optional accessories listed are the HEZ298105 simmer plate and the HEZ298114 small pot support. Further accessory details are not stated in source.
