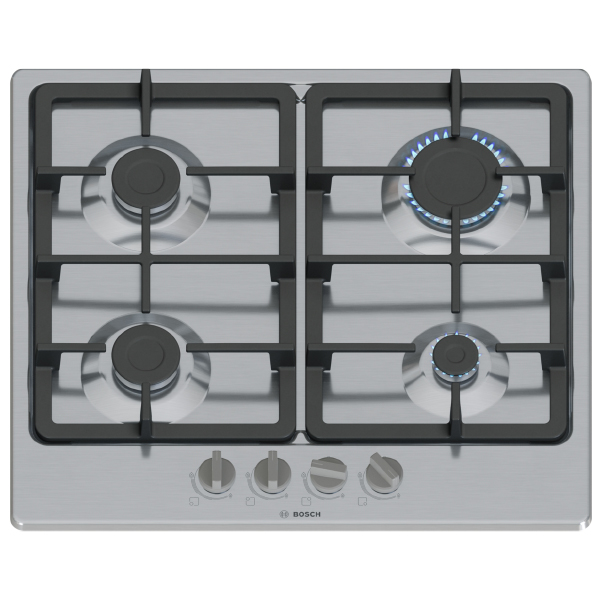

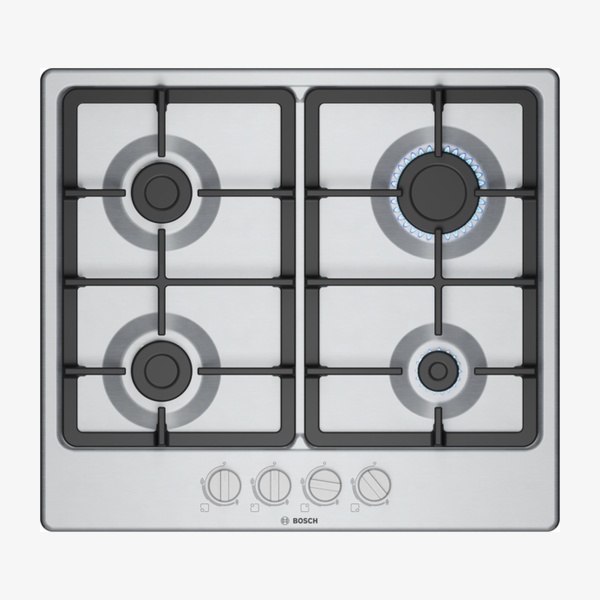

Bosch Series 4 PGP6B5K90 Gas Hob

The Series 4 PGP6B5K90 is a 60 cm stainless steel gas hob with integrated front controls and four burners for flexible cooking. Designed for built-in installation, it combines continuous cast-iron pan supports with ergonomic sword dials for precise flame adjustment and easy ignition. Dishwasher-suitable pan supports simplify cleaning, while a safety gas cut-off and flame failure safety device help protect against unwanted gas flow if the flame goes out.

SKU:PGP6B5K90

EAN:4242005484669

Category::Hobs

Quantity:

Key Features

60 cm stainless steel gas hob with integrated controls and built-in installation.

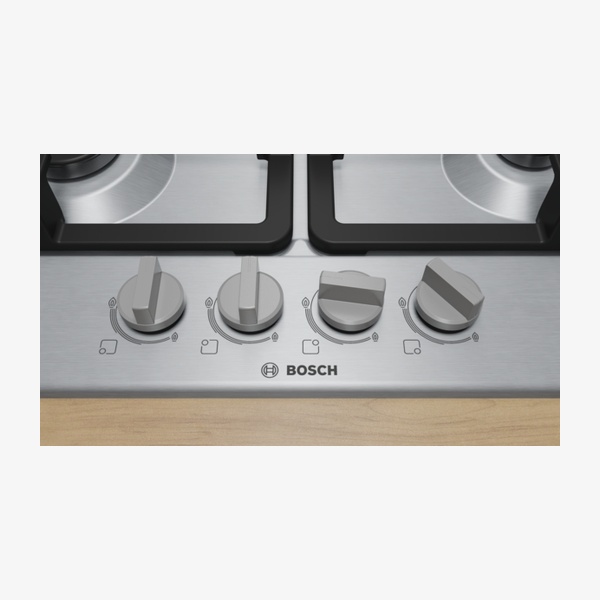

Ergonomic sword dials with raised centre for precise flame adjustments.

Design co-ordinated front control dials for easy access and strong grip.

Ignition via control dials – just push and turn to ignite the flame.

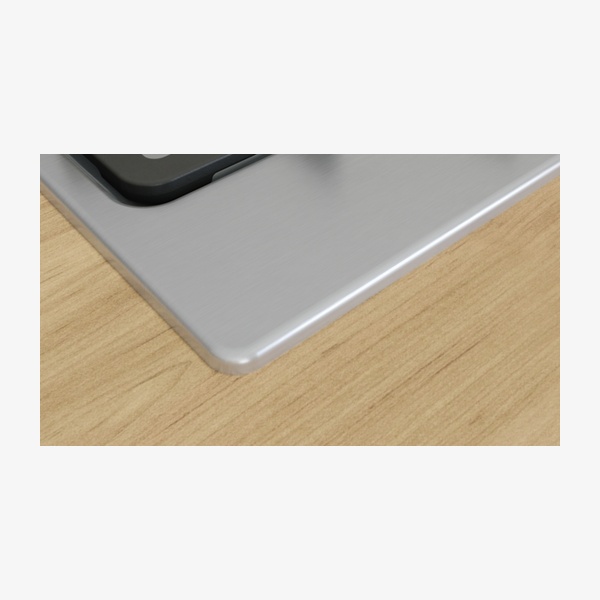

Stainless steel surface with seamless, one-piece design to help make cleaning simple.

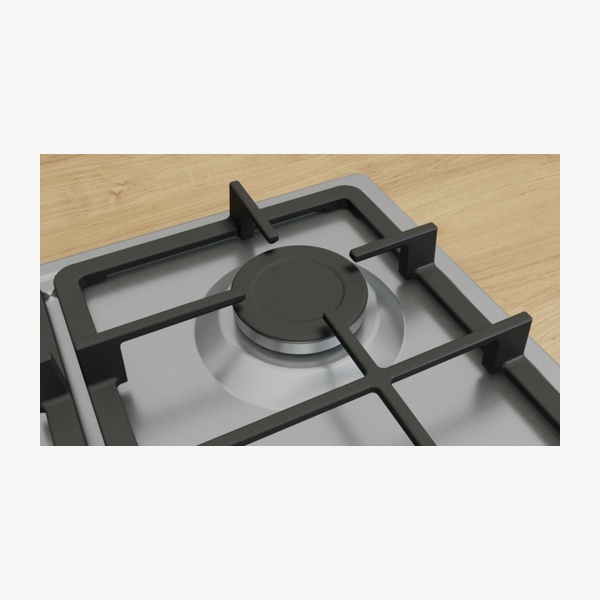

Continuous cast-iron pan support for safety and stability of cookware.

Dishwasher-suitable pan supports for easy, scrub-free cleaning.

Four gas burners including standard, high-speed and economy burners (depending on gas type).

High-speed burner up to 3 KW (depending on gas type) for demanding cooking tasks.

Flame failure safety device to prevent unwanted gas flow when the flame goes out.

Safety gas cut-off that instantly cuts off gas supply if the flame goes out.

Pre-set for natural gas with nozzle set included for connection to 28–30/37 mbar bottled gas.

Optional accessories available including simmer plate, small pot support, wireless food thermometer and cookware sets.

Technical Spec

SeriesSeries 4

Product typeGas hob w integrated controls

ModelPGP6B5K90

InstallationBuilt-in

Heating typeGas

Number of cooking zones4

Control typeSword knobs, front control panel

Surface materialStainless steel

Surface colourStainless steel

Pan supportsContinuous cast iron, dishwasher suitable

Burner configurationLeft front: standard burner up to 1.75 KW (depending on gas type) Left rear: standard burner up to 1.75 KW (depending on gas type) Right rear: high-speed burner up to 3 KW (depending on gas type) Right front: economy burner up to 1 KW (depending on gas type)

Gas connection rating7500 W / 7.5 KW (Connected load)

Dimensions (H x W x D)45 x 582 x 520 mm

Alternative product dimensions51.1 x 582 x 520 mm

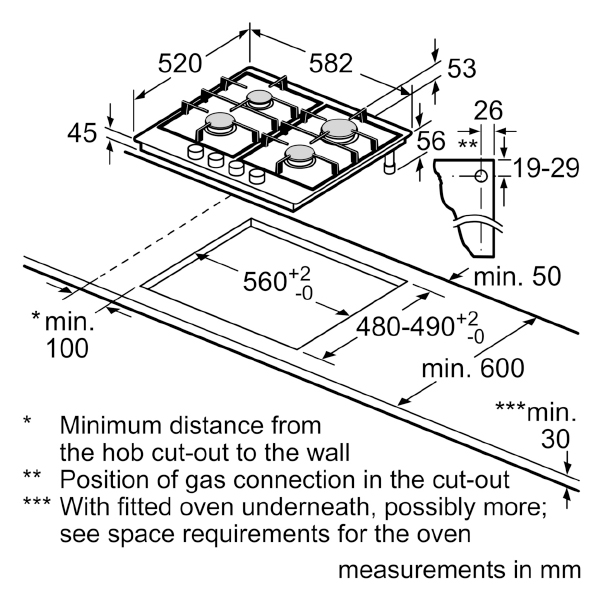

Required niche size (H x W x D)45 x 560–560 x 480–490 mm / 45 x 560 x (480–490) mm

Min. worktop thickness20 mm

Packed product dimensions (H x W x D)141 x 651 x 578 mm

Net weight9.9 kg

Gross weight10.7 kg

Residual heat indicatorWithout

Electrical supply cord length100 cm / 1 m

Voltage220–240 V

Frequency50; 60 Hz

Fuse protection3 A

EAN code4242005484669

Usable gas typesNG H/E 20 mbar, E+ 20/25 mbar; Liquid gas G30,31 28–30/37 mbar

Pre-set gas typeNatural gas

Downloads

Download product documentation, manuals, and specification sheets.

PGP6B5K90 Spec

PDF

Frequently Asked Questions

How many burners does the PGP6B5K90 gas hob have?

This hob has four gas burners: two standard burners up to 1.75 KW each, one high-speed burner up to 3 KW, and one economy burner up to 1 KW, depending on gas type.

Are the pan supports suitable for the dishwasher?

Yes. The cast iron pan supports are described as dishwasher suitable, allowing easy, scrub-free cleaning.

What safety features are included on this gas hob?

The hob includes a flame failure safety device that prevents unwanted gas flow when the flame goes out and a safety gas cut-off that instantly cuts off gas supply if the flame goes out.

Is the hob pre-set for natural gas or LPG?

It is pre-set for natural gas. A nozzle set for LPG jets is included for connection to 28–30/37 mbar bottled gas. Nozzles for other gas types can be ordered via customer service.

What are the required cut-out dimensions for installation?

The required niche size for installation is 45 x 560–560 x 480–490 mm, with a minimum worktop thickness of 20 mm.

Which optional accessories are available?

Optional accessories listed include the HEZ298105 simmer plate, HEZ298114 small pot support, HEZ32WA00 wireless food thermometer, HEZ9SE040 4 pieces set and HEZ9SE060 6 pieces set.
