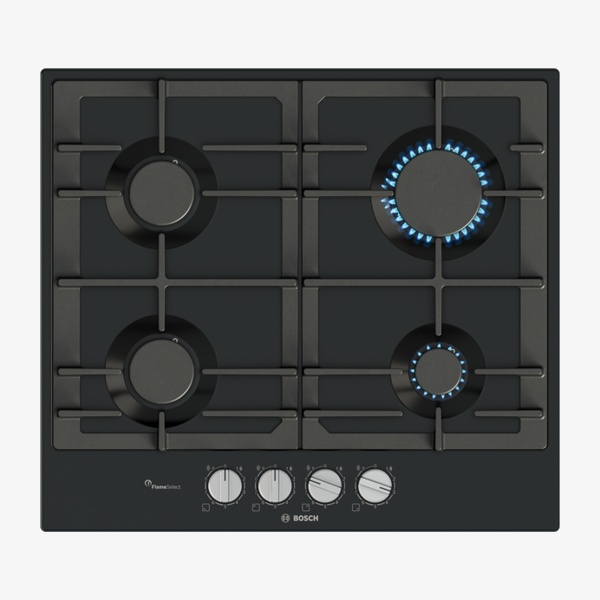

Bosch Series 6 PCP6A6I90 Gas Hob

This Series 6 60 cm gas hob in black enamel offers precise flame control and easy cleaning. Designed for built-in installation, it features FlameSelect technology with nine defined levels, cast iron pan supports and full metal control dials positioned at the front for convenient use. Removable dials and dishwasher-suitable pan supports help keep the hob clean, while the integrated flame failure safety device enhances peace of mind when cooking on four versatile gas burners.

SKU:PCP6A6I90

EAN:4242005496044

Category::Hobs

Quantity:

Key Features

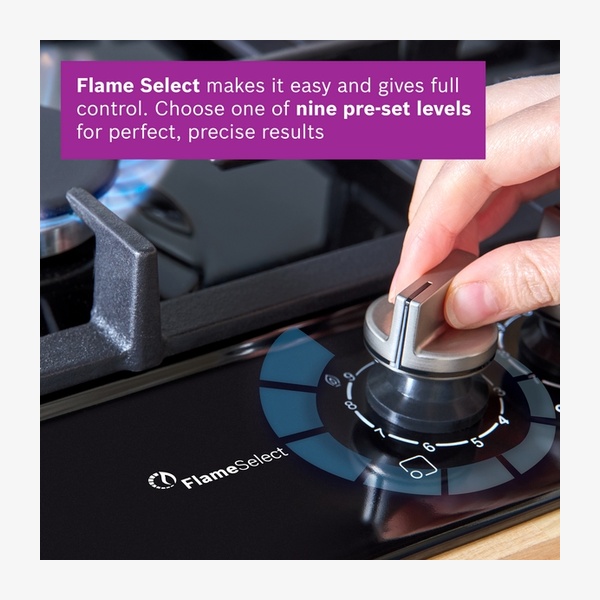

FlameSelect precise control – control and adjust the flame in nine defined levels.

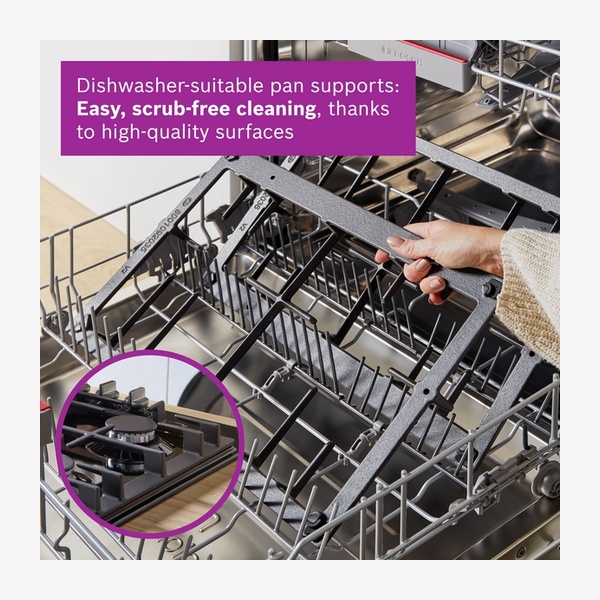

Dishwasher-suitable pan supports – cast iron pan supports can be cleaned in the dishwasher for easy, scrub-free care.

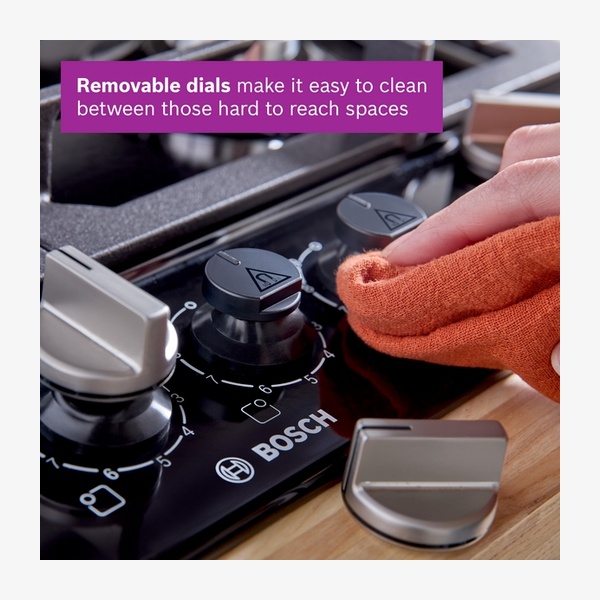

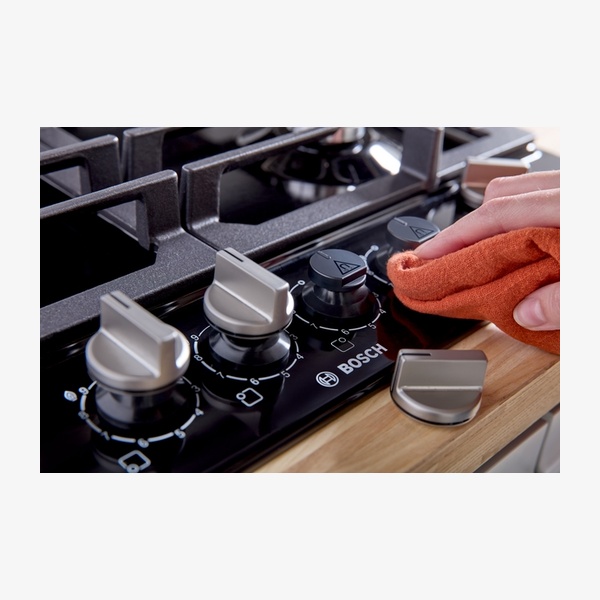

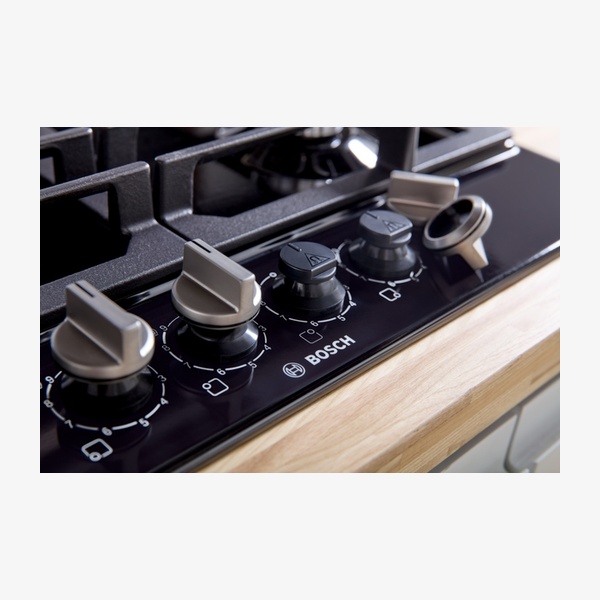

Removable full metal control dials – detachable dials allow effortless cleaning between knobs.

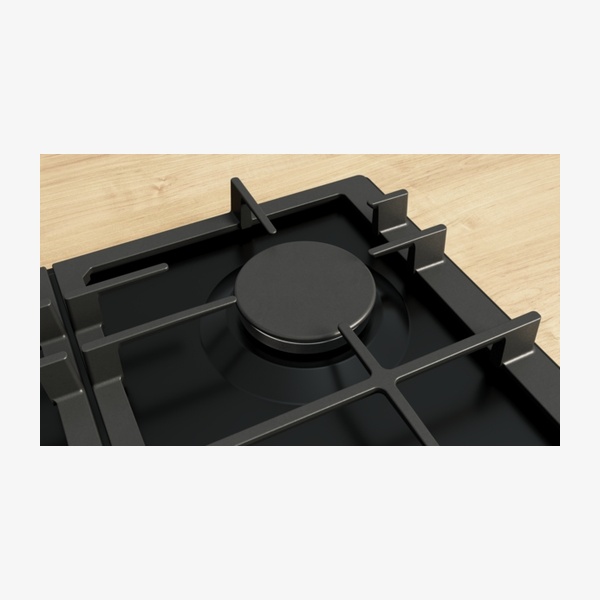

Continuous cast-iron pan support – provides safety and stability for cookware across the hob.

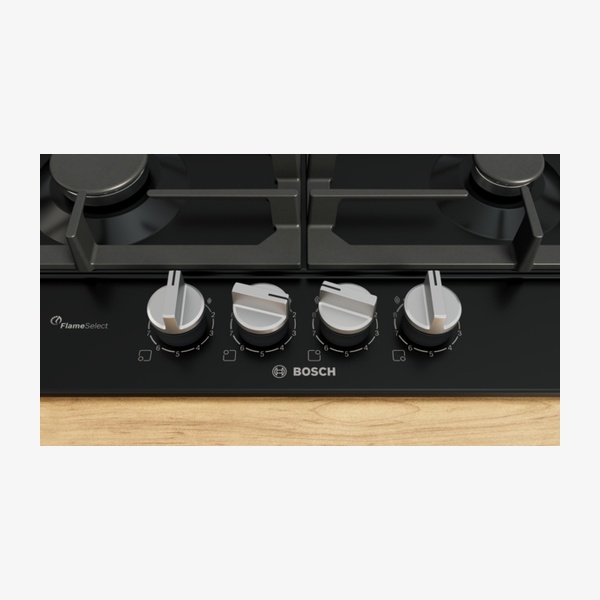

Front control panel – design co-ordinated dials positioned at the front with a strong grip for easy turning.

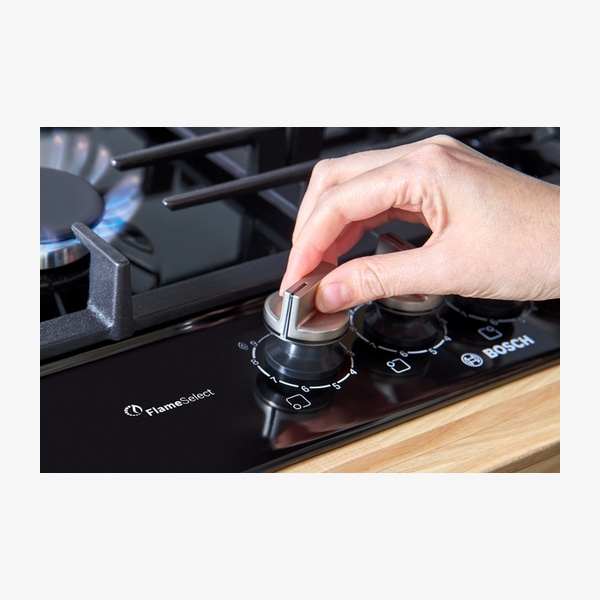

Integrated ignition via control dials – simply push and turn the dials to ignite the flame.

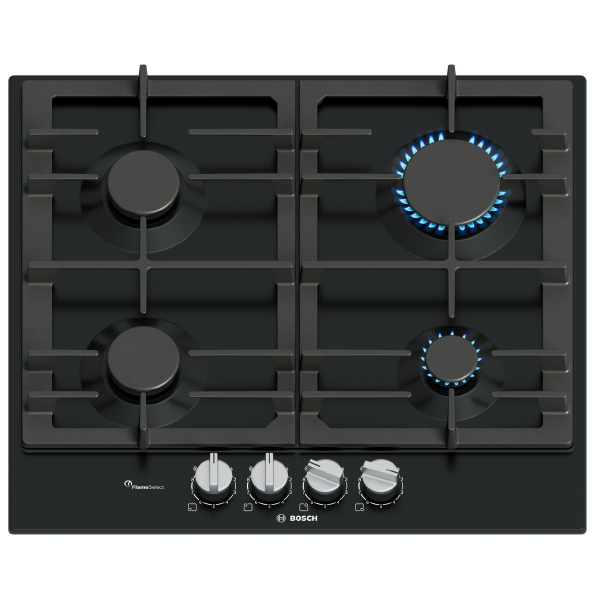

Four versatile gas burners – including standard, high-speed and economy burners, depending on gas type.

Flame failure safety device – helps prevent unwanted gas flow if the flame goes out.

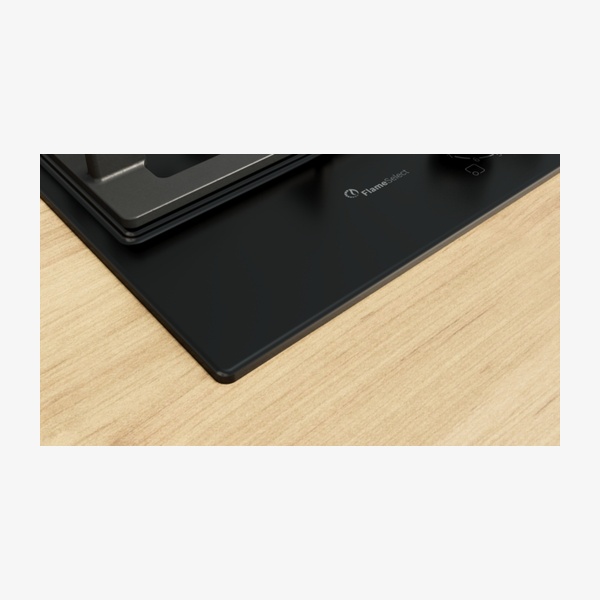

Enamel surface in black – enamel hob surface in a black finish.

Pre-set for natural gas with LPG option – usable with a range of natural gas and liquid gas types, with nozzle set for LPG jets included.

Optional accessories available – compatible simmer plate, small pot support, wireless food thermometer and cookware sets.

Technical Spec

Product nameSeries 6, Gas hob, 60 cm, Enamel, Black

Model codePCP6A6I90

Appliance typeGas hob w integrated controls

Installation typeBuilt-in

Heating typeGas

Number of cooking zones4

Hob surface materialEnamel

ColourBlack

Pan supportsCast iron; dishwasher suitable; continuous pan support

Control dialsFull metal; removable; front control

Control positionFront

IgnitionIgnition via control dials (push and turn)

Safety featuresFlame failure safety device

Flame controlFlameSelect with nine defined levels

Burners (left front)Standard burner up to 1.75 KW (depending on gas type)

Burners (left rear)Standard burner up to 1.75 KW (depending on gas type)

Burners (right rear)High-speed burner up to 3 KW (depending on gas type)

Burners (right front)Economy burner up to 1 KW (depending on gas type)

Gas connection rating7500 W

Connected load7.5 KW

Voltage220–240 V

Frequency50; 60 Hz

Fuse protection3 A

Residual heat indicatorWithout

Product dimensions (HxWxD)45x582x520 mm / 51.5 x 582 x 520 mm

Width of appliance582 mm

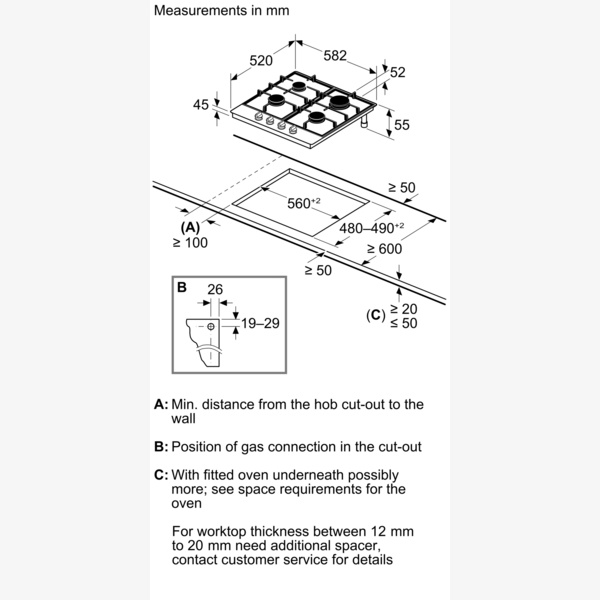

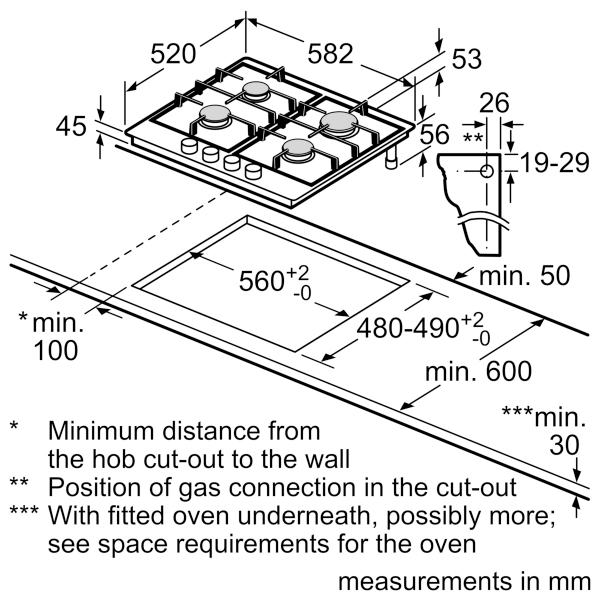

Required niche size (HxWxD)45 x 560–560 x 480–490 mm / 45 x 560 x (480–490)

Min. worktop thickness20 mm

Dimensions of packed product (HxWxD)141x651x578 mm

Net weight10.9 kg

Gross weight12.0 kg

Length of electrical supply cord100 cm / 1 m

Gas types – natural gasNat gas L/LL G25/20mbar (DE); NG H/E 20mbar, E+ 20/25mbar; Natural gas H 25 mbar (HU); Natural gas L 25 mbar (NL)

Gas types – liquid gasLiquid gas G30,31 28–30/37mbar; Liquid gas G30 37 mbar (PL); Liquid gas 50 mbar

Pre-set gas typePre-set for natural gas

LPG nozzlesNozzle set for LPG jets included; connection to 28–30/37 mbar bottled gas. Nozzles for other gas types can be ordered via customer service.

EAN code4242005496044

Downloads

Download product documentation, manuals, and specification sheets.

PCP6A6I90 Spec

PDF

Frequently Asked Questions

How many burners does the hob have and what are their power levels?

The hob has four gas burners: a standard burner at the left front up to 1.75 KW (depending on gas type), a standard burner at the left rear up to 1.75 KW (depending on gas type), a high-speed burner at the right rear up to 3 KW (depending on gas type) and an economy burner at the right front up to 1 KW (depending on gas type).

Is this gas hob easy to clean?

Yes. The hob has removable control dials for easy cleaning between knobs and dishwasher-suitable cast iron pan supports. Detachable dials and dishwasher-suitable pan supports are designed to make cleaning a breeze.

What safety features are included?

The hob is equipped with a flame failure safety device, which prevents unwanted gas flow when the flame goes out.

Which gas types is this hob compatible with?

It is usable with various natural gas types (Nat gas L/LL G25/20mbar (DE); NG H/E 20mbar, E+ 20/25mbar; natural gas H 25 mbar (HU); natural gas L 25 mbar (NL)) and liquid gas types (G30,31 28–30/37mbar; G30 37 mbar (PL); liquid gas 50 mbar). The hob is pre-set for natural gas.

Are LPG nozzles included with the hob?

Yes. A nozzle set for LPG jets is included for connection to 28–30/37 mbar bottled gas. Nozzles for all other gas types can be ordered via customer service, and nozzle changes should be carried out by customer service.

What optional accessories can be used with this hob?

Optional accessories include the HEZ298105 Simmer plate, HEZ298114 Small pot support, HEZ32WA00 Wireless food thermometer, HEZ9SE040 4 pieces Set and HEZ9SE060 6 pieces Set.
