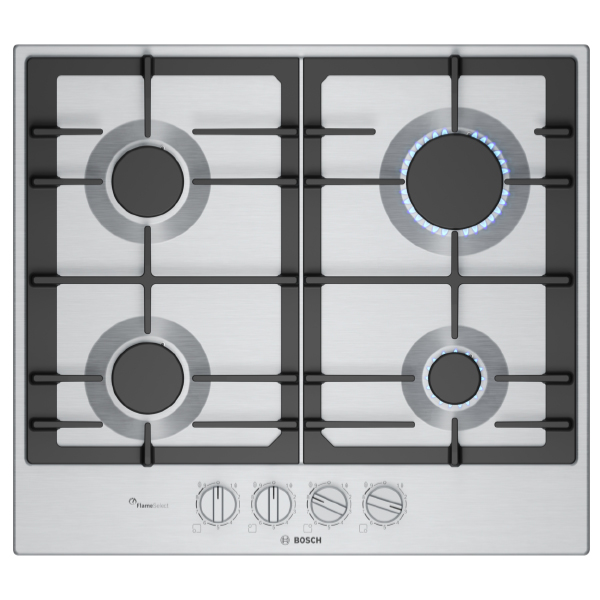

Bosch Series 6 PCP6A5I90 Gas Hob

The Series 6 60 cm stainless steel gas hob PCP6A5I90 offers precise flame control and easy cleaning. With four gas burners, FlameSelect technology and continuous cast-iron pan supports, it is designed for convenient cooking and stability. Front-mounted full-metal control dials with integrated ignition are removable, and the cast iron pan supports are dishwasher-suitable, helping to keep the hob surface clean with minimal effort.

SKU:PCP6A5I90

EAN:4242005496006

Category::Hobs

Quantity:

Key Features

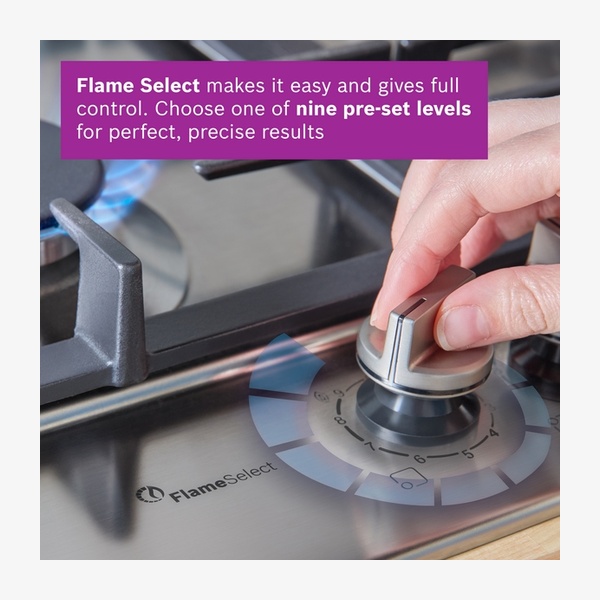

FlameSelect precise control – precisely control and adjust the flame in nine defined levels.

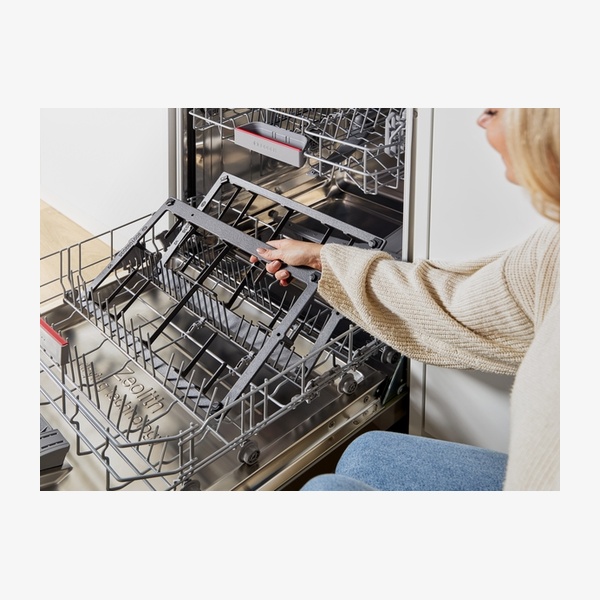

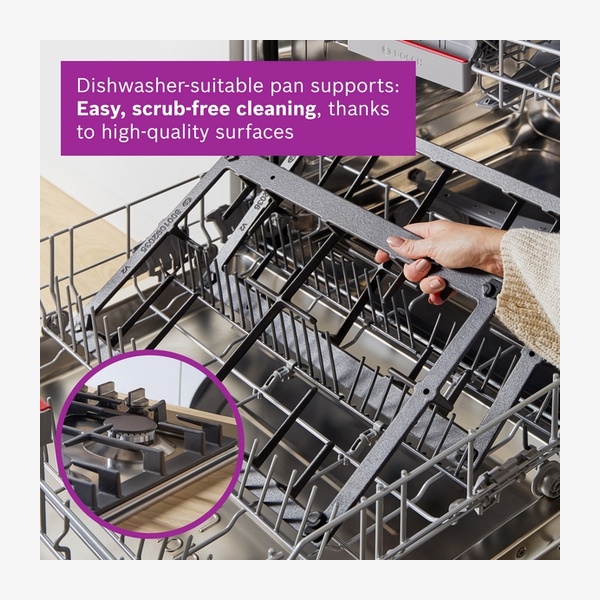

Dishwasher-suitable pan supports – cast iron pan supports are suitable for the dishwasher for easy, scrub-free cleaning.

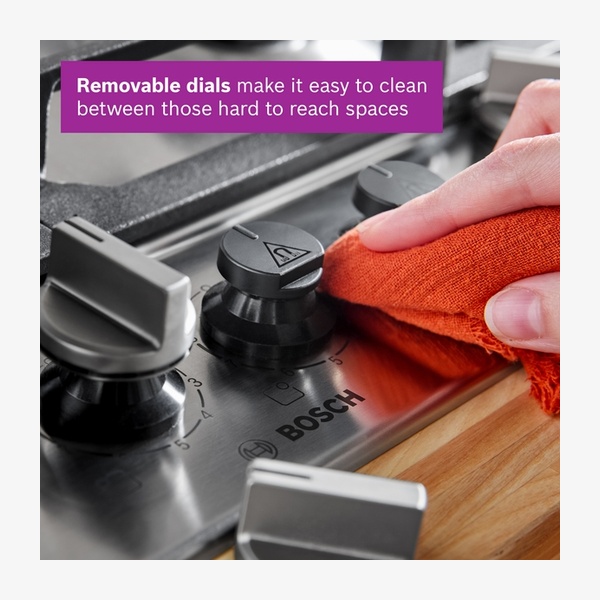

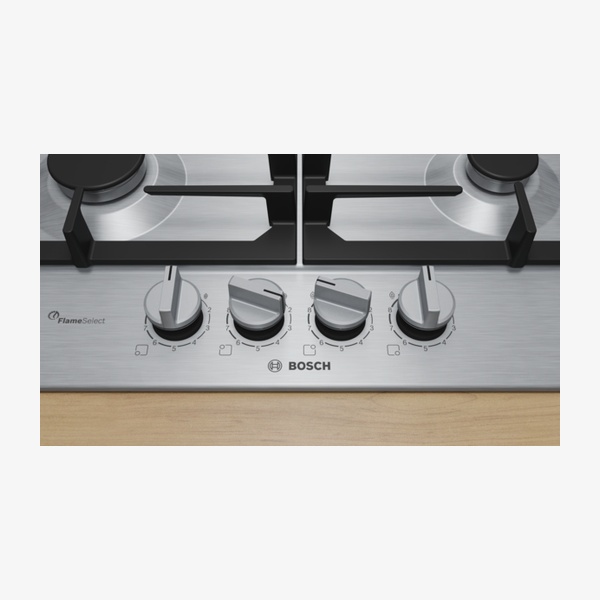

Removable control dials – detachable full-metal dials allow easy cleaning between knobs.

Integrated ignition via control dials – just push and turn the front-mounted dials to ignite the flame.

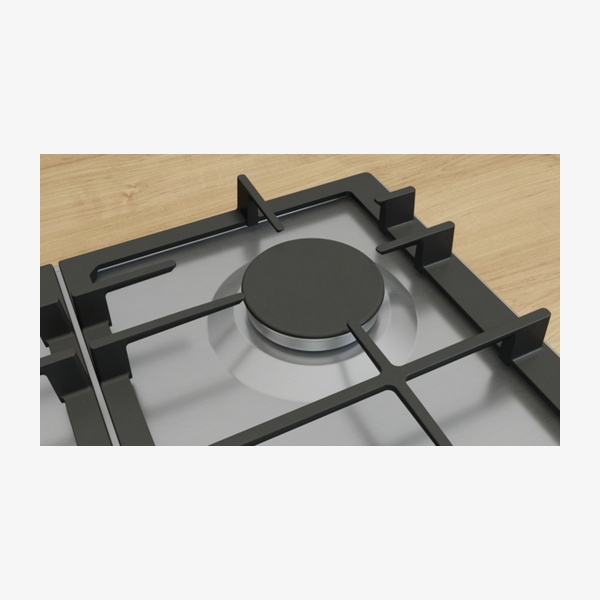

Continuous cast-iron pan support – provides safety and stability for cookware across the hob.

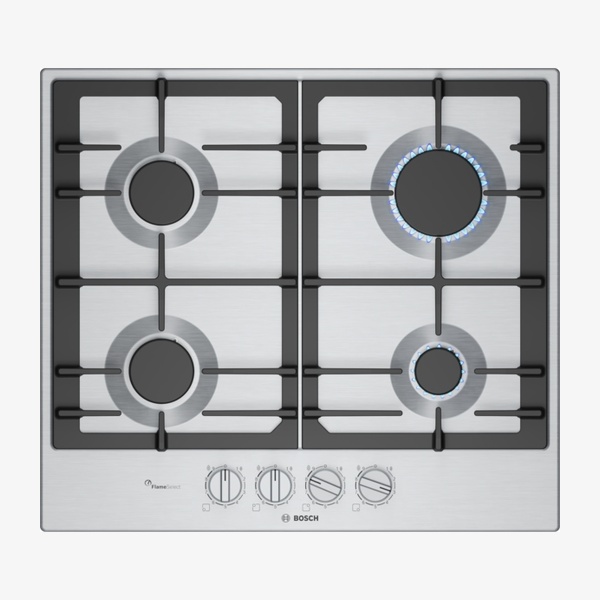

Four gas burners – includes standard, high-speed and economy burners for different cooking needs.

Flame failure safety device – prevents unwanted gas flow when the flame goes out.

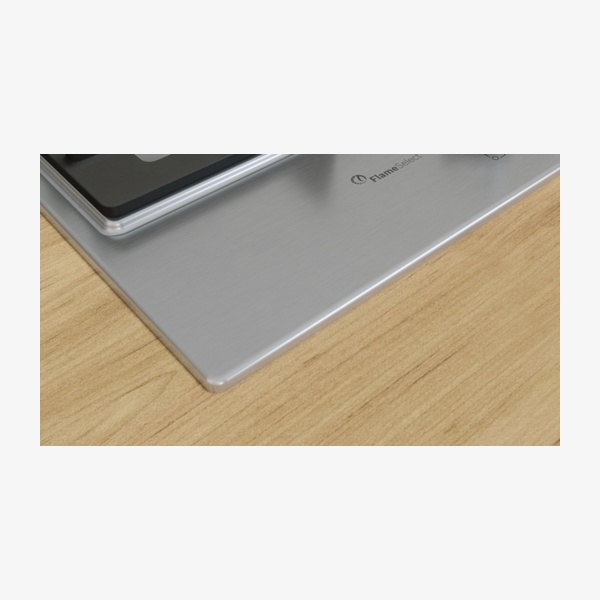

Stainless steel surface – basic surface material and colour are stainless steel for a co-ordinated look.

Design co-ordinated front control – control dials are located at the front for easy access and strong grip.

Optional accessories available – compatible accessories include a simmer plate, small pot support, wireless food thermometer and cookware sets.

Technical Spec

Product nameSeries 6, Gas hob, 60 cm, Stainless steel, PCP6A5I90

Appliance typegas hob w integrated controls

Built-in / Free-standingBuilt-in

Heating typeGas

Number of cooking zones4

Burner configurationLeft front: standard burner up to 1.75 kW (depending on gas type); Left rear: standard burner up to 1.75 kW (depending on gas type); Right rear: high-speed burner up to 3 kW (depending on gas type); Right front: economy burner up to 1 kW (depending on gas type)

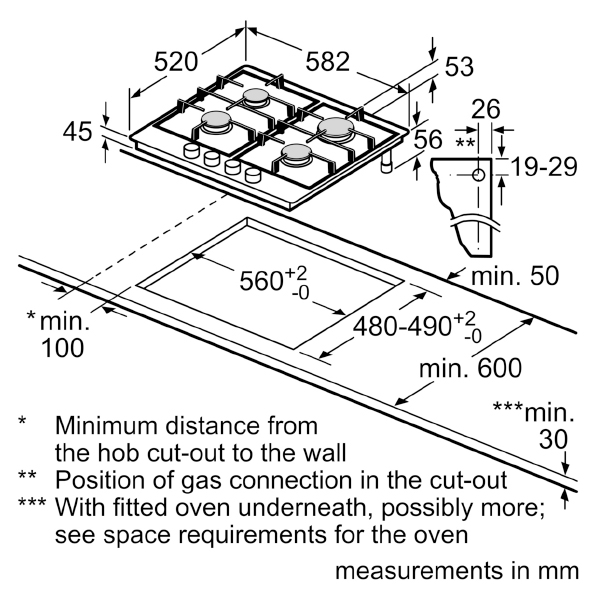

Required niche size (H x W x D)45 x 560–560 x 480–490 mm

Width of appliance582 mm

Dimensions (H x W x D)45 x 582 x 520 mm

Dimensions of product (H x W x D)51.5 x 582 x 520 mm

Packed product dimensions (H x W x D)150 x 650 x 580 mm

Net weight10.6 kg

Gross weight11.7 kg

Residual heat indicatorWithout

Location of control panelFront

Basic surface materialStainless steel

Colour of surfaceStainless steel

Length of electrical supply cord100 cm (Power cord: 1 m)

Min. worktop thickness20 mm

EAN code4242005496006

Gas connection rating7500 W (Connected load: 7.5 kW)

Fuse protection3 A

Voltage220–240 V

Frequency50; 60 Hz

Surface designStainless steel surface; cast iron pan supports; full metal

Optional accessoriesHEZ298105 Simmer plate; HEZ298114 Small pot support; HEZ32WA00 Wireless food thermometer; HEZ9SE040 4 pieces Set; HEZ9SE060 6 pieces Set

Downloads

Download product documentation, manuals, and specification sheets.

PCP6A5I90 Spec

PDF

Frequently Asked Questions

How many burners does the PCP6A5I90 gas hob have?

The hob has four gas burners: two standard burners up to 1.75 kW, one high-speed burner up to 3 kW and one economy burner up to 1 kW, depending on gas type.

Can the pan supports be cleaned in a dishwasher?

Yes. The cast iron pan supports are described as dishwasher-suitable, allowing easy, scrub-free cleaning.

What safety feature is included for gas flow?

The hob includes a flame failure safety device, which prevents unwanted gas flow when the flame goes out.

Does the hob offer precise control of the flame?

Yes. FlameSelect technology allows you to precisely control and adjust the flame in nine defined levels.

Which gas types can this hob be used with?

It is usable with Nat gas L/LL G25/20 mbar (DE); NG H/E 20 mbar, E+ 20/25 mbar; Natural gas H 25 mbar (HU); Natural gas L 25 mbar (NL); Liquid gas G30,31 28–30/37 mbar; Liquid gas G30 37 mbar (PL); and Liquid gas 50 mbar. It is pre-set for natural gas, and a nozzle set for LPG jets is included for 28–30/37 mbar bottled gas.

Are there optional accessories for this hob?

Optional accessories listed include HEZ298105 Simmer plate, HEZ298114 Small pot support, HEZ32WA00 Wireless food thermometer, HEZ9SE040 4 pieces Set and HEZ9SE060 6 pieces Set.
