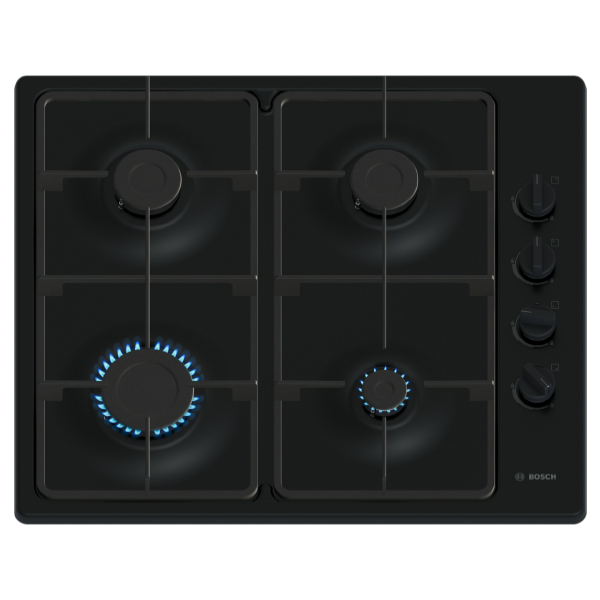

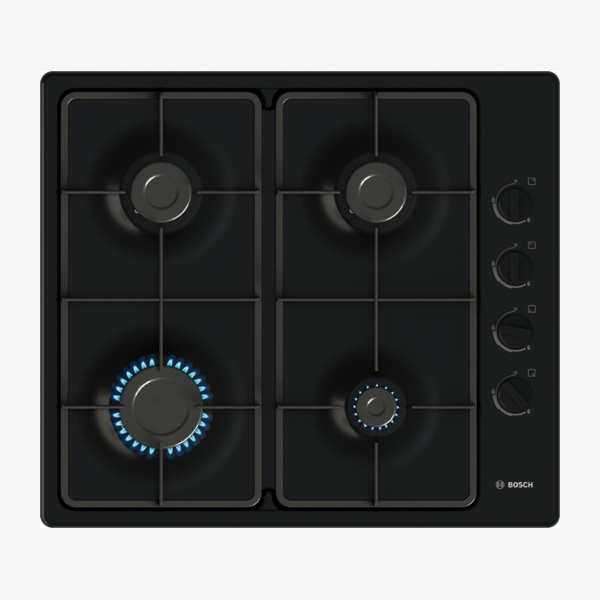

Bosch Series 2 PBP6B6K60 Gas Hob

The Series 2 PBP6B6K60 is a 60 cm built-in gas hob with a black enamel surface and lateral integrated controls. It offers four gas burners with ergonomic sword dials and wider dial spacing for easier cleaning. Continuous cast-iron finish pan supports with rubber feet provide maximum stability, while flame failure safety instantly cuts off the gas supply if the flame goes out. It is pre-set for natural gas and supplied with an LPG nozzle set.

SKU:PBP6B6K60

EAN:4242005484584

Category::Hobs

Quantity:

Key Features

Ergonomic sword dials with raised centre and strong grip for precise, effortless flame adjustment.

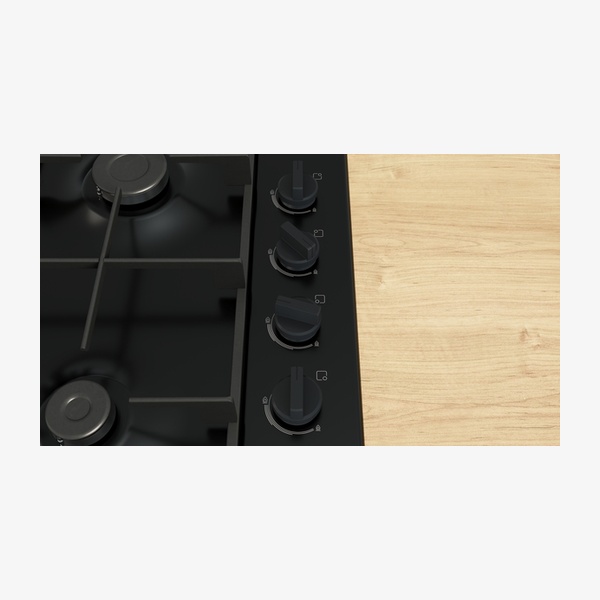

Side-mounted control panel with design co-ordinated control dials positioned on the right for easy access.

Wider dial distance between the side-mounted knobs for easy, hassle-free cleaning.

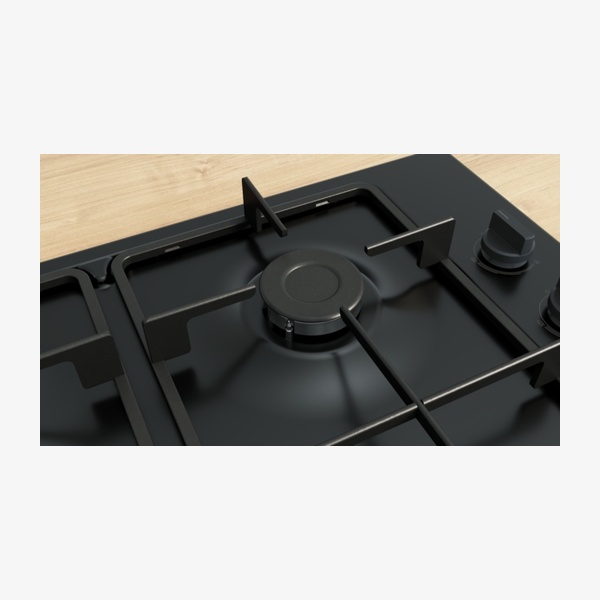

Continuous cast-iron finish pan supports with rubber feet for maximum stability.

Flame failure safety device to prevent unwanted gas flow when the flame goes out.

Four gas burners including a high-speed burner up to 3 kW, two standard burners up to 1.75 kW, and an economy burner up to 1 kW (depending on gas type).

Ignition via control dials – just push and turn the dials to ignite the flame.

Black enamel surface for a co-ordinated appearance.

Optional accessories available, including simmer plate, small pot support, wireless food thermometer and cookware sets.

Pre-set for natural gas with nozzle set for LPG jets included for connection to 28–30/37 mbar bottled gas.

Technical Spec

ModelPBP6B6K60

SeriesSeries 2

Appliance typeGas hob w integrated controls

InstallationBuilt-in

Heating typeGas

Number of cooking zones4

Control setting devicesSword knobs

Location of control panelLateral (right)

Basic surface materialEnamel

Colour of surfaceBlack

Pan supportsContinuous cast iron finish pan supports with rubber feet

Dimensions (H x W x D)45 x 580 x 510 mm / Dimensions of the product: 51.8 x 580 x 510 mm

Appliance width580 mm

Packed product dimensions (H x W x D)141 x 651 x 578 mm

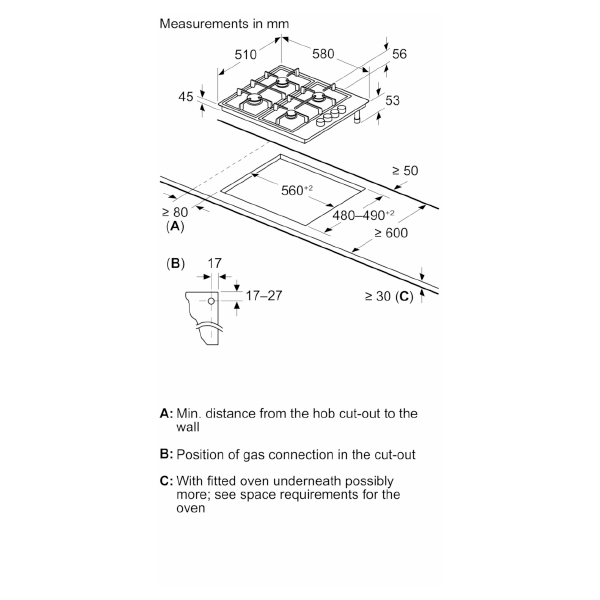

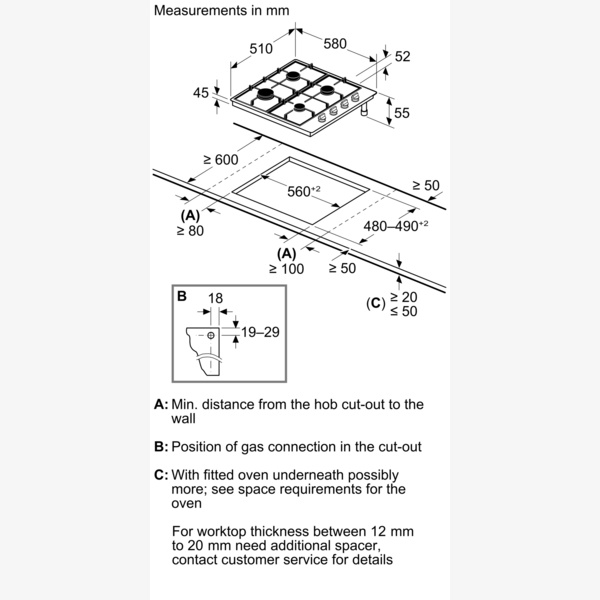

Required niche size (H x W x D)45 x 560–560 x 480–490 mm / 45 x 560 x (480–490) mm

Minimum worktop thickness20 mm

Net weight7.6 kg

Gross weight8.4 kg

Residual heat indicatorWithout

Length of electrical supply cord100 cm / Power cord: 1 m

Gas connection rating7500 W / Connected load: 7.5 KW

Fuse protection3 A

Voltage220–240 V

Frequency50; 60 Hz

Burner configurationLeft front: high-speed burner up to 3 kW (depending on gas type); Left rear: standard burner up to 1.75 KW (depending on gas type); Right rear: standard burner up to 1.75 KW (depending on gas type); Right front: economy burner up to 1 KW (depending on gas type)

EAN code4242005484584

Downloads

Download product documentation, manuals, and specification sheets.

PBP6B6K60 Spec

PDF

Frequently Asked Questions

How many burners does the PBP6B6K60 gas hob have?

This hob has 4 gas burners: a left front high-speed burner up to 3 kW, left rear standard burner up to 1.75 KW, right rear standard burner up to 1.75 KW, and right front economy burner up to 1 KW (all depending on gas type).

Is the hob suitable for LPG as well as natural gas?

Yes. It is pre-set for natural gas and usable with several natural gas types and liquid gas types including G30,31 28–30/37 mbar, G30 37 mbar (PL) and liquid gas 50 mbar. A nozzle set for LPG jets is included for connection to 28–30/37 mbar bottled gas; other nozzles can be ordered via customer service.

What safety features does this gas hob include?

It has a flame failure safety device that prevents unwanted gas flow when the flame goes out and a safety gas cut-off which instantly cuts off the gas supply if the flame goes out.

How is the flame ignited on this hob?

The hob offers ignition via the control dials. You just push and turn the dials to ignite the flame.

What are the required niche dimensions for installation?

The required niche size for installation is 45 x 560–560 x 480–490 mm, with a minimum worktop thickness of 20 mm.

Does the hob have a residual heat indicator?

No. The hob is specified as being without a residual heat indicator.
