Bosch Series 2 PBP6B5K60 Gas Hob

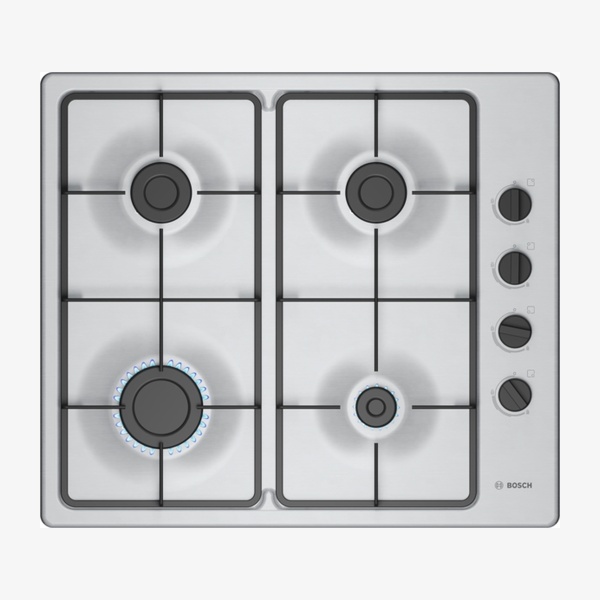

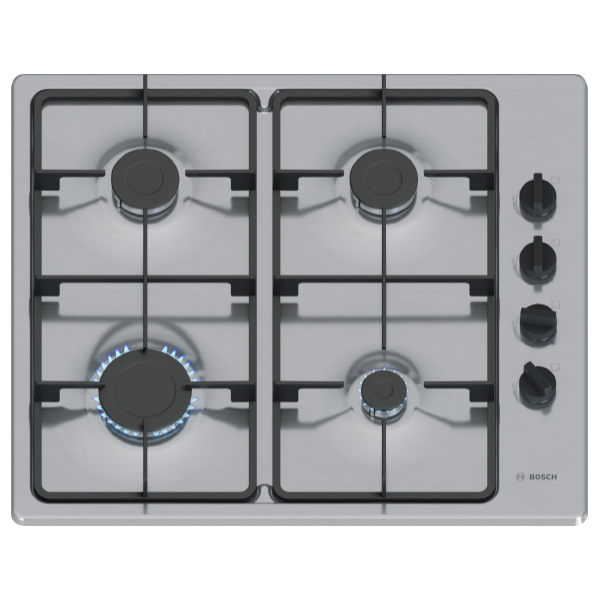

This 60 cm Series 2 stainless steel gas hob PBP6B5K60 is a built-in model with four gas burners and side-mounted sword dials. It is designed for ergonomic control, with strong-grip knobs and ignition via the dials. Continuous cast-iron finish pan supports provide stability, while wider dial spacing and a seamless stainless steel surface support easier cleaning. A flame failure safety device helps prevent unwanted gas flow if the flame goes out.

SKU:PBP6B5K60

EAN:4242005484263

Category::Hobs

Quantity:

Key Features

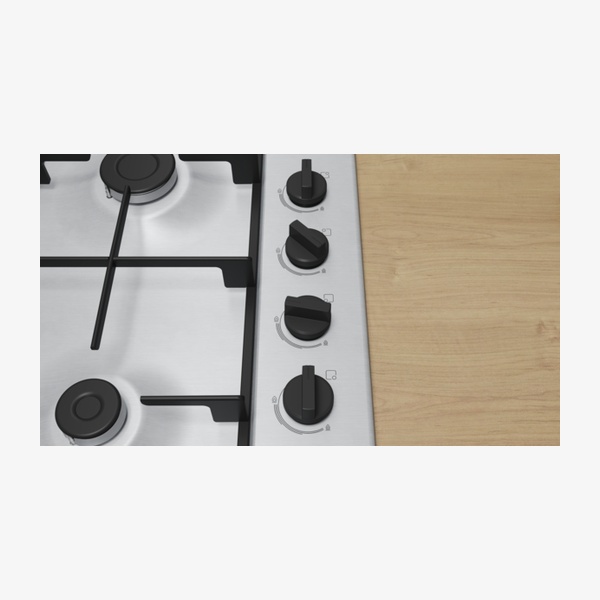

Ergonomic sword dials with raised centre and strong grip for precise, effortless adjustments.

Side-mounted controls with design co-ordinated dials located on the right-hand side.

Ignition via control dials – just push and turn the dials to ignite the flame.

Wider distance between dials for easy, hassle-free cleaning around the controls.

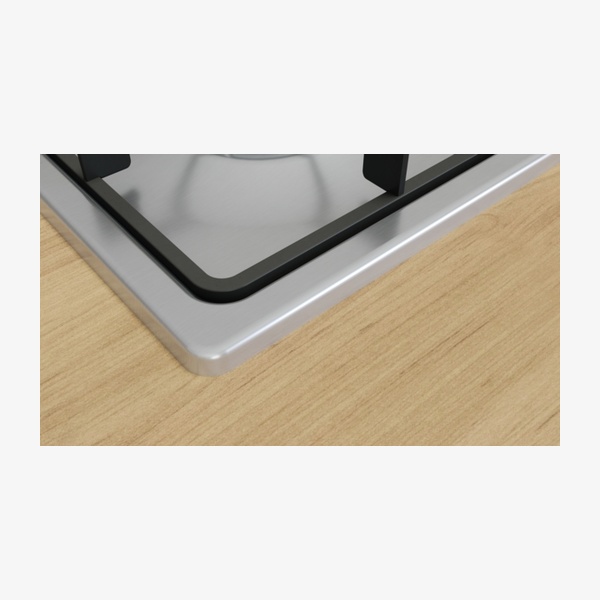

Stainless steel surface and design with a seamless, one-piece finish to simplify cleaning.

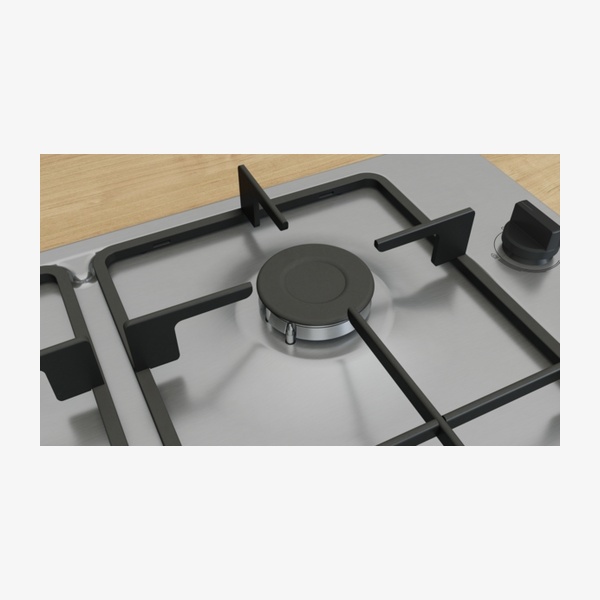

Continuous cast-iron finish pan supports with rubber feet for maximum stability.

Four gas burners including a high-speed burner up to 3 kW and an economy burner up to 1 kW (depending on gas type).

Flame failure safety device that prevents unwanted gas flow when the flame goes out.

Pre-set for natural gas with nozzle set for LPG jets included for connection to 28–30/37 mbar bottled gas.

Compatible with multiple gas types including various natural gas and liquid gas configurations as specified for several countries.

Optional accessories available, including simmer plate, small pot support, wireless food thermometer and cookware sets.

Technical Spec

SeriesSeries 2

ModelPBP6B5K60

Appliance typeGas hob with integrated controls

Installation typeBuilt-in

Heating typeGas

Number of cooking zones4

Control setting devicesSword knobs

Location of control panelLateral (right side)

Basic surface materialStainless steel

Colour of surfaceStainless steel

Width of the appliance580 mm

Dimensions (H x W x D)45 x 580 x 510 mm

Dimensions of the product (H x W x D)51.8 x 580 x 510 mm

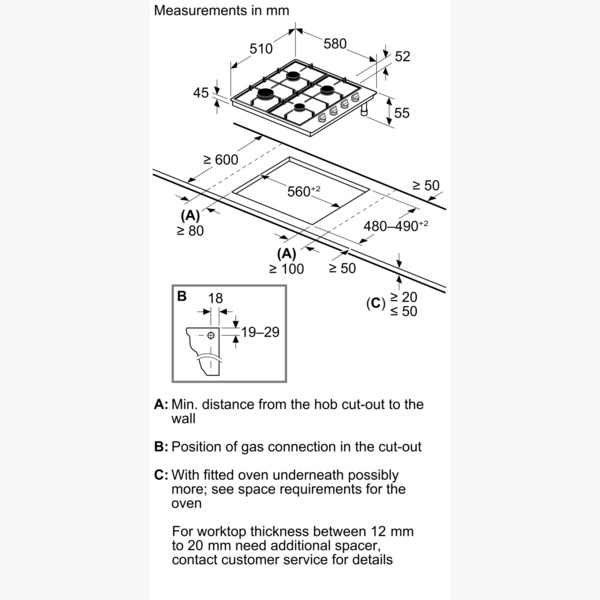

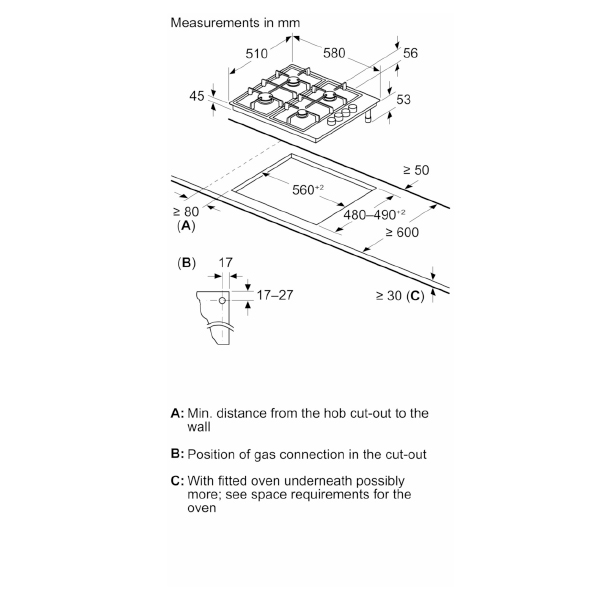

Required niche size (H x W x D)45 x 560 x 480–490 mm

Min. worktop thickness20 mm

Dimensions of packed product (H x W x D)141 x 651 x 578 mm

Net weight6.9 kg

Gross weight7.7 kg

Residual heat indicatorWithout

Length of electrical supply cord100 cm

EAN code4242005484263

Gas connection rating7500 W

Connected load7.5 kW

Fuse protection3 A

Voltage220–240 V

Frequency50; 60 Hz

Design, Burners, Safety and Installation

Design

Stainless steel surface.
Cast-iron finish pan supports with rubber feet.
Design co-ordinated control dials on the right: access knobs on the side.

Usage convenience

Strong grip knobs for effortless turning.
Ignition via control dials – push and turn to ignite the flame.

Burners and power

4 gas burners.
Left front: high-speed burner up to 3 kW (depending on gas type).
Left rear: standard burner up to 1.75 kW (depending on gas type).
Right rear: standard burner up to 1.75 kW (depending on gas type).
Right front: economy burner up to 1 kW (depending on gas type).

Cleaning

Wider distance between dials for better cleaning.
Seamless, one-piece stainless steel design makes cleaning simple.

Safety

Flame failure safety device prevents unwanted gas flow when the flame goes out.
Safety gas cut-off ensures safety by instantly cutting off gas supply if the flame goes out.

Installation and gas types

Usable for: Nat gas L/LL G25/20 mbar (DE).
NG H/E 20 mbar, E+ 20/25 mbar.
Natural gas H 25 mbar (HU).
Natural gas L 25 mbar (NL).
Liquid gas G30,31 28–30/37 mbar.
Liquid gas G30 37 mbar (PL).
Liquid gas 50 mbar.
Pre-set for natural gas.
Nozzle set for LPG jets included, for connection to 28–30/37 mbar bottled gas.
Nozzles for all other gas types can be ordered via customer service.
For nozzle change, customer service should be contacted.
Power cord length: 1 m.

Optional accessories

HEZ298105 Simmer plate.
HEZ298114 Small pot support.
HEZ32WA00 Wireless food thermometer.
HEZ9SE040 4 pieces Set.
HEZ9SE060 6 pieces Set.

Downloads

Download product documentation, manuals, and specification sheets.

PBP6B5K60 Spec

PDF

Frequently Asked Questions

How many burners does the PBP6B5K60 gas hob have?

The hob has 4 gas burners: one high-speed burner up to 3 kW, two standard burners up to 1.75 kW, and one economy burner up to 1 kW (depending on gas type).

Where are the control dials located?

The control dials are located on the right-hand side of the hob, with side-mounted sword knobs for ergonomic access.

How is the flame ignited on this hob?

Ignition is via the control dials. You simply push and turn the dials to ignite the flame.

Does the hob include any safety features?

Yes. It has a flame failure safety device that prevents unwanted gas flow when the flame goes out, and a safety gas cut-off that instantly cuts off gas supply if the flame goes out.

Is this gas hob suitable for different gas types?

The hob is pre-set for natural gas and is usable with several natural gas and liquid gas types as specified, including Nat gas L/LL G25/20 mbar, NG H/E 20 mbar, E+ 20/25 mbar, Natural gas H 25 mbar, Natural gas L 25 mbar, and various liquid gas configurations. A nozzle set for LPG jets is included for 28–30/37 mbar bottled gas.

What are the installation dimensions for this hob?

The required niche size for installation is 45 x 560 x 480–490 mm, with a minimum worktop thickness of 20 mm. The hob width is 580 mm and overall dimensions are 45 x 580 x 510 mm, with product dimensions also stated as 51.8 x 580 x 510 mm.
