Bosch Serie 4 PVS611B16E Venting Induction Hob

The Series 4 PVS611B16E is a 60 cm built-in induction hob with a fully integrated high-performance downdraft ventilation module. Designed for a 60 cm base cabinet, it offers four cooking zones, including a flexible CombiZone, and precise TouchSelect control with 17-stage power settings. An aesthetically integrated flush air intake and powerful yet low-noise extraction help remove steam and cooking odours directly at the source for comfortable everyday cooking.

SKU:PVS611B16E

EAN:4242005433650

Category::Hobs

Quantity:

Key Features

Integrated ventilation module – extracts steam and cooking odours directly at the source via a fully integrated downdraft system.

60 cm cooktop with 4 zones – space for 4 pots or pans, suitable for installation into a 60 cm base cabinet.

CombiZone flexibility – connect two classic cooking zones into one large zone for bigger cookware such as roasters.

TouchSelect control – imprinted +/– touch buttons for easy selection of cooking zones and power levels.

17-stage power settings – 9 main and 8 intermediate levels per zone for precise heat control.

PowerBoost on all zones – up to 50 % more power for faster heating, such as boiling water quickly.

QuickStart and ReStart – automatic zone selection with cookware and restoration of previous settings after unintentional switch-off (within 4 seconds).

Quick Stop function – rapidly switch off a cooking zone with one longer touch.

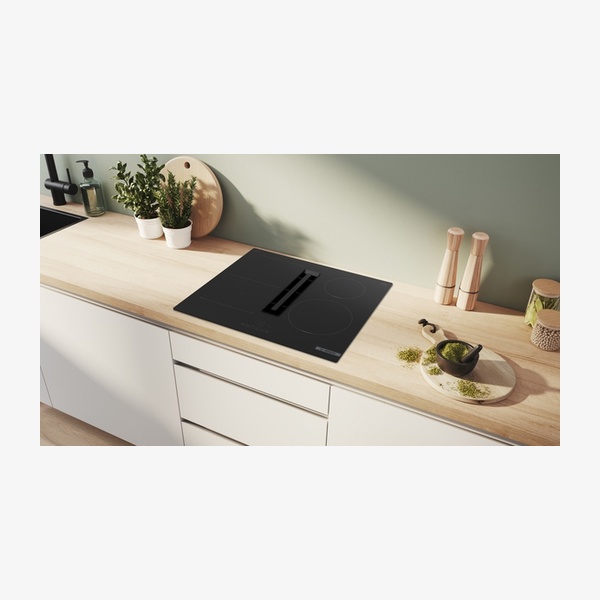

Frameless, elevated design – surface mount hob slightly elevated to separate cooking space from the worktop.

High-performance, low-noise blower – BLDC technology with psycho-acoustically optimised interior for high extraction rates at low noise.

3 fan levels plus Boost – three electronically controlled power levels and one intensive setting with automatic revert.

Automatic ventilation control – automatic switch-on with cooking, and delayed shut-off at ultra low-noise level to remove residual odours.

Easy-clean grease filter system – detachable unit with large-scale stainless-steel grease filters (12 layers) and 94 % grease filtration efficiency.

Liquid collector and safety collector – 200 ml upper collector plus 700 ml liquid safety collector, giving an overall 900 ml capturing capacity.

Energy efficiency Class B ventilation – fluid dynamic efficiency A, grease filtration efficiency class B and average energy consumption 57 (unit not stated in source).

CleanAir odour filters for recirculation – optimised odour reduction, anti-pollen functionality and 360 hours lifetime (non-regenerative).

Safety features – 2-stage residual heat indicators, control panel lock, main on/off switch and automatic safety shut-off.

Power management options – connected load 7.4 kW with options for 16 A, 13 A or 10 A connection to limit maximum power.

Planning flexibility – suitable for ducted or recirculated extraction in multiple installation options, including island and wall-oriented configurations.

Included accessories – Slider for unducted recirculation and Clean Air Plus odour filter supplied with the appliance.

Technical Spec

Product nameSeries 4 Induction hob with integrated ventilation system, 60 cm, surface mount without frame – PVS611B16E

Appliance typeCooking zone ceramic

Built-in / Free-standingBuilt-in

Heating typeElectric hob (induction cooktop with integrated downdraft extractor)

Number of cooking zones4

Cooktop width60 cm (width of the appliance: 592 mm)

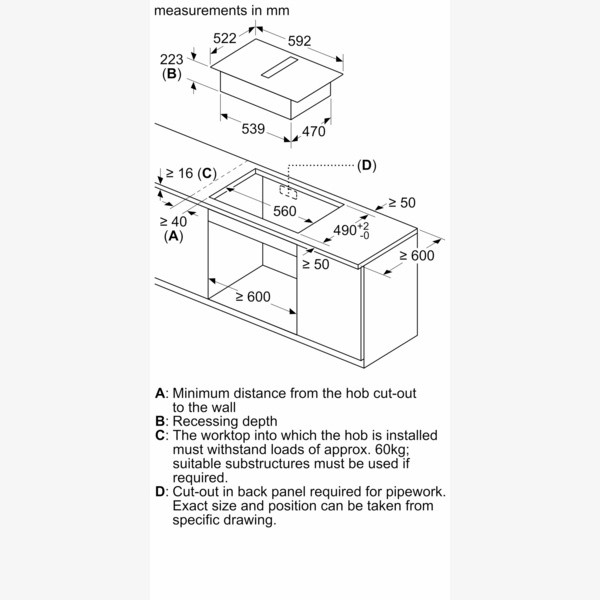

Dimensions (H×W×D)223 × 592 × 522 mm

Required niche size (H×W×D)223 × 560–560 × 490–490 mm

Min. worktop thickness16 mm

Max. immersion depth below worktop223 mm

Net / Gross weightNet: 23.3 kg; Gross: 27.4 kg (overall appliance weight 26 kg also stated)

Basic surface materialCeramic glass, black surface

Location of control panelFront

Residual heat indicatorSeparate; 2-stage residual heat indicator for each zone

Electrical supply cord length110 cm

Voltage / Frequency220–240/380–415 V; 50–60 Hz

Connected load7.4 kW with power management options for 16 A, 13 A or 10 A connection

Heating with boosterAll zones

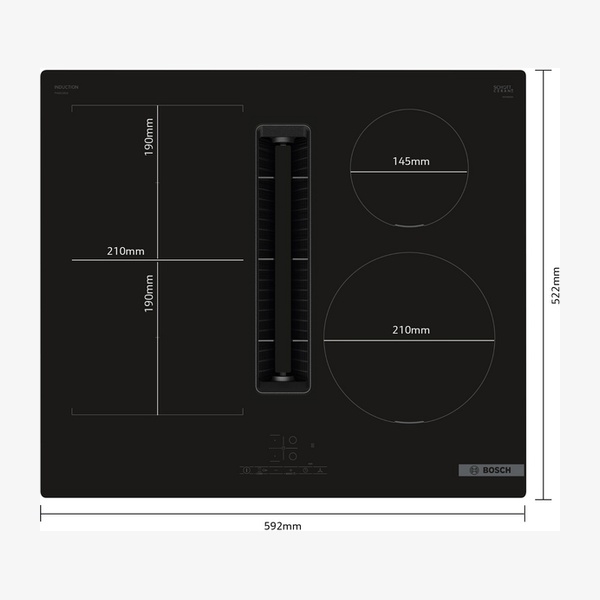

Cooking zone front left190 mm, 210 mm, 2.2 kW (max. power 3.7 kW)

Cooking zone rear left190 mm, 210 mm, 2.2 kW (max. power 3.7 kW)

Cooking zone rear right145 mm, 1.4 kW (max. power 2.2 kW)

Cooking zone front right210 mm, 2.2 kW (max. power 3.7 kW)

Number of speed settings (ventilation)3 stages + intensive/Boost setting

Max. air extraction (ducted)500 m³/h (max. normal setting); Boost position 622 m³/h

Max. air recirculation441 m³/h (max. normal setting); Boost position 595 m³/h

Noise level (ducted extraction)Min. normal 61 dB(A) re 1 pW; max. normal 69 dB(A) re 1 pW; Boost 74 dB(A) re 1 pW

Noise level (recirculated extraction)Min. normal 55 dB(A) re 1 pW; max. normal 66 dB(A) re 1 pW; Boost 72 dB(A) re 1 pW

Grease filter efficiency94 % (according to EN 61591); grease filtration efficiency class B

Energy Efficiency Class (ventilation)B (at a range of energy efficiency classes from A+++ to D)

Fluid Dynamic EfficiencyA

Average energy consumption57 (unit not stated in source)

Odour filterOdour filter entry listed as “No”; Clean Air Plus odour filters included for recirculation configuration

Clean filter remindersYes

Sealed burnersNo

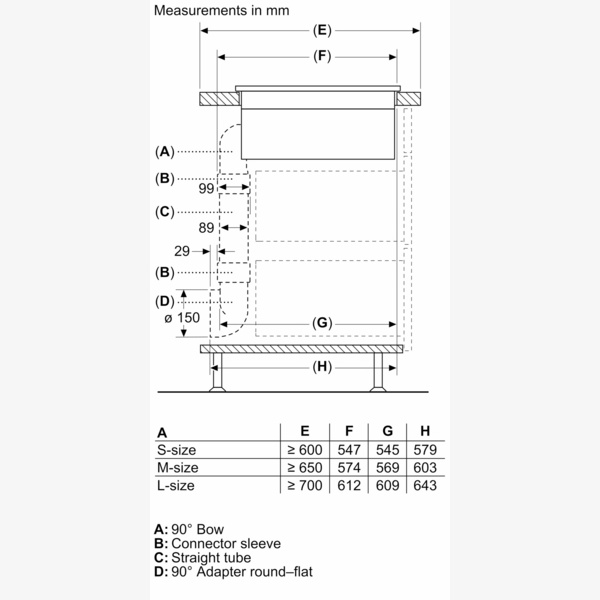

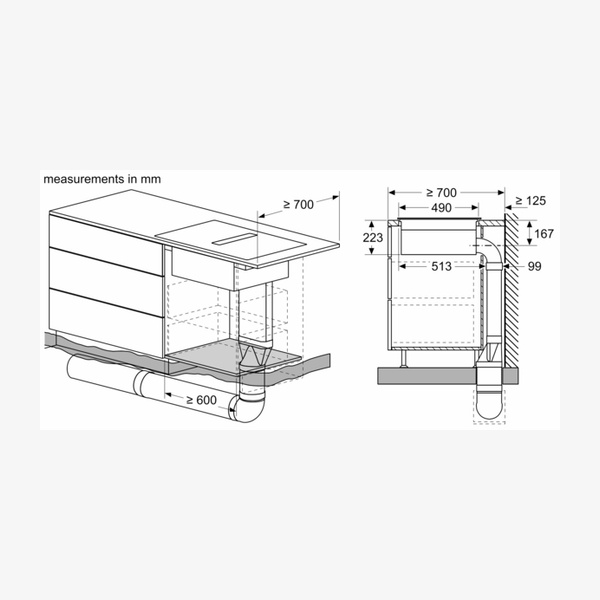

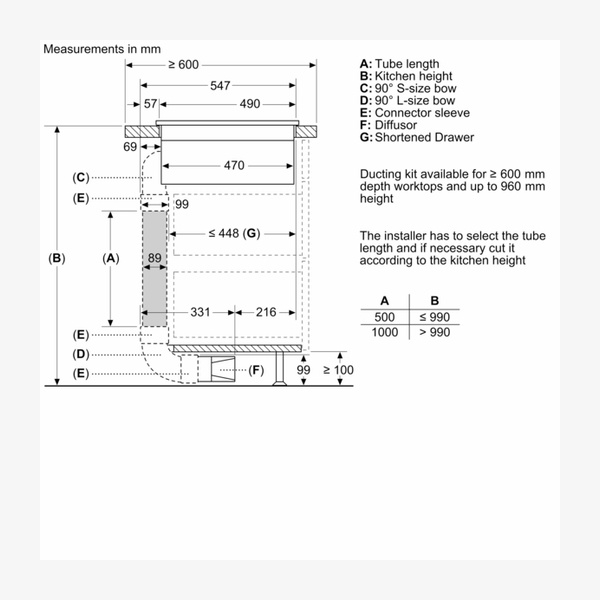

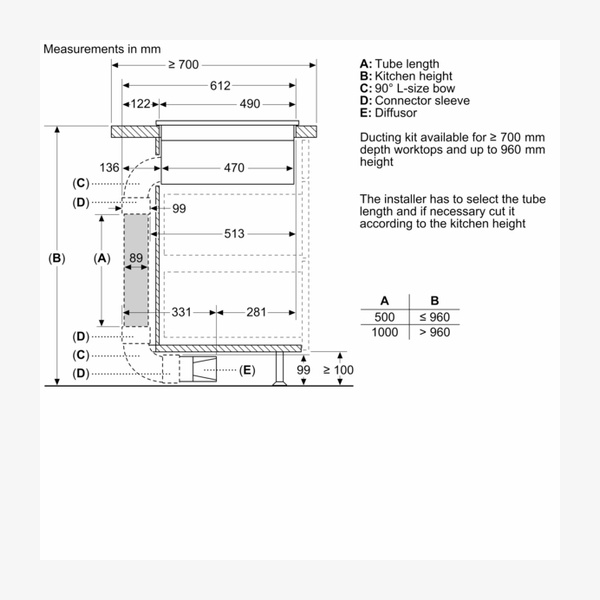

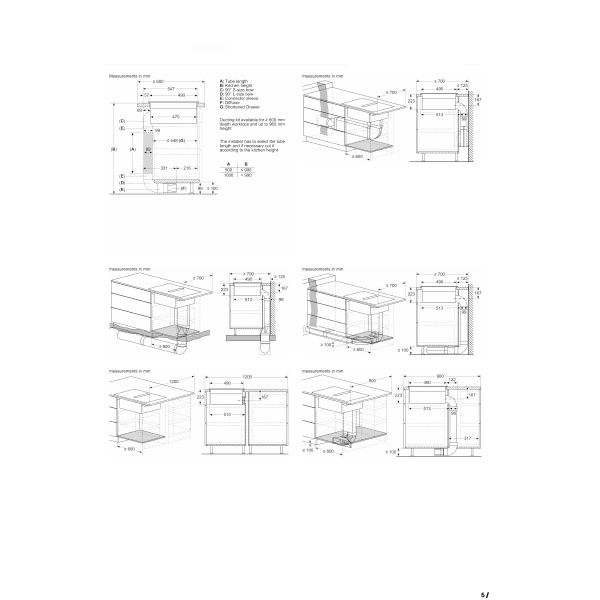

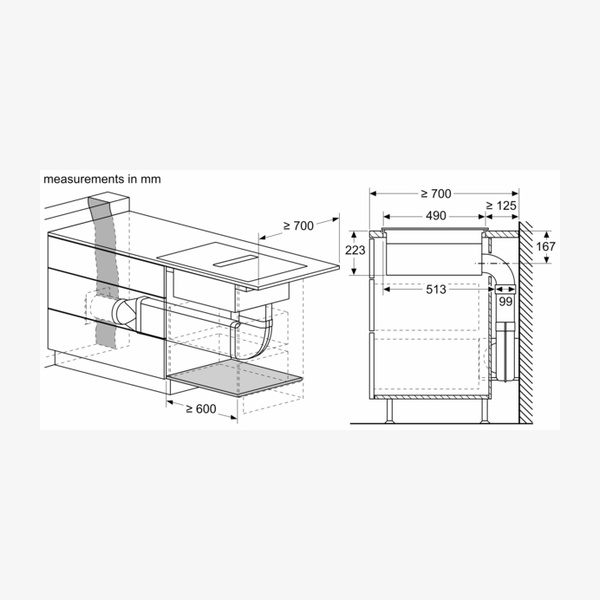

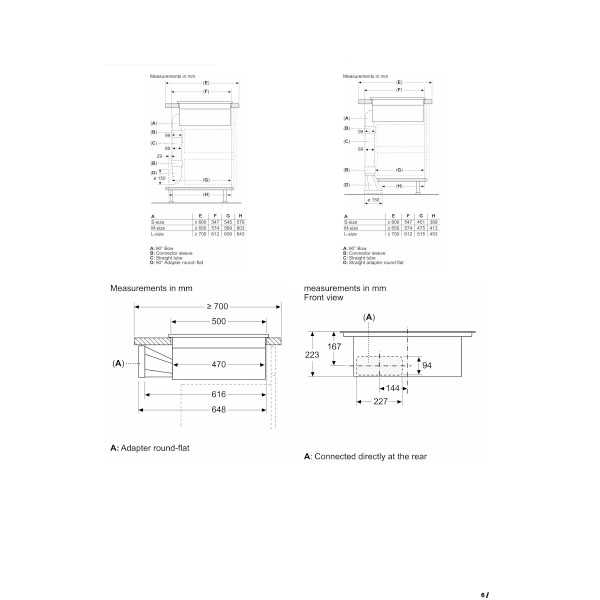

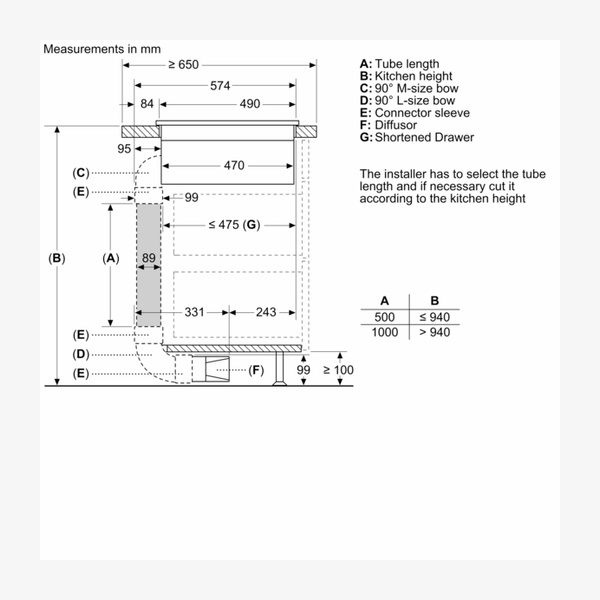

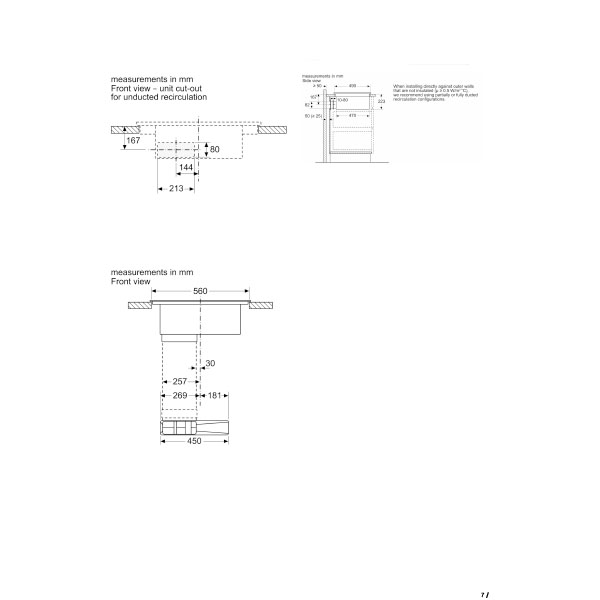

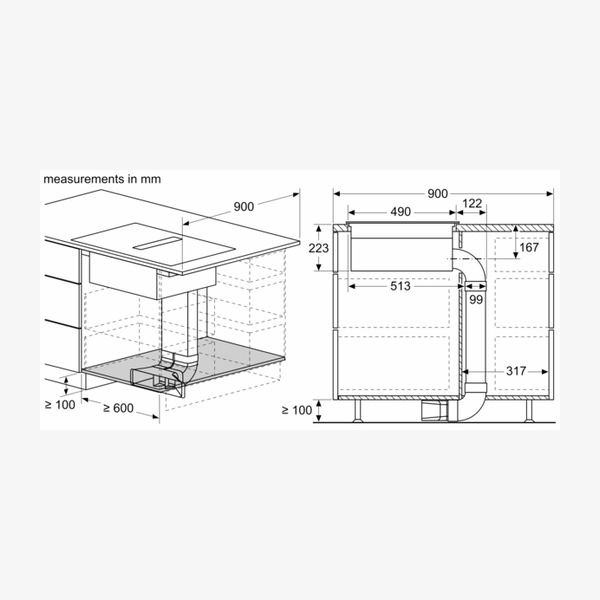

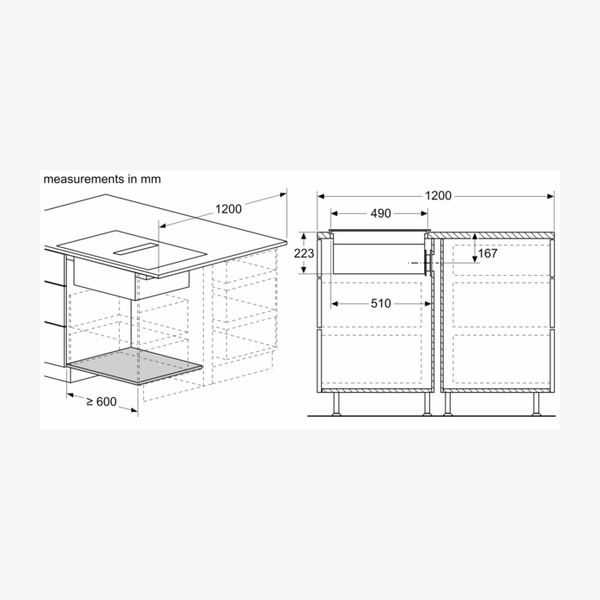

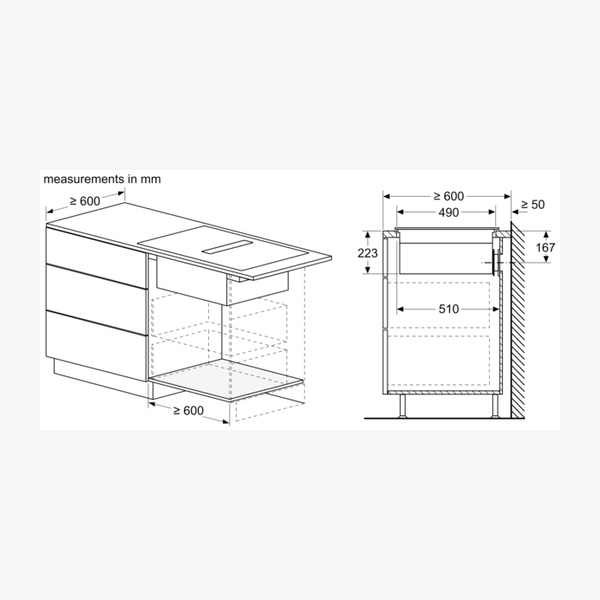

Installation optionsSuitable for ducted or recirculated extraction in unducted, partly and fully ducted recirculation or ducted extraction; island and wall-oriented configurations

ComplianceComplies with Needle Flame Test (IEC 60695-11-5) and V2 flammability class (UL94)

Included accessories1 × Slider for unducted recirculation, 1 × Clean Air Plus odour filter

Downloads

Download product documentation, manuals, and specification sheets.

PVS611B16E Spec

PDF

Frequently Asked Questions

How many pots and pans can the hob accommodate?

The hob is 60 cm wide and provides space for 4 pots or pans across its four induction cooking zones. The CombiZone feature also allows two zones to be connected into one large zone for bigger cookware.

Can this hob be used with both ducted and recirculation extraction?

Yes. The integrated ventilation system is suitable for ducted or recirculated extraction, including unducted, partly and fully ducted recirculation, or ducted extraction configurations. Installation accessories for unducted recirculation are included, and additional kits are available for other setups.

How loud is the integrated downdraft ventilation?

In ducted extraction mode, the noise level is 61 dB re 1 pW at minimum normal setting, 69 dB re 1 pW at maximum normal setting and 74 dB re 1 pW at Boost. In recirculated mode, it is 55 dB re 1 pW (min), 66 dB re 1 pW (max normal) and 72 dB re 1 pW (Boost).

What safety features does the hob offer?

Safety features include a 2-stage residual heat indicator for each zone, control panel lock, main on/off switch and automatic safety shut-off. The blower system is watertight, and the product complies with the Needle Flame Test and V2 flammability class.

Is the grease filter system easy to clean?

Yes. The grease filter and liquid collector unit can be removed with one hand using the glass-ceramic handle. All parts of the unit, including the stainless-steel grease filters and liquid collectors, are fully dishwasher safe and heat resistant for easy cleaning.

What is the lifetime of the CleanAir odour filters in recirculation mode?

The directly integrated CleanAir odour filters have a lifetime of 360 hours of cooking. They provide optimised odour reduction, large filter surface, anti-pollen functionality and low-noise performance.
