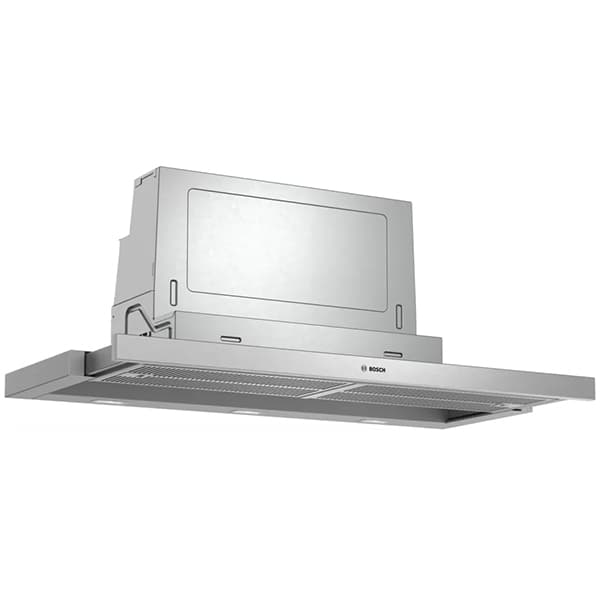

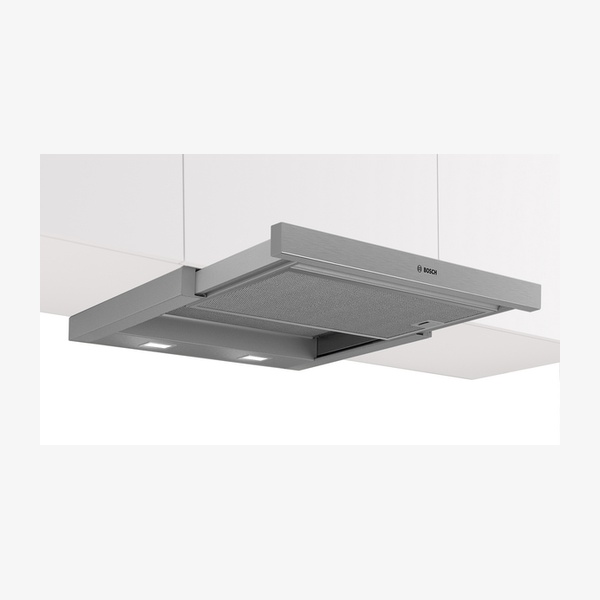

Bosch DFS067A51B Serie 4 Telescopic Hood

The DFS067A51B is a 60 cm Series 4 telescopic cooker hood in silver metallic that extends when in use and slides neatly away when not in operation. It is suitable for ducted or recirculating operation and features EcoSilence Drive™, efficient BLDC technology and LED illumination. With electronic Soft touch controls, three power levels plus an intensive setting, and washable stainless steel grease filters, it is designed to help keep kitchen air clean and well lit.

SKU:DFS067A51B

EAN:4242005232062

Category::Cooker Hoods

Quantity:

Key Features

Telescopic design – extends when in use and slides neatly away when not in operation.

EcoSilence Drive™ – powerful, energy-saving drive for cooker hoods.

High extraction rate – maximum air extraction 399 m³/h, intensive up to 728 m³/h.

Intensive setting – powerful mode to tackle intense steam during cooking.

Cleaner kitchen air – helps reduce excessive grease and unwanted odours.

LED illumination – 2 × 1.5 W LEDs provide bright, clear lighting for the hob area.

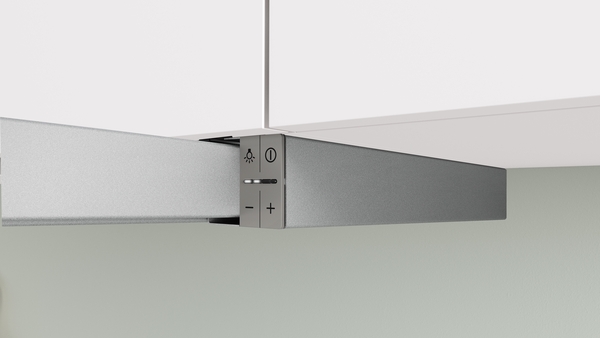

Electronic Soft touch control – easy operation with 3 power levels and intensive setting.

Efficient BLDC technology – 2 single inlet vertical blower with efficient motor technology.

Automatic intensive revert – intensive mode automatically reverts after 6 minutes.

Automatic after running – automatic run-on function for 10 minutes.

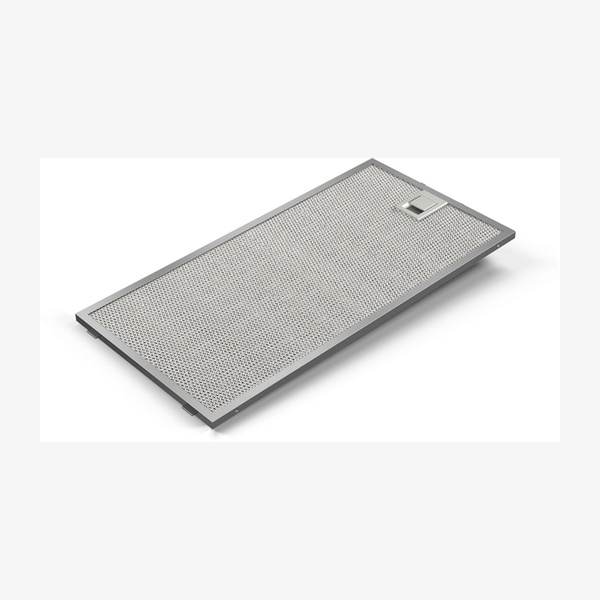

Removable metal grease filters – 2 removable metal grease filter cassettes.

Washable stainless steel grease filter material – for easy cleaning and reuse.

Suitable for ducted or recirculating operation – flexible installation with appropriate kits.

Clean Air Plus compatibility – optional Clean Air Plus recirculation kit for enhanced recirculation performance.

Energy efficient lighting – Lighting Efficiency Class A* and colour temperature 3500 K.

Grease Filtering Efficiency Class B* – effective grease capture.

Quiet operation – noise level 53 dB(A) re 1 pW at maximum normal exhaust air use.

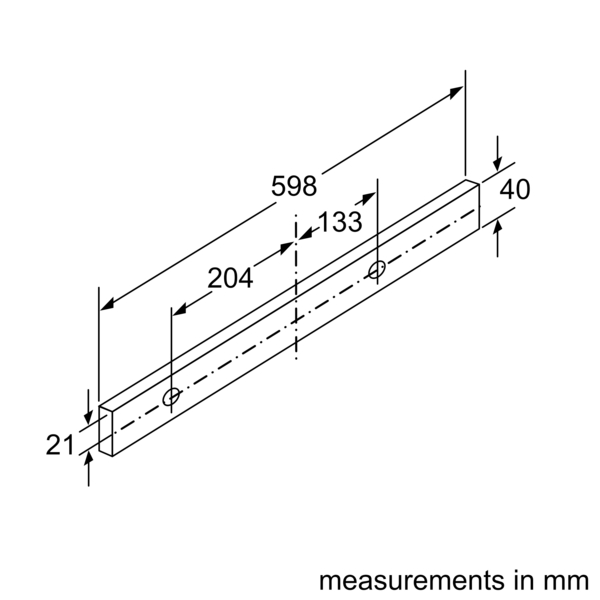

Silver metallic design – 60 cm wide with silver metallic lacquer and stainless steel handle strip with logo.

Built-in installation – designed for 60 cm cupboards with telescopic comfort installation system.

Optional accessories available – including recirculation kits, odour filters and handle strips in different colours.

Technical Spec

Product seriesSeries 4

Product typeTelescopic cooker hood

ModelDFS067A51B

Colour / finishSilver metallic lacquer, handle strip stainless steel with logo, steel filter cover

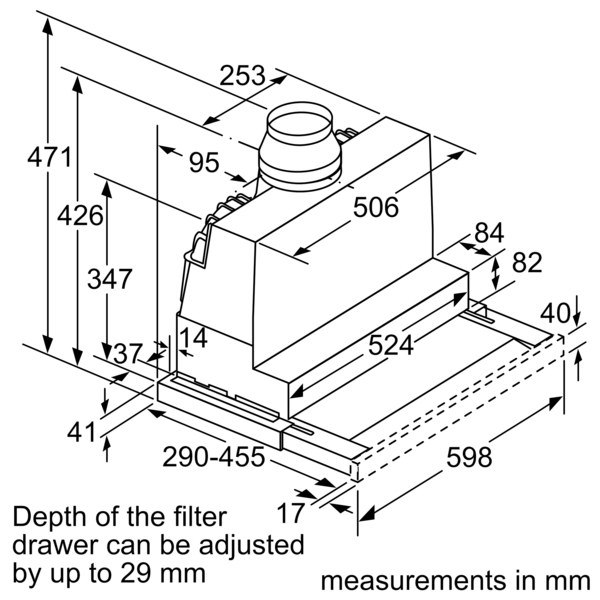

Width60 cm (appliance dimensions 426 × 598 × 290 mm HxWxD)

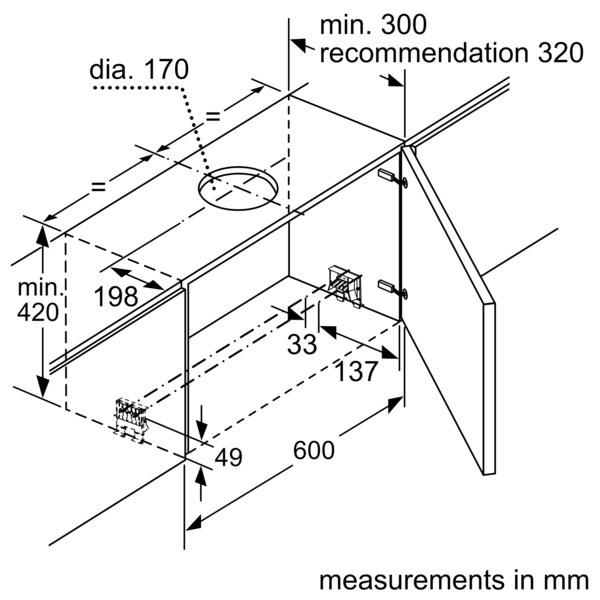

Installation typologyBuilt-in, cupboard 60 cm, telescopic comfort installation system

TypologyPull-out

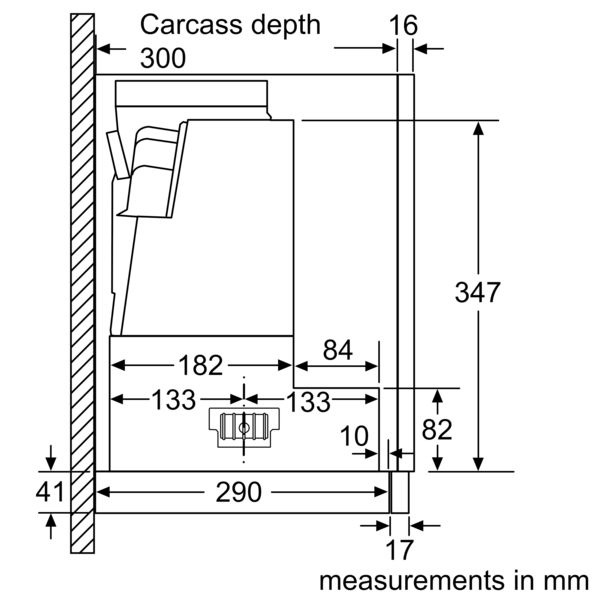

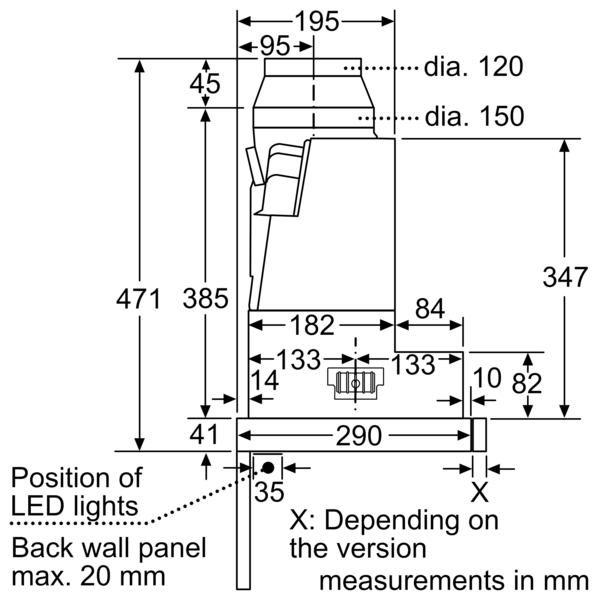

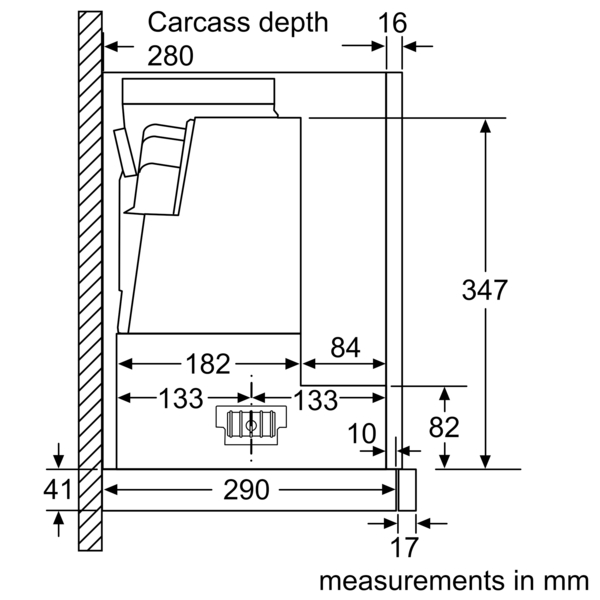

Built-in dimensions (HxWxD)385 × 524 × 290 mm

Height of appliance426 mm

Minimum distance above electric hob430 mm

Minimum distance above gas hob650 mm

Net weight10.6 kg

Type of controlElectronic, Soft touch button control

Speed settings3 stages + intensive setting

Max. air extraction (normal)399 m³/h (maximum air flow 399 m³/h)

Boost position air extraction728 m³/h (intensive)

Max. air recirculation358 m³/h (with Clean Air Plus recirculation kit)

Boost position output recirculating628 m³/h (with Clean Air Plus recirculation kit)

Noise level (exhaust, max normal)53 dB(A) re 1 pW (according to EN 60704-3 and EN 60704-2-13)

Noise level (recirculation, max normal)60 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

Noise level (recirculation, intensive)71 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

Number of lights2 × 1.5 W LED

Light intensity294 lux

Colour temperature3500 K

Grease filter materialWashable stainless steel, 2 removable metal grease filter cassettes

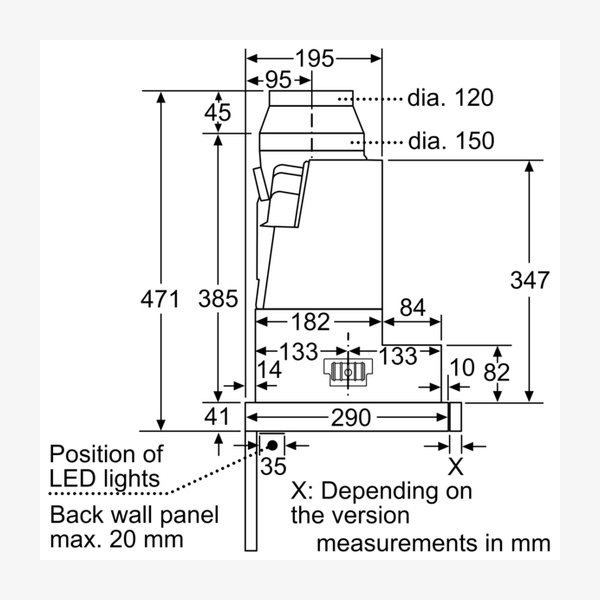

Diameter of air outlet150 mm (120 mm enclosed)

Electrical cable length1.75 m (175 cm)

Energy Efficiency ClassA (range of energy efficiency classes from A+++ to D)

Average energy consumption37.9 kWh/year* (in accordance with EU-Regulation No 65/2014)

Blower Efficiency ClassB*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassB*

Connection rating / Power rating144 W

Fuse protection10 A

Voltage220–240 V

Frequency50; 60 Hz

Plug typeGB plug

EAN code4242005232062

Downloads

Download product documentation, manuals, and specification sheets.

DFS067A51B Spec

PDF

Frequently Asked Questions

Is the DFS067A51B suitable for both ducted and recirculating operation?

Yes. The hood is suitable for ducted or recirculating operation. For recirculated extraction, a recirculating kit or CleanAir recirculating kit (accessory) is needed.

What is the maximum extraction rate of this cooker hood?

The maximum air extraction in normal use is 399 m³/h, with an intensive extraction rate up to 728 m³/h according to EN 61591.

How noisy is the hood during normal operation?

The noise level at maximum normal use in exhaust air mode is 53 dB(A) re 1 pW, according to EN 60704-3 and EN 60704-2-13.

What type of lighting does the DFS067A51B use?

It uses 2 LED lights of 1.5 W each, providing bright and clear lighting for the hob area with a colour temperature of 3500 K and light intensity of 294 lux.

Are the grease filters washable?

Yes. The grease filter material is washable stainless steel, and the hood includes 2 removable metal grease filter cassettes.

What are the minimum installation heights above hobs?

The minimum distance above an electric hob is 430 mm and above a gas hob is 650 mm.
