Bosch Serie 6 DBB67AM60B Canopy Hood

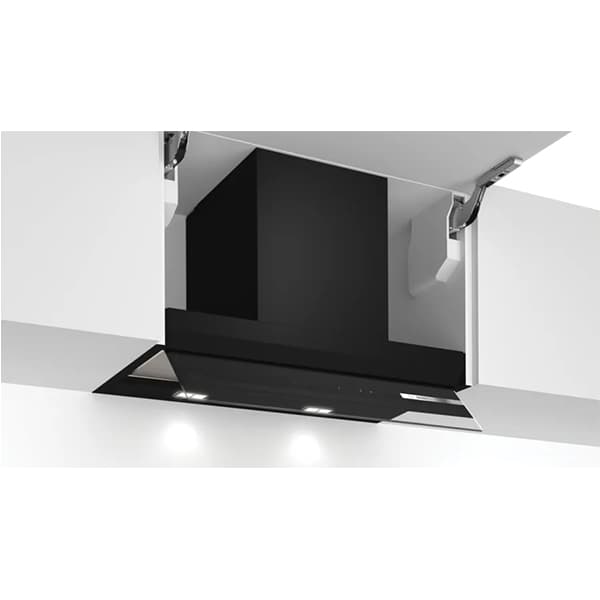

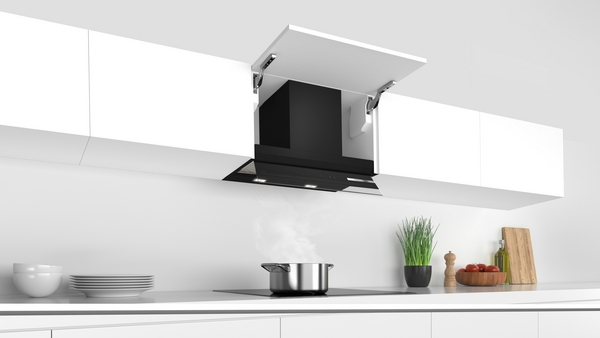

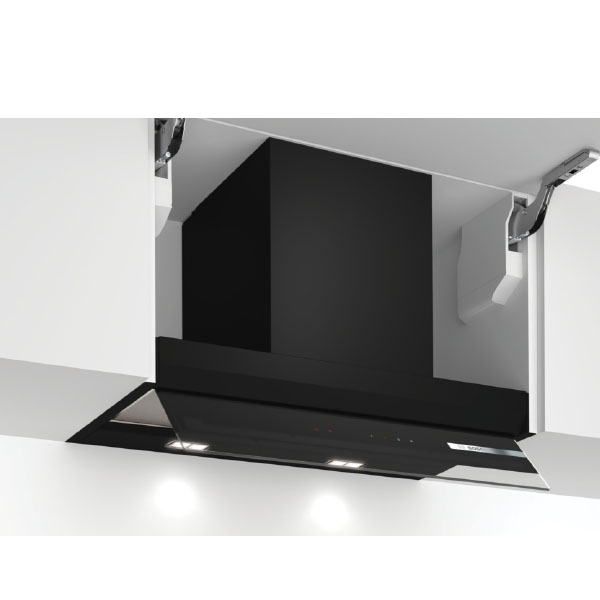

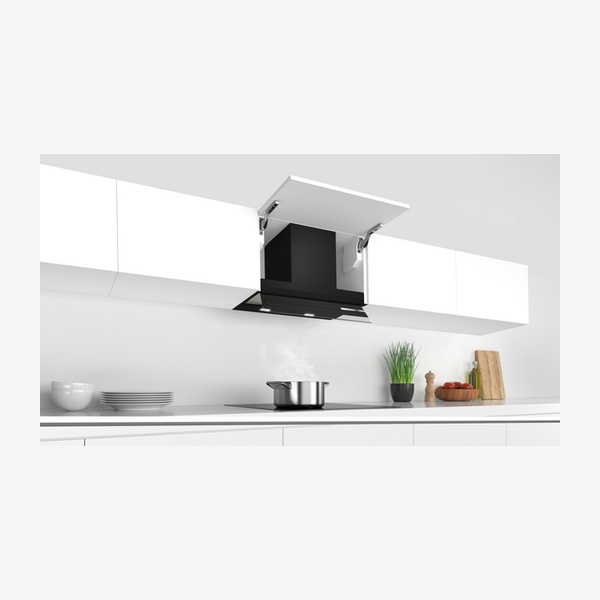

The Bosch Series 6 DBB67AM60B is a 60 cm integrated design hood for flush installation in wall cupboards, offering seamless integration and space-efficient storage on the hood of up to 10 kg per side. Suitable for ducted or recirculating operation, it delivers high extraction rates with quiet performance and features a glass panel with TouchControl, automatic extraction and lighting, dimmable LED lights and easy-to-clean washable stainless steel grease filters.

SKU:DBB67AM60B

EAN:4242005297948

Category::Cooker Hoods

Quantity:

Key Features

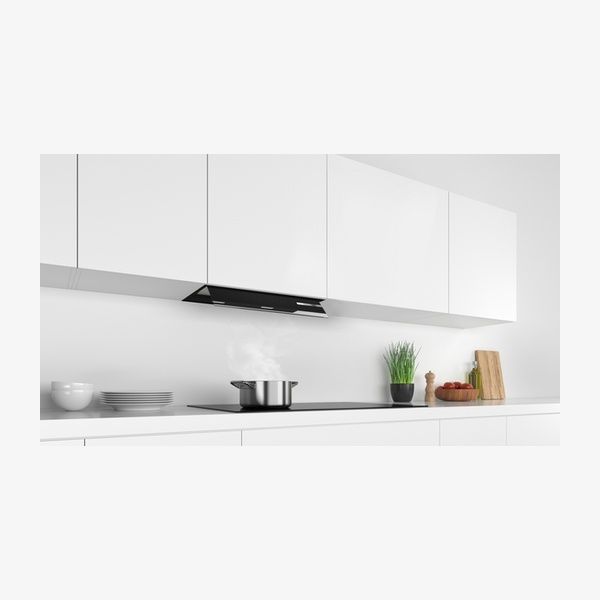

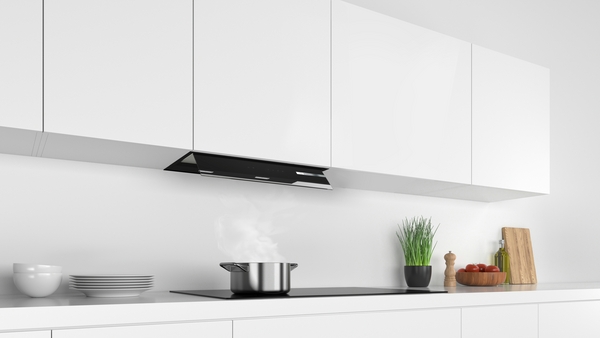

Flush-fitted integrated design – seamless installation in wall cupboards for an almost invisible appearance.

Space-efficient storage – compact design allows storage on the hood, up to max. 10 kg per side, with protective mats included.

High extraction performance – maximum normal extraction rate of 460 m³/h and intensive extraction up to 749 m³/h.

Quiet operation – noise level in exhaust air mode at max. normal use is 63 dB(A) re 1 pW.

TouchControl glass panel – electronic control with 3 power levels and an intensive setting.

Automatic extraction and lighting – extraction and lighting switch on and off automatically when the glass panel is opened or closed.

Separate lighting control – lighting can also be turned on or off when the glass panel is closed via a quick hand touch on the control panel.

LED lighting with Softlight dimmer – 2 x 2 W LEDs, 3500 K colour temperature and 451 lux light intensity with dimming function.

Intensive setting with automatic revert – intensive mode for strong steam, automatically reverting after 6 minutes.

Efficient grease filtration – steel filter cover with 2 removable metal grease filter cassettes and washable stainless steel grease filter material.

Energy Efficiency Class B – average energy consumption of 62.7 kWh/year (according to EU-Regulation No 65/2014).

Suitable for ducted or recirculating operation – compatible with various recirculation kits and chimney extensions (optional accessories).

Clean Air Plus recirculation option – with an optional kit, recirculation extraction reaches up to 451 m³/h (normal) and 652 m³/h (intensive).

Easy-to-clean design – smooth surfaces and materials for convenient cleaning.

IDH comfort installation system – suitable for bottomless wall cupboards and supplied with spacers for cupboards up to 360 mm depth.

Technical Spec

Product nameSeries 6, Integrated Design Hood, 60 cm, clear glass black printed, Black – DBB67AM60B

Typology / Installation typologyBuilt-in/Built-under; Built-in

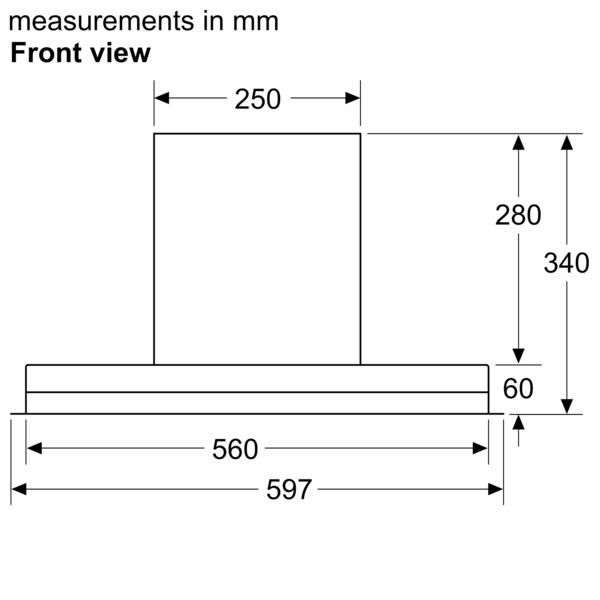

Width60 cm (appliance dimensions 597 mm wide)

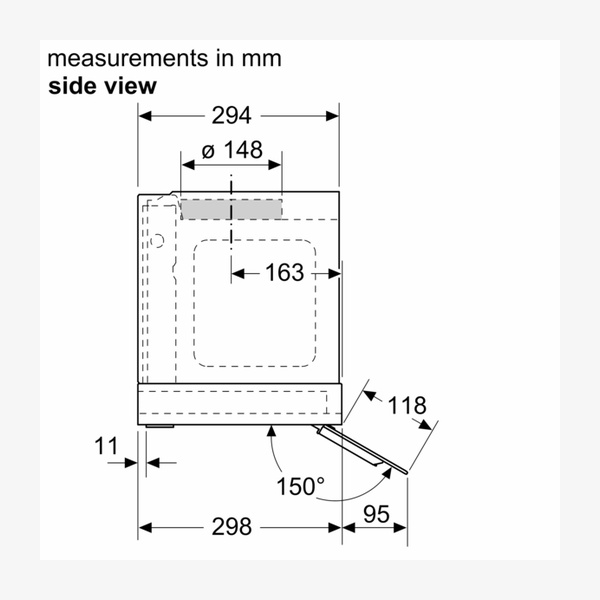

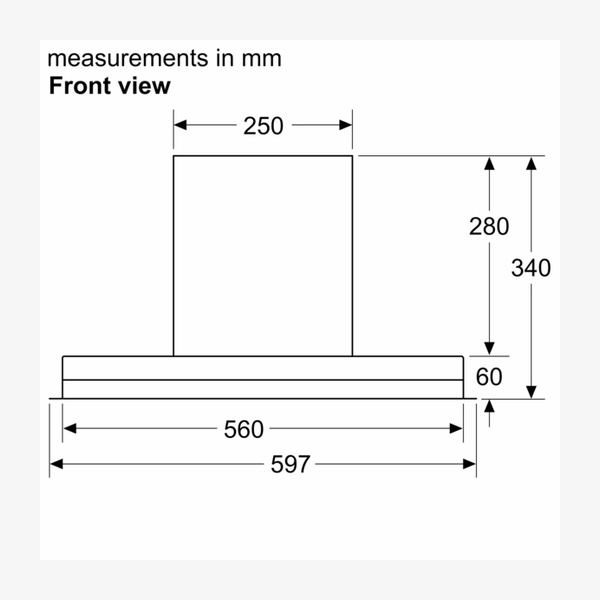

Appliance dimensions (H x W x D)340 x 597 x 298 mm

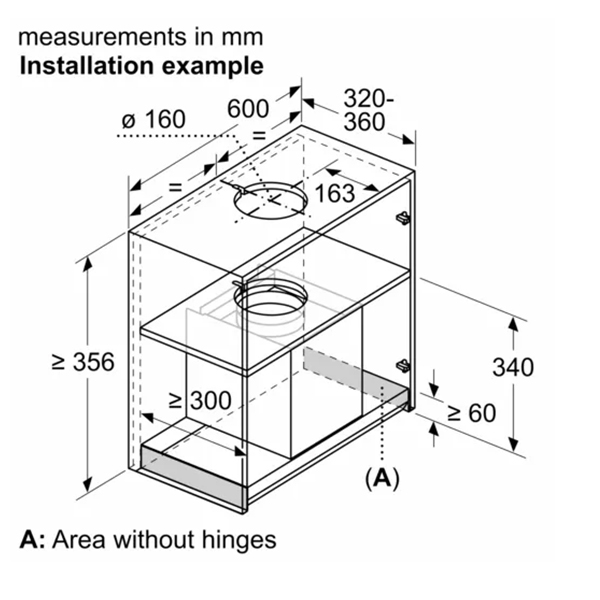

Required niche size (H x W x D)340 mm x 560.0 mm x 300 mm

Height of the appliance60 mm

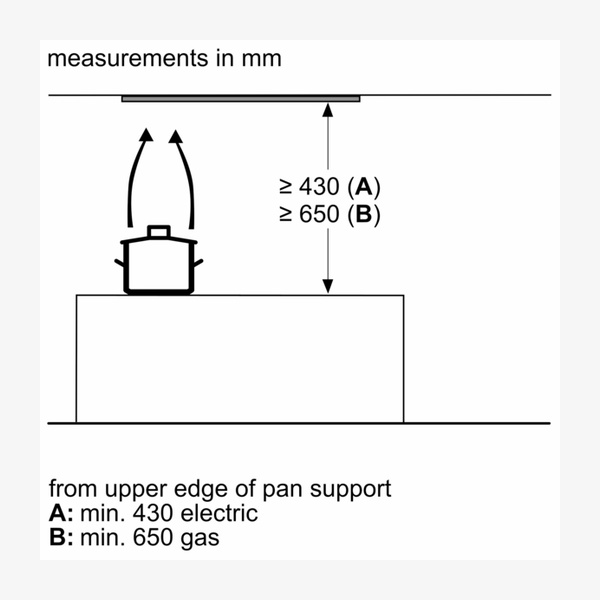

Minimum distance above electric hob430 mm

Minimum distance above gas hob650 mm

Net weight9.5 kg

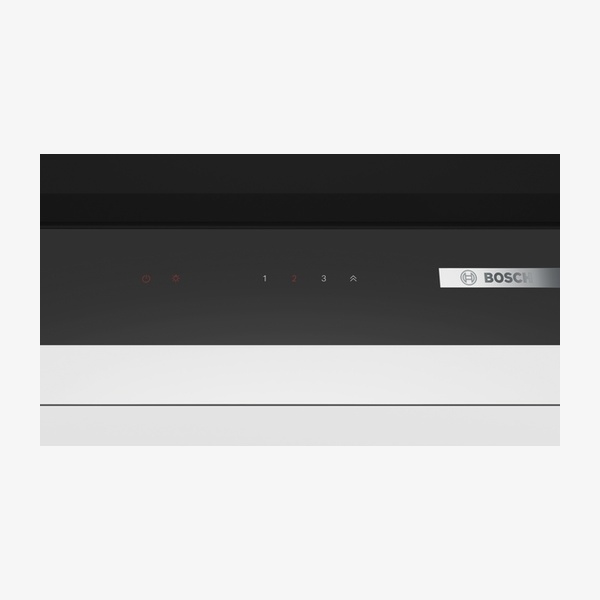

Type of controlElectronic control via TouchControl on glass panel

Speed settings3 power levels & intensive setting (3-stages + intensive setting)

Max. air extraction (normal use)460 m³/h (according to EN 61591, Ø 15 cm)

Boost position air extraction (intensive)749 m³/h (according to EN 61591, Ø 15 cm)

Maximum air flow460 m³/h

Max. air recirculation (normal use)451 m³/h (with Clean Air Plus recirculation kit, optional)

Boost position output recirculating (intensive)652 m³/h (with Clean Air Plus recirculation kit, optional)

Noise level exhaust air (max. normal use)63 dB(A) re 1 pW (according to EN 60704-3 and EN 60704-2-13)

Noise level exhaust air (intensive)73 dB(A) re 1 pW (according to EN 60704-3 and EN 60704-2-13)

Noise level recirculation (max. normal use)67 dB(A) re 1 pW (with Clean Air Plus recirculation kit, optional)

Noise level recirculation (intensive)74 dB(A) re 1 pW (with Clean Air Plus recirculation kit, optional)

Number of lights2 x 2 W LED lights

Light colour temperature3500 K

Light intensity451 lux

Energy Efficiency ClassB (range A+++ to D)

Average energy consumption62.7 kWh/year*

Blower Efficiency ClassB*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassB*

Grease filter materialWashable stainless steel (2 removable metal grease filter cassettes, steel filter cover)

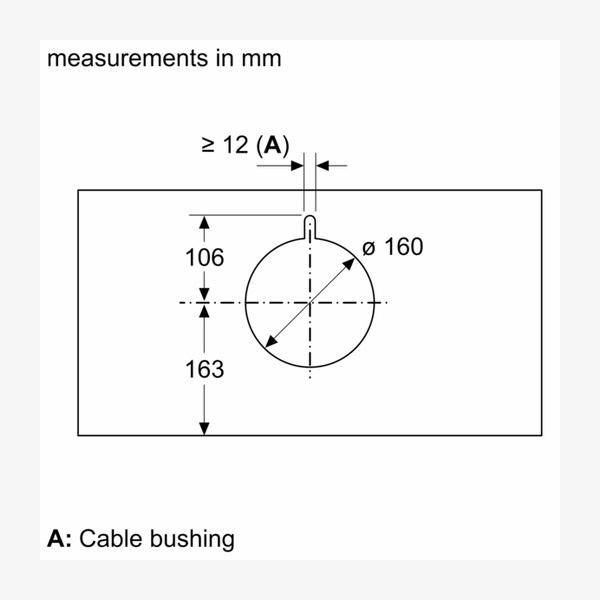

Diameter of air outlet / pipe120 / 150 mm (Ø 150 mm, Ø 120 mm enclosed)

Back-pressure flapYes

Electrical cable length / supply cord1.3 m (130 cm) length electrical supply cord

Connection rating / Power rating256 W

Voltage220–240 V

Frequency50 Hz

Plug typeGB plug

EAN code4242005297948

Installation systemIDH comfort installation

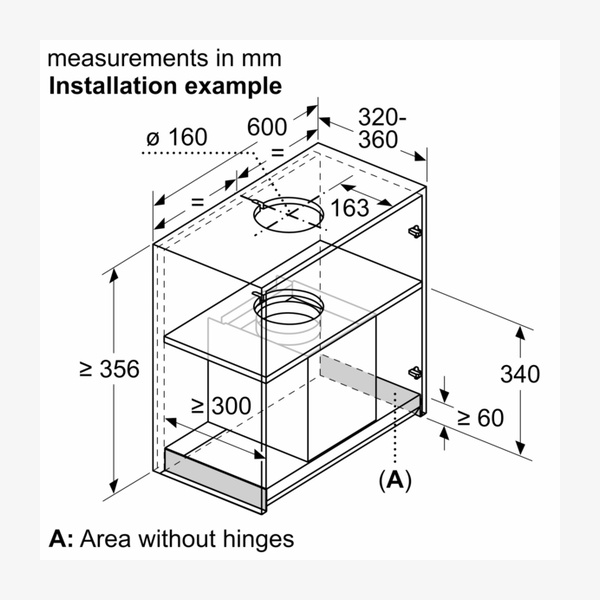

Cupboard suitabilityInstallation: Cupboard 60 cm; suitable for bottomless wall cupboards; enclosed spacers for cupboards up to 360 mm depth

Downloads

Download product documentation, manuals, and specification sheets.

DBB67AM60B Spec

PDF

Frequently Asked Questions

Is this hood suitable for both ducted and recirculating operation?

Yes. The appliance is suitable for ducted or recirculating operation. For recirculated extraction, various recirculation kits are available as optional accessories, including Clean Air Standard and Clean Air Plus solutions.

What cupboard size is required for installation?

The hood is designed for installation in a 60 cm cupboard. The built-in dimensions required are 340 mm (H) x 560 mm (W) x 300 mm (D). It is suitable for installation in bottomless wall cupboards, with enclosed spacers for cupboards up to 360 mm depth.

How much storage can the hood support?

The compact design provides extra storage possibilities on the hood. It can hold up to a maximum of 10 kg storage weight per side and includes mats for the storage areas to protect against scratches and help prevent items moving.

What is the extraction rate and noise level during normal use?

In exhaust air mode, the extraction rate according to EN 61591 is up to 460 m³/h in max. normal use, with a noise level of 63 dB(A) re 1 pW according to EN 60704-3 and EN 60704-2-13. With the Clean Air Plus recirculation kit, the recirculation extraction in max. normal use is 451 m³/h with a noise level of 67 dB(A) re 1 pW.

How do the lighting and controls work?

The hood has electronic control via TouchControl on the glass panel, offering 3 power levels and an intensive setting. Extraction and lighting turn on and off automatically when the glass panel is opened or closed. Lighting can also be switched independently when the panel is closed using a quick hand touch on the control panel. The two 2 W LED lights feature a Softlight dimmer function.

How is the hood cleaned and maintained?

The appliance is designed with easy-to-clean smooth surfaces and materials. It includes a steel filter cover and 2 removable metal grease filter cassettes made from washable stainless steel grease filter material, allowing convenient cleaning and maintenance.
