Bosch Series 4 PWP611BB5B Induction Hob

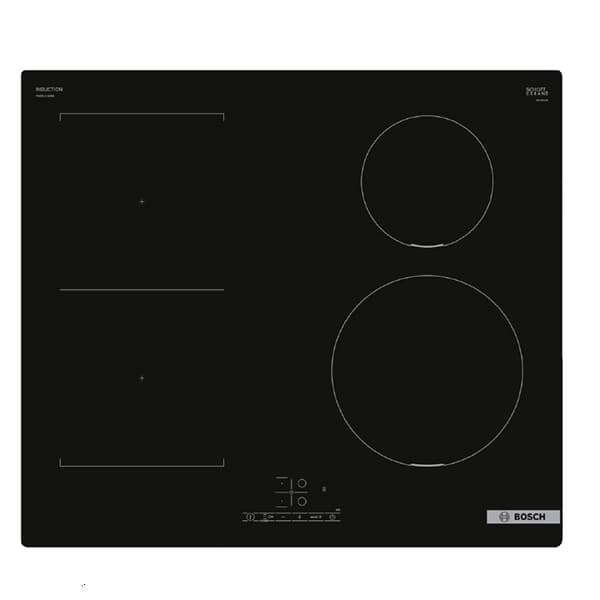

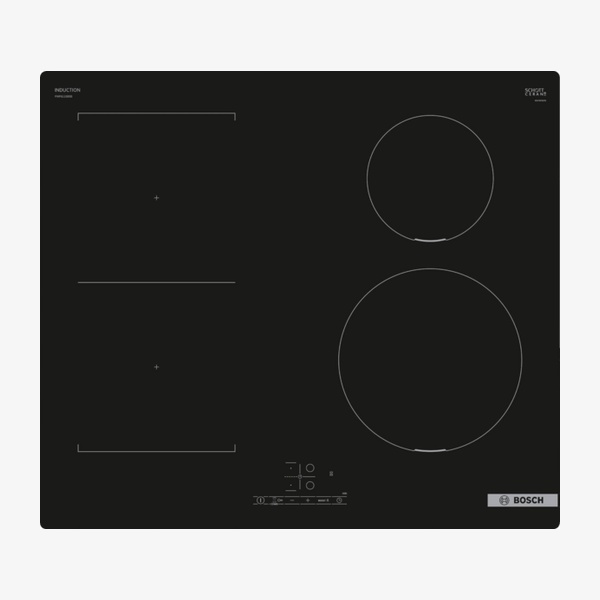

The Series 4 PWP611BB5B is a 60 cm built–in induction hob with a frameless, black ceramic glass surface designed for up to four pots or pans. It offers flexible cooking with a Combi zone, precise TouchSelect control with 17 power stages and convenient timers. UK users benefit from plug & play installation via a 1.1 m power cord with UK 3 pin plug, while features like PowerBoost, QuickStart and safety functions support efficient, controlled cooking.

SKU:PWP611BB5B

EAN:4242005285099

Category::Hobs

Quantity:

Key Features

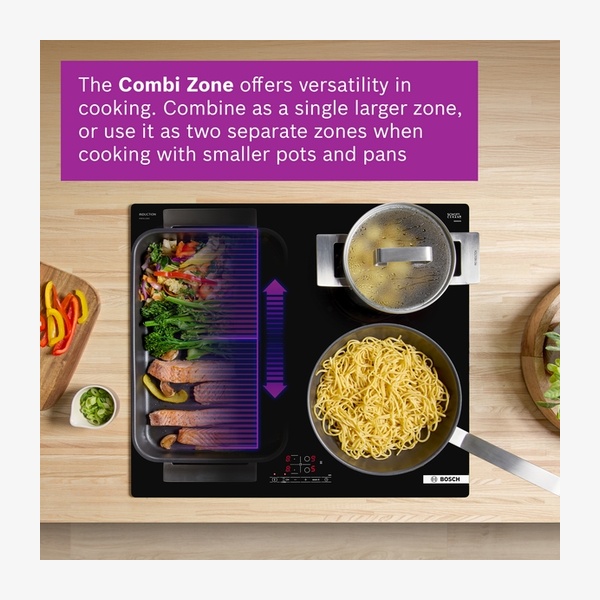

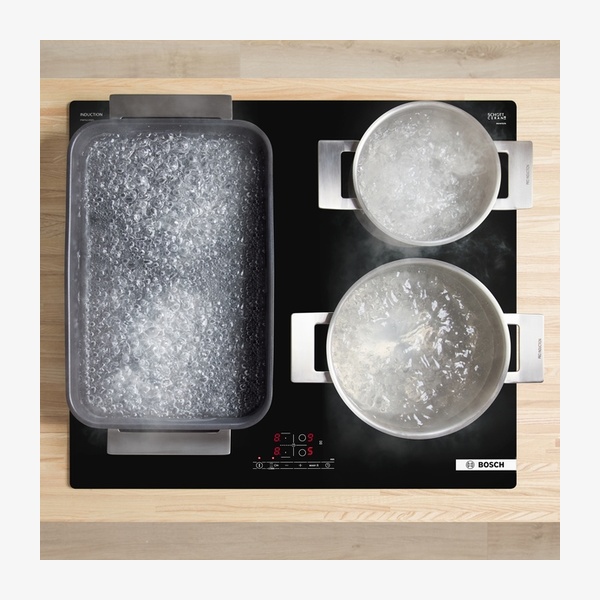

CombiInduction / Combi zone : connect two classic cooking zones into one large zone for bigger, oval or rectangular cookware.

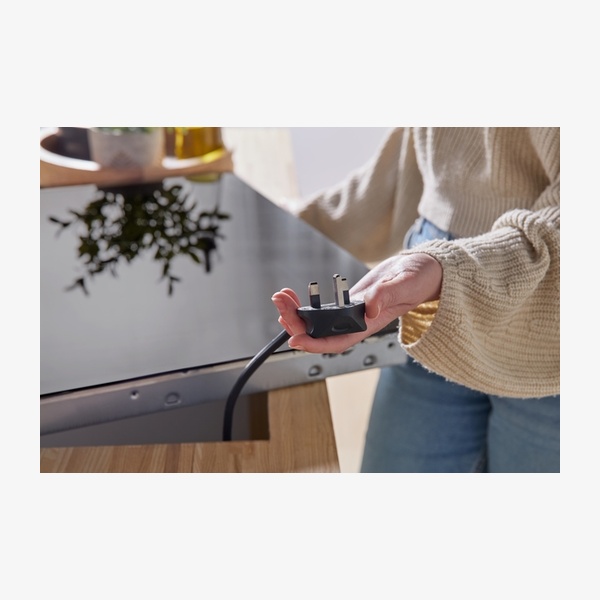

Plug & Play installation : power cord 1.1 m with UK 3 pin plug, no electrician required; plug limits maximum power output to 3.7 KW.

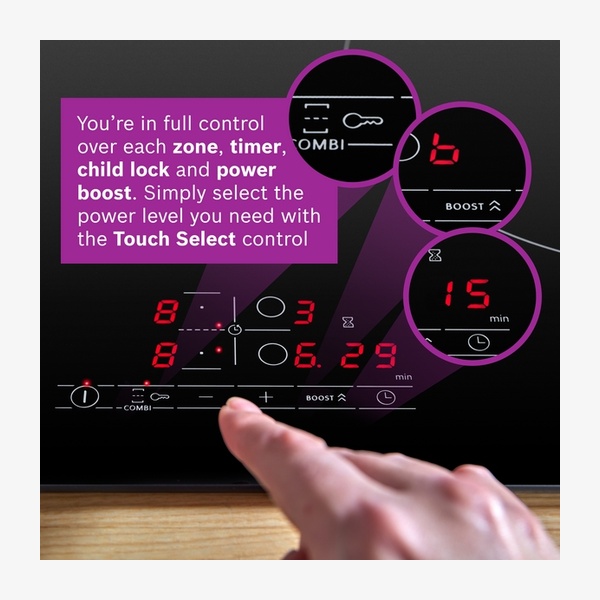

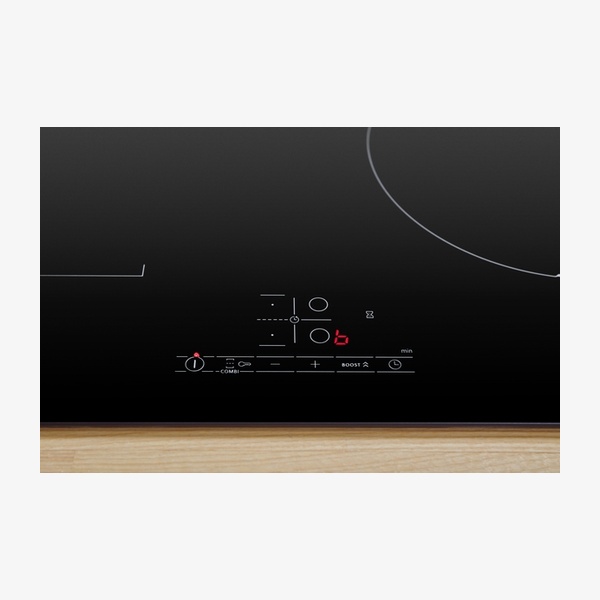

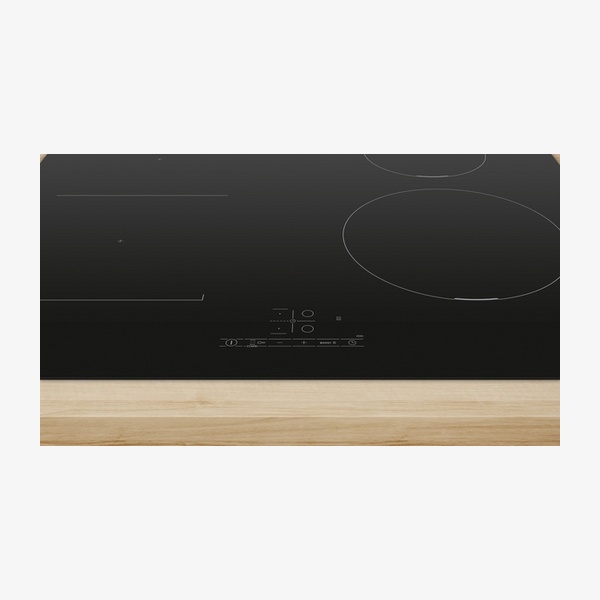

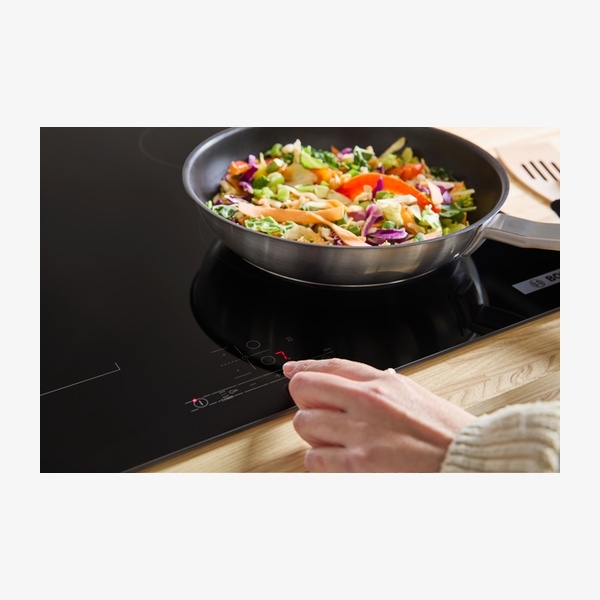

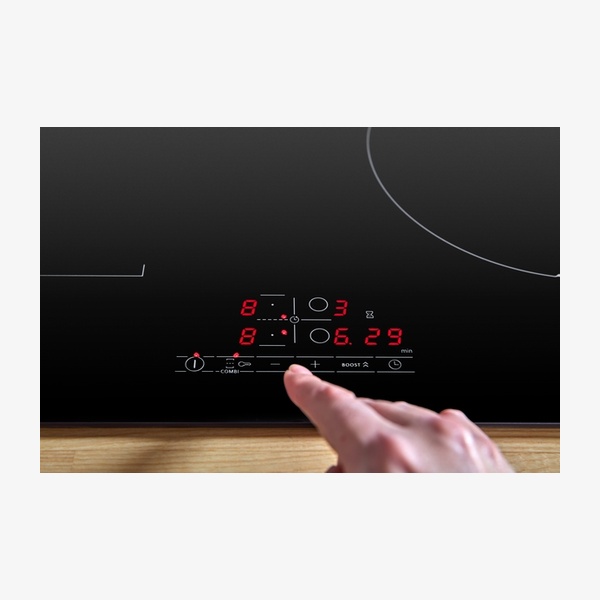

TouchSelect controls : control the power with imprinted +/– touch buttons for simple operation.

17–stage power settings : variable 17–stage power settings for each zone (9 main levels and 8 intermediate levels) for precise heat control.

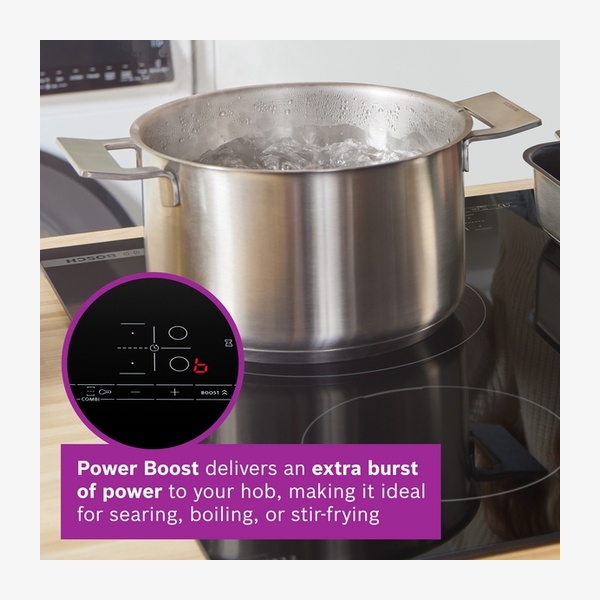

PowerBoost for all zones : boil water faster with up to 50% more energy than at the highest standard level.

QuickStart function : automatically selects the cooking zone with cookware when switching on.

ReStart function : restores all previous settings after unintentional switch–off if the hob is switched on again within 4 seconds.

Quick Stop : quickly switch off a cooking zone with one longer touch.

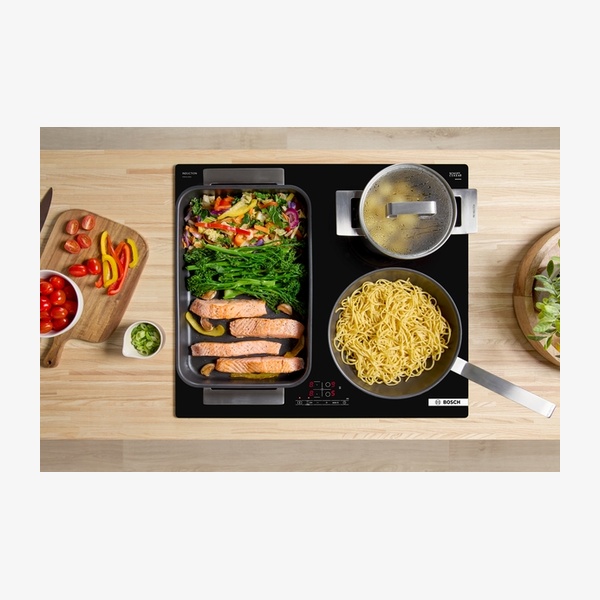

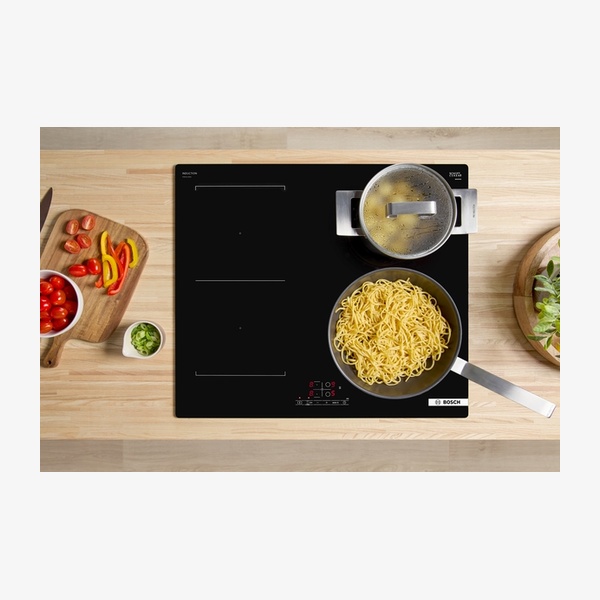

Four induction cooking zones : 60 cm hob offering space for 4 pots or pans.

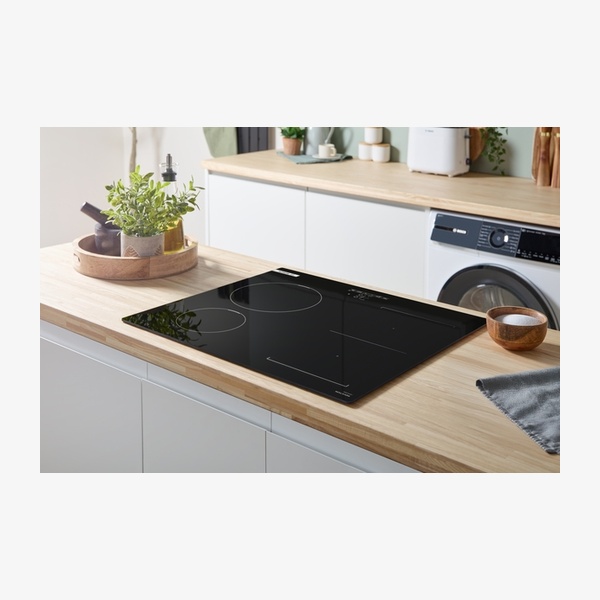

Frameless design : sleek, surface–mount look without frame.

Residual heat indicators : 2 stage residual heat indicator for each zone to show which zones are still hot or warm.

Control panel lock : helps prevent unintended activation of the hob.

Main on/off switch : switch off all cooking zones at the touch of a button.

Automatic safety shut off : heating stops after a preset time if not used.

Switch–off timer : switches off a cooking zone at the end of the set time.

Count–down timer : an alarm sounds at the end of the set time.

Optional accessories available : compatible accessories include wireless food thermometer, wok set, espresso maker, iron pans and cookware sets.

Technical Spec

Brand / SeriesSeries 4

Product typeInduction hob, surface mount without frame

ModelPWP611BB5B

Appliance typeCooking zone ceramic

Built–in / Free–standingBuilt–in

Heating typeElectric hob

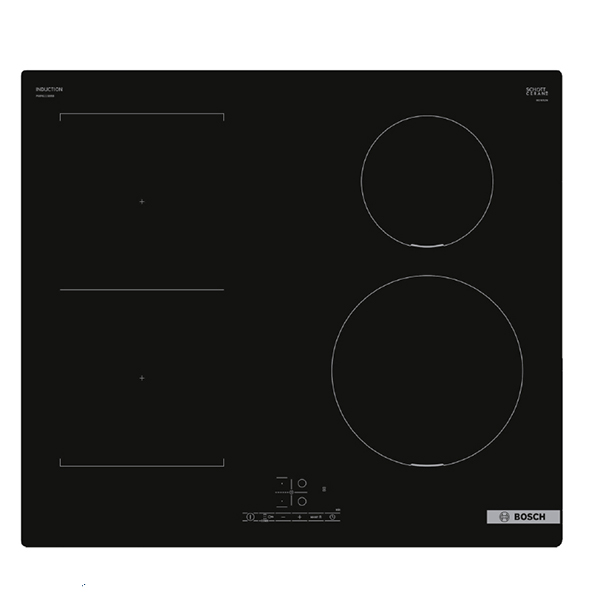

Number of cooking zones4

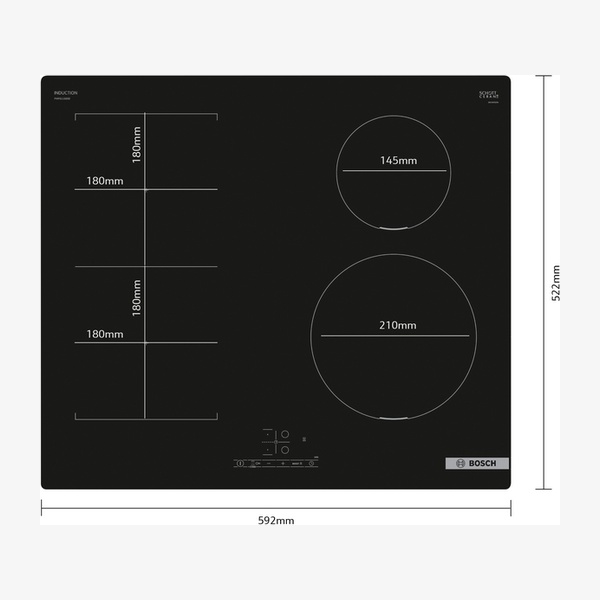

Cooking zone front left180 mm, 1.8 KW (max. power 3.1 KW)

Cooking zone rear left180 mm, 1.8 KW (max. power 3.1 KW)

Cooking zone rear right145 mm, 1.4 KW (max power 2.2 KW)

Cooking zone front right210 mm, 2.2 KW (max. power 3.7 KW)

Hob width60 cm (width of the appliance 592 mm)

Product dimensions (HxWxD)51 x 592 x 522 mm

Required niche size (HxWxD)51 x 560 x (490–500) mm

Required niche size for installation (HxWxD)51 x 560–560 x 490–500 mm

Min. worktop thickness16 mm

Dimensions of packed product (HxWxD)126 x 753 x 603 mm

Net weight10.2 kg

Gross weight11.3 kg

Basic surface materialCeramic glass

Colour of surfaceBlack

Location of control panelFront

Residual heat indicatorSeparate; 2 stage residual heat indicator for each zone

Length electrical supply cord110 cm (power cord 1.1 m UK 3 pin plug)

Connected load3.7 KW

Voltage220–240 V

Frequency50; 60 Hz

EAN code4242005285099

Downloads

Download product documentation, manuals, and specification sheets.

PWP611BB5B Spec

PDF

Frequently Asked Questions

Does this induction hob require an electrician for installation?

The hob has a power cord 1.1 m with a UK 3 pin plug and is described as plug and play, with no electrician required for installation. For higher power output than 3.7 KW, a hob without plug should be selected and installed by a qualified electrician.

How many power levels does each cooking zone have?

Each cooking zone offers variable 17–stage power settings, comprising 9 main levels and 8 intermediate levels for precise adjustment.

What are the sizes and power ratings of the cooking zones?

The front left and rear left zones are 180 mm, 1.8 KW (max. power 3.1 KW). The rear right zone is 145 mm, 1.4 KW (max power 2.2 KW). The front right zone is 210 mm, 2.2 KW (max. power 3.7 KW).

What safety features does the hob include?

Safety features include a 2 stage residual heat indicator for each zone, a control panel lock, a main on/off switch for all zones and automatic safety shut off, where heating stops after a preset time if not used.

Can I use larger cookware such as roasters?

Yes. The Combi zone allows you to connect two classic cooking zones into one large zone, providing more flexibility for roasters and larger, oval or rectangular cookware.
