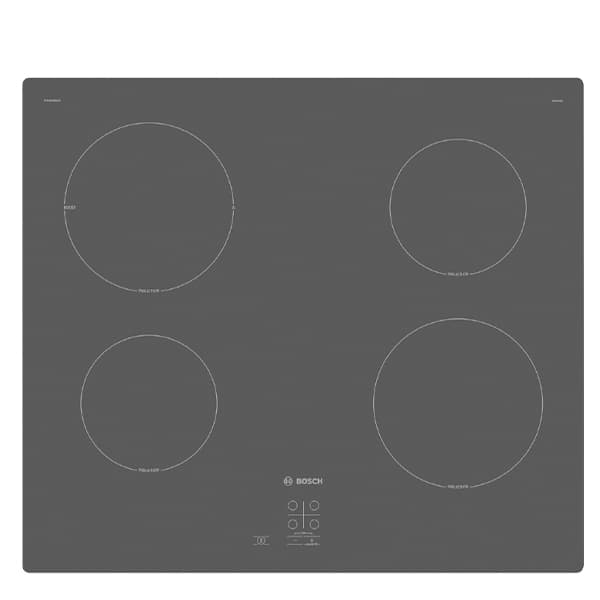

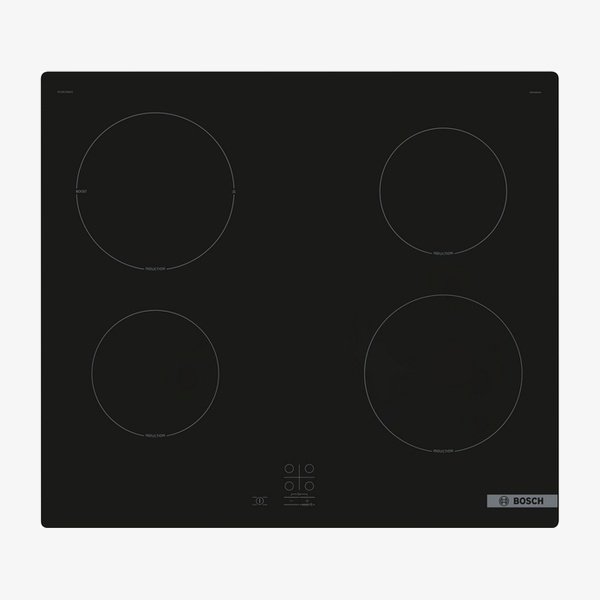

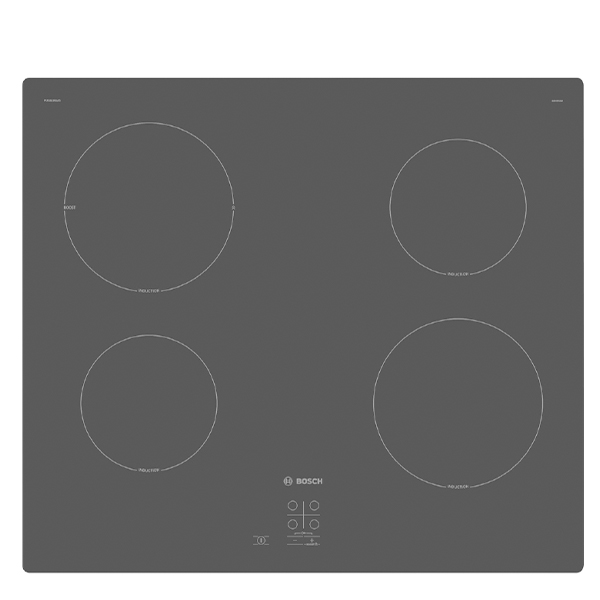

Bosch PUG61RAA5B Induction Hob

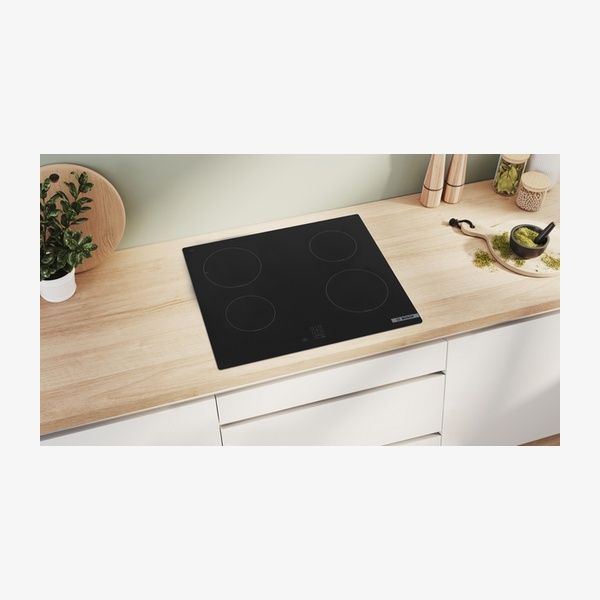

The Series 2 PUG61RAA5B is a 60 cm frameless induction hob designed for built-in installation with space for four pots or pans. It offers fast, precise cooking with easy cleaning and low energy consumption. Plug & Play installation with a UK 3 pin plug removes the need for an electrician. Features such as PowerBoost, QuickStart, Quick Stop and a control panel lock add convenience, speed and safety for everyday cooking.

SKU:PUG61RAA5B

EAN:4242005285419

Category::Hobs

Quantity:

Key Features

Induction cooking : fast, precise cooking with easy cleaning and low energy consumption.

Plug & Play installation : power cord 1.1 m with UK 3 pin plug, no electrician required for installation.

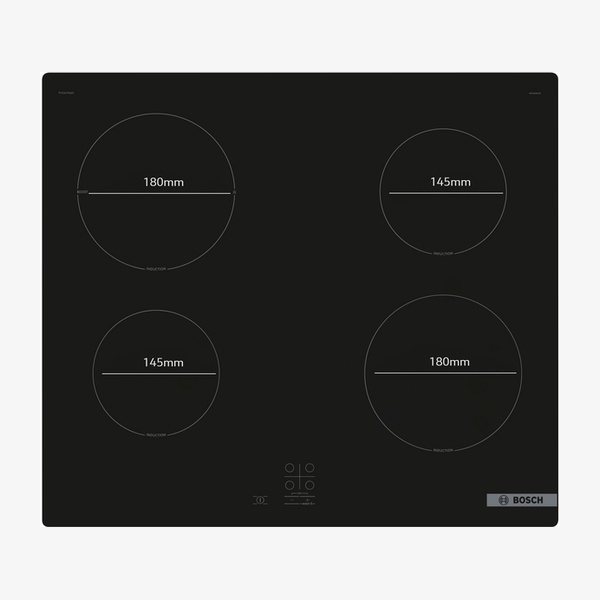

60 cm width with 4 cooking zones : space for 4 pots or pans.

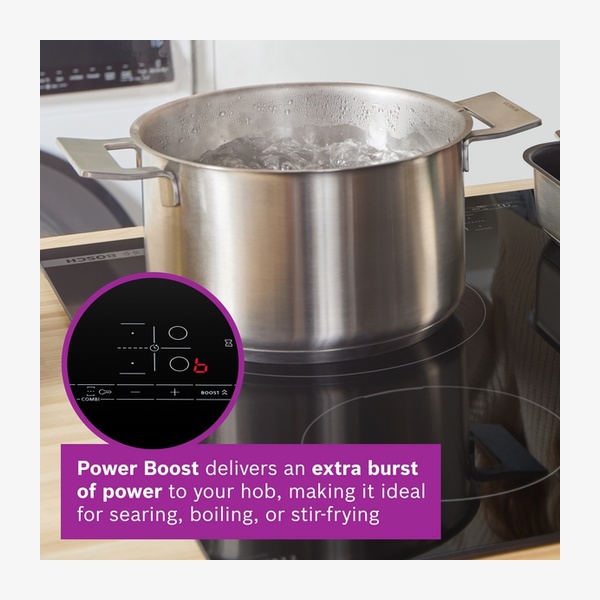

PowerBoost function : in the front left zone for up to 50% more power to boil water faster.

QuickStart function : automatically selects the cooking zone with cookware when switching on.

Quick Stop : quickly switch off a cooking zone with one longer touch.

TouchSelect Basic controls : imprinted +/– touch buttons to set power levels.

9-stage power settings : variable 9-stage power settings for each zone for precise heat control.

ChildLock / control panel lock : locks the control panel to prevent accidental changes and unintended activation.

Automatic safety shut off : heating stops after a preset time if not used.

Main on/off switch : switch off all cooking zones at the touch of a button.

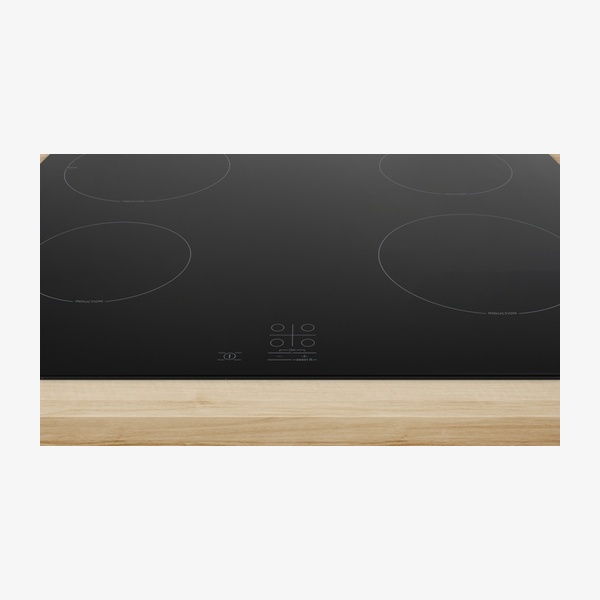

Frameless design : surface mount without frame with a black ceramic glass surface.

Residual heat indicator : separate residual heat indicator.

Fast vs gas and ceramic : faster than gas and ceramic hobs, and more energy efficient.

Optional accessories available : wireless food thermometer, wok set, espresso maker and cookware sets (details below).

Technical Spec

Product nameSeries 2, Induction hob, 60 cm, surface mount without frame – PUG61RAA5B

Appliance typeCooking zone ceramic

Built-in / Free-standingBuilt-in

Heating typeElectric hob (induction)

Number of cooking zones4

Dimensions (HxWxD)51 x 592 x 522 mm

Width of the appliance592 mm

Required niche size (HxWxD)51 x 560–560 x 490–500 mm / 51 x 560 x (490–500) mm

Min. worktop thickness16 mm

Dimensions of packed product (HxWxD)126 x 753 x 608 mm

Net weight10.2 kg

Gross weight11.3 kg

Basic surface materialCeramic glass

Colour of surfaceBlack

Location of control panelFront

Residual heat indicatorSeparate residual heat indicator

Length of electrical supply cord110 cm / 1.1 m

Connected load3.7 KW (limited by plug)

Voltage220–240 V

Frequency50; 60 Hz

EAN code4242005285419

Hob typeInduction hob

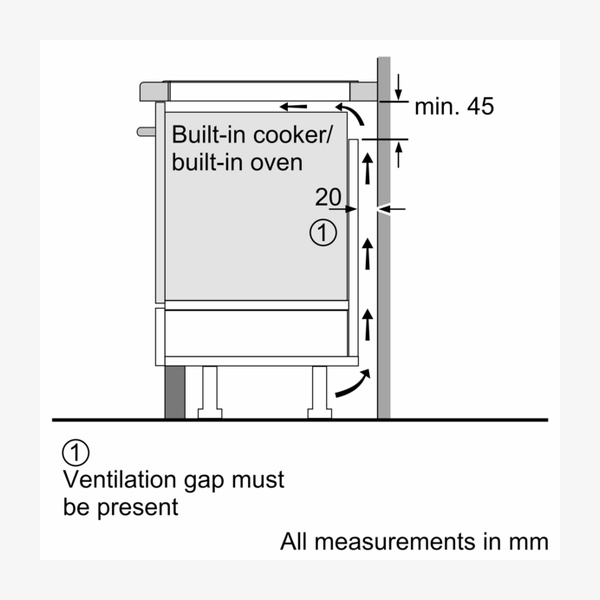

Installation Information

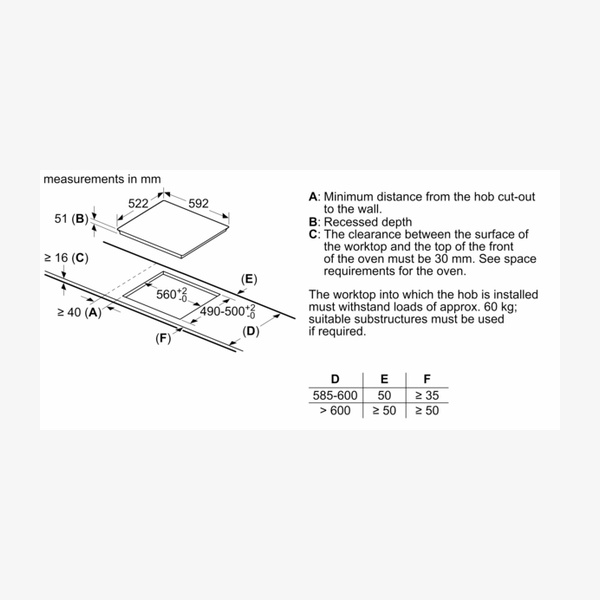

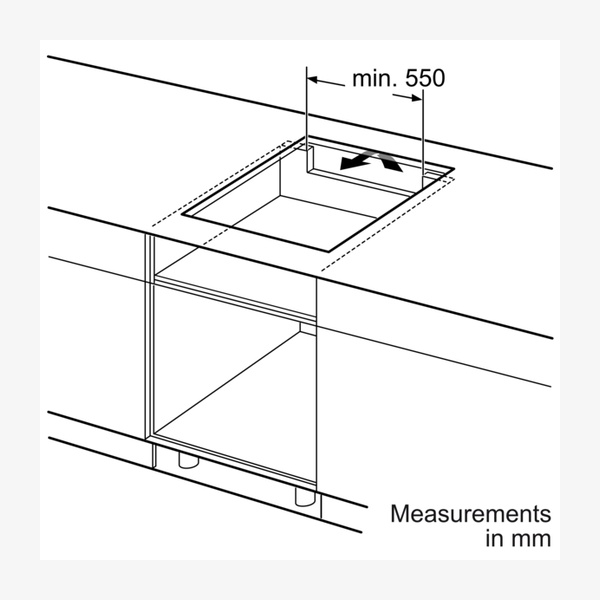

The hob is designed for built-in installation as a surface mount without frame. It has product dimensions of 51 x 592 x 522 mm and requires a niche size of 51 x 560 x 490–500 mm with a minimum worktop thickness of 16 mm.

A power cord of 1.1 m with a UK 3 pin plug is supplied for easy Plug & Play installation. No electrician is required for installation. The plug limits the maximum power output to 3.7 KW. For higher power output, a hob without plug should be selected and installation carried out by a qualified electrician.

Downloads

Download product documentation, manuals, and specification sheets.

PUG61RAA5B Spec

PDF

Frequently Asked Questions

How many cooking zones does the PUG61RAA5B hob have?

The hob has 4 cooking zones with a 60 cm width, providing space for four pots or pans.

Is professional installation required for this induction hob?

No electrician is required for installation. The hob is equipped with a 1.1 m power cord and a UK 3 pin plug for Plug & Play installation, with the plug limiting the maximum power output to 3.7 KW.

What safety features are included?

Safety features include a control panel lock, ChildLock, main on/off switch, automatic safety shut off and a separate residual heat indicator.

What are the dimensions and required niche size?

The product dimensions are 51 x 592 x 522 mm. The required niche size for installation is 51 x 560 x 490–500 mm, and the minimum worktop thickness is 16 mm.

How does the PowerBoost function work?

The PowerBoost function is available in the front left zone and allows water to be boiled faster by providing 50% more energy than at the highest standard level.

What makes this hob easier to clean and efficient?

As an induction hob, it is faster than gas and ceramic hobs, easier to clean and more energy efficient, offering fast, precise cooking with low energy consumption.
