Bosch Serie 4 PUE611BB5E Induction Hob

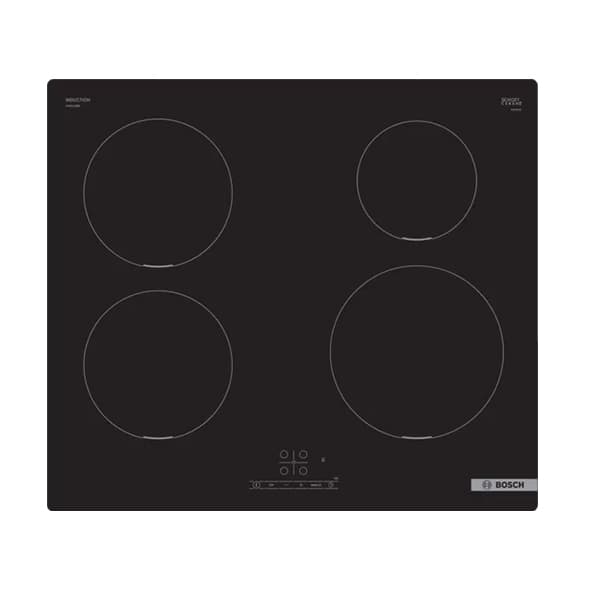

The Series 4 PUE611BB5E is a 60 cm, frameless, built-in induction hob with four cooking zones and TouchSelect controls. It offers fast heating, precise 17-stage power settings and convenient functions including PowerBoost, QuickStart, ReStart, Quick Stop and timers. Designed with a black ceramic glass surface and front control panel, it features multiple safety options such as residual heat indicators, control panel lock, main on/off switch and automatic safety shut off.

SKU:PUE611BB5E

EAN:4242005285082

Category::Hobs

Quantity:

Key Features

Induction hob technology – faster than gas and ceramic hobs, easier to clean and more energy efficient.

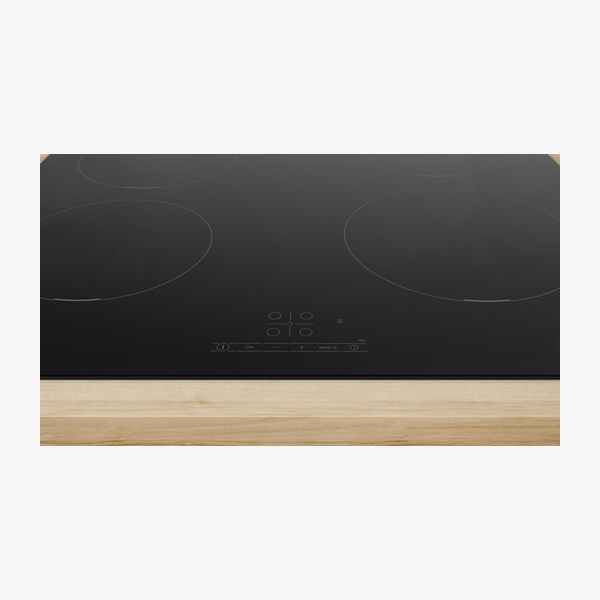

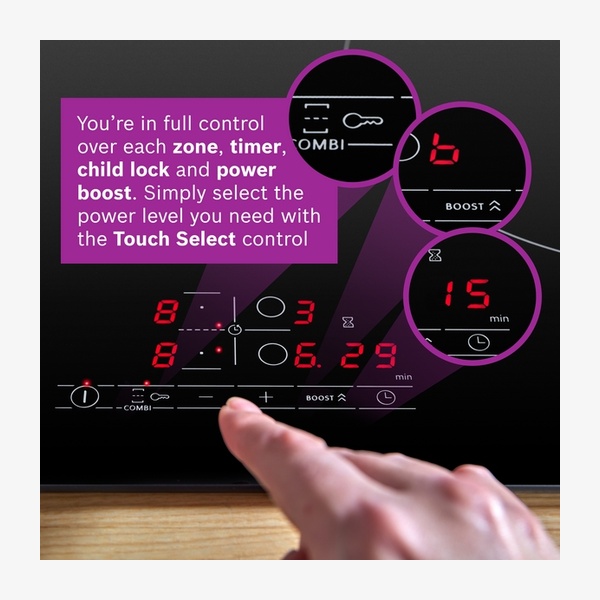

TouchSelect controls – select the desired cooking zone and set the power level with imprinted +/- touch buttons.

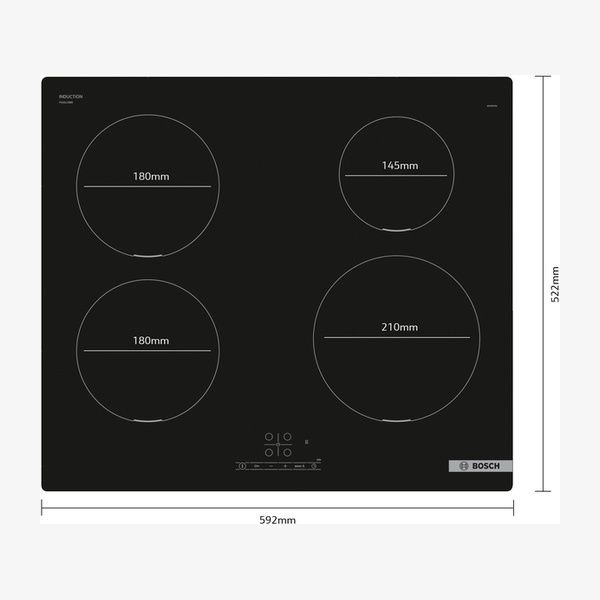

Four cooking zones – 60 cm hob with space for 4 pots or pans, including 180 mm, 145 mm and 210 mm zones.

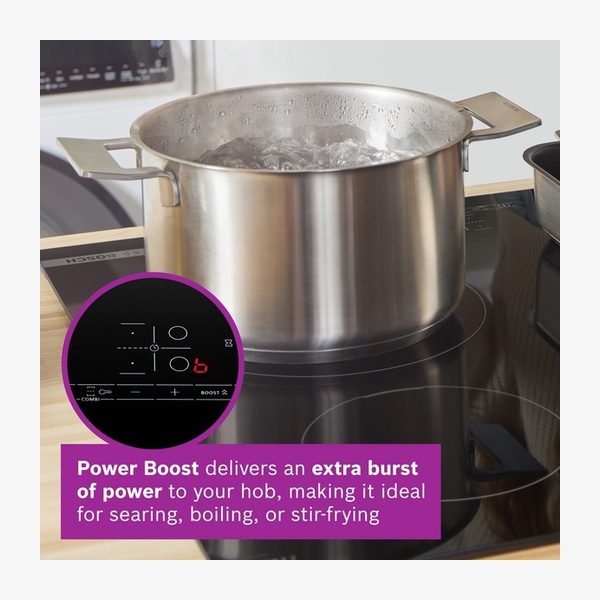

PowerBoost for all zones – up to 50% more power for faster heating, ideal for boiling water quickly.

17-stage power settings – variable power with 9 main levels and 8 intermediate levels for precise heat control.

QuickStart function – automatically selects the cooking zone with cookware when switching on.

ReStart function – restores all previous settings after an unintentional switch-off when reactivated within 4 seconds.

Quick Stop feature – quickly switch off a cooking zone with one longer touch.

Timer with switch-off – switches off the assigned cooking zone after the set time.

Count-down timer – an alarm sounds at the end of the time set.

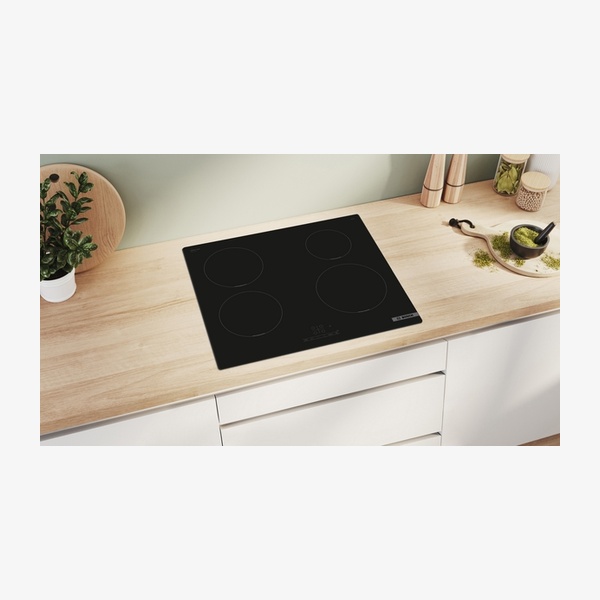

Frameless black design – surface mount without frame, with black ceramic glass.

Residual heat indicators – 2 stage residual heat indicator for each zone to show if zones are still hot or warm.

Control panel lock – helps prevent unintended activation of the hob.

Main on/off switch – switch off all cooking zones at the touch of a button.

Automatic safety shut off – heating stops after a preset time if the hob is not used.

Power management options – configurable for 16 A, 13 A or 10 A connection, depending on fuse protection.

Optional accessories – compatible with wireless food thermometer, wok set, espresso maker, iron pan and cookware sets (model codes listed below).

Technical Spec

Product name / familySeries 4, Induction hob, 60 cm, surface mount without frame

Model referencePUE611BB5E

Appliance typeCooking zone ceramic

Built-in / Free-standingBuilt-in

Heating typeElectric hob (induction)

Number of cooking zones4

Cooking zone front left180 mm, 1.8 KW (max. power 3.1 KW)

Cooking zone rear left180 mm, 1.8 KW (max. power 3.1 KW)

Cooking zone rear right145 mm, 1.4 KW (max power 2.2 KW)

Cooking zone front right210 mm, 2.2 KW (max. power 3.7 KW)

Variable power levels17-stage power settings for each zone (9 main levels and 8 intermediate levels)

Width of appliance592 mm

Dimensions (H x W x D)51 x 592 x 522 mm

Dimensions of packed product (H x W x D)130 x 753 x 610 mm

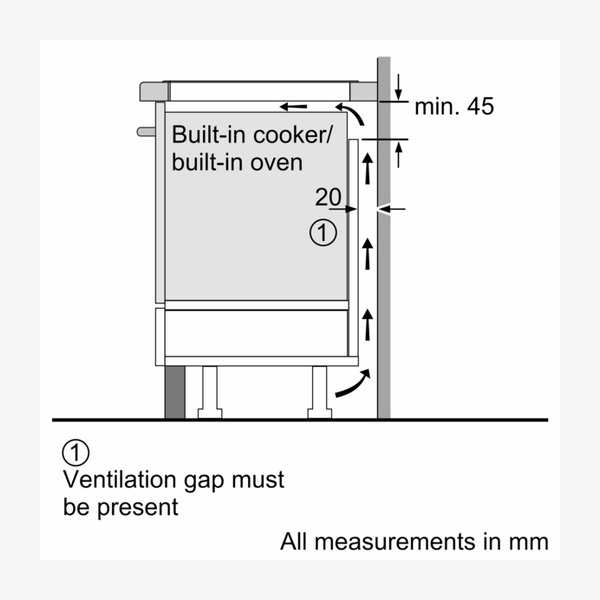

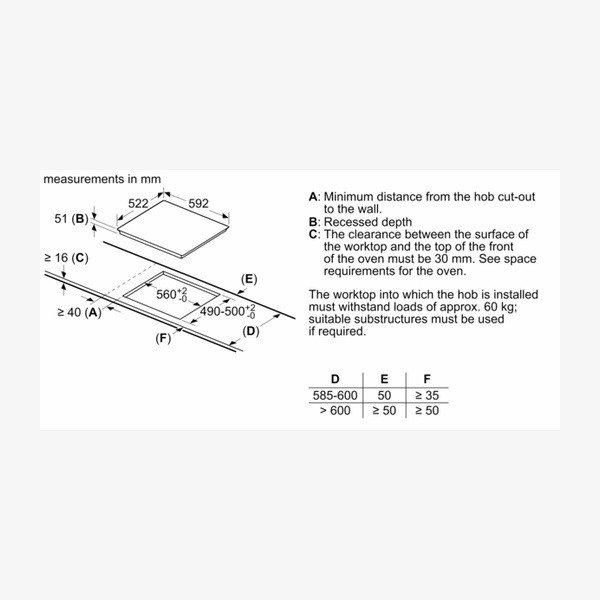

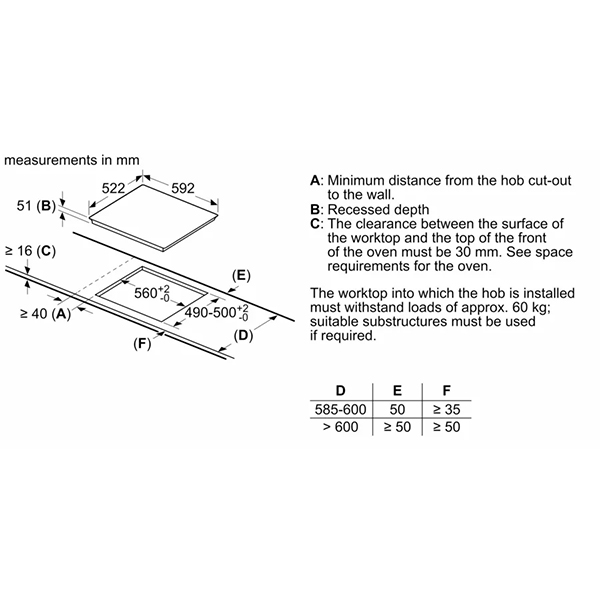

Required niche size (H x W x D)51 x 560–560 x 490–500 mm

Minimum worktop thickness16 mm

Net weight10.5 kg

Gross weight11.6 kg

Basic surface materialCeramic glass

Colour of surfaceBlack

Location of control panelFront

Residual heat indicatorSeparate, 2 stage residual heat indicator for each zone

Length of supply cord110 cm (1.1 m), cable included

Connected load4.6 KW

Voltage220–240 V

Frequency50; 60 Hz

EAN code4242005285082

Energy ratingNot stated in source

Downloads

Download product documentation, manuals, and specification sheets.

PUE611BB5E Spec

PDF

Frequently Asked Questions

How many cooking zones does the PUE611BB5E have?

It has four induction cooking zones: two 180 mm zones, one 145 mm zone and one 210 mm zone.

What are the power levels available on this induction hob?

Each cooking zone offers variable 17-stage power settings, with 9 main levels and 8 intermediate levels for precise heat adjustment.

Does the hob have a timer function?

Yes. It features a switch-off timer that turns off the cooking zone at the end of the set time and a count-down timer where an alarm sounds when the time has elapsed.

What safety features are included?

Safety features include a 2 stage residual heat indicator for each zone, control panel lock, main on/off switch and automatic safety shut off after a preset time if not used.

Can the power consumption be limited for different electrical installations?

Yes. The hob offers power management options for 16 A, 13 A or 10 A connections, allowing the maximum power to be limited depending on the fuse protection of the electric installation.
