Bosch Series 6 PIX631HC1E FlexInduction Hob

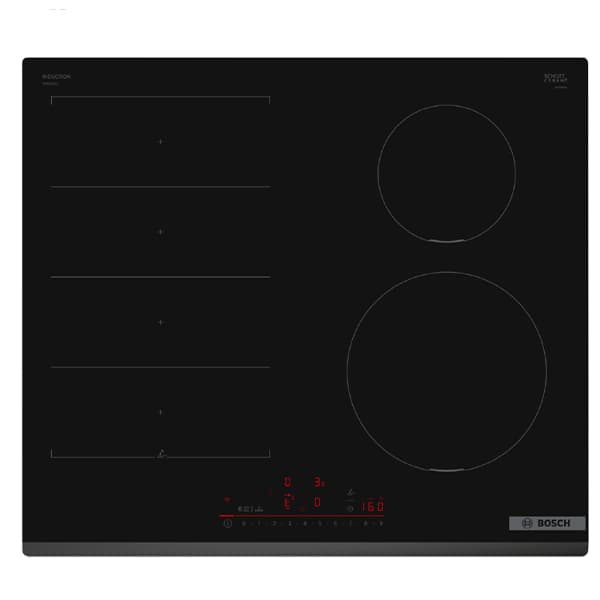

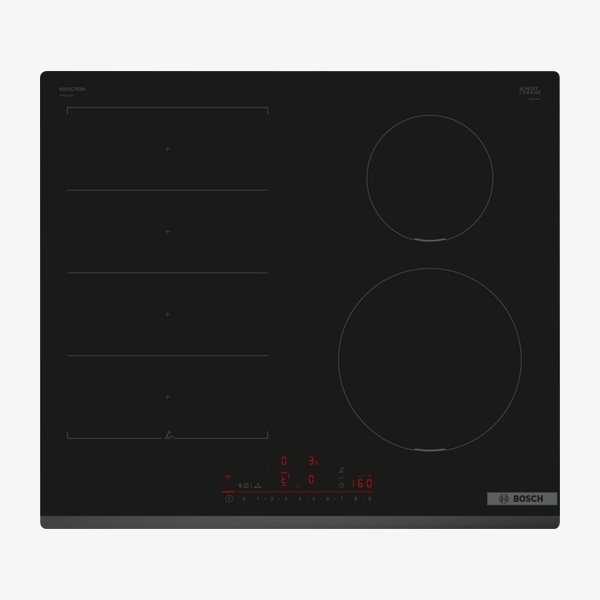

The Series 6 PIX631HC1E is a 60 cm built–in induction hob with four cooking zones and a black ceramic glass surface. It offers FlexInduction for flexible use of cookware, DirectSelect and Multitouch+ touch control, and 17–stage power settings for precise cooking. Features such as PerfectFry Plus, PowerBoost, Pan Boost and keep warm support everyday cooking, while Home Connect compatibility and Smart Hood Automatic add connected convenience.

SKU:PIX631HC1E

EAN:4242005394111

Category::Hobs

Quantity:

Key Features

60 cm hob with 4 zones – provides space for 4 pots or pans across a compact 60 cm width.

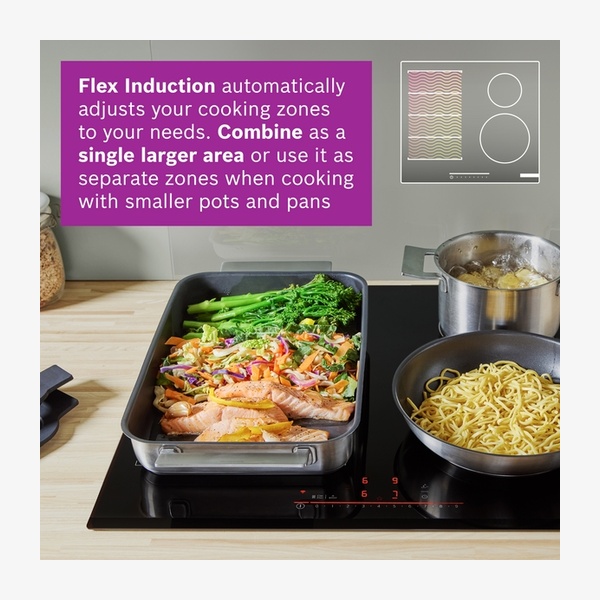

FlexInduction zone – use cookware of any shape or size anywhere within the 40 cm long flexInduction zone.

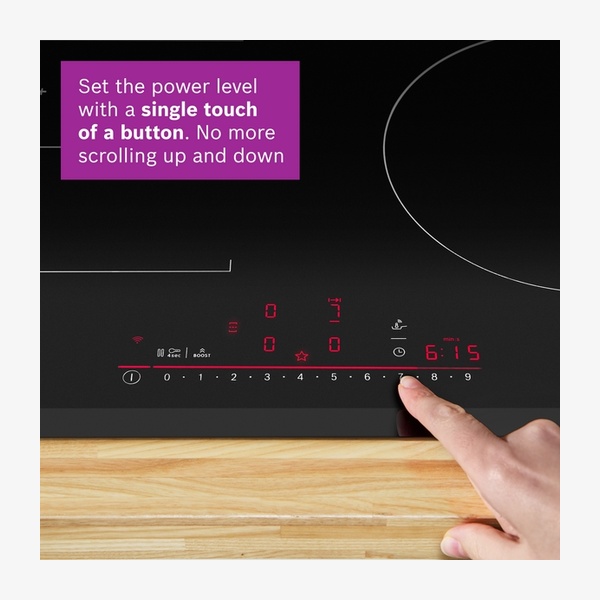

DirectSelect control – direct and simple selection of cooking zone, power level and additional functions.

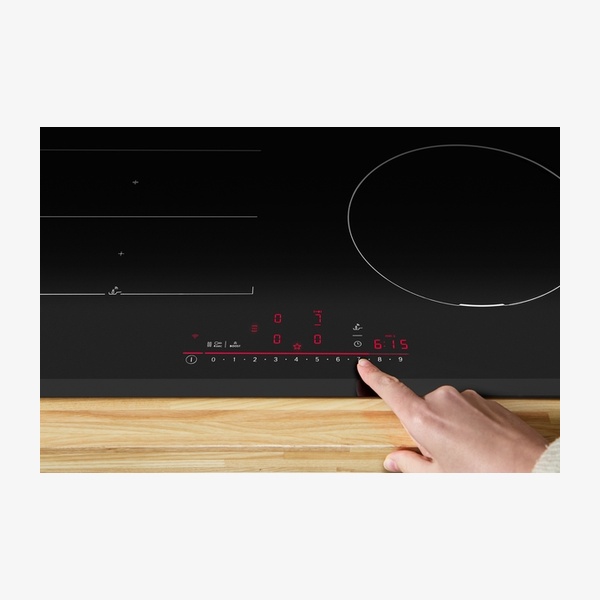

Multitouch+ touch bar – directly control the power with the imprinted touch bar for each zone.

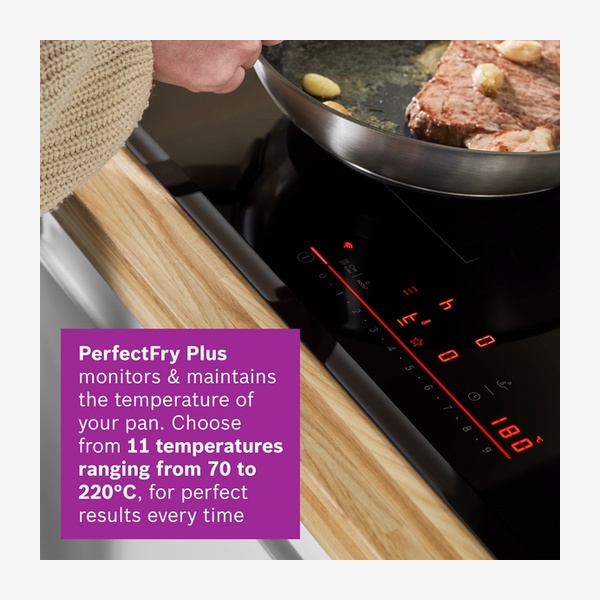

PerfectFry Plus – helps prevent scorching with automatic temperature regulation and 11 frying levels.

Easy Flex Zones – cooking zones adjust to your needs and automatically connect into a large continuous zone for bigger cookware.

PowerBoost for all zones – boil water faster with up to 50% more energy than at the highest standard level.

Pan Boost function – heats pans faster than the highest standard level while helping to protect pan coating (via Favourite button/Home Connect app).

17–stage power settings – precisely adapt the heat with 9 main levels and 8 intermediate levels on each zone.

Keep warm function – keeps dishes warm at a preset low power level via the Home Connect app/MyButton.

Timers and alarms – switch–off timer for zones and optional acoustic alarm at the end of the set time.

Automatic zone features – automatic zone selection, automatic setting transfer and QuickStart support convenient pan movement.

ReStart function – restores previous settings if the hob is unintentionally switched off and turned back on within 4 seconds.

Home Connect enabled – check if the hob is switched off and access recipes or additional functions via the Home Connect app.

Hob Hood Control – Wi–Fi enabled hood can be automatically activated and controlled from the hob.

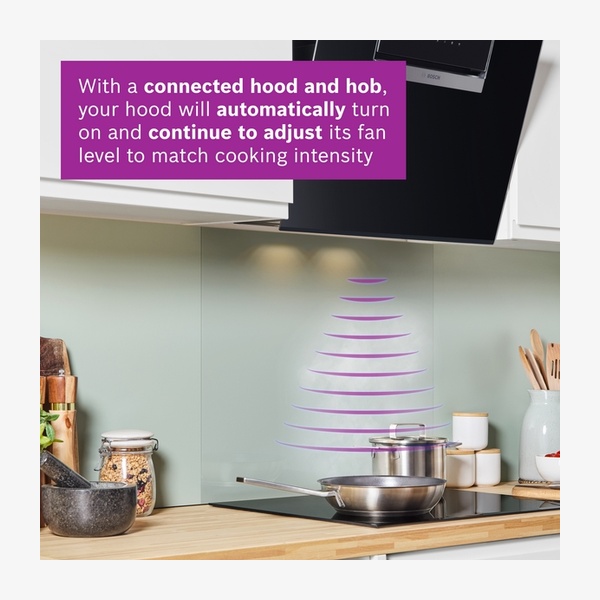

Smart Hood Automatic – matching hood can automatically adapt fan speed based on hob cooking data (with connected Home Connect account).

Updateable appliance – can be kept up to date with the latest software status when connected to a Home Connect account.

Front facette design – sleek, surface–mounted hob without frame featuring a front facet edge.

Comprehensive safety – includes 2–stage residual heat indicator for each zone, control panel lock, pause function, main on/off switch and automatic safety shut–off.

Optional accessories available – compatible with a wide range of pans, pots, roasters, Teppan Yaki plates, griddle plate and espresso maker (see below).

Technical Spec

Appliance typeCooking zone ceramic

Built–in / Free–standingBuilt–in

Heating typeElectric hob

Number of cooking zones4

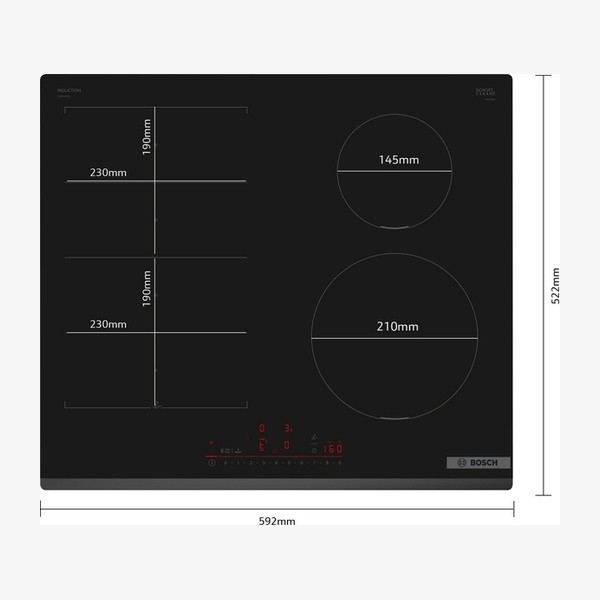

Cooking zone front left190 mm, 230 mm, 2.2 kW (max. power 3.7 kW)

Cooking zone rear left190 mm, 230 mm, 2.2 kW (max. power 3.7 kW)

Cooking zone rear right145 mm, 1.6 kW (max. power 2.2 kW)

Cooking zone front right210 mm, 2.5 kW (max. power 3.7 kW)

Width of the appliance592 mm

Dimensions (H x W x D)51 x 592 x 522 mm

Required niche size (H x W x D)51 x 560–560 x 490–500 mm

Min. worktop thickness16 mm

Dimensions of packed product (H x W x D)130 x 750 x 600 mm

Net weight13.5 kg

Gross weight14.6 kg

Basic surface materialCeramic glass

Colour of surfaceBlack

Location of control panelFront

Residual heat indicatorSeparate, 2 stage for each zone

Length of electrical supply cord110 cm

Voltage220–240 V

Frequency50; 60 Hz

Connected load7.4 kW

Power management options16 A, 13 A or 10 A connection

EAN code4242005394111

Downloads

Download product documentation, manuals, and specification sheets.

PIX631HC1E Spec

PDF

Frequently Asked Questions

How many cooking zones does the PIX631HC1E hob have?

The hob has 4 cooking zones, including a FlexInduction area that can combine two zones into one large continuous zone for bigger cookware.

What are the dimensions required to install this hob?

The hob itself measures 51 x 592 x 522 mm (H x W x D). The required niche size for installation is 51 x 560 x 490–500 mm (H x W x D), with a minimum worktop thickness of 16 mm.

Does this induction hob support Home Connect?

Yes. It is Home Connect enabled, so you can check if the hob is switched off when you are not at home and access recipes or additional functions via the Home Connect app. Some functions, such as Favourite Button configuration, Pan Boost selection and software updates, require a connected Home Connect account.

What safety features are included?

Safety features include a 2–stage residual heat indicator for each zone, control panel lock, pause function, main on/off switch and automatic safety shut off, which stops heating after a preset time if the hob is not used.

Can the power load be limited for different electrical installations?

Yes. The hob provides power management options for 16 A, 13 A or 10 A connections to limit the maximum power according to the fuse protection of the electrical installation.
