Bosch Serie 4 PIE631BB5E Induction Hob

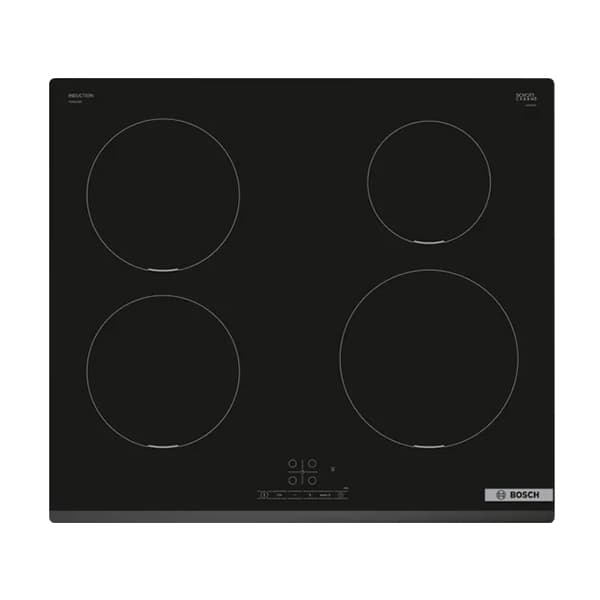

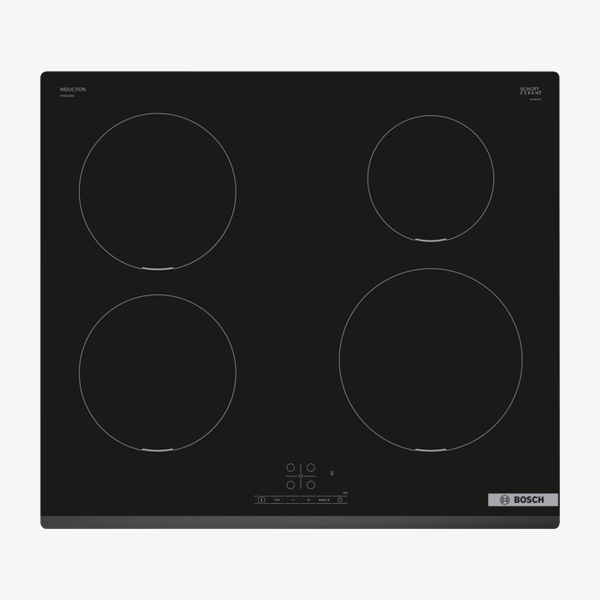

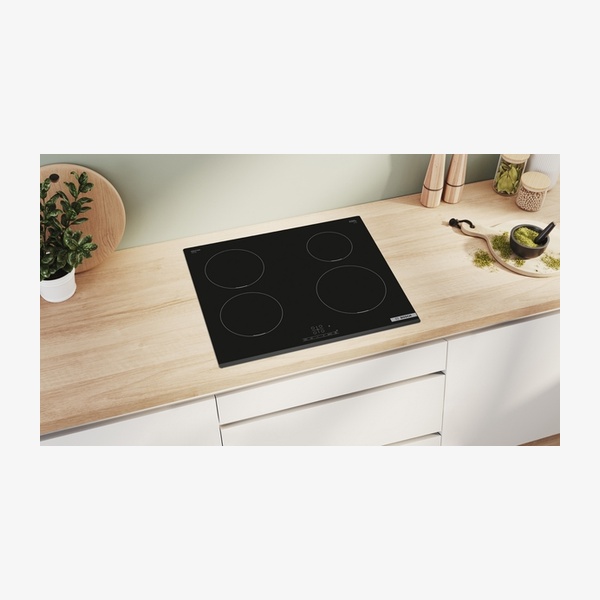

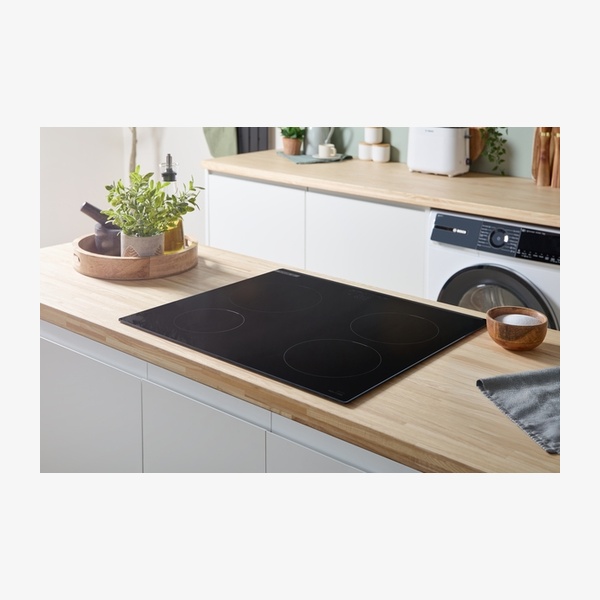

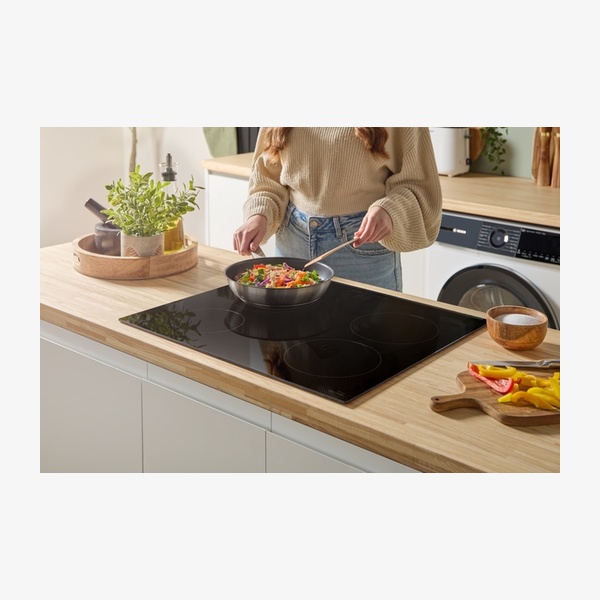

The Series 4 PIE631BB5E is a 60 cm built-in induction hob with four cooking zones and a ceramic glass surface in black. It offers TouchSelect controls, variable 17-stage power settings and PowerBoost on all zones for faster heating. Helpful timer functions, QuickStart, ReStart and Quick Stop features support convenient day-to-day cooking, while residual heat indicators, a control panel lock and automatic safety shut off enhance safety in the kitchen.

SKU:PIE631BB5E

EAN:42420052319848

Category::Hobs

Quantity:

Key Features

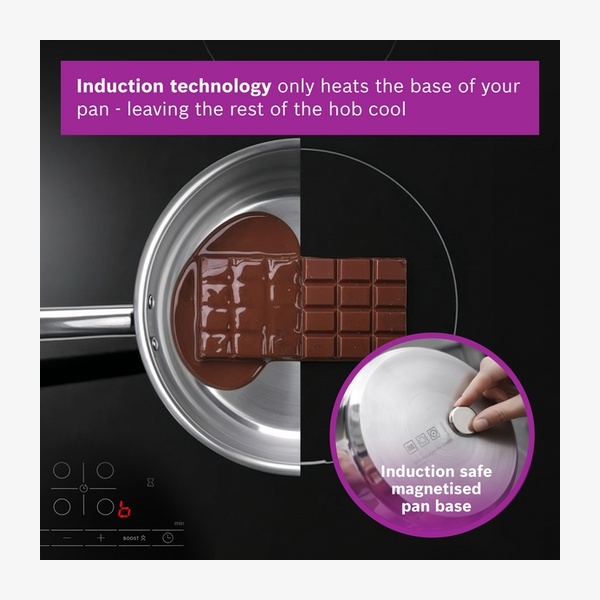

Induction hob technology – Faster than gas and ceramic hobs, easier to clean and more energy efficient.

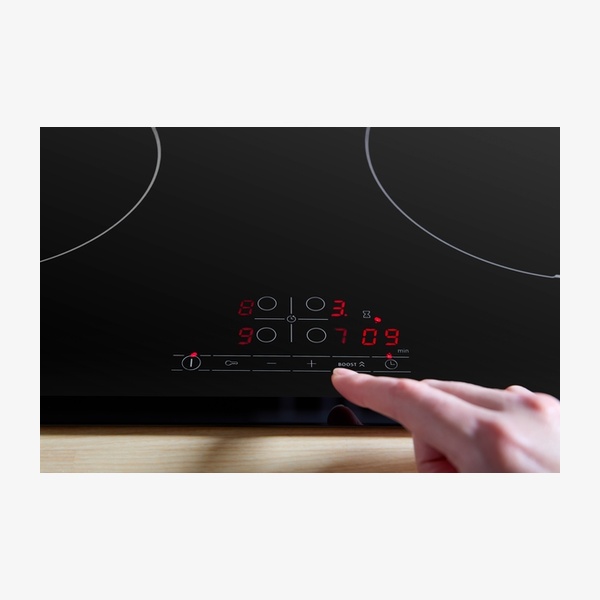

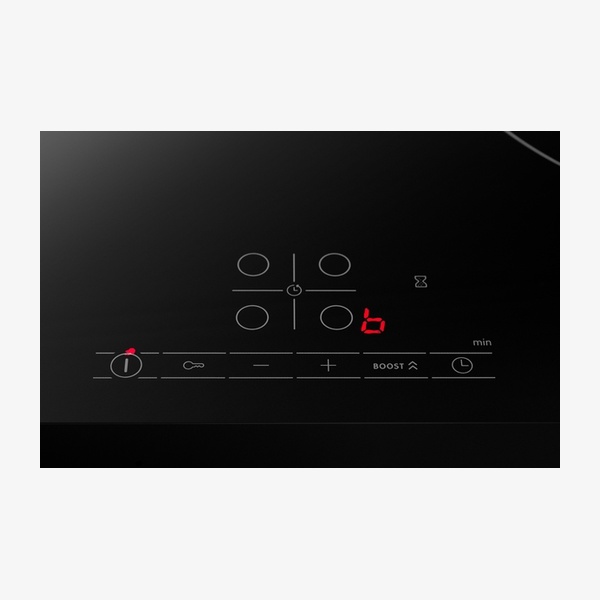

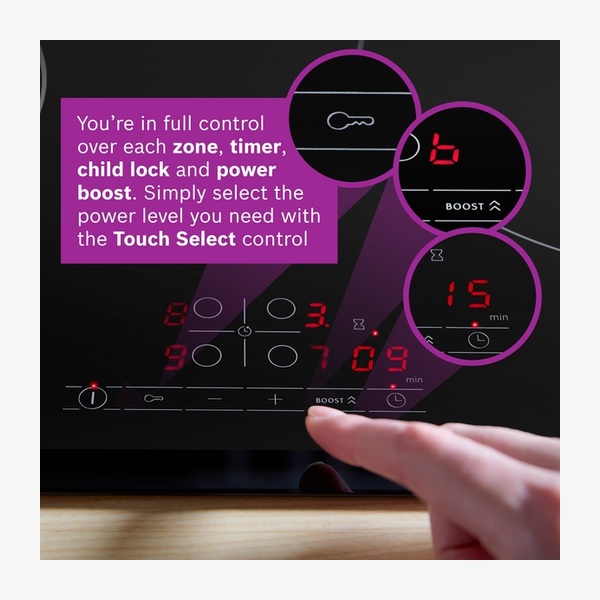

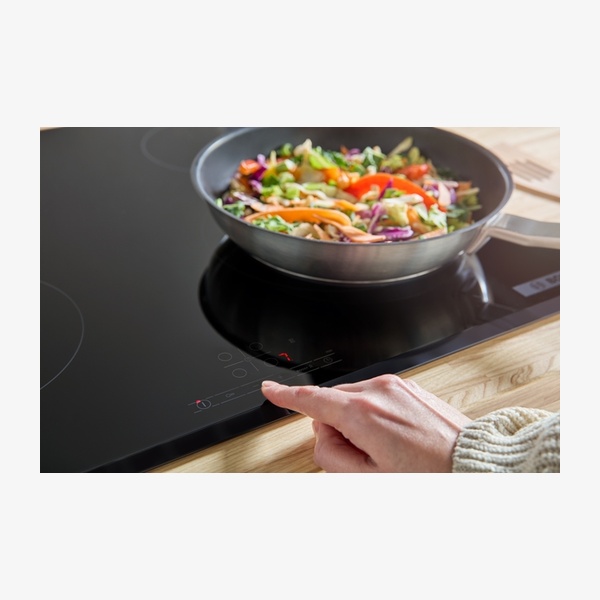

TouchSelect controls – Selection of the desired cooking zone and easy setting of the desired power level with imprinted +/- touch buttons.

Four cooking zones – 60 cm hob with space for 4 pots or pans, including 180 mm, 145 mm and 210 mm zones.

Variable 17-stage power settings – Precisely adapt the heat with 17 power levels (9 main levels and 8 intermediate levels) for each zone.

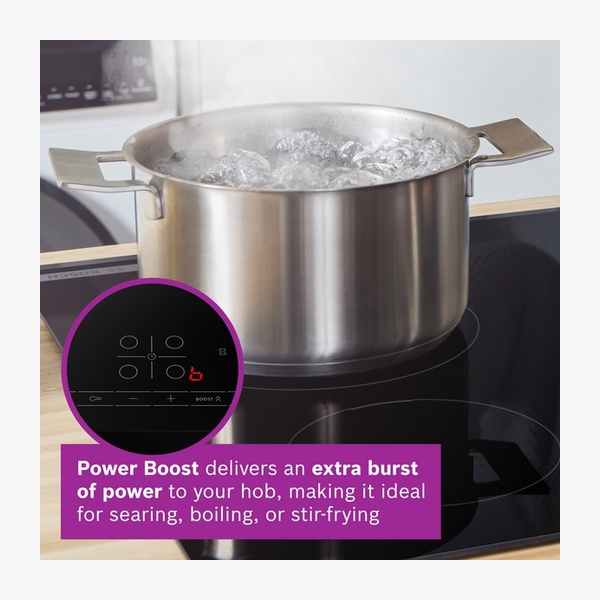

PowerBoost for all zones – Boil water faster thanks to 50% more energy than at the highest standard level.

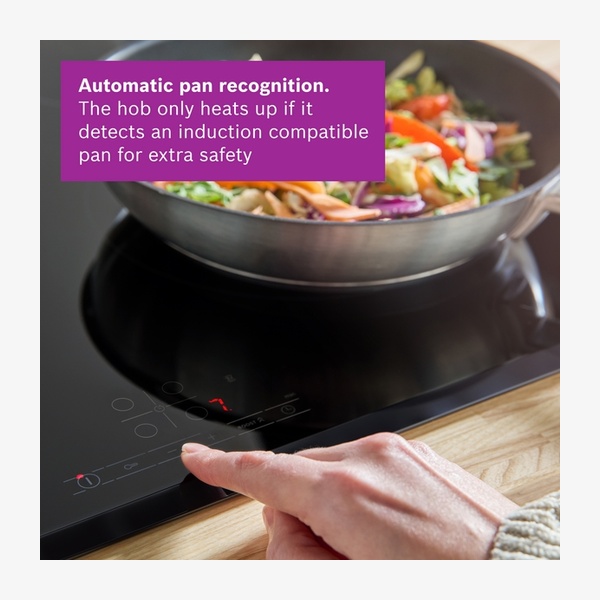

QuickStart function – When switching on, the hob automatically selects the cooking zone with cookware placed on it.

ReStart function – Restores all previous settings after an unintentional switch-off if the hob is switched on again within 4 seconds.

Quick Stop feature – Quickly switch off a cooking zone with one longer touch.

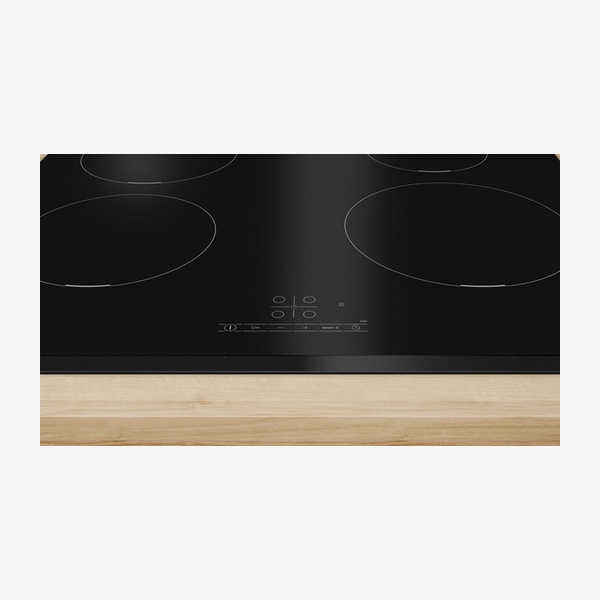

Front-Bevel / front facette design – Elegant, appealing design with bevelled front.

Residual heat indicators – 2 stage residual heat indicator for each zone shows which cooking zones are still hot or warm.

Control panel lock – Helps prevent unintended activation of the hob.

Main on/off switch – Switch off all cooking zones at the touch of a button.

Automatic safety shut off – Heating stops after a preset time if not used.

Separate residual heat indicator – Indicates remaining heat for added safety.

Ceramic glass surface – Basic surface material is ceramic glass in black.

Optional accessories – Wireless food thermometer, wok set, espresso maker and pot and pan set available as accessories.

Technical Spec

Product nameSeries 4, Induction hob, 60 cm, surface mount without frame, PIE631BB5E

Appliance typeCooking zone ceramic

Built-in / Free-standingBuilt-in

Heating typeElectric hob (induction)

Number of cooking zones4

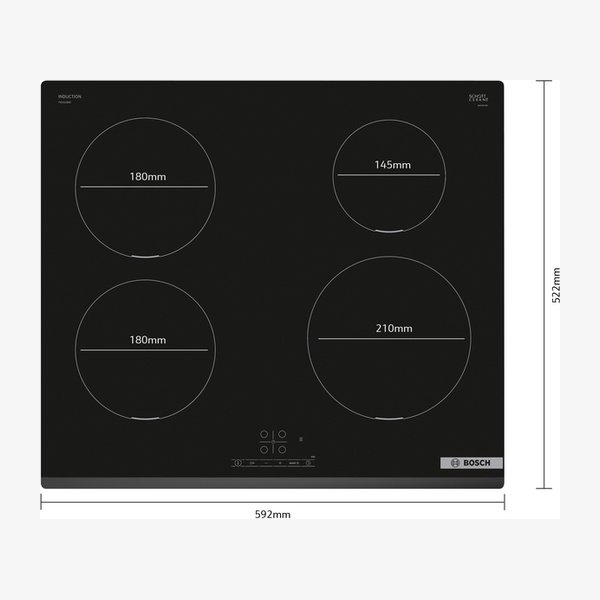

Cooking zone front left180 mm, 1.8 KW (max. power 3.1 KW)

Cooking zone rear left180 mm, 1.8 KW (max. power 3.1 KW)

Cooking zone rear right145 mm, 1.4 KW (max power 2.2 KW)

Cooking zone front right210 mm, 2.2 KW (max. power 3.7 KW)

Width of the appliance592 mm

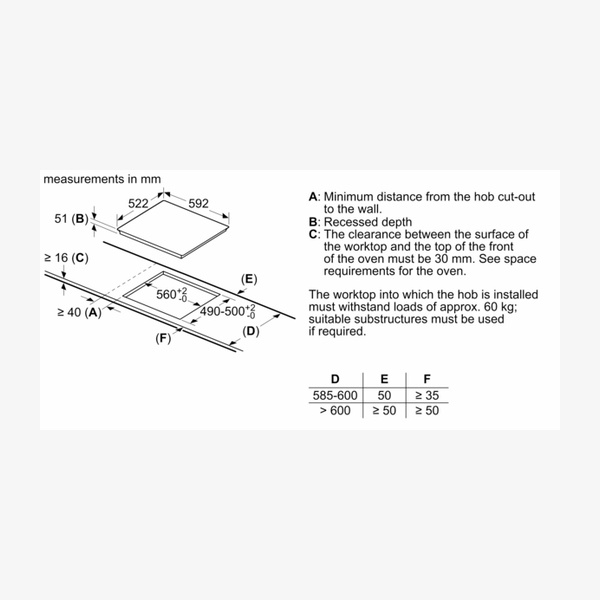

Dimensions (HxWxD)51 x 592 x 522 mm

Required niche size (HxWxD)51 x 560-560 x 490-500 mm

Dimensions of packed product (HxWxD)126 x 753 x 603 mm

Net weight12.2 kg

Gross weight13.3 kg

Residual heat indicatorSeparate; 2 stage residual heat indicator for each zone

Location of control panelFront

Basic surface materialCeramic glass

Colour of surfaceBlack

Length of electrical supply cord110 cm (Power cord: 1.1 m, cable included)

Min. worktop thickness16 mm

Connected load7.4 KW

Voltage220-240 V

Frequency50; 60 Hz

Power management optionsOptions for 16A, 13A or 10A connection to limit maximum power (depends on fuse protection of electric installation)

EAN code4242005319848

Energy ratingNot stated in source

Downloads

Download product documentation, manuals, and specification sheets.

PIE631BB5E Spec

PDF

Frequently Asked Questions

How many cooking zones does the PIE631BB5E have?

The hob has four induction cooking zones: two 180 mm zones, one 145 mm zone and one 210 mm zone.

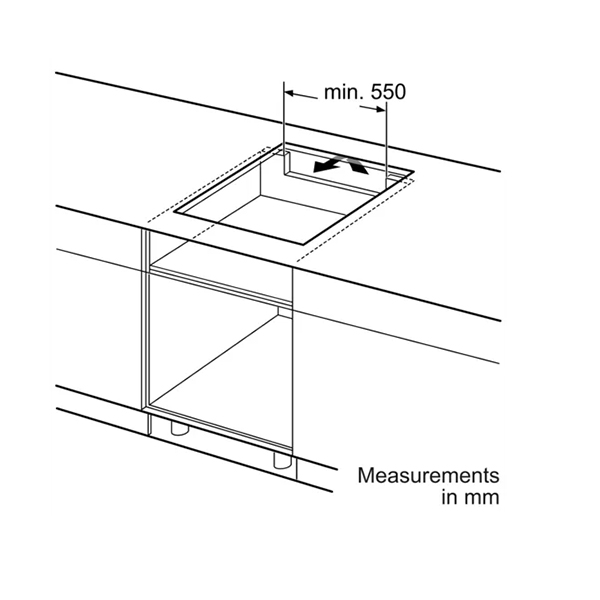

What are the installation dimensions for this hob?

The product dimensions are 51 x 592 x 522 mm. The required niche size for installation is 51 x 560 x (490 - 500) mm, with a minimum worktop thickness of 16 mm.

Does the hob include a safety lock?

Yes. The hob features a control panel lock to prevent unintended activation, as well as a main on/off switch and automatic safety shut off.

What timer functions are available?

The hob has a switch-off timer that turns off a cooking zone at the end of the time set and a count-down timer where an alarm sounds when the time has elapsed.

Is there a boost function for faster boiling?

Yes. The PowerBoost function is available for all zones and can boil water faster by providing 50% more energy than at the highest standard level.

What optional accessories are available?

Optional accessories include the HEZ32WA00 wireless food thermometer, HEZ390090 wok set (3 items), HEZ9ES100 espresso maker (4 cups) and HEZ9SE030 set of 2 pots and 1 pan.
