Bosch Series 6 DLN56AC60B Canopy Hood

The Series 6 DLN56AC60B is a 52 cm black canopy cooker hood designed for flush, built–in installation in wall cupboards or cabinets. It offers a high extraction rate for continuously clean air and can be used in ducted or recirculation mode with optional recirculation kits. With LED illumination, soft touch button control, three power levels plus an intensive setting, and dishwasher–safe metal grease filters, it provides discreet and effective ventilation for modern kitchens.

SKU:DLN56AC60B

EAN:4242005475605

Category::Cooker Hoods

Quantity:

Key Features

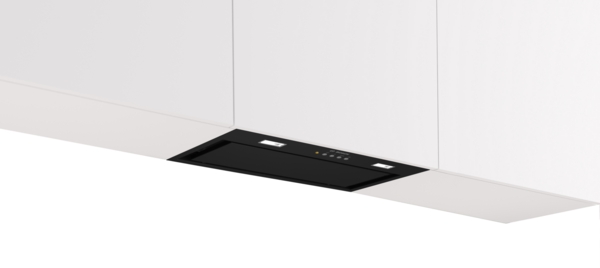

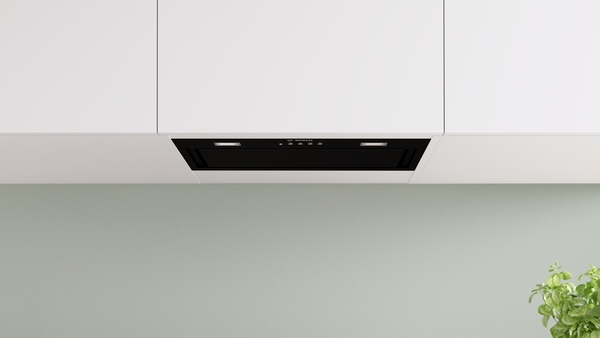

Seamless canopy integration – flush–fitted installation for almost invisible appearance in upper wall cupboards.

High extraction rate – maximum air extraction 570 m³/h and boost position air extraction 645 m³/h for continuously clean kitchen air.

Intensive Setting – powerful mode to tackle intense steam, with automatic reset from intensive to normal setting after 6 minutes.

LED illumination – 2 × 1 W LED lights, 4000 K colour temperature and 400 lux light intensity provide clear, bright hob lighting.

Soft touch button control – electronic display and real push buttons for effortless hood operation.

Three speeds plus intensive – 3 power levels and intensive setting to match different cooking tasks.

Ducted or recirculating operation – suitable for exhaust to the outside or recirculation with various optional recirculation kits.

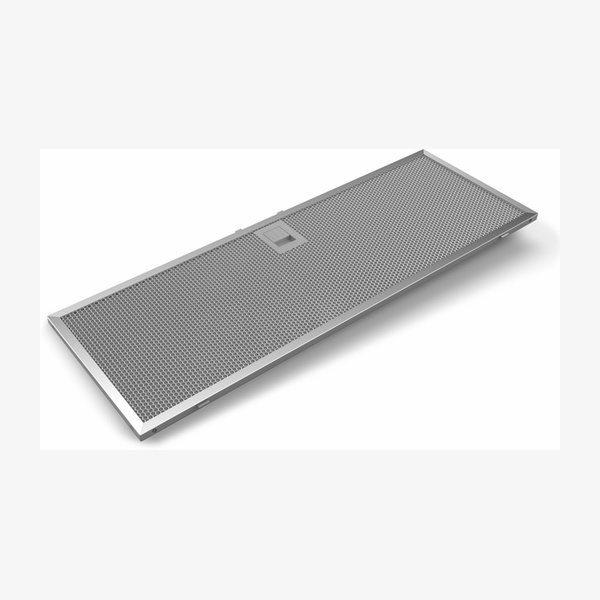

Dishwasher–safe metal grease filter – removable, washable aluminium grease filter for easy cleaning.

Energy efficient lighting – Lighting Efficiency Class A* and overall Energy Efficiency Class B (range A+++ to D).

Compact built–in dimensions – designed for a niche of 345 mm (H) × 496 mm (W) × 264 mm (D) with 52 cm appliance width.

Washable aluminium grease filter material – 1 metal grease filter constructed from washable aluminium.

Standard UK connection – GB plug, 220–240 V, 50/60 Hz and 252 W connection rating.

Back–pressure flap included – helps optimise airflow in ducted installations.

Available Long Life odour filter – regenerative Long Life filter with up to 10 years lifetime (optional accessory).

Technical Spec

Product nameSeries 6 Canopy cooker hood, 52 cm, Black DLN56AC60B

Typology / InstallationBuilt–in / Built–under canopy hood, installation in cabinet, flush–fitted in wall cupboards

Operation modesSuitable for ducted or recirculating operation

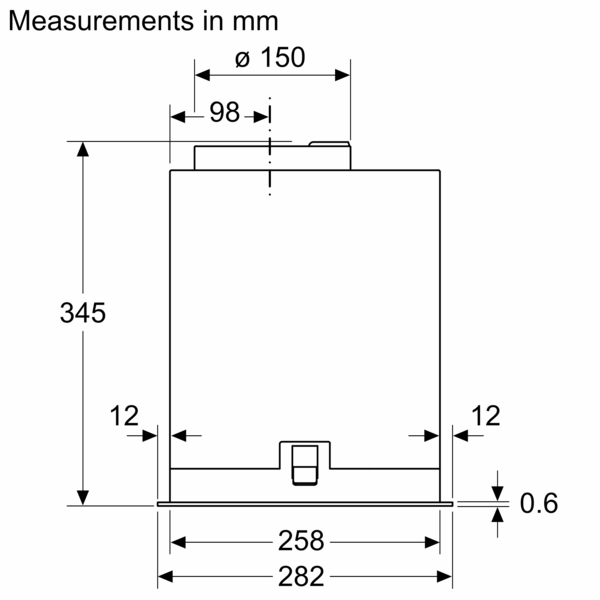

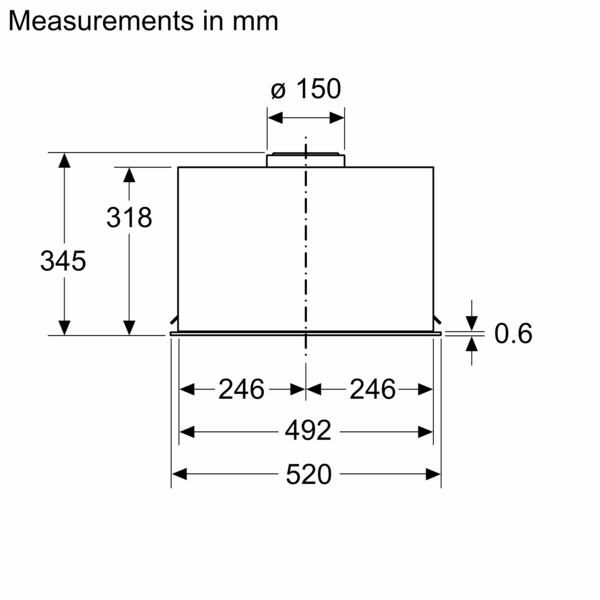

Dimensions (H × W × D)345 × 520 × 282 mm

Dimensions recirculating (H × W × D)345–345 × 520 × 282 mm

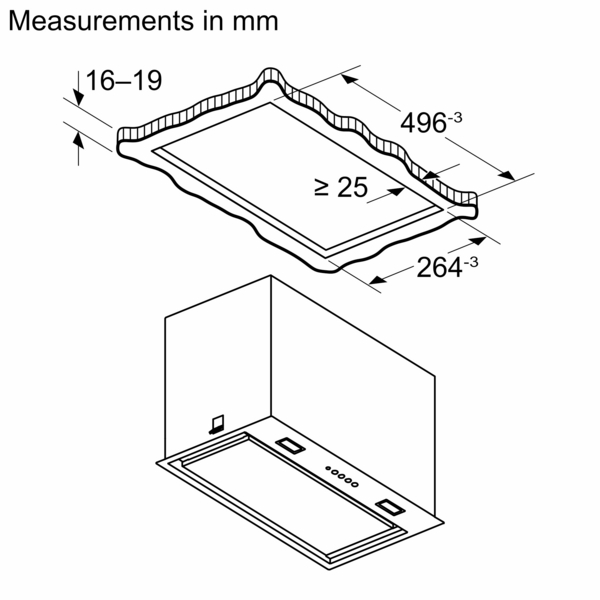

Built–in dimensions (H × W × D)345 × 496 × 264 mm

Required niche size (H × W × D)345 mm × 496.0 mm × 264 mm

Height of appliance345 mm

Minimum distance above electric hob500 mm

Minimum distance above gas hob650 mm

Net weight7.8 kg

Type of controlElectronic soft touch button control with electronic display; real push buttons

Speed settings3 stages + intensive setting; automatic reset from intensive to normal after 6 min

Max. air extraction (exhaust)570 m³/h (maximum air flow 570 m³/h)

Boost position air extraction645 m³/h

Max. air recirculation560 m³/h

Boost position output recirculating628 m³/h

Noise level (max)66 dB(A) re 1pW

Number of lights2 × 1 W LED

Light colour temperature4000 K

Light intensity400 lux

Motor typeCapacitor motor

Grease filter1 metal grease filter; washable aluminium; removable and dishwasher–safe

Grease Filtering Efficiency Class*D*

Energy Efficiency Class*B (range of classes from A+++ to D)

Average energy consumption*75.2 kWh/year*

Blower Efficiency Class*C*

Lighting Efficiency Class*A*

Diameter of air outlet150 / 120 mm (Diameter pipe Ø 150 mm, Ø 120 mm enclosed)

Back–pressure flapYes

Length of electrical supply cord150 cm (electrical cable length 1.5 m)

Connection rating / Power rating252 W

Fuse protection3 A

Voltage220–240 V (nominal voltage 220–240 V)

Frequency60; 50 Hz

Plug typeGB plug

EAN code4242005475605

Sustainability featuresEnvironmentally friendly packaging; regenerative Long Life odour filter with 10 years lifetime (optional)

Downloads

Download product documentation, manuals, and specification sheets.

DLN56AC60B Spec

PDF

Frequently Asked Questions

Can this cooker hood be used in both ducted and recirculating modes?

Yes. The canopy hood is suitable for ducted or recirculating operation. For recirculated extraction, various recirculation kits are available as optional accessories.

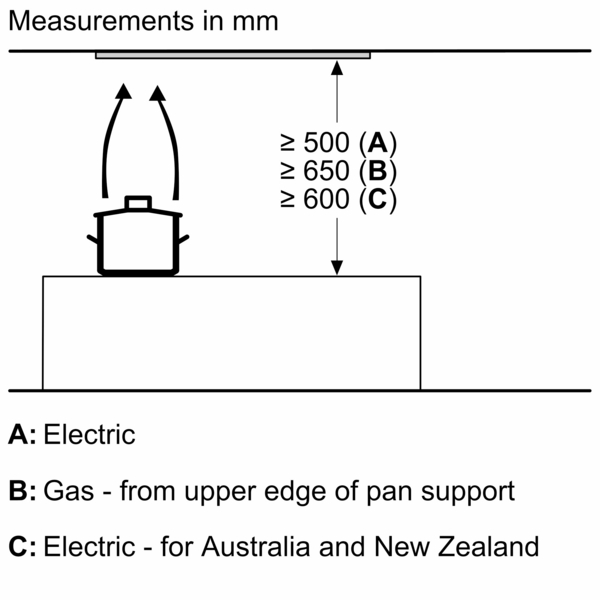

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 500 mm, and the minimum distance above a gas hob is 650 mm.

How many speed settings does the hood have?

The hood has 3 power levels plus an intensive setting. There is an automatic reset from the intensive to the normal setting after 6 minutes.

Are the grease filters washable?

Yes. The hood includes 1 metal grease filter made from washable aluminium. The removable metal grease filters are dishwasher–safe.

What type of lighting does this cooker hood use?

It uses 2 × 1 W LED lights with a colour temperature of 4000 K and light intensity of 400 lux, providing clear and bright illumination for the hob area.

What is the energy efficiency rating of the hood?

The hood has an Energy Efficiency Class B (on a scale from A+++ to D), with an average energy consumption of 75.2 kWh/year*.
