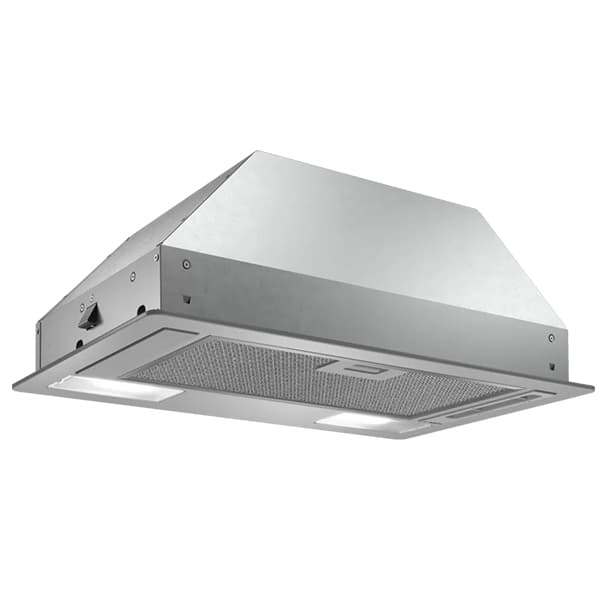

Bosch Serie 2 DLN53AA70B Canopy Hood

The DLN53AA70B Series 2 53 cm grey canopy cooker hood is a built-in solution designed to be fully integrated for greater flexibility when planning your kitchen. It offers quiet extraction with powerful performance, with a maximum extraction rate of 302 m³/h and 3 power levels to match your cooking needs. Energy-saving LED illumination provides bright, clear lighting for the hob area, while a dishwasher-safe washable aluminium metal grease filter supports easy maintenance.

SKU:DLN53AA70B

EAN:4242005095391

Category::Cooker Hoods

Quantity:

Key Features

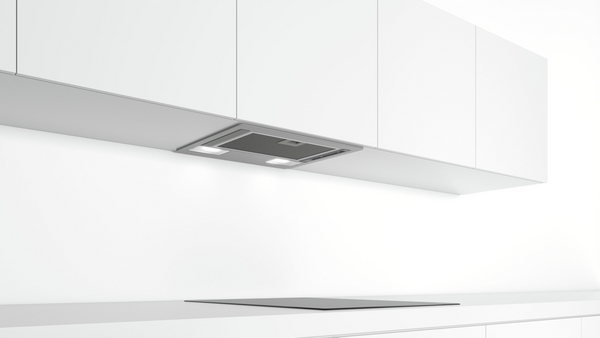

Fully integrated canopy design – designed to be fully integrated for more flexibility when planning your kitchen.

Quiet extraction with powerful performance – high extraction rate for continuously clean air in the kitchen.

Max. extraction rate 302 m³/h – extraction rate according to EN 61591 up to 302 m³/h.

Energy-saving LED illumination – 2 × 3 W LED lights with 2700 K colour temperature provide bright and clear lighting for the hob area.

Dishwasher-safe metal grease filter – 1 removable washable aluminium metal grease filter cassette.

3 power levels – adjust the extraction intensity according to your cooking needs using slider switch control.

Suitable for ducted or recirculating operation – can be used with ducted extraction or recirculation (recirculating kit needed for recirculated operation).

Mechanical slider switch control – slider switch control for extractor speeds and light.

Energy Efficiency Class D – at a range of energy efficiency classes from A+++ to D, with average energy consumption of 67.7 kWh/year*.

Noise level 62 dB(A) – noise max. normal level at maximum normal setting: 62 dB(A) re 1 pW.

Compact 53 cm width – designed for a 53 cm canopy installation with built-in dimensions of 208 × 493 × 257 mm (HxWxD).

Standard accessories and options – compatible with optional DWZ0IN0A0 standard odour filter (replacement) and DWZ0IN0T0 / DWZ0IN0A0 recirculating kits.

Lighting efficiency and filtration classes – Lighting Efficiency Class D*, Grease Filtering Efficiency Class D*, Blower Efficiency Class E*.

Technical Spec

Product seriesSeries 2

Product typeCanopy cooker hood

ModelDLN53AA70B

ColourGrey

Width53 cm (canopy hood)

Typology / installationBuilt-in / Built-under; Installation typology: Built-in; Installation: integrated; Canopy hood

Energy Efficiency ClassD (at a range of energy efficiency classes from A+++ to D)

Max. air extraction302 m³/h (extraction rate according to EN 61591: max. 302 m³/h)

Max. air recirculation300 m³/h

Maximum air flow302 m³/h

Noise level62 dB(A) re 1 pW (Noise, max. speed in normal use: 62 dB*; 48 dB(A) re 20 µPa sound pressure at maximum normal setting)

Number of speed settings3 power levels; Number of speed settings: 3

Control typeMechanical; slider switch control for extractor speeds and light; Type of control: Mechanical; Slider switch control

MotorSingle motor

Lighting2 × 3 W LED; Colour temperature: 2700 K; LED illumination; Light intensity: 78 lux; Lighting Efficiency Class: D*

Number of lights2

Grease filter1 removable metal grease filter cassette; Grease filter material: washable aluminium; Grease Filtering Efficiency Class: D*

Blower Efficiency ClassE*

Average energy consumption67.7 kWh/year*

Electrical connection ratingConnection rating: 121 W; Power rating: 121 W

Voltage220–240 V

Frequency50 Hz

Fuse protection5 A

Plug typeGB plug

Length of electrical supply cord150 cm; Electrical cable length 1.5 m

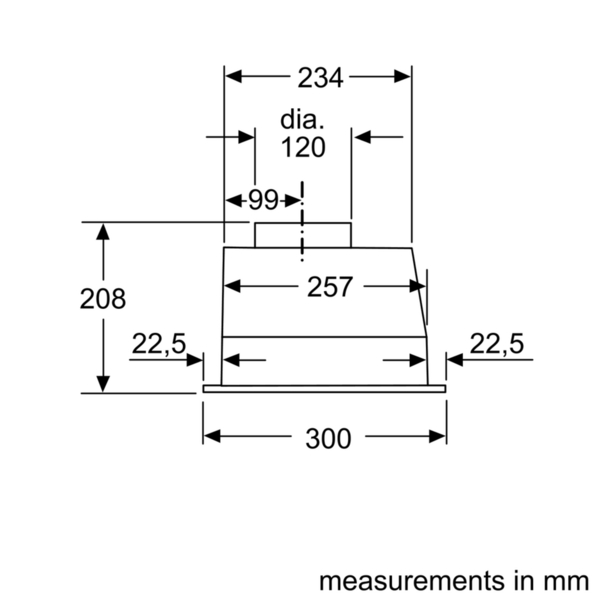

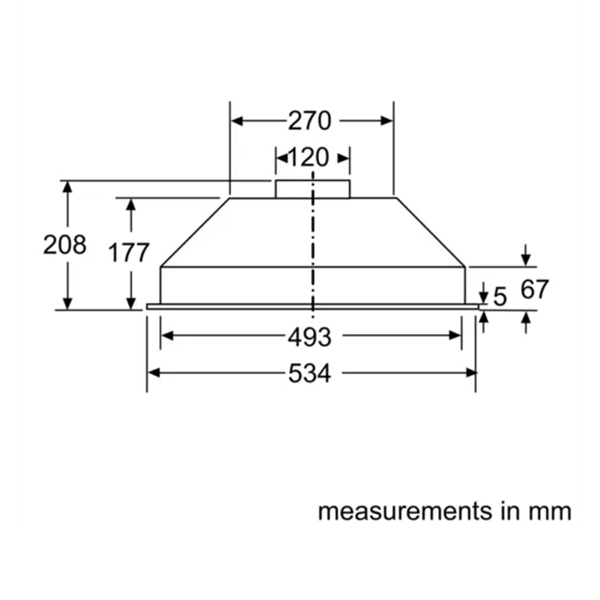

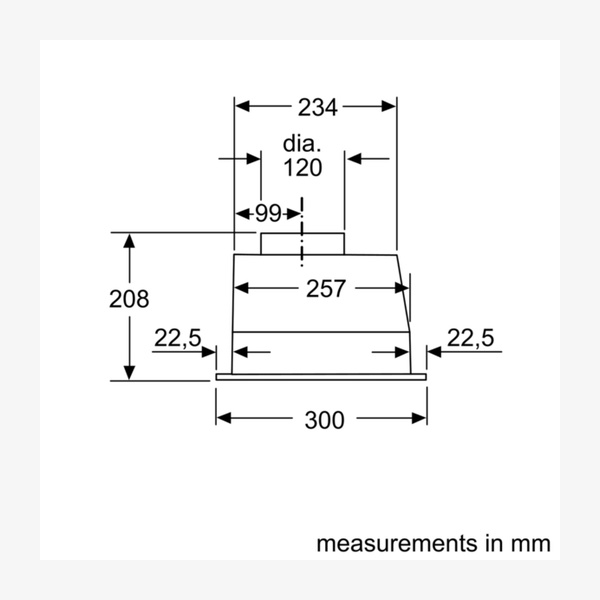

Dimensions – exhaust air (HxWxD)208–208 × 534 × 300 mm

Dimensions – recirculating (HxWxD)208–208 × 534 × 300 mm

Built-in dimensions (HxWxD)208 mm × 493.0 mm × 257 mm; Built-in dimensions (HxWxD): 208 × 493 × 257 mm

Height of the appliance208 mm

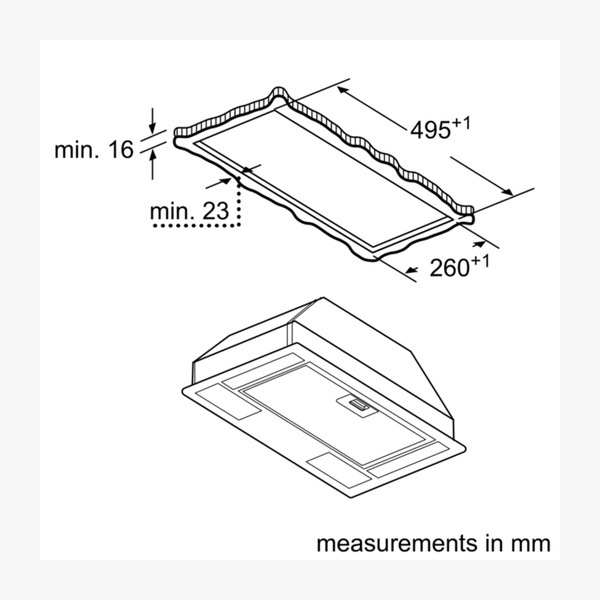

Required niche size (HxWxD)208 mm × 493.0 mm × 257 mm

Minimum distance above electric hob500 mm (Electric min. 500 mm / 550 mm indicated in diagrams)

Minimum distance above gas hob650 mm (Gas min. 650 mm)

Net weight5.0 kg

Diameter of air outlet / pipe120 mm; Diameter pipe Ø 120 mm (Ø 120 mm enclosed)

Operation typeSuitable for ducted or recirculating operation; For recirculated extraction recirculating kit (accessory) needed

Optional accessoriesDWZ0IN0A0 standard odour filter (replacement); DWZ0IN0T0 standard recirculation kit; Recirculating kit DWZ0IN0A0

EAN code4242005095391

Downloads

Download product documentation, manuals, and specification sheets.

DLN53AA70B Spec

PDF

Frequently Asked Questions

What type of installation is the DLN53AA70B suitable for?

The DLN53AA70B is a built-in / built-under canopy cooker hood designed for integrated installation. It is described as a canopy hood with installation typology built-in and is designed to be fully integrated for more flexibility when planning your kitchen.

Can this cooker hood be used in recirculating mode?

Yes. The hood is suitable for ducted or recirculating operation. For recirculated extraction, a recirculating kit (accessory) is needed. Optional accessories include recirculating kits DWZ0IN0T0 and DWZ0IN0A0, as well as the DWZ0IN0A0 standard odour filter (replacement).

What are the minimum installation heights above the hob?

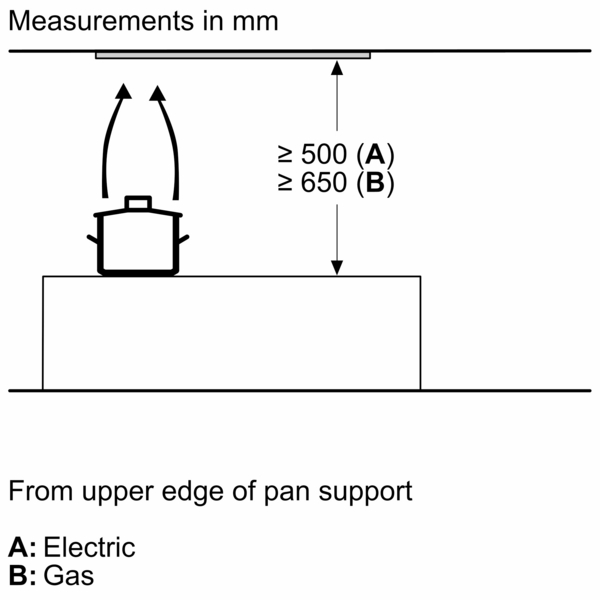

The specified minimum distance above an electric hob is 500 mm, and the minimum distance above a gas hob is 650 mm. Diagrams also indicate electric minimum distances of 500 mm and 550 mm and gas minimum distance of 650 mm, measured from the upper edge of the pan support.

How loud is the DLN53AA70B during normal use?

The noise max. normal level at maximum speed in normal use is 62 dB. According to EN 60704-3 and EN 60704-2-13, the noise level at the maximum normal setting is 62 dB(A) re 1 pW, with 48 dB(A) re 20 µPa sound pressure.

How is the lighting configured on this cooker hood?

The hood uses LED illumination with 2 × 3 W LED lights. The colour temperature is 2700 K and the light intensity is 78 lux, providing bright and clear lighting for the hob area. Lighting Efficiency Class is D*.

Is the grease filter washable?

Yes. The hood includes 1 removable metal grease filter cassette made from washable aluminium. The filter is described as a dishwasher-safe metal grease filter.
