Bosch Serie 6 KUW20VHF0G Winecellar

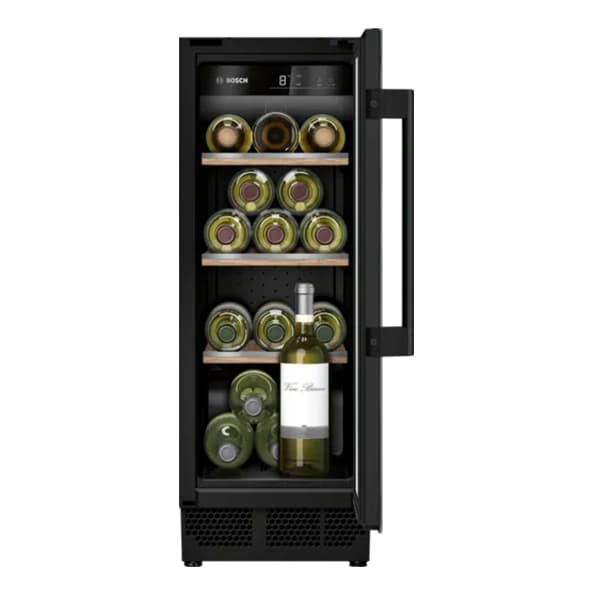

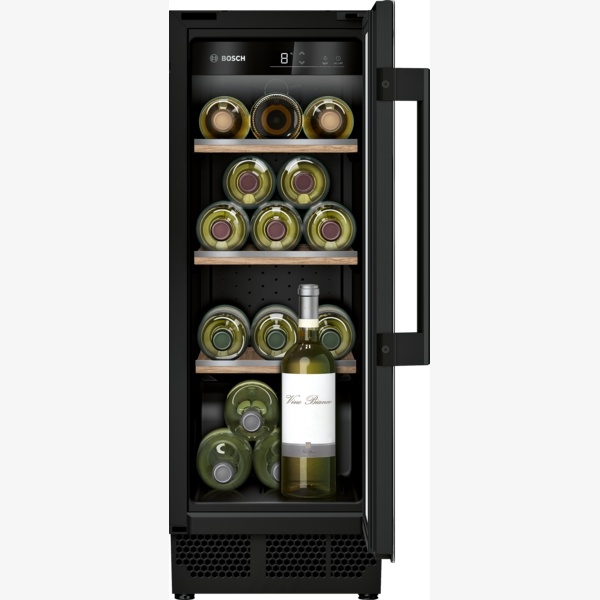

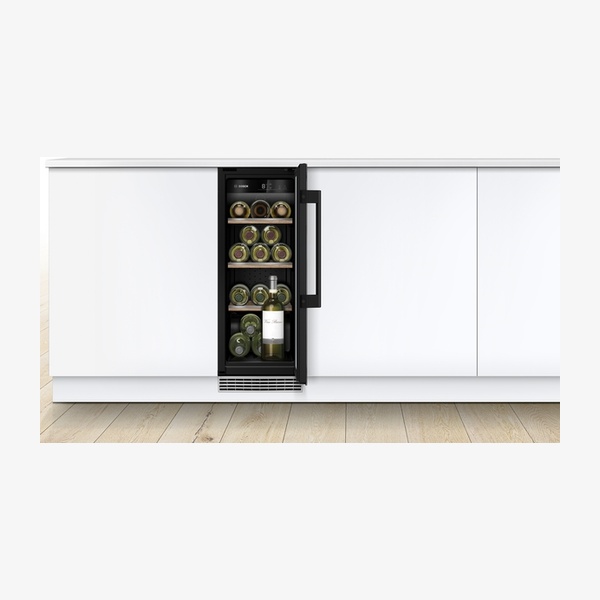

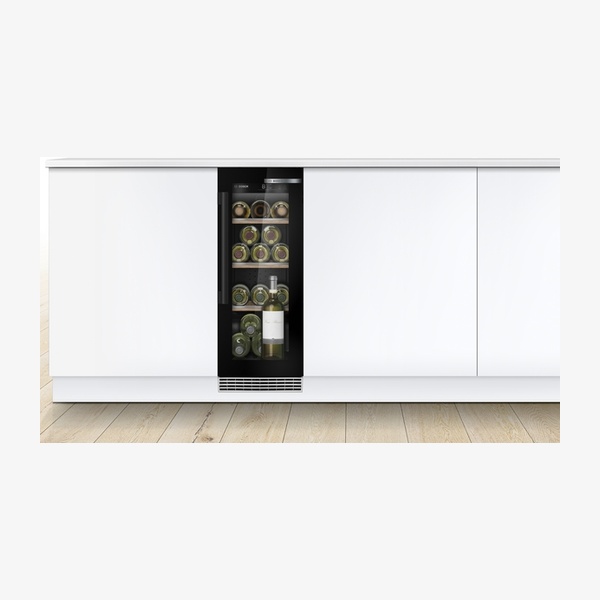

This Bosch Series 6 built-in wine cooler KUW20VHF0G is a 30 cm wide built-under wine storage cabinet designed to hold up to 21 bottles at perfect drinking temperature. With an adjustable temperature range from 5°C to 20°C, triple glazed door with UV filter and LED lighting with presentation mode, it is intended exclusively for the storage of wine. A reversible right hinged door and variable plinth adaptation support flexible built-in installation.

SKU:KUW20VHF0G

EAN:4242005265794

Category::Wine Cellars

Quantity:

Key Features

Capacity for up to 21 bottles – wine cabinet with space to store up to 21 bottles at perfect drinking temperature.

Adjustable temperature 5–20°C – enjoy wine at the preferred drinking temperature with a single temperature zone.

Built-under 30 cm wine cabinet – built-in, 30 cm wide appliance with ventilation in the plinth and variable plinth adaptation.

Triple glazed glass door with UV filter – glass door construction with UV filter for wine storage.

LED light with Soft Start – LED illumination with Soft Start plus presentation lighting mode.

Presenter lighting – LED light with presentation mode offers attractive illumination for the wine cabinet.

Reversible right hinged door – right hinged door that can be reversed to the side preferred.

Child lock – appliance features a child lock.

Low noise operation – airborne acoustical noise emissions of 38 dB(A) re 1pW, noise emission class C.

Dedicated wine storage use – intended to be used exclusively for the storage of wine.

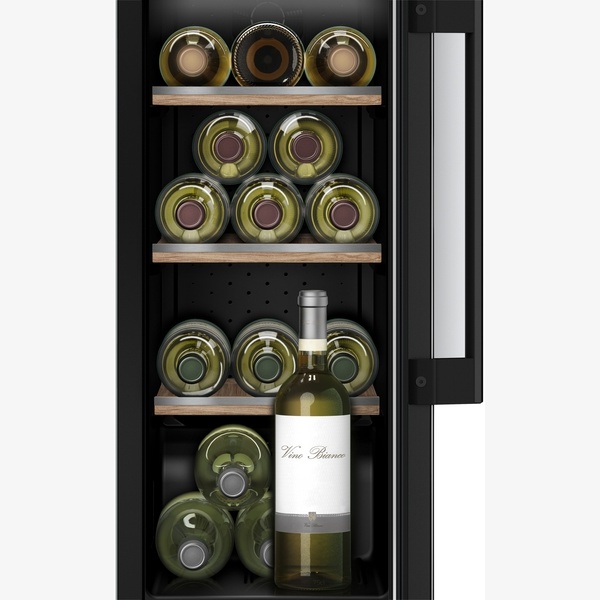

Four bottle shelves – 4 bottle shelves for 0.75 l bottles with 3 wooden grills and standard shelf design.

Interior ventilator – interior ventilator included for the wine storage cabinet.

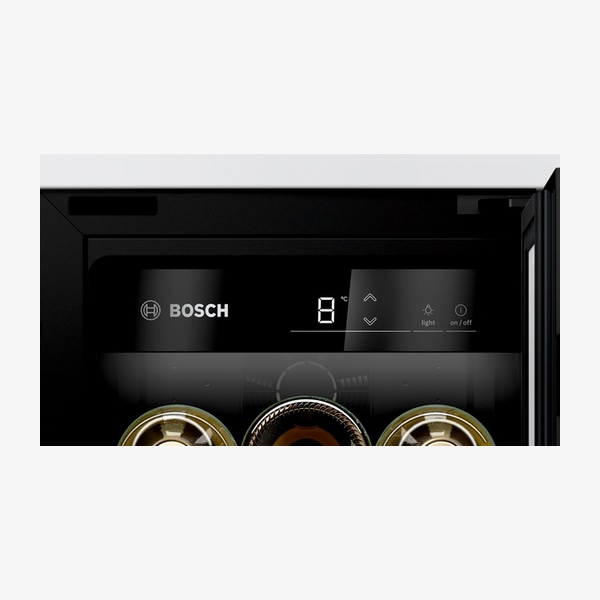

Optical and acoustical signals – optical and accoustical functions are provided.

Energy efficiency class F – energy efficiency class F with annual energy consumption of 100 kWh/a.

Total volume 58 l – total and net fridge volume of 58 l with net freezer volume of 0 l.

Technical Spec

BrandBosch

SeriesSeries 6

Product name / Commercial codeKUW20VHF0G

Product categoryWinestorage

Appliance typeWine storage cabinet, Built-under appliance, Built-in fridge

InstallationBuilt-in / Built-under

Door panel optionsNot possible

Capacity of 75 cl bottles21

Total volume58 l

Net fridge volume58 l

Net freezer volume0 l

Number of temperature zones1

Temperature range5–20 °C

Energy efficiency classF (EU19_EEK_D: F; scale from A to G)

Annual energy consumption100 kWh/annum (100 kWh/a)

Climate classSN-ST

Airborne acoustical noise emissions38 dB(A) re 1pW

Noise emission classC (EU19_Noise emission class_D: C)

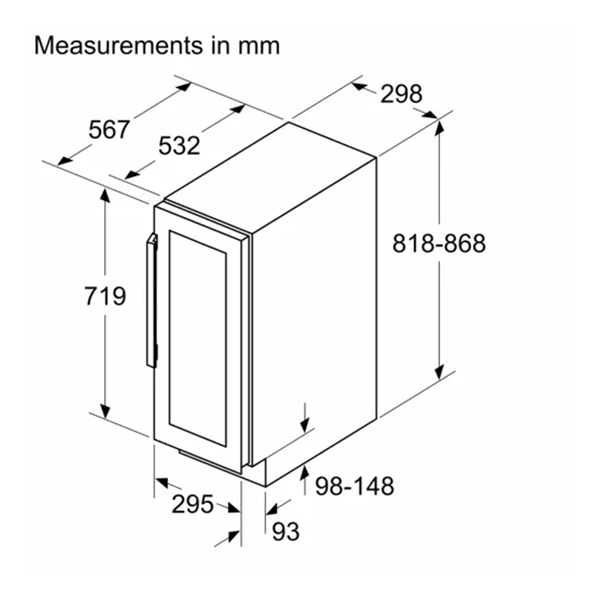

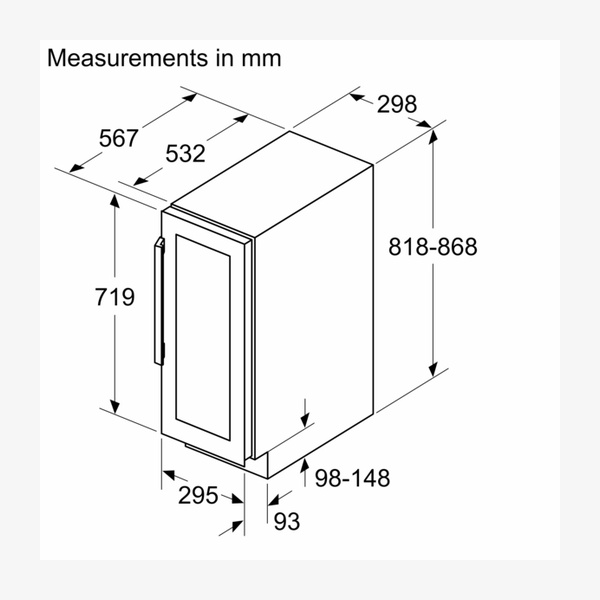

Height818 mm (81.8 cm)

Width298 mm (29.8 cm)

Depth567 mm (56.7 cm)

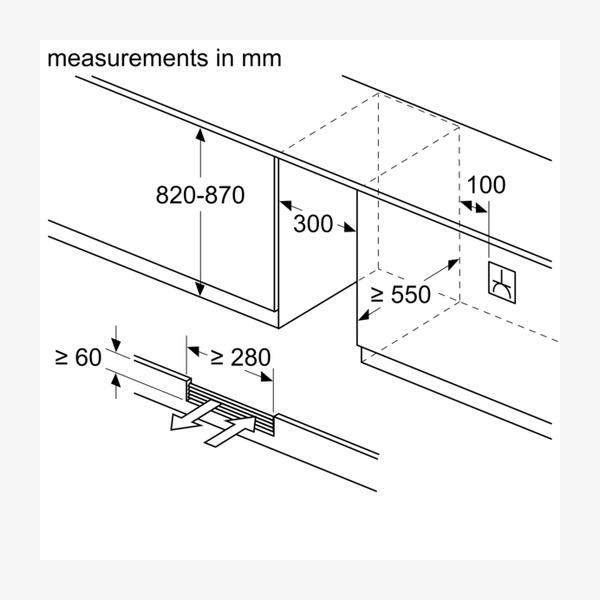

Required niche size (HxWxD)820 x 300 x 550 mm (82 cm H x 30 cm W x 55 cm D)

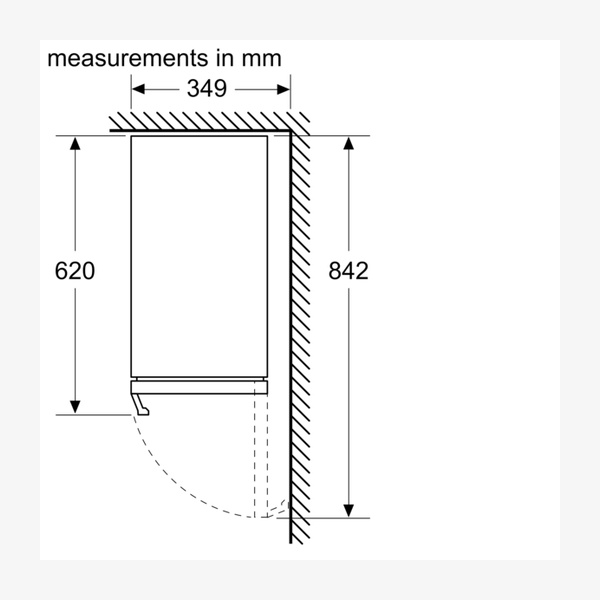

Door aperture angle115°

Reversible door hingeYes – right hinged door, door reversible

Lockable applianceNo

Glass doorGlass, triple glazed door, UV-filter

IlluminationLED with Soft Start, Illumination on/off: Yes, Presenter Lighting: Yes

Interior light switchNo

Number of bottle shelves4 PC bottle shelves for 0,75 l

Wooden grills in fridge3 PC

Design of shelvesStandard shelf

VentilationVentilation in plinth, plinth size can be varied, Variable plinth adaption

Interior ventilatorYes

Child lockChild lock

Optical and acoustical functionsOptical and accoustical

Net weight27.0 kg

Connection rating70 W

Fuse protection6 A

Voltage220–240 V

Frequency50–60 Hz

Length of electrical supply cord230.0 cm

Plug typeGB plug

Number of compressors1

Number of independent cooling systems1

Fast freezer facilityEU19_Fast freezer facility_D

EAN code4242005265794

Intended useThis appliance is intendend to be used exclusively for the storage of wine.

Downloads

Download product documentation, manuals, and specification sheets.

KUW20VHF0G Spec

PDF

Frequently Asked Questions

How many wine bottles can this cooler store?

The wine cabinet has space to store up to 21 bottles of 75 cl at perfect drinking temperature, with a total and net fridge volume of 58 l.

What is the temperature range of the wine cooler?

The appliance has one temperature zone with an adjustable temperature range between 5°C and 20°C.

Is the door reversible on the KUW20VHF0G?

Yes. The appliance has a right hinged door and the door is reversible, so it can be moved to the side preferred. The door aperture angle is 115°.

What are the installation dimensions for this built-under wine cabinet?

The required niche size for installation is 820 x 300 x 550 mm (82 cm H x 30 cm W x 55 cm D). The appliance dimensions are 81.8 cm H x 29.8 cm W x 56.7 cm D.

What is the noise level during operation?

The airborne acoustical noise emissions are 38 dB(A) re 1pW, with a noise emission class of C.

Is this appliance suitable for storing food or only wine?

This appliance is intendend to be used exclusively for the storage of wine.
