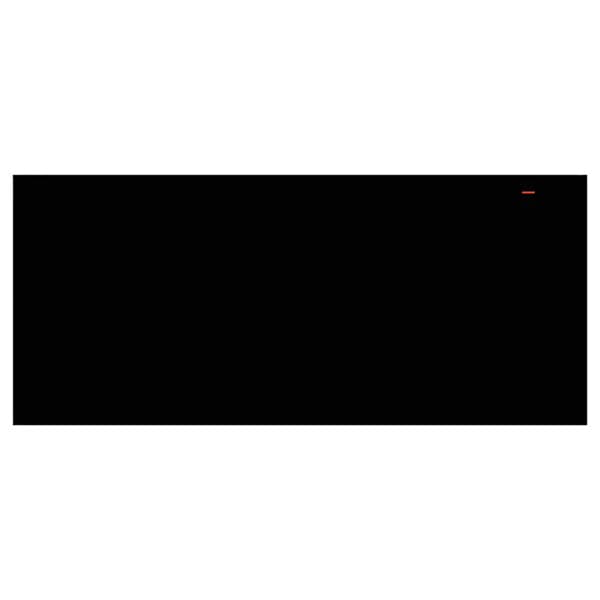

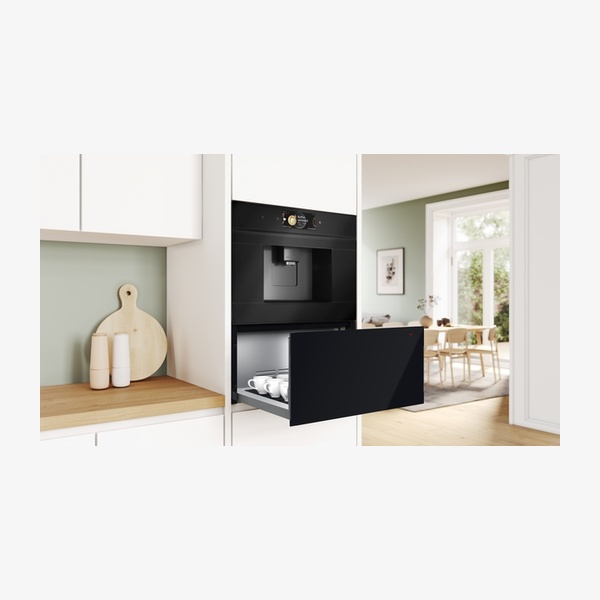

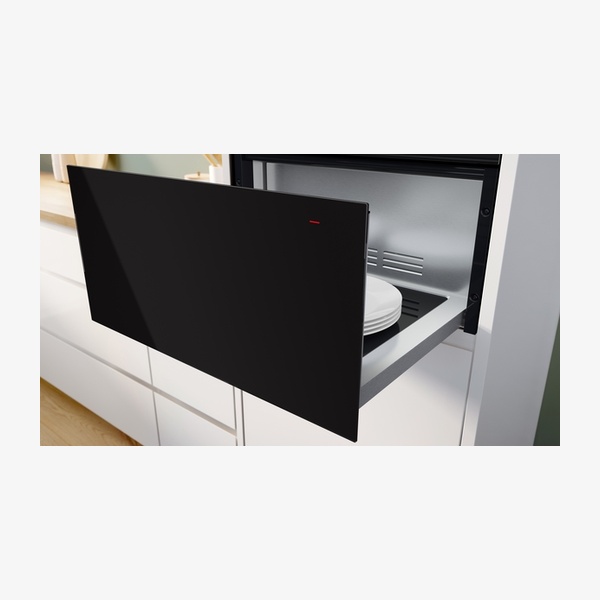

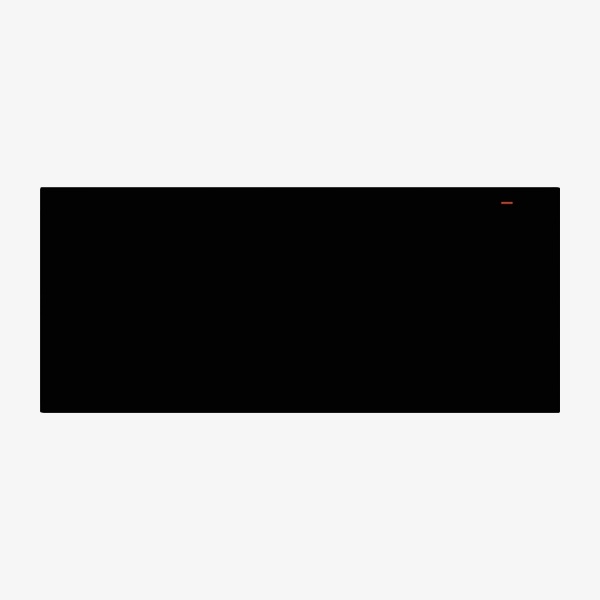

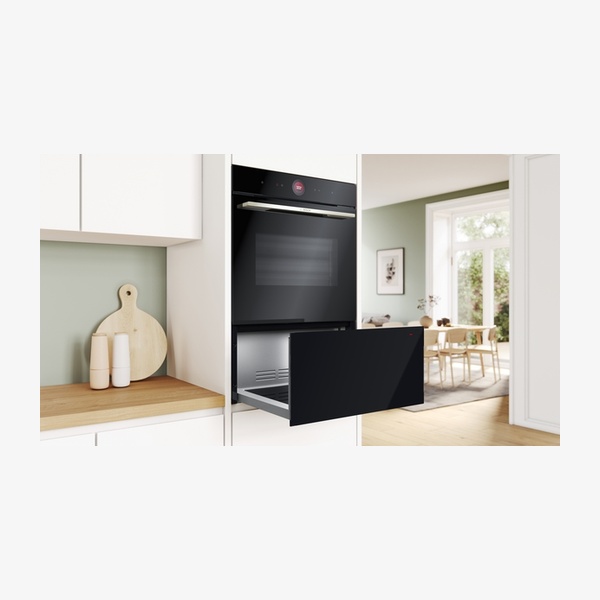

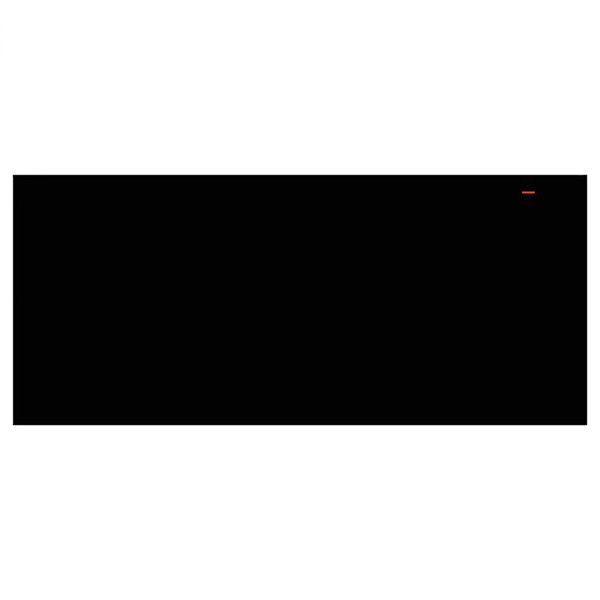

Bosch BID7101B1B Warming Drawer

The Series 8 built–in warming drawer BID7101B1B in black is designed for seamless integration in a 60 x 29 cm niche. It features user–friendly illuminated touch controls with steel trim and an easy to clean toughened glass heating plate. With a 54 l cavity volume, loading up to 25 kg and space for up to 40 plates or 192 espresso cups, it offers 4 temperature levels from approximately 30°C to 80°C and a convenient push–pull opening mechanism.

SKU:BID7101B1B

EAN:4242005323029

Category::Warming Drawers

Quantity:

Key Features

Series 8 built–in warming drawer in black, 60 x 29 cm, model BID7101B1B.

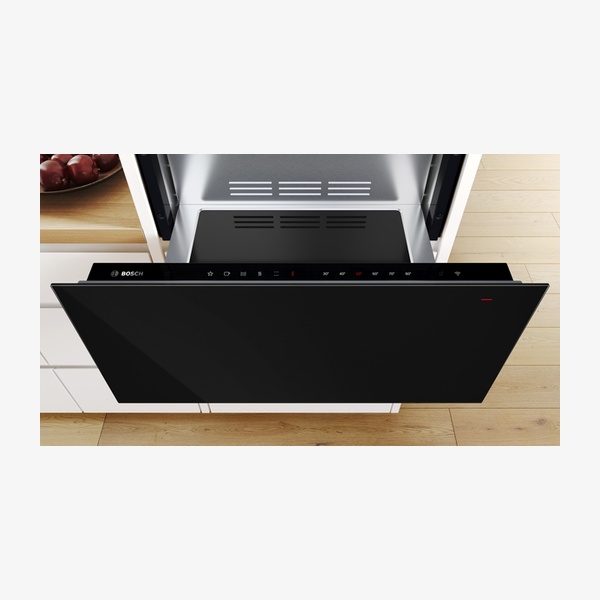

Illuminated touch control with steel trim for extremely easy and comfortable operation.

Easy to clean toughened glass heating plate for convenient maintenance.

Generous 54 l cavity volume with loading capacity up to 25 kg.

High capacity storage accommodating up to 40 plates or 192 espresso cups.

4 temperature levels with glass surface temperature of approximately 30°C – 80°C.

Push–pull opening mechanism for easy opening and closing via a clever spring mechanism.

Built–in design requiring a niche height of 290 mm and width of 560 mm – 568 mm.

Total connected load electric 0.82 kW with nominal voltage 220 – 240 V.

GB plug with fuse protection 10 A and frequency 50; 60 Hz.

Optional accessory HEZ32WA00 wireless food thermometer.

Technical Spec

Product seriesSeries 8

Product typeBuilt–in warming drawer

Model designationBID7101B1B

ColourBlack

Built–in / Free–standingBuilt–in

Cavity volume54 l

Maximum loading capacityLoading up to 25 kg

Maximum number of espresso cups192

Maximum number of plates40 plates

Temperature control4 levels, ca. 30°C – 80°C (glass surface temperature)

Control typeTouch Control illuminated with steel trim

Heating plateEasy to clean toughened glass heating plate

Opening mechanismPush–pull opening mechanism with clever spring mechanism

Appliance dimensions (H x W x D)290 mm x 594 mm x 518 mm

Dimensions290 x 594 x 518 mm

Dimensions of packed product (H x W x D)400 x 650 x 700 mm

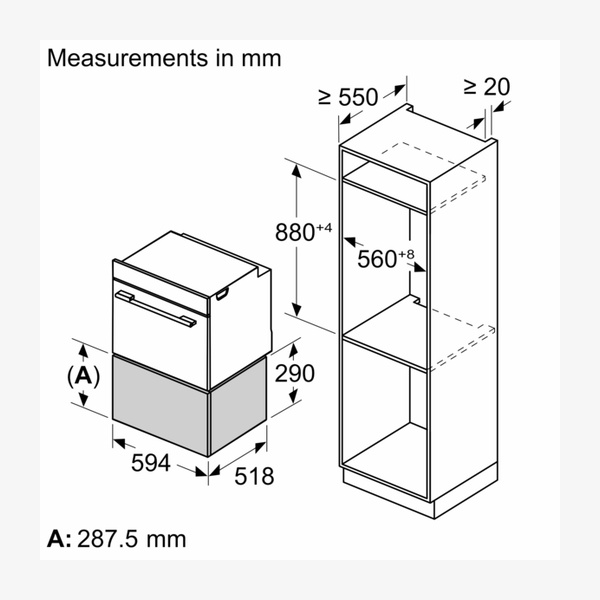

Required niche size for installation (H x W x D)290 x 560 x 550 mm

Niche dimension (H x W x D)290 mm x 560 mm – 568 mm x 550 mm

Installation noteIn case of installation under the worktop, installation accessory spare part no. 9001698838 is needed.

Total connected load electric0.82 kW

Nominal voltage220 – 240 V

Voltage220 – 240 V

Frequency50; 60 Hz

Fuse protection10 A

Plug typeGB plug

EAN code4242005323029

Installation and ventilation“For details on installation and ventilation requirements – please refer to the installation manual prior to fitting.”

Optional accessoriesHEZ32WA00 wireless food thermometer

Downloads

Download product documentation, manuals, and specification sheets.

BID7101B1B Spec

PDF

Frequently Asked Questions

What are the dimensions of the BID7101B1B warming drawer?

The appliance dimensions are 290 mm x 594 mm x 518 mm (H x W x D). The required niche size for installation is 290 x 560 x 550 mm, and the niche dimension is specified as 290 mm x 560 mm – 568 mm x 550 mm.

How many plates and cups can the warming drawer hold?

The warming drawer can accommodate up to 40 plates and up to 192 espresso cups, with a maximum loading capacity of 25 kg.

What temperature range does the drawer offer?

The temperature control has 4 levels, with a glass surface temperature of approximately 30°C to 80°C.

Is any special accessory required for installation under a worktop?

In case of installation under the worktop, installation accessory spare part no. 9001698838 is needed.

What electrical connection does the warming drawer require?

The total connected load electric is 0.82 kW. The nominal voltage is 220 – 240 V with frequency 50; 60 Hz, fuse protection 10 A and a GB plug.

Is there an optional accessory available?

An optional accessory listed is the HEZ32WA00 wireless food thermometer.
