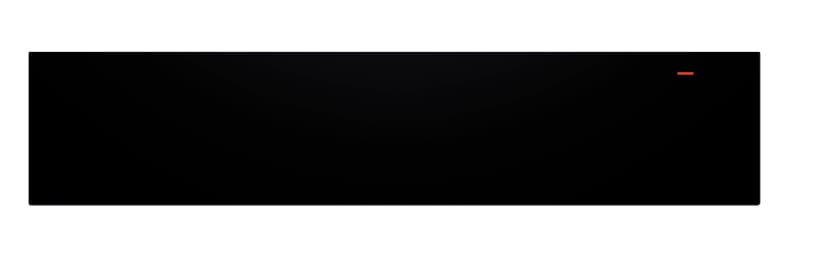

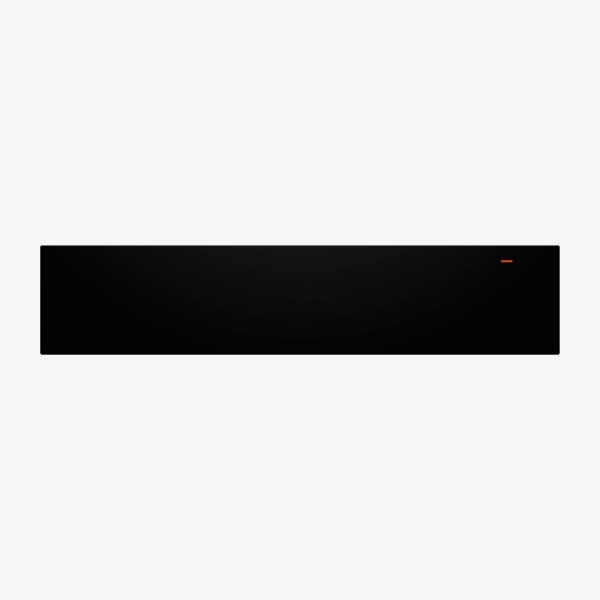

Bosch Series 8 BIC7101B1B Warming Drawer

The Series 8 BIC7101B1B is a 60 x 14 cm built-in warming drawer in black, designed for integrated kitchen installations. It features touch control with steel trim, a push-pull opening mechanism and user-friendly electronics for extremely easy operation. With a 20 l cavity volume, up to 25 kg loading capacity and space for up to 12 plates or 64 espresso cups, it offers flexible, controllable warming with four temperature levels from approximately 30°C to 80°C.

SKU:BIC7101B1B

EAN:4242005322978

Category::Warming Drawers

Quantity:

Key Features

Built-in 60 x 14 cm warming drawer in black for integrated installation in kitchen furniture.

Touch Control with steel trim and user-friendly electronics for extremely easy and comfortable operation.

Push-pull opening mechanism for easy opening and closing thanks to a clever spring mechanism.

Easy to clean toughened glass heating plate for straightforward maintenance of the warming surface.

Cavity volume 20 l with loading capacity of up to 25 kg for dishes and tableware.

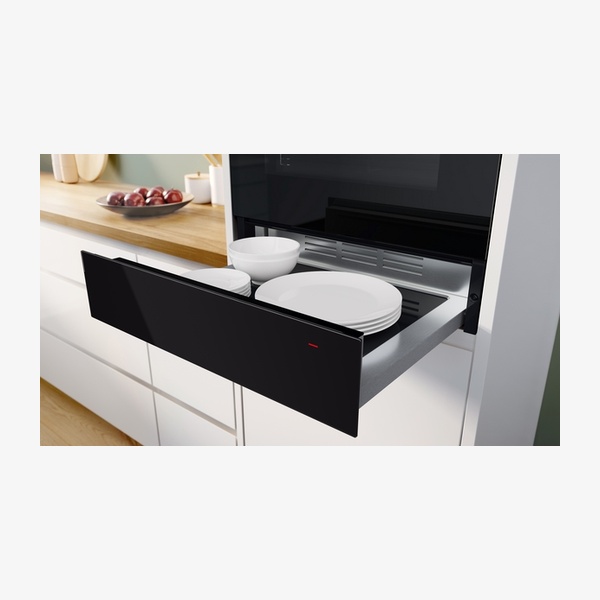

Generous loading capacity accommodating up to 12 plates or up to 64 espresso cups.

4-level temperature control with glass surface temperatures of approximately 30°C – 80°C.

Built-in design with appliance dimensions of 140 x 594 x 518 mm for seamless integration.

Flexible niche compatibility with niche dimensions of 140 x 560 x 550 mm and 140 x 560 mm – 568 mm x 550 mm stated.

Electric connected load 0.82 kW and nominal voltage 220 – 240 V for standard household power supply.

GB plug type with fuse protection of 10 A and frequency of 50; 60 Hz.

Series 8 model BIC7101B1B identified by EAN code 4242005322978.

Technical Spec

Product seriesSeries 8

Product typeBuilt-in warming drawer

Model designationBIC7101B1B

ColourBlack

Installation typeBuilt-in

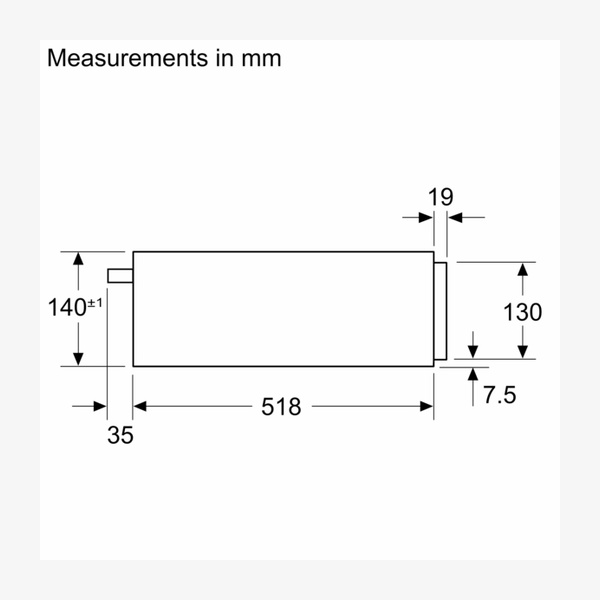

Appliance dimensions (H x W x D)140 mm x 594 mm x 518 mm

Dimensions stated140 x 594 x 518 mm

Packed product dimensions (H x W x D)250 x 660 x 700 mm

Niche dimensions (H x W x D)140 x 560 x 550 mm; 140 mm x 560 mm – 568 mm x 550 mm

Cavity volume20 l

Maximum loadingLoading up to 25 kg

Maximum number of espresso cups64

Maximum number of plates12 plates

Temperature control4 levels, approx. 30°C – 80°C (glass surface temperature)

Heating plateEasy to clean toughened glass heating plate

Control typeTouch Control illuminated with steel trim

Opening mechanismPush-pull opening mechanism

Total connected load electric0.82 kW

Nominal voltage220 – 240 V

Voltage stated220-240 V

Frequency50; 60 Hz

Fuse protection10 A

Plug typeGB plug

EAN code4242005322978

Additional Details and Installation

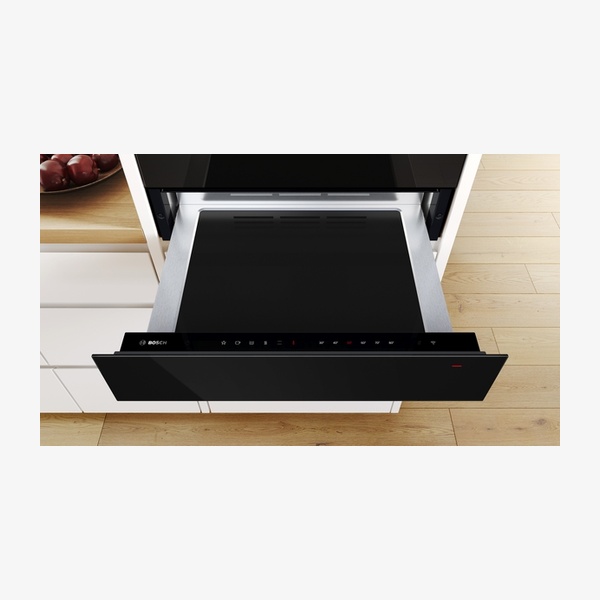

The warming drawer includes touch control with illuminated display and steel trim, supported by user-friendly electronics for extremely easy and comfortable operation. The toughened glass heating plate is designed to be easy to clean.

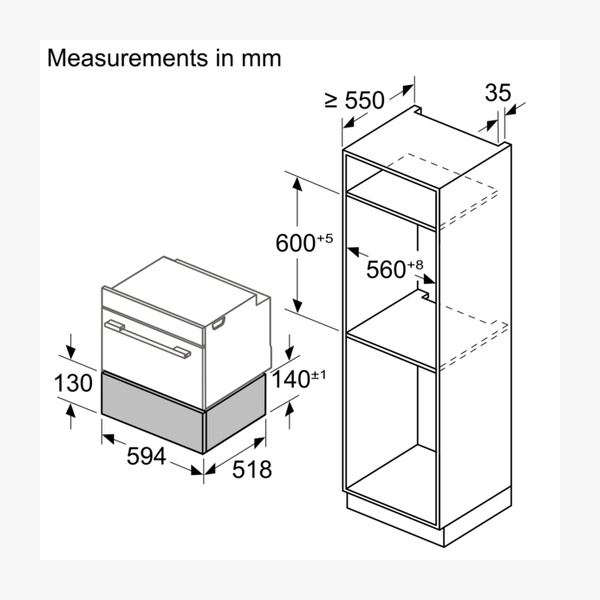

The appliance is suitable for built-in installation with a niche height of 140 mm and width of 560 mm – 568 mm, and a depth of 550 mm. For combined installation of some electrical appliances, support frames are required.

In case of installation under the worktop, installation accessory spare part no. 9001698838 is needed. For details on installation and ventilation requirements, the installation manual should be referred to prior to fitting.

Downloads

Download product documentation, manuals, and specification sheets.

BIC7101B1B Spec

PDF

Frequently Asked Questions

How many items can the warming drawer hold?

The warming drawer can accommodate up to 12 plates or up to 64 espresso cups, with a cavity volume of 20 l and a maximum loading capacity of 25 kg.

What temperature range does the warming drawer offer?

The warming drawer has temperature control in 4 levels, with glass surface temperatures of approximately 30°C to 80°C.

What are the installation dimensions for this model?

The appliance dimensions are 140 mm x 594 mm x 518 mm. The required niche size for installation is 140 x 560 x 550 mm, and niche dimensions of 140 mm x 560 mm – 568 mm x 550 mm are also specified.

What electrical connection does the warming drawer require?

The total connected electric load is 0.82 kW. It operates at a nominal voltage of 220 – 240 V, with a frequency of 50; 60 Hz, requires 10 A fuse protection, and uses a GB plug type.

Is any additional accessory needed for installation under a worktop?

In case of installation under the worktop, installation accessory spare part no. 9001698838 is needed.
