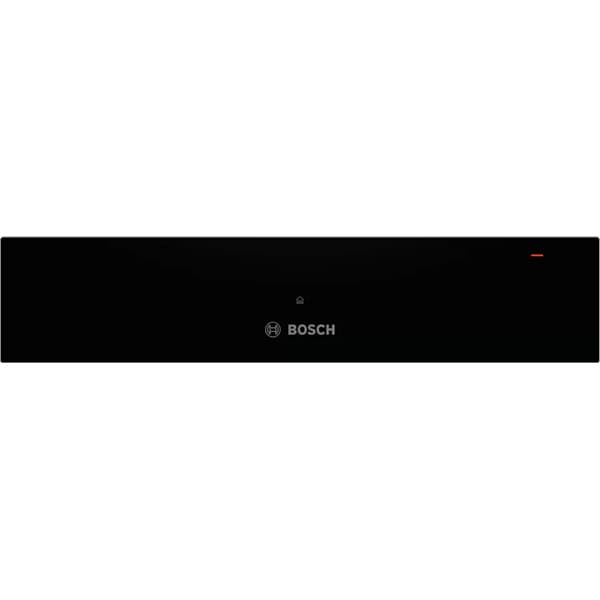

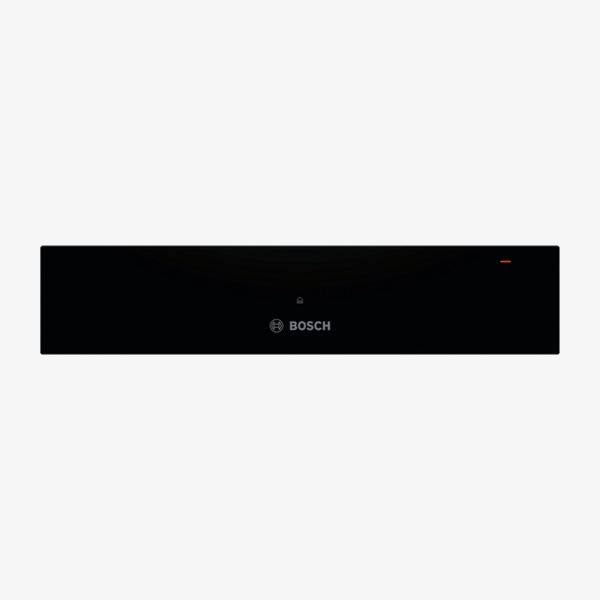

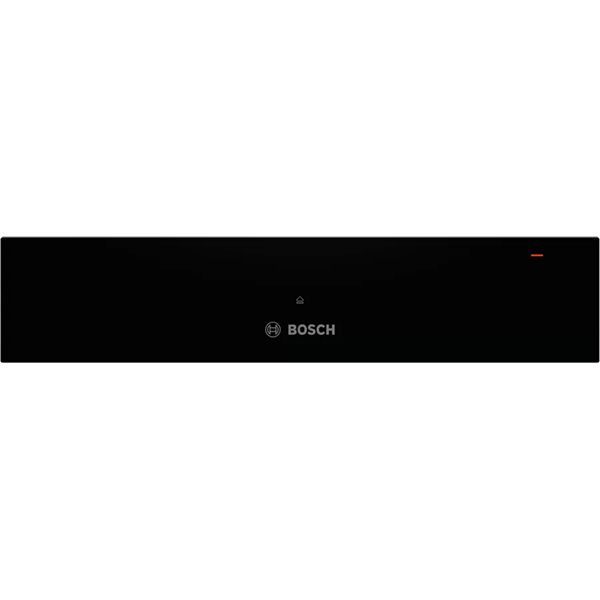

Bosch Serie 6 BIC510NB0 Warming Drawer

The Series 6 BIC510NB0 is a built-in warming drawer designed for a 14 cm niche, ideal for pre-heating plates and keeping food or drinks warm. With a stainless steel cavity, rotary dial with steel trim and a convenient push-pull opening mechanism, it offers user-friendly operation. It can hold up to 14 plates or 64 espresso cups, supports loading up to 15 kg and provides dedicated functions for tableware, yeast dough proving and thawing delicate foods.

SKU:BIC510NB0

EAN:4242005035403

Category::Warming Drawers

Quantity:

Key Features

Multifunction warming drawer for 14 cm niche – designed for pre-heating plates and keeping food warm.

Push-pull opening mechanism – easy opening and closing thanks to a clever spring mechanism.

Four versatile functions – keeping drinks and food warm, pre-warming tableware, yeast dough proving and thawing delicate foods.

Spacious loading capacity – can accommodate up to 14 plates or 64 espresso cups.

Robust load handling – loading of contents up to 15 kg.

Stainless steel cavity interior – durable cavity inner surface in stainless steel.

Rotary dial with steel trim – user-friendly electronics for extremely easy and comfortable operation.

Built-in installation – suitable as a built-in appliance with specified niche dimensions.

Included anti-slip mat – 1 × anti-slip mat helps keep items stable inside the drawer.

Optional adapter accessory – compatible with HEZG9AS00S adapter (optional).

23 l cavity volume – provides generous internal space for dishes and tableware.

Electric connected load 0.4 kW – total connected load electric: 0.4 kW.

Technical Spec

Product seriesSeries 6

Product typeBuilt-in warming drawer

ModelBIC510NB0

ColourBlack

Built-in / Free-standingBuilt-in

Cavity inner surfaceStainless steel

Cavity volume23 l

Maximum number of espresso cups64

Maximum number of plates14 plates

Maximum loading weightLoading up to 15 kg

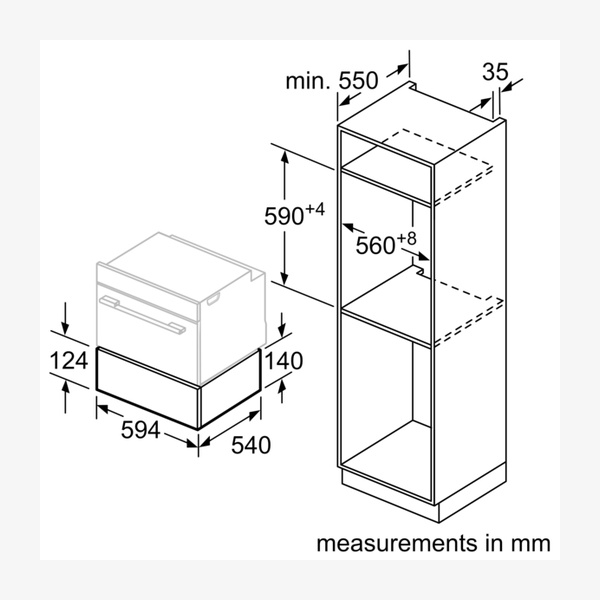

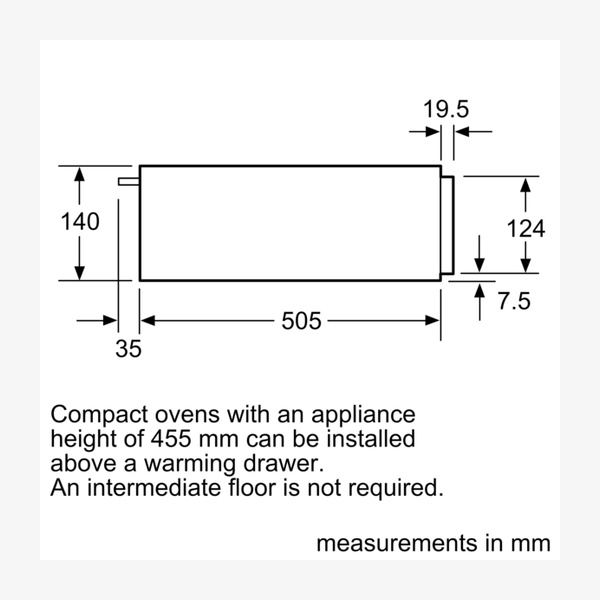

Appliance dimensions (H × W × D)140 mm × 594 mm × 540 mm

Niche dimensions (H × W × D)140 mm × 560 mm – 568 mm × 550 mm

Required niche size for installation (H × W × D)140 × 560 × 550 mm

Dimensions of packed product (H × W × D)210 × 660 × 660 mm

Total connected load electric0.4 KW

Nominal voltage220 – 240 V

Voltage220-240 V

Frequency60; 50 Hz

Fuse protection6 A

Plug typeGardy plug w/ earthing

Power cord length150 cm Cable length

EAN code4242005035403

Included accessories1 × anti-slip mat

Optional accessoriesHEZG9AS00S Adapter

Programmes, Functions and Installation Notes

Programmes and functions

Keeping drinks and food warm.
Pre-warming of tableware.
Yeast dough proving.
Thawing of delicate foods.

Controls and operation

The warming drawer is operated via a rotary dial with steel trim and user-friendly electronics for extremely easy and comfortable operation. A push-pull opening mechanism with a clever spring mechanism enables simple opening and closing.

Installation information

This appliance is designed for built-in installation in a 14 cm niche, with specified niche dimensions of 140 mm height, 560 mm – 568 mm width and 550 mm depth. For details on installation and ventilation requirements, please refer to the installation manual prior to fitting.

Downloads

Download product documentation, manuals, and specification sheets.

BIC510NB0 Spec

PDF

Frequently Asked Questions

What can this warming drawer be used for?

It offers four functions: keeping drinks and food warm, pre-warming of tableware, yeast dough proving and thawing of delicate foods. It is also described as suitable for pre-heating plates and keeping food warm.

How many items can the drawer hold?

The drawer can accommodate up to 14 plates or up to 64 espresso cups, with loading of contents up to 15 kg.

What are the installation dimensions for the niche?

The niche dimension is 140 mm × 560 mm – 568 mm × 550 mm. The required niche size for installation is 140 × 560 × 550 mm.

What accessories are included and what is optional?

The warming drawer comes with 1 × anti-slip mat included. The HEZG9AS00S adapter is available as an optional accessory.

What electrical connection does the appliance require?

It has a total connected load electric of 0.4 kW, operates at a nominal voltage of 220 – 240 V with a frequency of 60; 50 Hz, requires 6 A fuse protection and is supplied with a Gardy plug with earthing and a 150 cm cable length.
