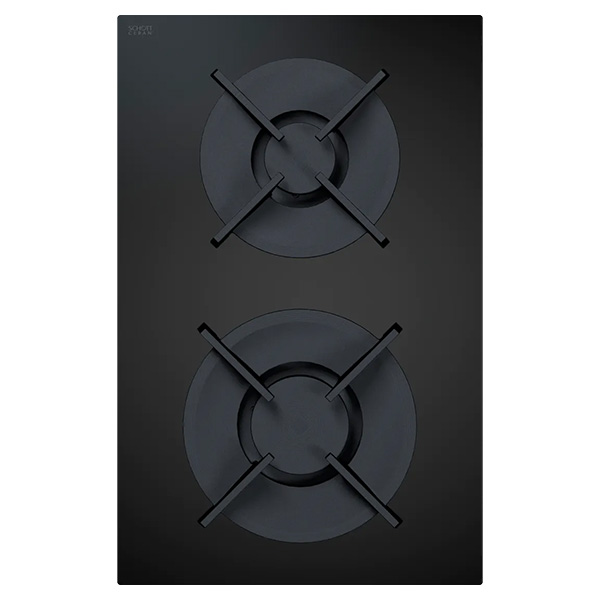

BORA CKG Classic 2.0 Domino Gas Hob

The BORA Classic gas cooktop CKG is a compact, glass ceramic gas hob designed for use with the modular BORA Classic 2.0 cooktop extractor system. It features intuitive touch controls on the extractor operating panel, a fully flush-mounted cooktop and extractor, and a minimalist design. With a sunken gas burner, precise electronic control and safety functions such as child lock and safety shut-down, it offers controlled gas cooking in a streamlined format.

SKU:CKG

EAN:4260326377415

Category::Hobs

Quantity:

Key Features

Gas cooktop for BORA Classic 2.0 – designed for the modular cooktop extractor system BORA Classic 2.0.

Intuitive touch controls – operation via the cooktop extractor operating panel.

Fully flush-mounted design – cooktop and extractor are fully flush-mounted.

Compact size – space-saving gas cooktop layout.

Minimalist design – clean, understated appearance.

Sunken gas burner – burner is recessed into the cooktop surface.

Automatic re-ignition – automatic re-ignition of the gas burner.

Dishwasher-safe pan supports – pan supports can be cleaned in a dishwasher.

Precise electronic control – accurate adjustment of cooking power levels.

Multiple power levels – cooktop power levels from 1–9 plus P.

High-power front burner – front cooking zone output 800–3000 W.

Normal rear burner – rear cooking zone output 550–2000 W.

Child lock – safety function to prevent unintended operation.

Residual heat indicator – shows remaining heat on the cooktop.

Overheating protection – safety protection against overheating.

Safety shut-down – automatic safety shut-down function.

Technical Spec

Product typeClassic gas cooktop CKG

System compatibilityModular cooktop extractor system BORA Classic 2.0

Supply voltage220–240 V

Frequency50–60 Hz

Maximum power consumption5000 W

Maximum power rating20 W

Fuse protection1 × 0.5 A

Mains supply cable length1.5 m

Dimensions (W × D × H)327 × 515 × 73 mm

Weight (incl. accessories/packaging)10.8 kg

Surface materialGlass ceramic

Cooktop power levels1–9, P

Front cooking zone sizeØ 240 mm

Rear cooking zone sizeØ 200 mm

Front cooking zone output800–3000 W (high-power burner)

Rear cooking zone output550–2000 W (normal burner)

Front pan support size270 × 270 × 25/50 mm

Rear pan support size235 × 235 × 25/50 mm

Gas connection1/2' internal thread

Minimum system software requirementSystem software 03.00 (or higher)

Required unit width (right of extractor)Unit width of 900 mm required if the gas cooktop is installed to the right of the cooktop extractor

Functions and Usage

Power setting
Cooking zone timer
Automatic heat-up function
Heat retention function
Pause function
Cleaning lock

Safety Features

Child lock
Residual heat indicator
Overheating protection
Safety shut-down

Scope of Delivery

Gas cooktop CKG, 2 × cast-iron grates, nozzle set for natural gas G20/20 mbar, mains supply cable, installation accessories.

Optional Accessories

BORA gas nozzle sets for natural gas: G20/10 mbar PKGDS2010, G20/13 mbar PKGDS2013, G20/20 mbar PKGDS2020, G25/20 mbar PKGDS2520, G20/25 mbar PKGDS2025, G25/25 mbar PKGDS2525.
BORA gas nozzle sets for liquid gas: G30/G31 28–30/37 mbar PKGDS3028, G30/G31 50 mbar PKGDS3050.
BORA burner set PKGBS.
BORA small pan support PKGTK / BORA large pan support PKGTG.

Installation and Planning Notes

Sufficient ventilation below the cooktop must be ensured (opening cross-section in unit front > 50 cm² / plinth area > 150 cm²).
The gas connection hose must be provided at the installation site.
Return flow aperture in the plinth area is required in recirculation mode (opening cross-section > 1000 cm² per air purification unit).
Local regulations and connection requirements applicable to gas cooktops must be noted.
Special guidelines regarding the installation and use of the gas cooktop must be observed (see operating and installation instructions).
Use with a cooktop extractor can influence the gas flame (depending on the cooktop extractor power level), performance characteristics (e.g. gas cooktop heating times, efficiency, etc.), heat input and heat distribution.
With installation versions with several cooktop extractors, the gas cooktop must be installed on one of the outer sides (never in the middle).

Downloads

Download product documentation, manuals, and specification sheets.

CKG Spec

PDF

Frequently Asked Questions

What system is the BORA Classic gas cooktop CKG designed for?

It is a gas cooktop for the modular cooktop extractor system BORA Classic 2.0.

What power levels are available on the cooktop?

The cooktop offers power levels from 1–9 plus a P setting.

What safety features does this gas cooktop include?

It includes a child lock, residual heat indicator, overheating protection and safety shut-down.

Are the pan supports dishwasher-safe?

Yes, the pan supports are described as dishwasher-safe.

What gas nozzle options are available?

There are BORA gas nozzle sets for natural gas (G20/10 mbar, G20/13 mbar, G20/20 mbar, G25/20 mbar, G20/25 mbar, G25/25 mbar) and for liquid gas (G30/G31 28–30/37 mbar, G30/G31 50 mbar), as well as a BORA burner set and optional pan supports.

What ventilation is required below the cooktop?

An opening cross-section in the unit front greater than 50 cm² and a plinth area greater than 150 cm² are required. In recirculation mode, a return flow aperture in the plinth area with an opening cross-section greater than 1000 cm² per air purification unit is required.
