Blanco Fontas-S Filter Pull Out Tap

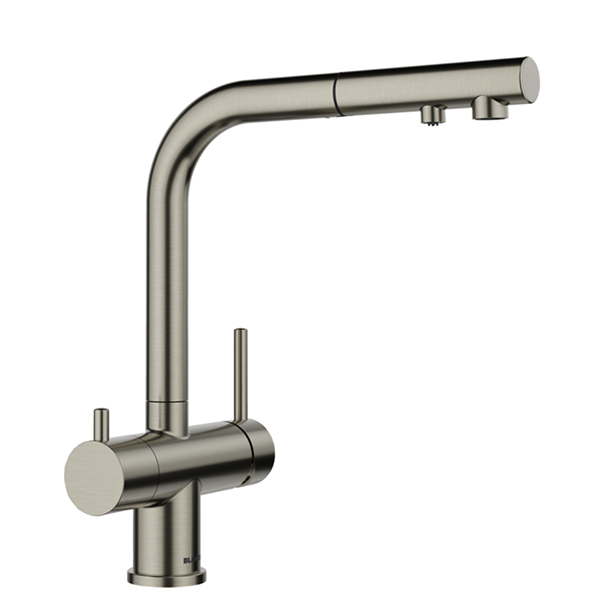

The FONTAS-S II Filter is a contemporary, versatile kitchen mixer tap designed for use with a BLANCO water filter system. It features separate outlets for drinking water and regular water to avoid mixing, a pull-out, extendable tap head for easier cleaning of large pots and around the sink, and a 360° swivel spout for a wide working radius, making it especially suitable for modern kitchens and island installations.

SKU:FONTASS11FILTERSATINPLAT

EAN:

Category::Taps

Quantity:

Key Features

Contemporary, versatile filter tap designed to complement modern kitchen spaces.

Separate outlets for drinking water and regular water so there is no mixing between filtered and unfiltered water.

Pull-out, extendable tap head ideal for cleaning large pots and reaching around the sink area.

360° swivelling spout provides a large working radius, particularly useful for kitchen islands.

Compatible with BLANCO water filter systems and needs to be installed with a BLANCO water filter system.

High pressure installation requiring a balanced high pressure supply with a minimum of 1.0 bar.

Flexible connector pipes supplied at 500 mm length with ⅜'' nut for connection.

Metal stabilising bracket can be fitted if required (item number 513383).

PVD satin platinum finish with additional available colours: PVD steel, satin dark steel and satin platinum.

360° swivel range for flexible positioning around the sink area.

Technical Spec

Item number527715

Product typeFilter mixer tap

Required tap hole diameterØ 35 mm tap hole required

Connector pipesFlexible connector pipes, 500 mm long and ⅜'' nut

Water pressure requirementRequires balanced high pressure supply only, minimum of 1.0 bar

Swivel range180°

Overall height306 mm

Base diameterØ 48 mm

Spout reach (front view)166 mm from centre (118 mm secondary dimension shown)

Spout projection (side view)216 mm to the outlet, with 181 mm front projection and 73 mm offset

Spout height270 mm to spout underside; 272 mm total height at front

Body depth37 mm body section, 6.5 mm indicated deck thickness

Maximum mounting depth below deckmax. 59 mm

Finish (shown)PVD satin platinum

Available coloursPVD steel; satin dark steel; satin platinum

Filter systemNeeds to be installed with a BLANCO water filter system (sold separately)

Stabilising bracketFit metal stabilising bracket if required, item number 513383

Additional Details and Installation

The FONTAS-S II Filter is intended for installation with a BLANCO water filter system, which is sold separately. Separate outlets ensure that drinking water and regular water do not mix, supporting dedicated filtered water use alongside everyday kitchen tasks.

A Ø 35 mm tap hole is required for mounting. The mixer tap is supplied with flexible connector pipes, 500 mm long, with ⅜'' nut connections, and requires a balanced high pressure supply with a minimum of 1.0 bar. A metal stabilising bracket (item number 513383) can be fitted if required to enhance stability.

The pull-out, extendable tap head and 360° swivelling spout offer excellent reach for cleaning large pots and accessing different areas around the sink, making the tap well suited to larger workspaces and kitchen islands.

Downloads

Download product documentation, manuals, and specification sheets.

FONTASS11FILTERSATINPLAT Spec

PDF

Frequently Asked Questions

Does the FONTAS-S II Filter mix drinking water and regular water?

No. The tap has separate outlets for drinking water and regular water, so there is no mixing between the two.

What type of water system is required for installation?

It requires a balanced high pressure supply only, with a minimum of 1.0 bar, and needs to be installed with a BLANCO water filter system.

Is the filter system included with the tap?

No. The filter system is sold separately. The tap needs to be installed with a BLANCO water filter system.

What colours are available?

The tap is shown in PVD satin platinum, and available colours are PVD steel, satin dark steel and satin platinum.

How much space is needed for installation on the worktop?

A Ø 35 mm tap hole is required, with a base diameter of Ø 48 mm and a maximum mounting depth below the deck of 59 mm indicated in the technical drawing.
