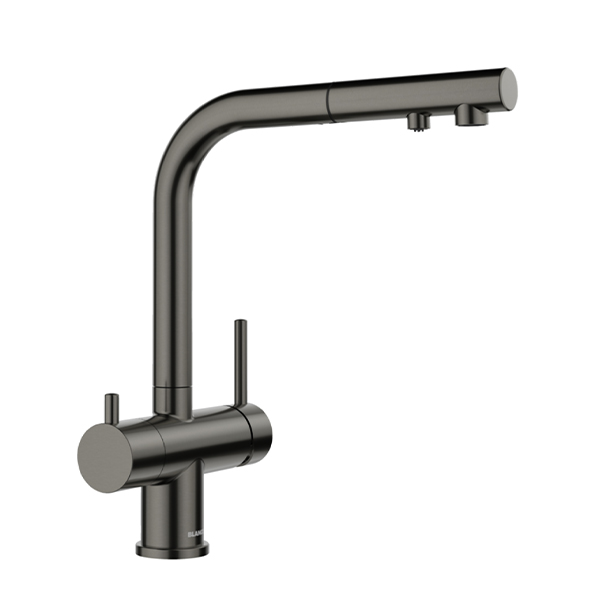

Blanco Fontas-S Filter Pull Out Tap

The FONTAS-S II Filter is a contemporary, versatile mixer tap designed for use with a BLANCO water filter system. It features separate outlets for drinking water and regular water, so there is no mixing, plus a pull-out, extendable tap head for cleaning large pots and around the sink. With a 360° swivelling spout for a large working radius and a stylish PVD satin dark steel finish, it is well suited to modern kitchen layouts, including islands.

SKU:FONTASS11FILTERSATINDSTEEL
EAN:
Category::Taps

Key Features

Contemporary, versatile filter tap designed to complement modern kitchen spaces.
Separate outlets for drinking water and regular water , ensuring there is no mixing between filtered and unfiltered water.
Pull-out, extendable tap head for easier cleaning of large pots and improved reach around the sink.
Spout swivels 360° to provide a large working radius, ideal for flexible positioning.
Suitable for kitchen islands thanks to the 360° swivel function and generous working radius.
Needs to be installed with a BLANCO water filter system for filtered drinking water functionality.
PVD satin dark steel finish for a modern, refined appearance.
Available colours : PVD steel, satin dark steel, satin platinum.
Ø 35 mm tap hole required for installation.
Flexible connector pipes, 500 mm long with ⅜'' nut included for connection.
Requires balanced high pressure supply only, with a minimum of 1.0 bar.
Optional metal stabilising bracket can be fitted, item number 513383.
Filter system sold separately , allowing choice of compatible BLANCO water filter system.

Technical Spec

Product nameFONTAS-S II Filter
Item number527737
Finish / main colourPVD satin dark steel
Available coloursPVD steel; satin dark steel; satin platinum
Tap typeMixer tap with filter function
Tap hole requirementØ 35 mm tap hole required
Connector pipesFlexible connector pipes, 500 mm long and ⅜'' nut
Water supply requirementBalanced high pressure supply only, minimum of 1.0 bar
Spout swivel range180°
Overall height306 mm
Base diameterØ 48 mm
Height to spout outlet270 mm
Spout reach (front)216 mm
Additional spout dimensions181 mm; 73 mm; 37 mm; 6.5 mm (as shown in side view)
Maximum worktop thickness (clamping)max. 59 mm
Filter system compatibilityNeeds to be installed with a BLANCO water filter system (filter system sold separately)
Optional accessoriesMetal stabilising bracket, item number 513383

Additional Details and Installation

The FONTAS-S II Filter combines a mixer tap with a filter outlet, providing separate outlets for drinking water and regular water. This separation prevents mixing between filtered and unfiltered water.

For installation, a Ø 35 mm tap hole is required. The tap is supplied with flexible connector pipes, 500 mm long with ⅜'' nut connections, and requires a balanced high pressure supply only, with a minimum pressure of 1.0 bar.

A BLANCO water filter system is needed to provide filtered drinking water through the dedicated outlet. The filter system is sold separately, allowing it to be selected and installed alongside the tap.

A metal stabilising bracket, item number 513383, can be fitted if required to enhance stability, particularly on thinner or less rigid worktops.

The spout swivels through 180° and, combined with the pull-out, extendable tap head, allows a large working radius for tasks such as filling and cleaning large pots or reaching around the sink area.

Downloads

Download product documentation, manuals, and specification sheets.

FONTASS11FILTERSATINDSTEEL Spec

PDF

Frequently Asked Questions

Does the tap mix filtered and regular water?

No. The tap has separate outlets for drinking water and regular water, so there is no mixing between the two.

What type of water supply is required?

The tap requires a balanced high pressure supply only, with a minimum pressure of 1.0 bar.

Do I need a separate filter system?

Yes. The tap needs to be installed with a BLANCO water filter system. The filter system is sold separately.

What installation hole size is needed in the worktop?

A Ø 35 mm tap hole is required for installation of the tap.

Is the tap suitable for kitchen islands?

Yes. The spout swivels 360° to provide a large working radius, which is great for positioning on kitchen islands.

What colours are available?

The tap is available in PVD steel, satin dark steel and satin platinum finishes.
