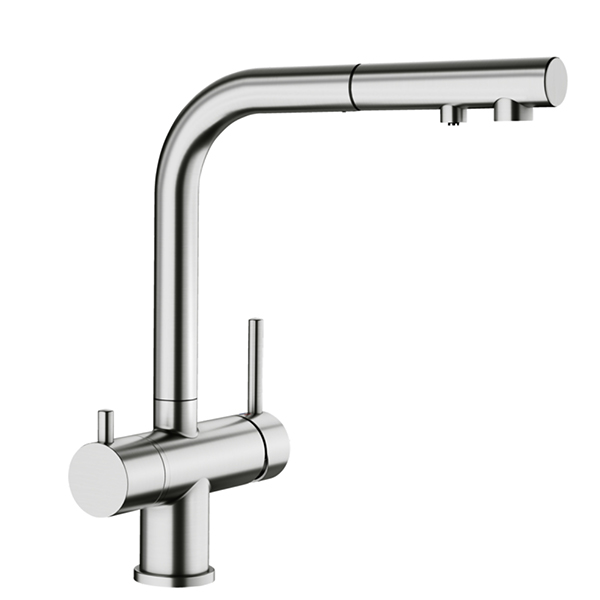

Blanco Fontas-S Filter Pull Out Tap

The FONTAS–S II Filter is a contemporary, versatile mixer tap designed for use with a BLANCO water filter system. It features separate outlets for drinking water and regular water to prevent mixing, a pull–out, extendable tap head for easier cleaning of large pots and around the sink, and a 360° swivelling spout that offers a generous working radius, making it especially suitable for positioning on kitchen islands.

SKU:FONTASS11FILTERPVDST

EAN:

Category::Taps

Quantity:

Key Features

Contemporary, versatile design – modern mixer tap styling suitable for a range of kitchen layouts.

Separate outlets for drinking and regular water – ensures there is no mixing of filtered drinking water with regular water.

Pull–out, extendable tap head – ideal for cleaning large pots and reaching around the sink area.

360° swivelling spout – provides a large working radius, particularly useful on kitchen islands.

Works with BLANCO water filter system – needs to be installed with a BLANCO water filter system (sold separately).

Balanced high pressure installation – requires a balanced high pressure supply with a minimum of 1.0 bar.

Sturdy mounting option – can be fitted with an optional metal stabilising bracket (item number 513383) if required.

Technical Spec

Item number525199

Tap hole diameter requiredØ 35 mm

Connector pipesFlexible connector pipes, 500 mm long and ⅜'' nut

Water supply requirementRequires balanced high pressure supply only, minimum of 1.0 bar

Swivel range180°

Overall tap height306 mm

Height to spout outlet272 mm

Deck to underside of spout270 mm

Spout reach (front)216 mm

Horizontal spout projection181 mm

Base diameter above deckØ 48 mm

Maximum worktop thickness (indicated)Max. 59 mm

Offset between bodies166 mm (main body to lever body)

Dimensions near spout73 mm and 37 mm segments at upper spout

Lever length (indicated)118 mm

Filter systemBLANCO water filter system required (sold separately)

Metal stabilising bracketOptional, item number 513383

Installation and Usage Details

The FONTAS–S II Filter mixer tap requires a Ø 35 mm tap hole for installation. It is supplied with 500 mm flexible connector pipes with a ⅜'' nut and must be connected to a balanced high pressure supply with a minimum pressure of 1.0 bar. A BLANCO water filter system is required for operation and is sold separately.

For additional stability on the worktop, a metal stabilising bracket (item number 513383) can be fitted if required. The 360° swivelling spout and pull–out, extendable tap head are designed to increase the working radius around the sink and make cleaning tasks easier.

Downloads

Download product documentation, manuals, and specification sheets.

FONTASS11FILTERPVDST Spec

PDF

Frequently Asked Questions

Does this tap keep filtered drinking water separate from regular water?

Yes. The tap has separate outlets for drinking water and regular water, so there is no mixing between the two.

What type of water supply do I need?

The tap requires a balanced high pressure supply only, with a minimum pressure of 1.0 bar.

Is a filter system included with the tap?

No. A BLANCO water filter system is needed for use with this tap and is sold separately.

What size tap hole is required in the worktop?

Installation requires a Ø 35 mm tap hole.

Can the spout rotate for better reach?

Yes. The spout swivels 360°, providing a large working radius and making it suitable for positioning on kitchen islands.
