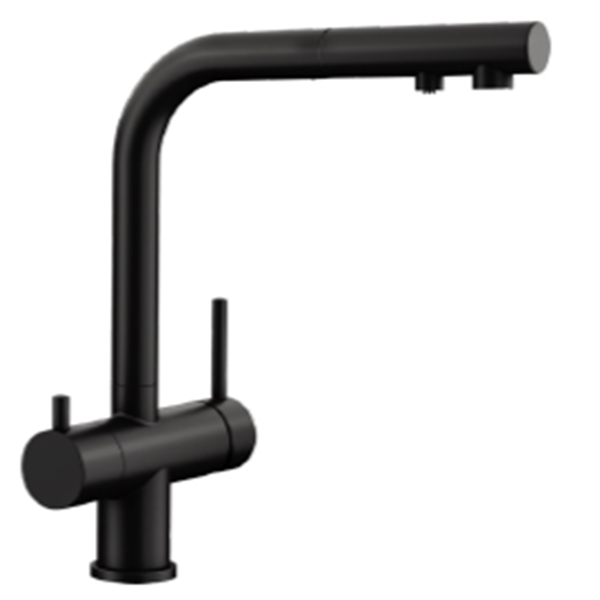

Blanco Fontas-S Filter Pull Out Tap

The BLANCO FONTAS-S II Filter is a contemporary, versatile kitchen mixer tap designed for use with a BLANCO water filter system. It features separate outlets for drinking water and regular water, ensuring there is no mixing. A pull-out, extendable tap head makes it practical for cleaning large pots and reaching around the sink, while the 360° swivelling spout offers a generous working radius, ideal for modern kitchen layouts including islands.

SKU:FONTASS11FILTERMBLACK

EAN:

Category::Taps

Quantity:

Key Features

Contemporary, versatile filter tap designed to complement modern kitchen spaces.

Separate outlets for drinking water and regular water , so there is no mixing of flows.

Pull-out, extendable tap head for easier cleaning of large pots and all areas around the sink.

Spout swivels 360° providing a large working radius, well suited to kitchen islands.

Requires BLANCO water filter system for operation as a filter tap (filter system sold separately).

Special colour black matt with black matt listed as the available colour.

Balanced high pressure supply only required, with a minimum of 1.0 bar.

Flexible connector pipes, 500 mm long with ⅜'' nut for installation convenience.

Metal stabilising bracket can be fitted if required (item number 513383).

Technical Spec

Product nameFONTAS-S II Filter

Item number526672

Colour / finishSpecial colours black matt; available colours: black matt

Tap hole diameter requiredØ 35 mm tap hole required

Connector pipesFlexible connector pipes, 500 mm long and ⅜'' nut

Water supply requirementRequires balanced high pressure supply only, minimum of 1.0 bar

Swivel range180°

Overall height306 mm

Mounting base diameterØ 48 mm

Height to spout outlet272 mm

Spout projection (front)216 mm

Spout front section length181 mm

Vertical body height below deck270 mm

Lever projection (rear)166 mm

Lever projection (side)118 mm

Vertical adjustment range below deckmax. 59 mm

Other dimensional details73 mm and 37 mm sections shown in side view; 6.5 mm detail in side view

Filter systemNeeds to be installed with a BLANCO water filter system (filter system sold separately)

Optional accessoryMetal stabilising bracket, item number 513383 (fit if required)

Installation and Usage Details

The mixer tap requires a Ø 35 mm tap hole and is supplied with flexible connector pipes that are 500 mm long with a ⅜'' nut. A balanced high pressure water supply with a minimum of 1.0 bar is required.

For added stability on certain sink or worktop materials, a metal stabilising bracket (item number 513383) can be fitted if required.

The tap must be installed in combination with a BLANCO water filter system, which is sold separately.

Downloads

Download product documentation, manuals, and specification sheets.

FONTASS11FILTERMBLACK Spec

PDF

Frequently Asked Questions

Does this tap provide separate outlets for filtered and regular water?

Yes. It has separate outlets for drinking water and regular water, so there is no mixing.

What type of water supply is required?

It requires a balanced high pressure supply only, with a minimum pressure of 1.0 bar.

Is the filter system included with the tap?

No. The filter system is sold separately. The tap needs to be installed with a BLANCO water filter system.

What is the swivel range of the spout?

The spout swivels 360°, with a 180° swivel range shown in the dimensional drawing to provide a large working radius.

What colour options are available?

The tap is listed with special colours black matt and the available colour stated is black matt.

What size tap hole is needed for installation?

A Ø 35 mm tap hole is required for installation.
