Blanco Fontas-S Filter Pull Out Tap

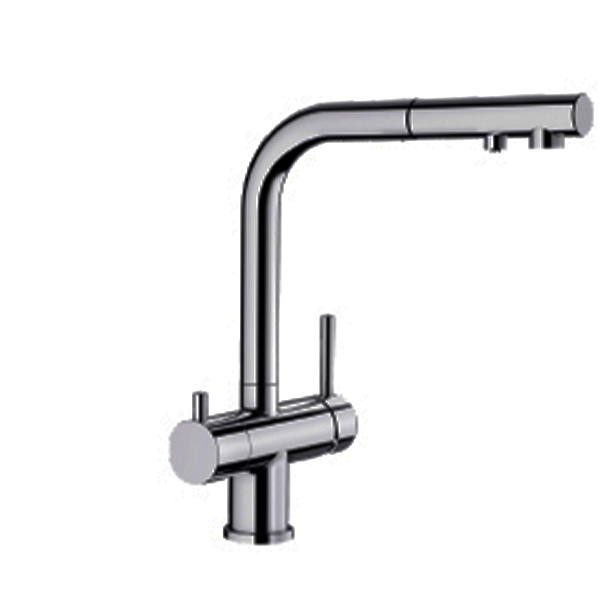

The FONTAS-S II Filter is a contemporary, versatile kitchen mixer tap designed for use with a BLANCO water filter system. It features separate outlets for filtered drinking water and regular water, helping to avoid mixing. A pull-out, extendable tap head makes it easier to clean large pots and work around the sink, while the swivelling spout provides a large working radius, ideal for modern kitchens including island installations.

SKU:FONTASS11FILTERCH

EAN:

Category::Taps

Quantity:

Key Features

Contemporary, versatile filter tap suitable for modern kitchen layouts.

Separate outlets for drinking water and regular water , so there's no mixing.

Pull-out, extendable tap head for easier cleaning of large pots and around the sink.

Spout swivels 360° to provide a large working radius, ideal for positioning on kitchen islands.

Designed to be installed with a BLANCO water filter system (filter system sold separately).

Supplied with flexible connector pipes 500 mm long with ⅜'' nut.

Requires balanced high pressure supply only with a minimum of 1.0 bar.

Metal stabilising bracket can be fitted if required (item number 513383).

Available colour: galvanic chrome / chrome for a sleek metallic finish.

360° swivel range for flexible positioning of the spout.

Technical Spec

Product nameFONTAS-S II Filter

Item number525198

Tap hole requirementØ 35 mm tap hole required

Connector pipesFlexible connector pipes, 500 mm long and ⅜'' nut

Water supply requirementRequires balanced high pressure supply only, minimum of 1.0 bar

Stabilising bracketFit metal stabilising bracket if required, item number 513383

Filter systemNeeds to be installed with a BLANCO water filter system (filter system sold separately)

Swivel range180° shown in detail image; spout swivels 360°

Overall height306 mm (from base to top, front view)

Base diameterØ 48 mm (at mounting point)

Spout height270–272 mm (side view dimensions)

Spout reach216 mm to outlet (side view)

Additional side view dimensions181 mm, 73 mm, 37 mm, 6.5 mm, max. 59 mm (as shown in side view drawing)

Colour / finishgalvanic chrome; available colours: chrome

Installation and Usage Details

This mixer tap requires a Ø 35 mm tap hole and is supplied with flexible connector pipes, 500 mm long with ⅜'' nut fittings. A balanced high pressure water supply with a minimum of 1.0 bar is required for correct operation.

The tap must be installed together with a BLANCO water filter system to provide filtered drinking water via the dedicated outlet. The filter system is sold separately.

A metal stabilising bracket (item number 513383) can be fitted if required to provide additional support, for example on thinner or less stable worktops.

The pull-out, extendable tap head and 360° swivelling spout are designed to increase the working radius around the sink, making it easier to rinse, fill and clean in different areas of the bowl and on kitchen islands.

Downloads

Download product documentation, manuals, and specification sheets.

FONTASS11FILTERCH Spec

PDF

Frequently Asked Questions

Does this tap keep filtered drinking water separate from regular water?

Yes. The FONTAS-S II Filter tap has separate outlets for drinking water and regular water, so there's no mixing between the two.

Is a water filter system included with the tap?

No. The tap needs to be installed with a BLANCO water filter system, but the filter system is sold separately.

What water pressure do I need for this tap?

The tap requires a balanced high pressure supply only, with a minimum pressure of 1.0 bar.

What size tap hole is required for installation?

A Ø 35 mm tap hole is required to install the FONTAS-S II Filter mixer tap.

Does the spout rotate?

Yes. The spout swivels 360° to provide a large working radius, which is especially useful on kitchen islands.
