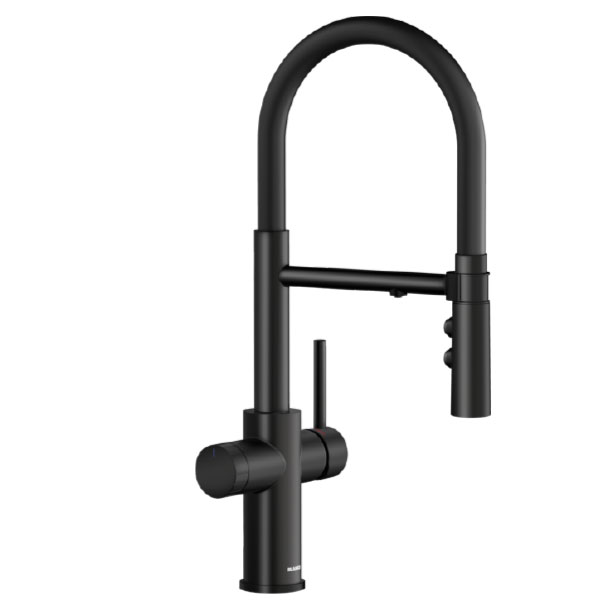

Blanco Catris-S Flexo Filter Pull Out Tap

The BLANCO CATRIS-S Flexo Filter is a contemporary semi-professional mixer tap with a distinguished design, ideal for modern kitchens needing fresh filtered water directly from the tap. It features a flexible, moveable spray hose for extra reach around the sink, a 360° swivelling spout for a large working radius, and separate outlets for drinking water and regular water, helping to avoid mixing while offering practical jet spray functionality.

SKU:CATRISSFLEXOFILTERBM

EAN:

Category::Taps

Quantity:

Key Features

Contemporary semi-professional design with a distinguished appearance suitable for modern kitchen spaces.

Flexible, moveable spray hose for extra reach around the sink.

Fresh filtered water directly from the tap when installed with a BLANCO water filter system.

Separate outlets for drinking water and regular water so there is no mixing between filtered and regular water.

Jet spray option for regular water for cleaning fruit and vegetables.

Precise magnetic holder ensures convenient hose docking.

Spout swivels 360° to provide a large working radius.

Designed for use with BLANCO water filter system ; filter system is sold separately.

Available colour: black matt with special black matt finish.

Requires balanced high pressure supply with a minimum of 1.0 bar.

Technical Spec

Item number526707

Tap typeContemporary semi-professional mixer tap

Colour / finishBlack matt (special colour)

Tap hole requirementØ 35 mm tap hole required

Connector pipesFlexible connector pipes, 700 mm long and ⅜'' nut

Water supply requirementRequires balanced high pressure supply only, minimum 1.0 bar

Swivel rangeSpout swivels 360°

Filter system compatibilityNeeds to be installed with a BLANCO water filter system (filter system sold separately)

Stabilising bracket (optional)Fit metal stabilising bracket if required, item number 513383

Spray hoseFlexible, moveable spray hose with jet spray option for regular water

Hose dockingPrecise magnetic holder

Separate outletsSeparate outlets for drinking water and regular water

Body diameter (base)Ø 48 mm (base view dimension)

Lever-side diameterØ 54 mm (lever side detail)

Spray bar diameterØ 17 mm and Ø 29 mm (spray section dimensions)

Overall height475 mm (side view dimension)

Spout reach229.8 mm (side view dimension)

Spout height to outlet297.5 mm and 260.5 mm (side view dimensions)

Additional dimensional detailsMultiple detailed measurements shown: 73.7 mm, 74.8 mm, 44 mm, 105.5 mm, 6 mm, 148 mm, 150.6 mm, 120 mm, 186.8 mm

Installation and Usage Details

Installation requires a Ø 35 mm tap hole and a balanced high pressure water supply with a minimum pressure of 1.0 bar. Flexible connector pipes (700 mm long with ⅜'' nut) are included in the scope of supply. A metal stabilising bracket, item number 513383, should be fitted if required.

The tap must be installed with a BLANCO water filter system to provide fresh filtered water directly from the tap. The filter system is sold separately.

For everyday use, the flexible, moveable spray hose offers extended reach around the sink, with a jet spray option available for regular water, making it suitable for tasks such as cleaning fruit and vegetables. The precise magnetic holder ensures that the hose docks conveniently after use, and the 360° swivelling spout provides a large working radius at the sink.

Downloads

Download product documentation, manuals, and specification sheets.

CATRISSFLEXOFILTERBM Spec

PDF

Frequently Asked Questions

Does this tap provide filtered drinking water?

Yes. The tap provides fresh filtered water directly from the tap when installed with a BLANCO water filter system, and it has separate outlets for drinking water and regular water so there is no mixing.

Is a water filter system included?

No. The tap needs to be installed with a BLANCO water filter system, but the filter system is sold separately.

What water pressure does this tap require?

The tap requires a balanced high pressure supply only, with a minimum pressure of 1.0 bar.

What colour options are available?

The tap is available in black matt, described as a special black matt colour.

How far can the spout and hose reach?

The spout swivels 360° to provide a large working radius, and the flexible, moveable spray hose offers extra reach around the sink.

Is a stabilising bracket supplied?

A metal stabilising bracket with item number 513383 should be fitted if required. Not stated in source whether it is included or must be purchased separately.
