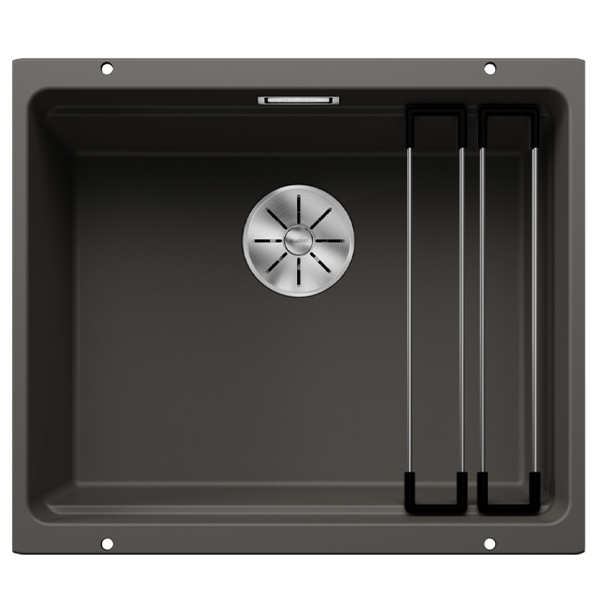

Blanco Etagon 500U Silgranit Undermount Sink

The ETAGON 500-U is a multifunctional bowl sink designed for smooth multitasking in the kitchen. Clever ETAGON rails create separate working levels, allowing you to fill cookware, soak baking trays and still use the top half of the bowl. Easily removable stainless-steel rails can be used around the sink area, while the elegant InFino basket strainer ensures swift water drainage. Available in durable SILGRANIT volcano grey with a choice of several additional colours.

SKU:ETAGON500USILGVOLCG

EAN:

Category::Sinks

Quantity:

Key Features

Multifunctional bowl design for smooth multitasking at the sink.

Clever ETAGON rails provide separate working levels within the bowl.

Hands-free cookware filling so you can fill pans without holding or resting them in a wet sink.

Soak baking trays while still using the top half of the bowl for other tasks.

Easily removable rails for flexible utilisation around the sink area.

Elegant InFino strainer for swift and efficient water drainage.

Supplied ETAGON rails in stainless steel (2 × ETAGON rails, ref. 234164).

Space-saving waste fitting with pipe to optimise the area beneath the sink.

Pairing option with BLANCO UNIT drinks system to effortlessly fill pots and glasses using the ETAGON rails.

SILGRANIT volcano grey finish with a range of available colours including black, anthracite, rock grey, volcano grey, white, soft white, tartufo and coffee.

Technical Spec

Product nameETAGON 500-U

Item number527258

Material / finishSILGRANIT volcano grey

Available coloursblack, anthracite, rock grey, volcano grey, white, soft white, tartufo, coffee

Cut-out size500 x 400 x R20, Universal handing

Overall top-view width530 mm

Overall top-view front-to-back370 mm

Front edge to bowl front50 mm (top view dimension)

Bowl width (left to right)500 mm (cut-out width)

Bowl front-to-back400 mm (cut-out depth)

Corner radiusR20

Cabinet width (front view reference)600 mm (front view overall width)

Worktop depth (front view)50 mm front worktop projection above the bowl

Distance from front edge to bowl front (front view)50 mm

Distance from back wall to bowl back (side view)400 mm

Bowl height (front view)200 mm from worktop underside to bowl base

Overall installation height (side view)317 mm from worktop surface to lowest point of waste fitting

Waste fittingWaste fitting with space-saving pipe

Strainer type3 ½'' InFino basket strainer

Rails included2 × ETAGON rails in stainless steel (234164)

HandingUniversal handing

Downloads

Download product documentation, manuals, and specification sheets.

ETAGON500USILGVOLCG Spec

PDF

Frequently Asked Questions

What is included with the ETAGON 500-U?

The ETAGON 500-U is supplied with ETAGON rails in stainless steel (2 × ETAGON rails, reference 234164), a waste fitting with space-saving pipe and a 3 ½'' InFino basket strainer.

What is the cut-out size required for installation?

The required cut-out size is 500 x 400 x R20 with universal handing.

Which colours are available?

The sink is shown in SILGRANIT volcano grey and is available in black, anthracite, rock grey, volcano grey, white, soft white, tartufo and coffee.

How do the ETAGON rails improve functionality?

The ETAGON rails create separate working levels in the bowl, allowing you to multitask. You can fill cookware without holding it, soak baking trays and still use the top half of the bowl for other activities.

Can the rails be removed?

Yes, the rails are easily removed for utilisation around the sink, providing flexible use of the working area.
