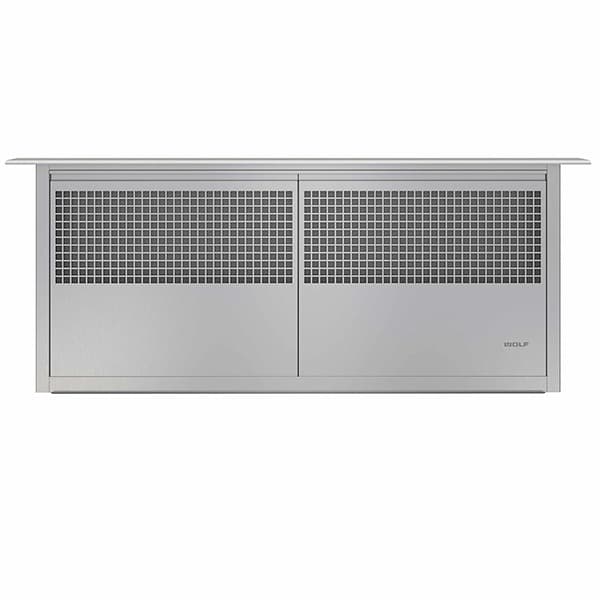

The Wolf ICBDD36 is a 914 mm retractable downdraft extractor hood designed for elegant, minimal kitchens, including open-plan layouts. It helps you breathe clean air and enjoy fewer greasy residues in your cooking space. The hood disappears when not in use and can be operated via remote control up to 3 metres from the appliance. It integrates seamlessly with Sub-Zero & Wolf appliances and offers a choice of integrated or external motor options.

Key Features

Improved air quality – helps you breathe clean air and enjoy fewer greasy residues in your kitchen.
Retractable design – the hood “disappears” when not in use for an elegant, minimal look.
Suitable for open kitchens – design and operation support use in open-plan kitchen spaces.
Remote control operation – can be used with the remote control up to 3 metres from the appliance.
Seamless appliance integration – integrates perfectly with the design of Sub-Zero & Wolf appliances.
Motor options – choose between integrated or external motor configurations.
Back-draught reduction – minimises cold air reflux with an intake damper.
Flush installation – supports flush-fit installation for a clean, built-in appearance.

Technical Specifications

Model	ICBDD36
Product type	Hotte escamotable – 914 mm (retractable downdraft extractor)
Dimensions	914 mm L x 356 mm H x 51 mm P
Shipping weight	36 Kg
Voltage & frequency	220–240 V, 50/60 Hz
Integrated motor airflow	900 m³/h
External motor airflow options	1521 m³/h or 2028 m³/h
Vent duct type (integrated motor)	152 mm round
Vent duct type (external motor)	254 mm round
Installation type	Installation à fleur (flush installation)
Energy rating	Not stated in source

Specifications are subject to change without notice. Information generated on 18 July 2019.

Additional Details and Accessories

The downdraft extractor is designed for flush installation and integration with Sub-Zero & Wolf cooking appliances, including a combined installation kit with a contemporary-finish induction hob.

Accessories

Flexible duct 254 mm
Flexible duct 152 mm
Combined installation kit with induction hob, contemporary finish
Intake damper (clapet d'entrée d'air)
Recirculation kit

Motor Options

The appliance can be specified with an integrated motor providing 900 m³/h airflow, or with external motors offering either 1521 m³/h or 2028 m³/h airflow performance.

Frequently Asked Questions

What are the overall dimensions of the ICBDD36 downdraft hood?

The dimensions are 914 mm length, 356 mm height and 51 mm depth.

Can the downdraft hood be hidden when not in use?

Yes. The hood “disappears” when it is not being used, giving an elegant, minimal appearance that suits open-plan kitchens.

How far away can I use the remote control?

The hood can be operated using the remote control at distances of up to 3 metres from the appliance.

What motor options are available and what airflow do they provide?

There is an integrated motor with 900 m³/h airflow. External motor options provide either 1521 m³/h or 2028 m³/h airflow.

What duct sizes are required for installation?

With an integrated motor, a 152 mm round duct is used. With an external motor, a 254 mm round duct is required.

Does the hood help reduce cold air coming back into the kitchen?

Yes. It minimises cold air reflux with an intake damper designed to reduce back-draughts.
