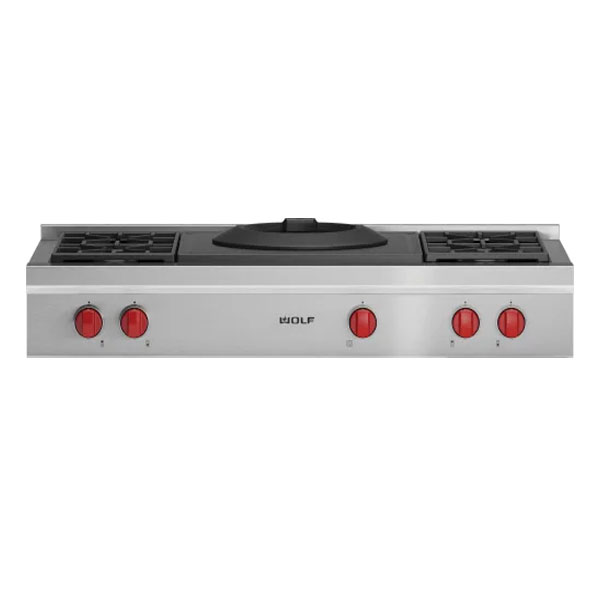

The SRT484W is a 48' sealed burner rangetop with four gas burners and a dedicated wok burner designed for a wide range of wok cooking techniques. It offers dual-stacked, sealed burners for precise control from high output to a gentle simmer, plus a powerful 35,000 Btu wok burner with a porcelain-coated cast-iron wok ring. Continuous cast-iron grates, sealed burner pans and heavy-gauge stainless steel with signature infinite control knobs support both performance and easy cleaning.

Key Features

High-performance wok burner handles wok cooking from searing highs of 35,000 Btu to simmering lows of 3,500 Btu.
Plumed wok burner flame focuses heat in the centre of the wok and creates graduated temperature zones along the sides.
Porcelain-coated cast-iron wok ring cradles a traditional round-bottom wok, allowing extreme pan manoeuvrability and the ability to angle the pan towards the cook.
Wok burner grate extends the wok burner capability for use with flat-bottom pans.
Dual-stacked burners provide control from 20,000 Btu down to a mere breath of flame.
Lower-tier burner control allows sauces, soups and marinades to simmer and melt easily.
Sealed, seamless burner pans and a drip zone around the wok burner chamber help contain sloshes and spills for easier clean-up.
Continuous cast-iron grates let you move pots and pans effortlessly across the cooking surface.
Spark ignition system automatically reignites the flame on the dual-stacked, sealed burners.
Heavy-gauge stainless steel finish with signature red infinite control knobs matches other Sub-Zero, Wolf and Cove products.
Stainless-steel island trim is included with the rangetop.

Technical Specifications

Model	SRT484W
Product type	48' sealed burner rangetop – 4 burners and wok burner
Dimensions	47 7/8'W x 10'H x 28 1/2'D
Electrical supply	120 VAC, 60 Hz
Electrical service	15 amp dedicated circuit
Gas supply	3/4' ID line
Gas inlet	1/2' NPT female
Receptacle	3-prong grounding-type
Burner outputs	1 – 9,200 Btu burner; 1 – 15,000 Btu burner; 1 – 18,000 Btu burner; 1 – 20,000 Btu burner; 1 – 35,000 Btu wok burner
Finish and trims	Heavy-gauge stainless steel with stainless-steel island trim and stainless-steel bezels
Knob options	Sealed Burner Rangetop with Wok Black Knobs; Sealed Burner Rangetop with Wok Red Knobs; Sealed Burner Rangetop with Wok Stainless Knobs
Bezel options	Stainless steel, brass or chrome bezels

Specifications are subject to change without notice. Dimensions in parenthesis are in millimetres unless otherwise specified. This information was generated on March 15, 2021.

Additional Details and Accessories

The rangetop includes stainless-steel island trim and features stainless-steel bezels as standard. The top configuration includes 9K, 15K, 18K, 20K and 35K Btu positions. Dual-stacked, sealed burners with spark ignition provide reliable lighting and automatic flame reignition.

Available accessories:

2-Burner Wok Grate
Filler Trim
S-Grates
Sealed Burner Rangetop with Wok Black Knobs
Sealed Burner Rangetop with Wok Red Knobs
Sealed Burner Rangetop with Wok Stainless Knobs
Stainless steel, brass or chrome bezels
High altitude conversion kits
5' and 10' stainless steel risers
20' riser with shelf

Accessories are available through an authorised dealer. For local dealer information, visit subzero-wolf.com/locator.

Frequently Asked Questions

What is the maximum output of the wok burner?

The dedicated wok burner has searing highs of 35,000 Btu and can be reduced to simmering lows of 3,500 Btu.

How many burners does the rangetop have and what are their outputs?

The rangetop has four standard burners and one wok burner: one 9,200 Btu burner, one 15,000 Btu burner, one 18,000 Btu burner, one 20,000 Btu burner and one 35,000 Btu wok burner.

Are the burners sealed and easy to clean?

Yes. The dual-stacked burners are sealed, and the seamless burner pans plus the drip zone around the wok burner chamber help contain sloshes and spills for easier clean-up.

What electrical and gas supplies are required?

The rangetop requires a 120 VAC, 60 Hz electrical supply on a 15 amp dedicated circuit, a 3/4' ID gas supply line and a 1/2' NPT female gas inlet, with a 3-prong grounding-type receptacle.

What knob and bezel options are available?

Knob options include black, red and stainless knobs for sealed burner rangetops with wok. Bezel options are stainless steel, brass or chrome.
